These pumps run under brutal conditions. Water near boiling, high discharge pressure, constant cycling. Over time, that stress creates predictable failure patterns: cavitation, wear, misalignment, and feedwater contamination.
This guide walks through common problems, root causes, a step-by-step troubleshooting process, and how to decide between repair and replacement. We'll also cover when it's time to call an emergency repair specialist like Houston Pump & Gear instead of tackling it in-house.
TL;DR
- Most common issues: cavitation, low or no flow, overheating/bearing wear, seal leakage, and electrical faults
- Repair vs. replace: repair when the casing and shaft are intact; replace only after repeated failures or severe erosion
- Fix process: identify symptoms, confirm root cause, apply the correct repair, then validate under load
- Call a professional when downtime is costly, the failure is complex, or you face an emergency shutdown
What Is a Boiler Feed Pump?

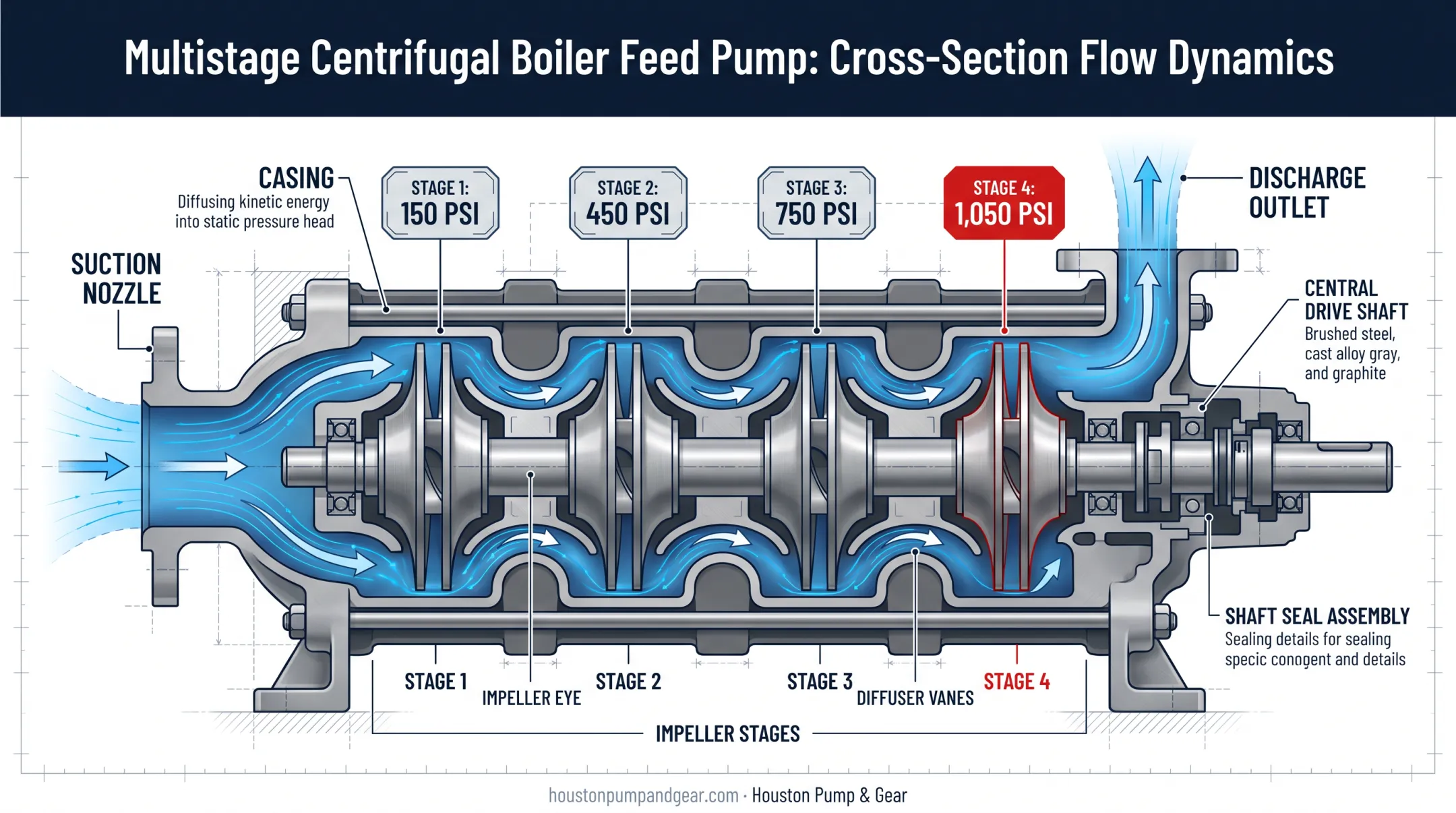

A boiler feed pump is a multistage centrifugal pump, typically fitted with three or more impellers, built to move feedwater from the deaerator or feedwater tank into the boiler at high pressure.
Water enters through the suction nozzle at the impeller's center. Rotating vanes push it outward, boosting velocity and pressure at each stage, while the casing diffuses that energy into usable head. Each additional impeller stage adds pressure, which is why these pumps can hit the extreme heads boilers require.
These pumps are working systems under constant stress. Impellers wear even when everything else runs correctly. Bearings, seals, and couplings degrade under continuous high-temperature service. Ongoing maintenance and repair are part of the pump's operating life.
Common Problems With Boiler Feed Pumps
Most feed pump failures trace back to a handful of recurring root causes, not random bad luck.
Cavitation
- Symptoms: gravelly or crackling noise, vibration, falling discharge pressure
- Likely cause: insufficient NPSH margin, low deaerator level, or a clogged suction strainer
Cavitation happens when suction pressure drops below what the pump needs to keep the liquid from vaporizing. Once vapor bubbles collapse against the impeller, they cause pitting damage that only gets worse with time.
Low or No Flow
- Symptoms: reduced output, boiler struggling to hold water level
- Likely cause: a closed or stuck valve, lost prime, or a worn impeller and wear rings
When flow drops or stops, the boiler cannot hold proper drum level. Finding a stuck valve, lost prime, or worn impeller and wear rings early often prevents a full trip and a longer outage.
Overheating and Bearing Wear
- Symptoms: hot casing, rising bearing temperature, unusual sounds
- Likely cause: low-flow operation, lost lubrication, or misalignment
Bearings that overheat during extended runs often pick up metal shavings. Once contamination shows up in bearings, seals, or couplings, those parts typically need replacing outright.
Seal Leakage
- Symptoms: visible water at the shaft, dripping or weeping seal
- Likely cause: worn mechanical seal faces, shaft deflection, or abrasive feedwater
A mechanical seal uses two ring faces to separate the static casing from the rotating shaft. Once those faces wear unevenly, leakage follows.
Electrical and Control Faults
- Symptoms: pump won't start, trips on overload, runs at the wrong times
- Likely cause: voltage issues, a faulty level controller, or a seized rotor
Power and control faults can look like a failed pump until you check supply voltage, the level controller, and the starter. A seized rotor will also trip overload protection and leave the unit dead on the pad.
Matching symptoms to the right root cause shortens diagnosis and keeps repair work focused on what actually failed.
Why Boiler Feed Pumps Fail (Root Causes)
Feed pumps operate near their limits by design: near-boiling feedwater, high pressure, and thin NPSH margins. Under those conditions, several factors turn normal wear into premature failure.
Common root causes include:
- Dirt, moisture, or contamination inside the motor housing
- Improper sizing at installation
- Lack of vibration and temperature trending
- Running outside design conditions (overload, dry run, or incompatible fluid)
Damage from those conditions is often irreversible. The pump may keep running for a while, but peak performance and service life drop.
Ignoring early warning signs leads to:
- Reduced boiler efficiency and steam output
- Unplanned emergency shutdowns
- Safety risks from high-pressure, high-temperature failure
- Costly downtime for every hour a plant sits idle
A failure at 2 a.m. on a Saturday still needs an answer. Rapid-response repair exists for power plants and heavy industry that cannot wait until Monday.

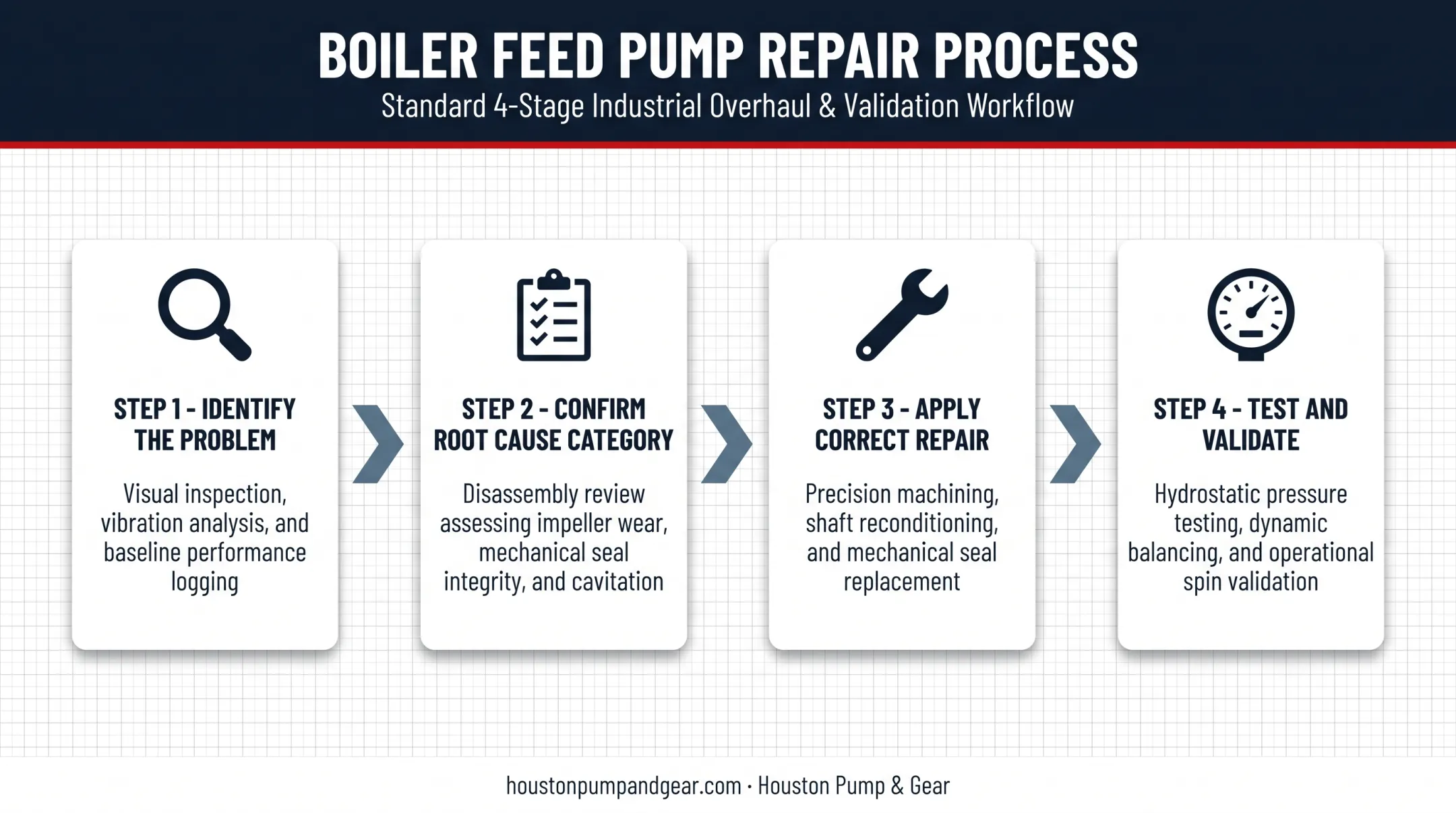

How to Fix a Boiler Feed Pump (Step-by-Step)
Jumping straight to a fix without confirming the exact fault usually means repeat failures and wasted parts spend. A disciplined process gets it right the first time.
Step 1: Identify the Exact Problem
- Observe visible symptoms: leaks, noise, vibration, overheating, lost output
- Note when the issue shows up — startup, under load, or continuous run
- Check control panel alarms and level indicators
Step 2: Confirm the Root Cause Category
Determine whether you're dealing with:
- Mechanical issues (bearings, seals, impeller)
- Electrical issues (motor, wiring, controls)
- Suction-related issues (NPSH, strainer, deaerator level)
Rule out external factors like feedwater quality and valve positioning before you open the pump. Skipping this step is how facilities end up replacing parts that were never the problem.
Step 3: Fix the Pump Based on the Diagnosis
Match the repair to the diagnosis. Wrong-path work burns time and parts budget.
If mechanical:
- Replace bearings and seals
- Repair or rebalance the impeller
- Correct alignment, then inspect clearances and shaft condition before reassembly
If electrical:
- Inspect motor windings
- Check wiring and connections
- Recalibrate protective relays
If suction/environmental:
- Restore NPSH margin
- Clear strainers and correct deaerator level
- Verify the minimum-flow line is functioning
Complex jobs — full impeller rebuilds, motor rewinds, reverse-engineering obsolete components — often need a specialized shop with mobile pickup. Houston Pump & Gear provides 24/7 emergency response with dedicated transport trucks, so a failed unit can move into the shop and return on-site quickly instead of waiting in a queue.
Step 4: Test and Validate the Fix
- Run the pump under normal and peak load conditions
- Measure vibration and bearing temperature at multiple points with a vibration meter and infrared thermometer, checking against baseline
- Confirm discharge pressure and flow match rated performance before signing off
Only sign off once vibration, temperature, pressure, and flow all hold steady under load.
When Should You Fix vs Replace a Boiler Feed Pump?
Weigh repair cost against downtime risk and long-term reliability. Here's how that plays out across common scenarios:
| Scenario | Fix | Replace |
|---|---|---|
| Minor seal/bearing wear on a sound pump | Rebuild seals/bearings, realign, return to service | Rarely needed unless casing or shaft is damaged |
| Cavitation caught early | Repair impeller, correct suction conditions | Only if impeller erosion is beyond repair tolerance |
| Repeated failures despite repairs | Unlikely to hold if sizing/duty point is wrong | Replace with a correctly sized pump matched to duty |
| Emergency shutdown, aged unit, critical uptime | 24/7 emergency repair to restore service fast | Only after an engineering review shows the unit is beyond economical repair |
Reverse engineering is worth considering when parts are obsolete or hard to source. It is often a faster, more affordable path back to production than full replacement. It also restores the pump to OEM specifications rather than a generic substitute.
Common Mistakes to Avoid When Fixing a Boiler Feed Pump
Downtime pressure makes it tempting to rush a boiler feed pump back online. These mistakes are how a quick fix turns into a second outage.
- Treating the symptom, not the cause. Chasing vibration without confirming what drives it leads to repeat failures.
- Skipping post-repair load testing. A pump that looks fine on the bench can still fail under real operating conditions.
- Using generic replacement parts. Specialized industrial models need components built to OEM spec, not off-the-shelf substitutes.

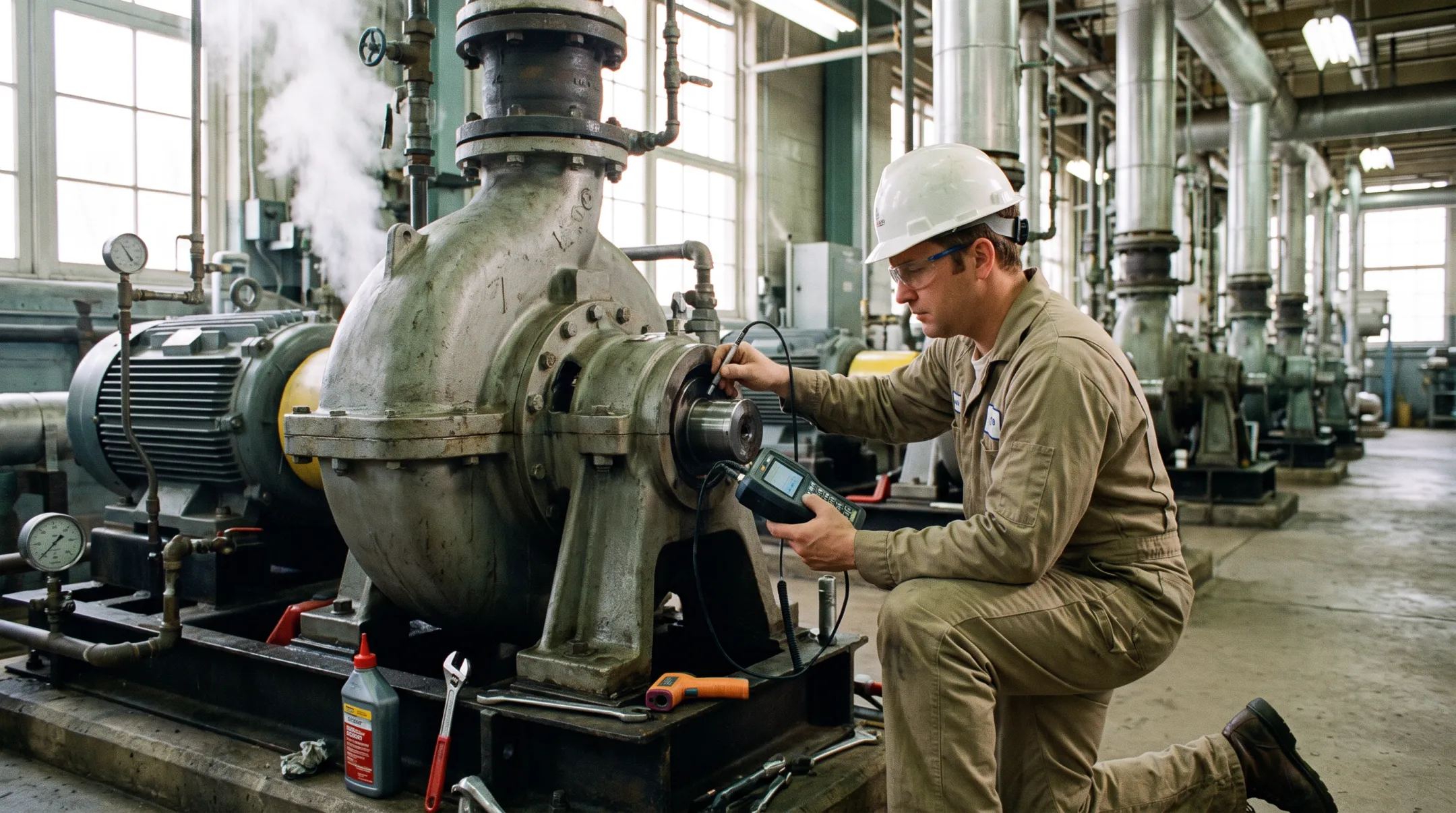

Preventive Measures to Avoid Future Failures
Preventive maintenance costs less than emergency repair, especially at power plants where downtime hits production directly.
- Run regular inspections with vibration and temperature trend logging against each pump's healthy baseline
- Schedule lubrication, seal checks, and strainer cleaning on a fixed interval
- Maintain feedwater quality and NPSH margin
- Partner with an experienced 24/7 emergency repair provider for both scheduled service and rapid response
Those steps work best with a partner who can run them on a set cadence. Houston Pump & Gear's pump inspection and maintenance service catches wear, mechanical damage, seal problems, and shaft issues before they become unplanned downtime.
Conclusion
Most boiler feed pump issues are fixable if they're caught early. Correct diagnosis before repair matters most. Chasing symptoms without confirming the root cause almost guarantees a repeat failure.
Knowing when to fix versus replace, and having emergency repair support on call, saves both cost and downtime. Houston Pump & Gear provides 24/7 industrial pump repair for power plants and heavy industry when unplanned failures hit.
Frequently Asked Questions
What are the symptoms of a boiler feed pump failure?
Watch for vibration, gravelly noise, falling discharge pressure, seal leakage, and unexpected motor trips. Any of these warrants investigation before the pump fails outright.
What is the most common reason for boiler feed pump failure?
Suction-side problems like cavitation and NPSH shortfalls are the most common cause. Bearing wear from poor lubrication or contamination is a close second.
What is a feed pump in a boiler?
It's the pump that delivers feedwater from the deaerator into the boiler at the pressure needed to sustain steam generation. Without it, boiler drum levels can't be maintained.
What are the names of the parts of a boiler feed pump?
Main components include the impeller, diffuser, mechanical seal, bearings, shaft, and casing. Each plays a role in building and containing pressure safely.
How often should a boiler feed pump be inspected?
Inspection frequency should follow the OEM manual as a baseline, backed by ongoing vibration and temperature monitoring adjusted for duty cycle and water quality.
How quickly can an emergency boiler feed pump repair be completed?
Experienced shops with 24/7 response and mobile pickup, like Houston Pump & Gear, can often complete critical repairs within days (sometimes hours). Call +1 832-603-9663 for emergency support.
