Selecting the right seal type isn't a paperwork exercise. It directly affects safety, uptime, and how often maintenance crews get called in for emergency repairs. This article breaks down single versus double mechanical seals, how they differ, and how to choose the right one for your application.
TL;DR
- Mechanical seals stop shaft leakage and protect bearings and internal pump components
- Single seals use one face set; double seals use two with barrier or buffer fluid for higher-risk service
- Match seal type to fluid, pressure, temperature, hazard level, and acceptable downtime
- Wrong seal choice drives premature failure, unplanned downtime, and expensive emergency repairs
What Is a Mechanical Seal?

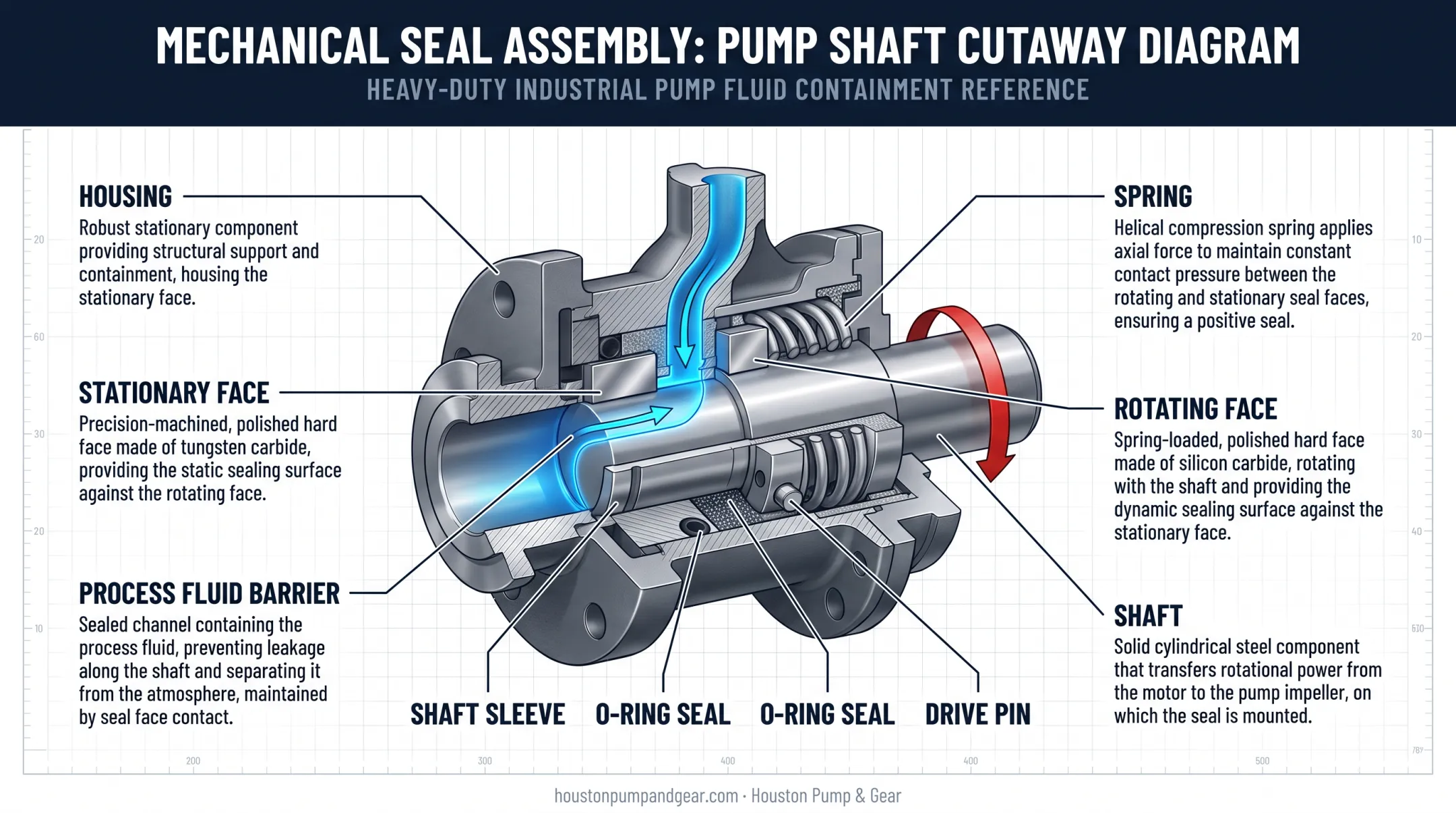

A mechanical seal uses two flat, precision-lapped faces: one rotates with the shaft, one stays fixed to the housing. Spring pressure holds them together, creating a barrier that keeps process fluid contained while allowing the shaft to turn freely.
These seals are standard in pumps across power generation, chemical processing, refining, and general industrial facilities. Containment is only part of the job:
- Keep process fluid from leaking at the shaft
- Protect bearings and motors from contamination
- Extend pump life from months into years of reliable service
A mechanical seal is a maintenance-critical component. The seal you choose directly determines how much downtime risk you're carrying.
Why Mechanical Seal Selection Is Important for Pump Reliability
Get the seal wrong, and the consequences show up fast:
- Dry running damage from inadequate lubrication at the seal faces
- Unplanned shutdowns when a seal fails mid-operation
- Product contamination from fluid crossing where it shouldn't
- Expensive emergency repairs that could have been avoided with proper specification
Choosing a mechanical seal requires weighing seven factors:
- Fluid being pumped
- Operating pressure
- Temperature
- Shaft dimensions
- Material compatibility
- Shaft speed
- Seal materials
Skip any of these during selection, and you're gambling with reliability.
Single and double seals exist as separate solutions for this reason. They're built for different risk profiles, not interchangeable options where one is simply "better."
Types of Mechanical Seals for Pumps
Seal type isn't one-size-fits-all. Fluid properties, pressure, temperature, and hazard level all push the decision in different directions. Two configurations dominate industrial pump applications, and each addresses different reliability and safety needs.
Single Mechanical Seals

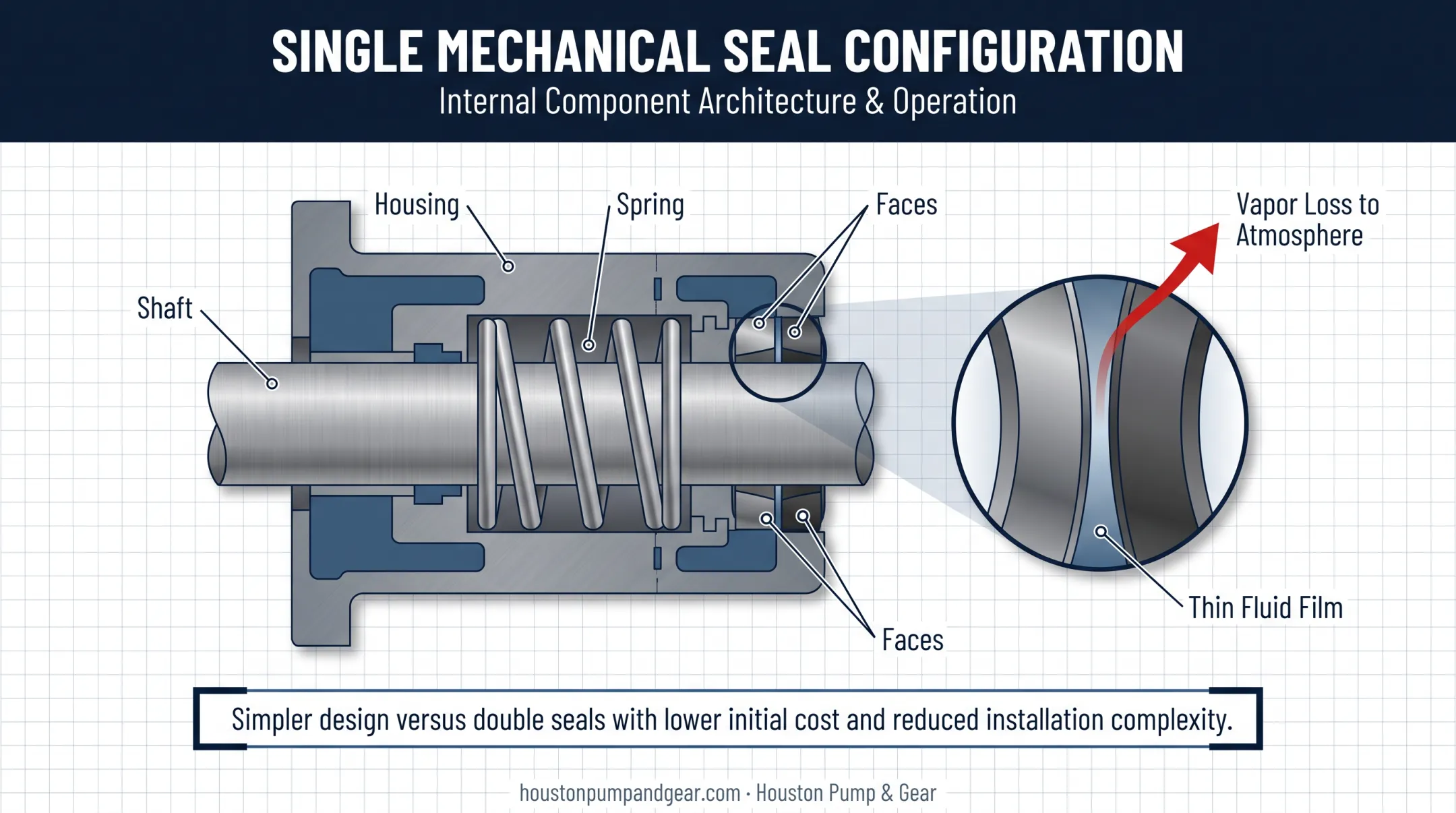

A single mechanical seal has one set of sealing faces (one rotating, one stationary) held together by spring tension. A thin fluid film between the faces lubricates and cools them as they spin. A small amount of vapor loss to atmosphere is normal and expected; it's not a defect.
Single seals use only one pair of faces and skip the barrier fluid system entirely, so they are structurally simpler than double seals.
Best suited for:
- Clean, low-viscosity, non-hazardous fluids at moderate pressure and temperature (water, general process fluids)
- Facilities prioritizing lower upfront cost and simpler maintenance routines
They cost less, install faster, and have fewer parts to service. The tradeoff is clear: if the seal fails, leakage happens immediately with no backup layer. Single seals also have limited tolerance for dry running or abrasive, hazardous media. Push them past their design envelope, and failure comes quickly.
Double Mechanical Seals

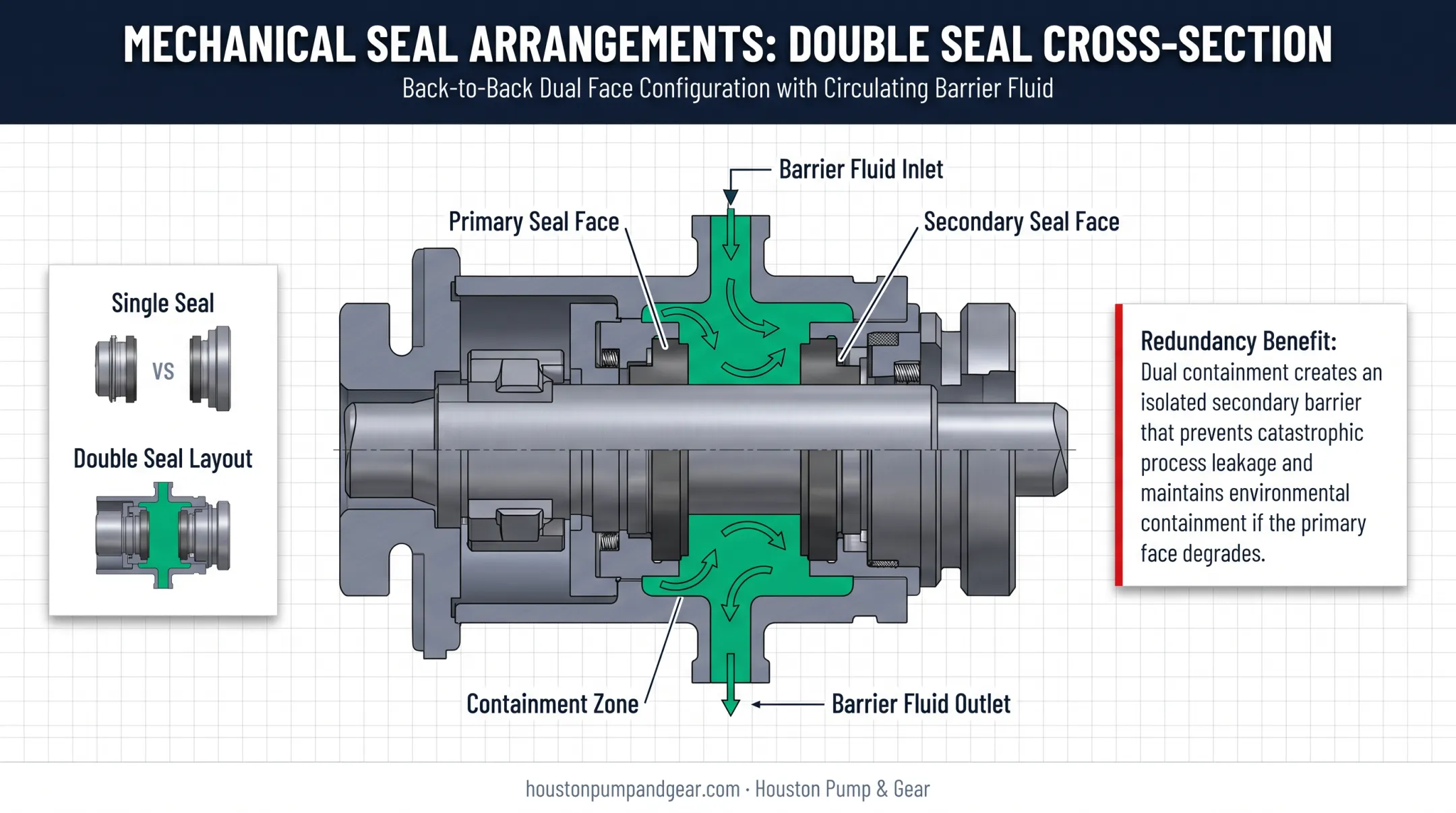

Double mechanical seals use two sets of sealing faces arranged in series (back-to-back, face-to-face, or tandem) with a barrier or buffer fluid circulating between them. That fluid lubricates and cools both sets of faces while acting as a secondary containment layer if the primary seal fails.
Double seals require a barrier fluid system and additional hardware. That complexity buys redundancy a single seal does not have.
Best suited for:
- Hazardous, toxic, abrasive, or crystallizing fluids
- High-value process fluids where any loss is costly
- High-pressure or high-temperature operations common in power plants and heavy industry
They deliver stronger containment, longer life under harsh conditions, and safer handling of dangerous fluids. The cost is higher upfront cost, a barrier fluid system to maintain, and more components to keep up. You trade simplicity for protection.

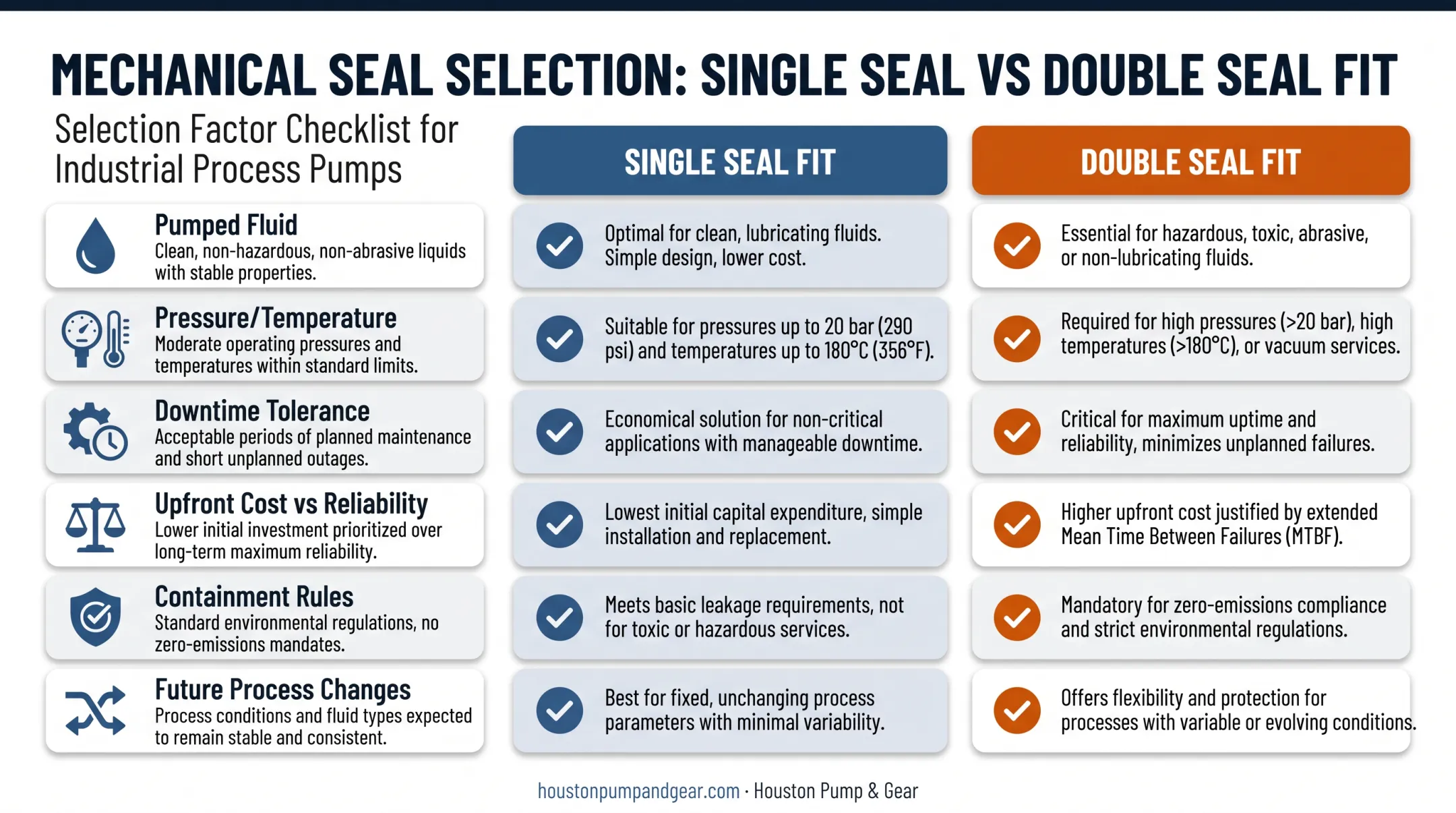

How to Choose the Right Seal Type for Your Pump
The right choice depends on process conditions and risk tolerance, not just the sticker price. Run through these factors before you specify a seal:
- Pumped fluid — Clean, non-hazardous fluids often suit a single seal; abrasive, toxic, or flammable media usually need a double seal and compatible face materials
- Pressure and temperature — Sustained high pressure or extreme heat needs a seal rated for those conditions; standard single seals often fall short
- Downtime tolerance — If unplanned outages are costly, a double seal’s barrier system reduces failure risk and buys response time
- Upfront cost vs. reliability — A cheaper single seal today can mean emergency repairs and lost production later
- Containment rules — Strict leak limits or emissions controls typically require double seals with monitored barrier fluid
- Future process changes — If chemistry, pressure, or duty cycle may get harder, size the seal for the tougher case now
What to Check Before Finalizing Your Seal Choice
A few final checks separate a good decision from a costly mistake:
- Don't over-specify. A double seal isn't automatically "safer" if a single seal reliably handles the application. You're paying for complexity you don't need.
- Don't ignore known limitations. A single seal's vulnerability to dry running is well documented. If your service has intermittent dry-run risk, plan around it or upgrade.
- Factor in real downtime cost. A few days of unplanned production loss can dwarf what you'd have spent on the right seal upfront—not just the seal's price tag.
- Have a rapid-response plan. If a seal fails, a repair partner on call for emergency service limits downtime while you lock in a longer-term fix. Houston Pump & Gear diagnoses failed seals and gets pumps back in service fast.
Conclusion
Mechanical seals prevent leakage and protect the internal components that keep pumps running. Single and double seals serve different operating needs based on fluid type, pressure, and how much risk your facility can absorb.
Understanding these differences helps industrial and power plant operators avoid premature failures and the downtime that comes with them. When a seal does fail unexpectedly, Houston Pump & Gear offers 24/7 emergency response across Texas and Louisiana, with same-day pickup and rapid turnaround to restore critical equipment.
Frequently Asked Questions
What's the difference between single and double mechanical seals for pumps?
A single seal has one pair of sealing faces suited to clean, low-risk fluids. A double seal has two pairs with a barrier fluid between them, for hazardous or high-demand service that needs redundant containment.
What types of mechanical seals are used in pumps?
The two primary configurations are single and double mechanical seals. Double seals are further arranged in back-to-back, face-to-face, or tandem designs depending on the application.
What is a Type 1 mechanical seal?
"Type 1" is a standardized single mechanical seal design used in general industrial and process pumps handling clean fluids under moderate conditions.
What is a single mechanical seal for a pump?
A single mechanical seal uses one rotating face and one stationary face held together by spring pressure. It suits clean, moderate-condition fluids where minor vapor loss to atmosphere is acceptable.
How do I know if my pump needs a double mechanical seal instead of a single seal?
Hazardous, abrasive, crystallizing, or high-pressure/high-temperature fluids typically require the added protection of a double seal. If leakage would create a safety or environmental risk, a double seal is worth the added cost.
What causes mechanical seal failure in industrial pumps?
Common causes include dry running, improper installation, incompatible seal materials, contamination, misalignment, and lack of routine maintenance. Repeated failures usually point to an application mismatch, not just a defective part.
