Most failures follow predictable patterns. Dry running alone can seize a stator in minutes, while gradual wear from abrasive media builds slowly until flow drops off a cliff. Understanding these patterns is the first step toward a lasting repair.
This guide covers the most common problems, a step-by-step repair process, guidance on fixing versus replacing, and when to bring in a specialist like Houston Pump & Gear.
TL;DR
- Common failures: rotor-stator wear, dry running, misalignment, and seal leakage
- Fix or replace? Isolated wear-pair damage is usually repairable; structural or repeat failures often aren't
- Repair process: diagnose, isolate the root cause, repair, then test before startup
- Call a professional for industrial-scale units, especially during power plant emergency shutdowns
What Is a Progressive Cavity Pump?

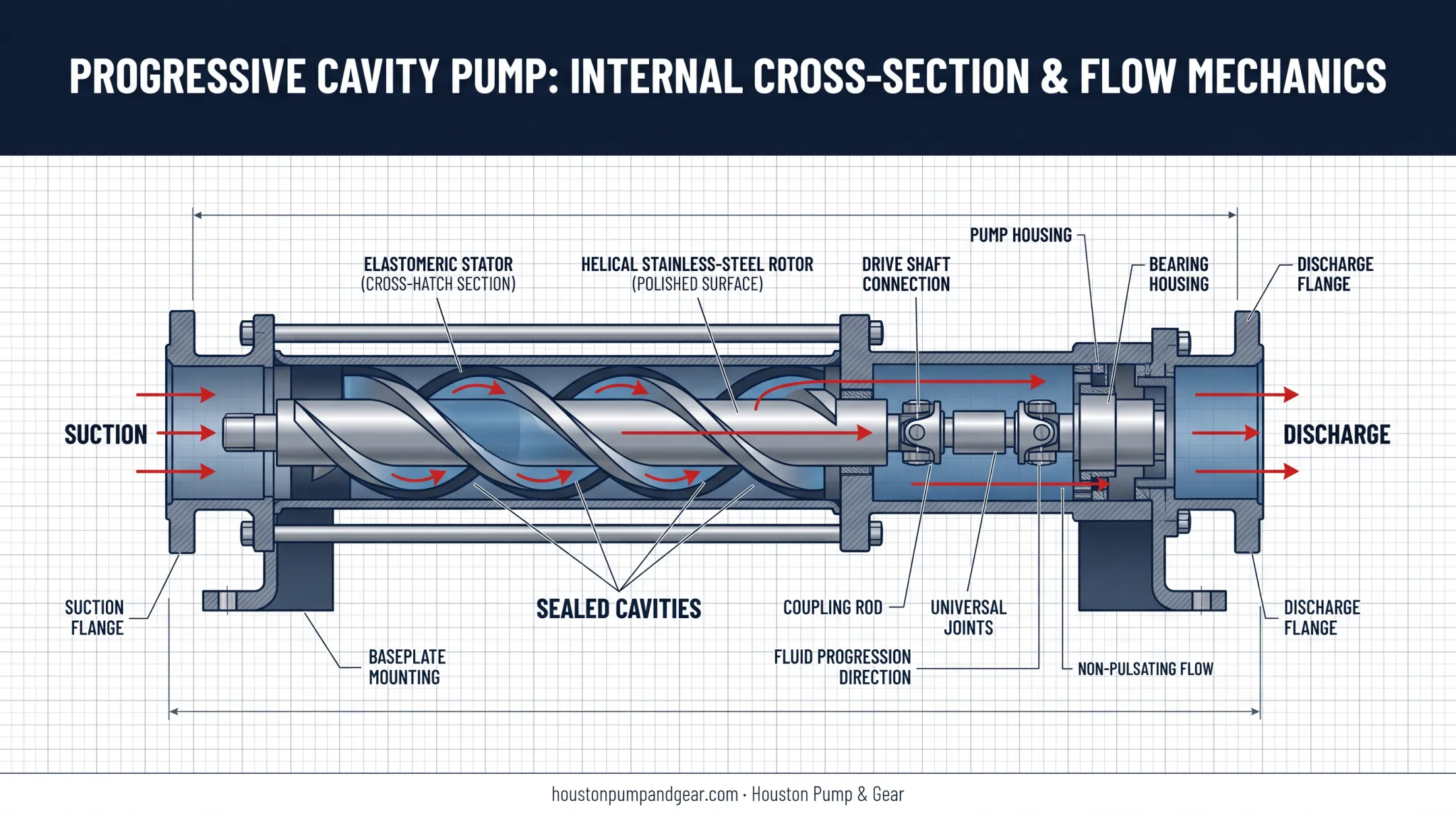

A progressive cavity pump is a positive displacement pump built around a single helical rotor turning inside a double-helix rubber stator. As the rotor turns, it creates sealed cavities that carry fluid steadily from suction to discharge without pulsation.
This design makes it a favorite for pumping thick, abrasive, or shear-sensitive fluids that would tear apart a standard centrifugal pump. Sludge, slurries, and viscous chemical feeds in power plants and heavy industry all run through these units regularly.
The rotor-stator fit is tight by design, so wear builds with every operating hour. Scheduled inspection and repair are how these pumps stay in service long-term.

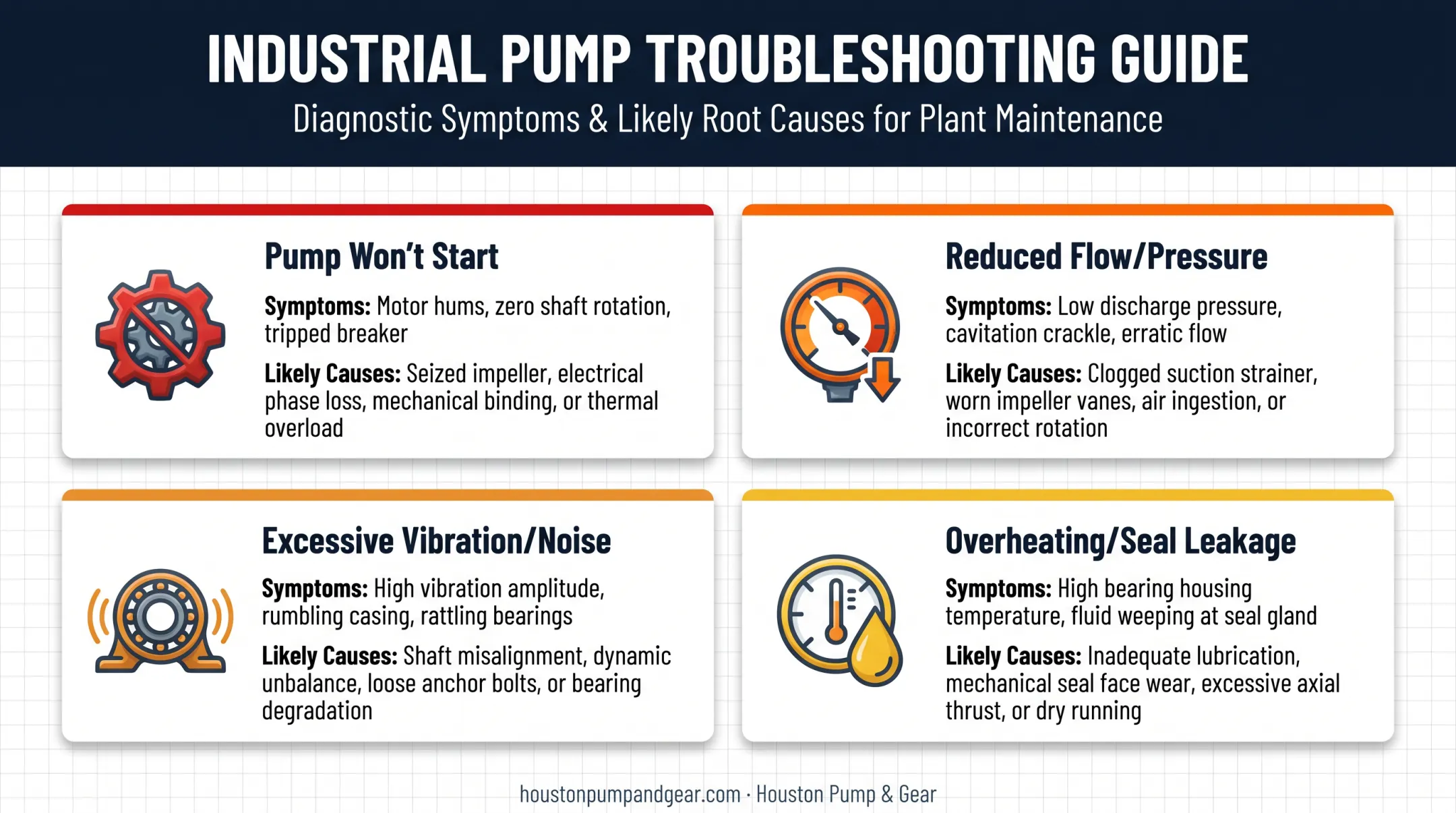

Common Problems With Progressive Cavity Pumps
Failures rarely come out of nowhere. They trace back to wear, misuse, or neglect, and the symptoms usually point straight at the cause.
Pump Won't Start
- Symptoms: seized rotor, no rotation, tripped motor
- Likely causes: rotor-stator adhesion after sitting idle, an electrical fault, or a blockage in the line
Reduced Flow or Pressure
- Symptoms: inconsistent output, weak discharge
- Likely causes: stator or rotor wear, air ingress, or coupling misalignment
Excessive Vibration or Noise
- Symptoms: rattling, shaking, unusually loud operation
- Likely causes: cavitation, bearing wear, or a misaligned coupling
Overheating or Seal Leakage
- Symptoms: hot casing, fluid weeping around the seals
- Likely causes: dry running, worn packing, or fluid that's more viscous than the pump was set up to handle
Houston Pump & Gear's inspection work consistently traces these failures to wear, mechanical damage, seal problems, or shaft issues—the same culprits across industries.
Why Progressive Cavity Pumps Fail (Root Causes)
Failures trace back to real operating conditions, not bad luck:
- Operational stress from abrasive solids or high-viscosity media accelerates rotor-stator wear
- Environmental exposure (freezing temperatures or extreme heat) changes how the stator elastomer fits against the rotor
- Improper installation or startup, particularly dry running before the pump is primed
- Lack of preventive maintenance, letting small wear issues go unnoticed until they become failures
Ignore these long enough, and the consequences compound:
- Reduced efficiency and lower output
- Contamination or quality issues in the pumped fluid
- Safety and compliance risks on-site
- Costly unplanned downtime, especially painful at power plants running on tight margins

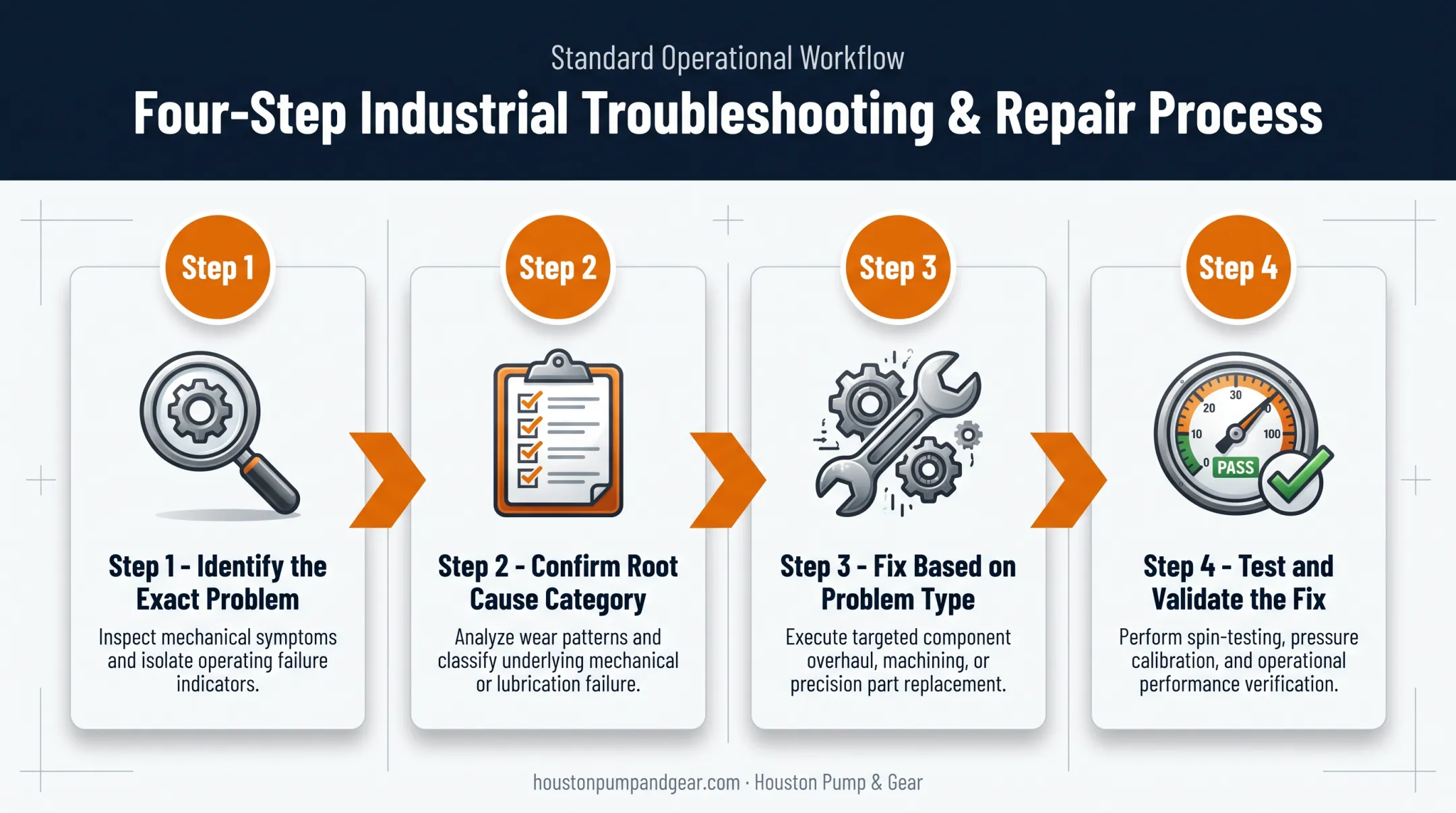

How to Fix a Progressive Cavity Pump (Step-by-Step)
Fixing a pump before understanding what actually broke wastes parts and invites repeat failures. This four-step process keeps repairs targeted and lasting.
Step 1: Identify the Exact Problem
- Observe visible symptoms: leaks, noise, vibration, or output loss
- Compare current flow and pressure readings against baseline performance
- Check gauges, alarms, and motor behavior for anomalies
- Document when the issue shows up — startup, under load, or during continuous run
Step 2: Confirm the Root Cause Category
Sort the problem into one of three buckets:
- Mechanical — rotor or stator wear
- Electrical — motor or wiring fault
- Operational — dry running, misalignment, or fluid mismatch
Rule out external factors first — piping blockages, closed valves, or supply issues. This step prevents the most common repair mistake: replacing parts that were never the problem.
Step 3: Fix the Pump Based on the Identified Problem
- Mechanical: inspect rotor-stator clearance, replace the worn stator or rotor, then check seals and bearings before reassembly
- Electrical: inspect motor connections and sensors, then recalibrate inverter and startup torque settings
- Operational: correct dry-run conditions, flush contaminated media, and adjust speed to match fluid viscosity
Step 4: Test and Validate the Fix
- Rotate the pump manually before full startup to confirm free movement
- Monitor flow, pressure, vibration, and temperature under load
- Run a multi-hour soak test and recheck vibration and temperature at multiple points
- Watch for recurrence over the following days
Houston Pump & Gear follows the same sequence on industrial progressive cavity pump overhauls: disassemble, inspect, repair or replace the failed mechanical components, then validate performance before the unit leaves the shop.
When Should You Fix vs Replace a Progressive Cavity Pump?
The decision comes down to weighing repair cost against downtime risk and long-term reliability.
| Scenario | Fix When | Replace When |
|---|---|---|
| Minor stator wear detected early | Housing and rotor are intact | Housing or rotor also shows damage |
| Chronic misalignment, repeat bearing failure | Drive train can be realigned and bearings replaced | Shaft or coupling is permanently damaged |
| Multiple failures in one year | Root cause is isolated and correctable | Failures point to undersized or mismatched equipment |
| Critical power plant unit in emergency shutdown | Expedited repair can restore service within the downtime window | Repair time would exceed the acceptable downtime window |
Operating a pump with an out-of-alignment coupling, even briefly, can cause serious secondary damage, so that scenario deserves quick action rather than a delay.

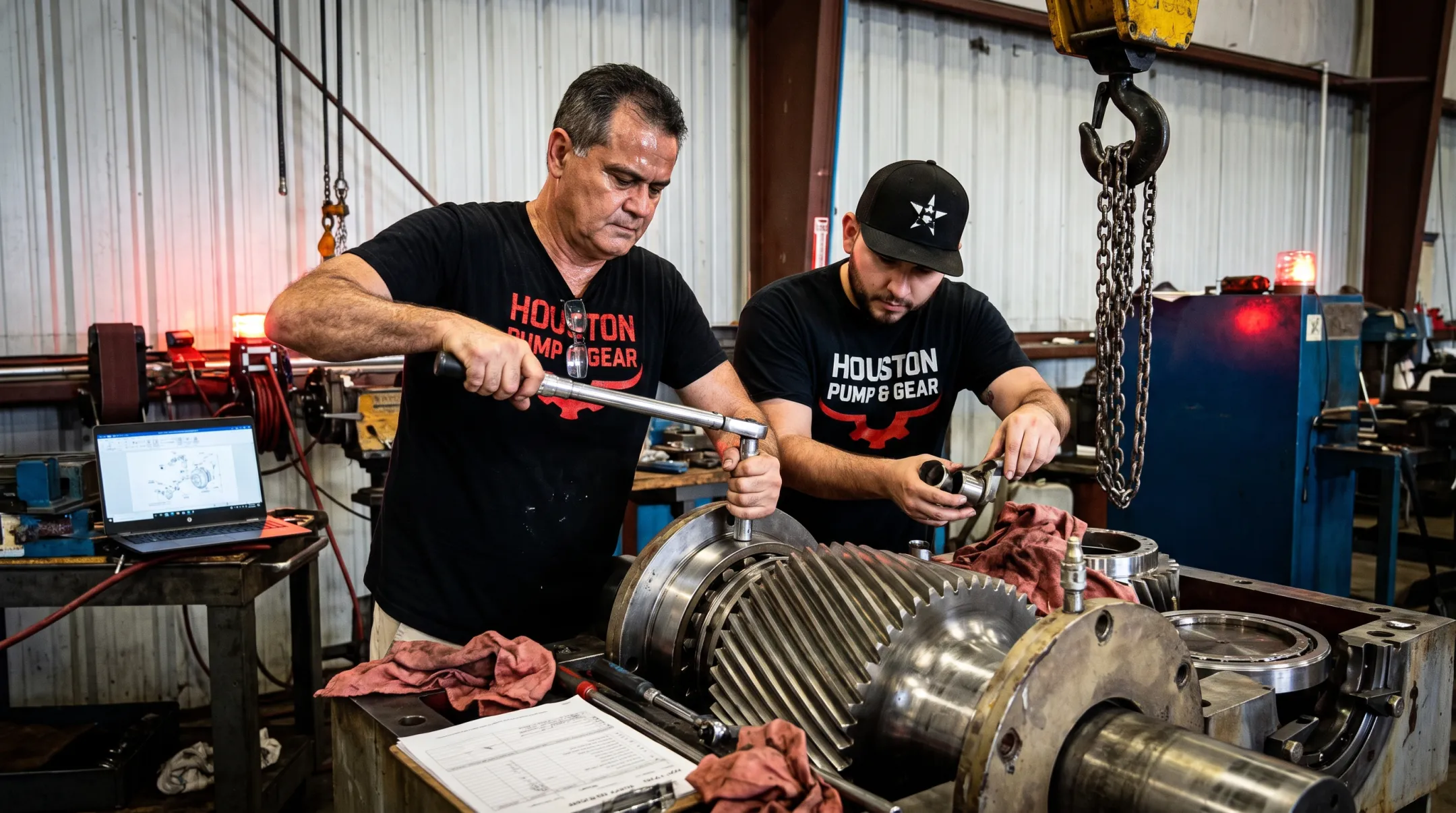

For emergency situations, Houston Pump & Gear has handled rapid rotor-stator and gearbox turnarounds when OEM quotes stretched into weeks and in-house repair finished in days. In one case, the team picked up a Lufkin S2212C gearbox the same day and returned a power plant to service in 72 hours.
Common Mistakes to Avoid When Fixing a Progressive Cavity Pump
A solid rebuild can still fail early when a few preventable mistakes slip through:
- Treating symptoms instead of root causes, such as patching a leak without finding why it started
- Skipping post-repair testing before returning the pump to full production
- Using incompatible stator elastomers or rotor coatings for the fluid being pumped
- Ignoring lockout/tagout and depressurization during teardown before the driver is isolated and cooled
Preventive Measures to Avoid Future Issues
Prevention costs less than emergency repair and protects uptime.
- Run monthly rotor-stator wear inspections and check clearances
- Schedule bearing lubrication and seal replacement at set intervals
- Follow correct startup procedures every time to avoid dry running
- Train operators on proper procedures and keep detailed maintenance logs
- Check pump packing regularly — leakage above 20 drops per minute signals it's time to replace it
Even with solid preventive practices, equipment still fails at inconvenient times. When a progressive cavity pump goes down, Houston Pump & Gear provides 24/7 emergency repair for industrial facilities across Texas and Louisiana.
Conclusion
Most progressive cavity pump issues are fixable when caught early through routine inspection. Correctly diagnose whether the cause is mechanical, electrical, or operational before reaching for replacement parts.
Knowing when to fix versus replace, and having a trusted emergency repair partner on call, saves money and keeps downtime to a minimum. Houston Pump & Gear provides 24/7 industrial pump repair to help facilities get back online quickly.
Frequently Asked Questions
What is the most common cause of pump cavitation?
Cavitation typically comes from insufficient suction pressure, air entering the suction line, or a suction lift that's too high. Any of these causes vapor pockets to form and collapse inside the pump.
How do I get a pump to stop cavitating?
Check and correct the net positive suction head (NPSH), seal any air leaks in the suction piping, reduce pump speed, and raise the fluid level if needed.
Can you run a progressive cavity pump dry?
No. Dry running creates friction and heat buildup that rapidly degrades the stator, potentially seizing the pump within minutes.
Can you run a progressive cavity pump backwards?
Most models aren't built for reverse rotation. Reverse operation can damage the rotor-stator seal and pumping action. Always check the nameplate arrow before running.
What does a progressive cavity pump do?
It's a positive displacement pump that moves thick, abrasive, or shear-sensitive fluids using a rotating helical rotor inside a stator, creating a steady, non-pulsating flow.
