But even the toughest pump wears down. Seal liquid problems, cavitation, internal wear, and operational stress all take a toll over time. Many facilities struggle with unplanned vacuum loss right when they can least afford it.
This guide walks through the common problems, root causes, and a step-by-step troubleshooting process. You'll also learn when a repair makes sense versus when replacement is the smarter call, and when it's time to bring in a specialist repair team.
TL;DR
- Most common problems: insufficient vacuum, cavitation and noise, overheating, seal liquid leakage, high motor current
- Repair window: most issues are fixable if caught early; severe casing or impeller damage often means replacement
- Fix sequence: confirm the reading, check for leaks, verify seal liquid conditions, inspect internals last
- Escalate when: internal damage, electrical faults, or repeated failures are suspected

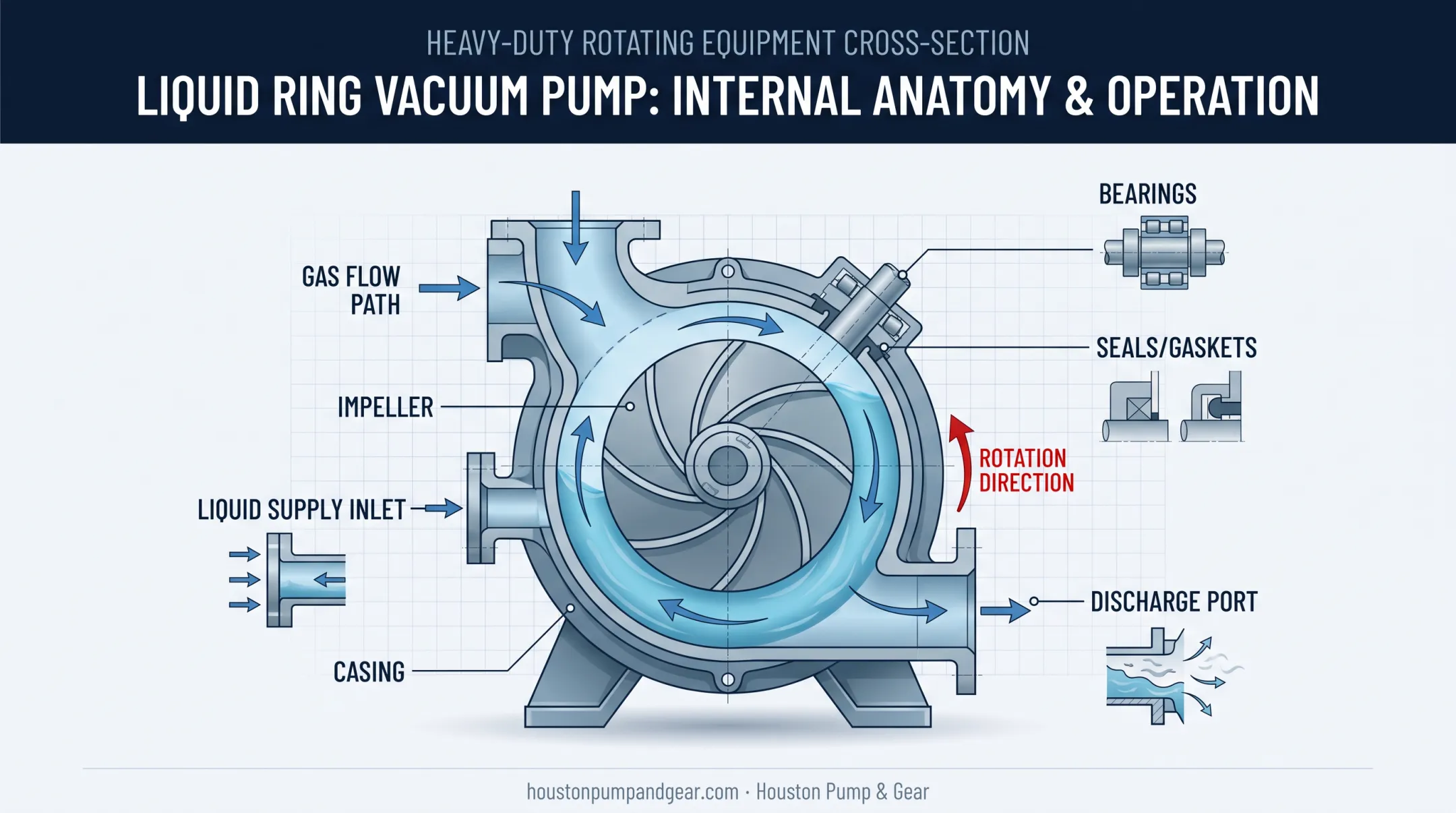

What Is a Liquid Ring Vacuum Pump?
A liquid ring vacuum pump is a rotary pump that uses a liquid ring, typically water, formed by an off-center impeller inside the casing. As the impeller spins, the liquid slings outward and forms a ring that seals the rotor chambers. Those chambers trap and compress gas pockets, then push them out the discharge port.
That liquid ring does double duty: it seals the impeller vanes and absorbs the heat of compression, keeping the pump cool. It's a hybrid mechanical/hydraulic system, so these parts wear over time and need ongoing attention:
- Seals and gaskets
- Liquid supply components
- Bearings
- Impeller and casing internals
Skip that attention, and problems compound fast into vacuum loss, heat buildup, and unplanned downtime.

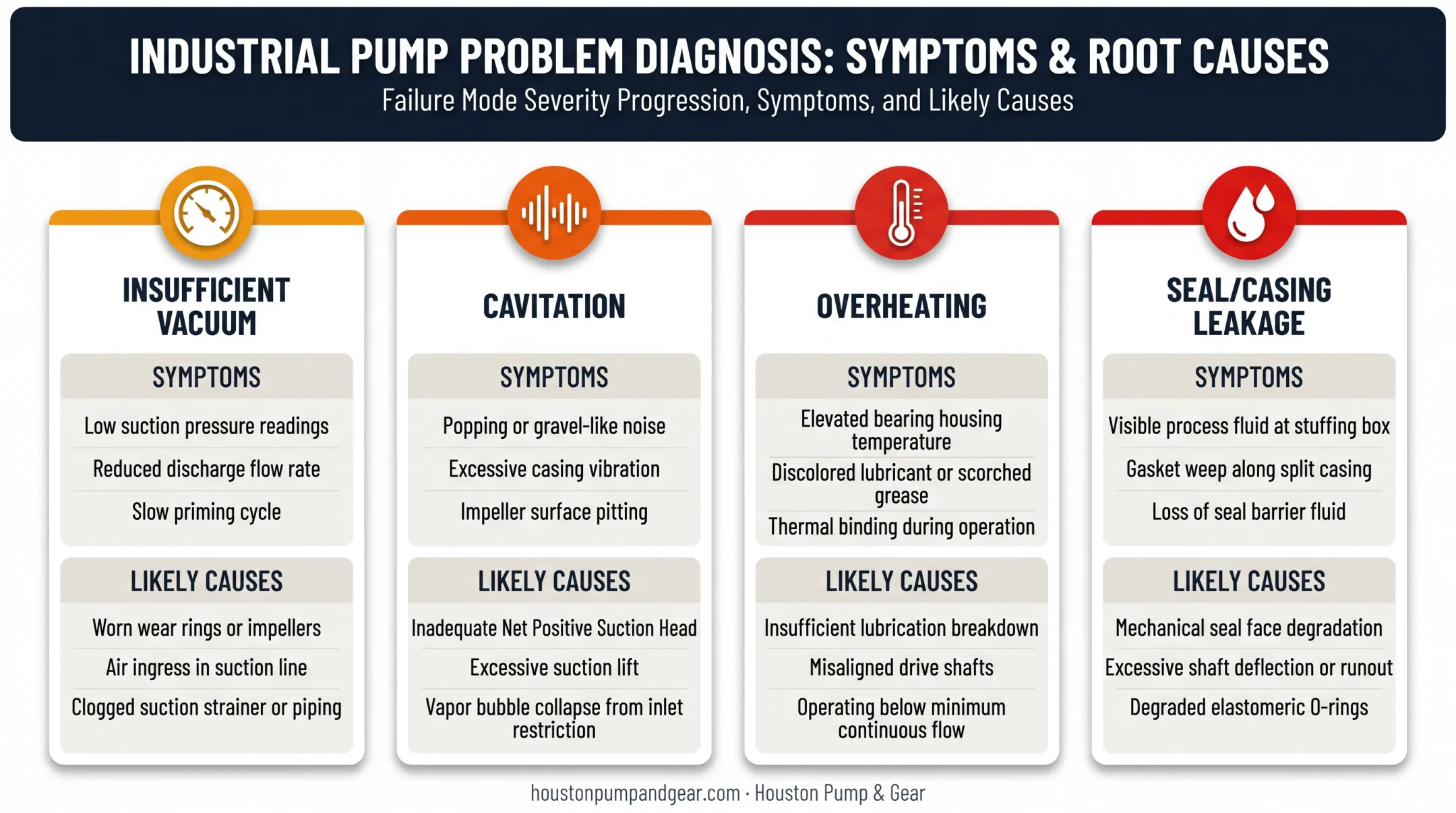

Common Problems With Liquid Ring Vacuum Pumps
Most failures fall into a handful of predictable patterns tied to seal liquid, air leaks, or wear. Catching them early is the difference between a quick fix and a full teardown.
Insufficient Vacuum / Low Capacity
Symptoms: Pump can't reach target pressure, slow pump-down, unstable readings.
Likely causes: Air leakage, hot or insufficient seal liquid, worn impeller clearances, or high back pressure. According to Graham Manufacturing's troubleshooting guide, high seal-water temperature and incorrect sealant flow are two of the most frequent culprits behind reduced capacity.
Cavitation (Gravel-Like Noise & Vibration)
Symptoms: Crackling or rattling sound, growing vibration, pitting on internal surfaces.
Likely causes: Operating too close to the vacuum limit, hot seal liquid, or insufficient liquid flow. Cavitation happens when seal liquid vaporizes at the pump's local pressure and temperature. Collapsing bubbles then erode metal surfaces with high-velocity micro-jets.
Overheating of Pump or Motor
Symptoms: High bearing or casing temperature, motor trips, reduced performance.
Likely causes: Poor cooling water flow, a fouled heat exchanger, or excessive back pressure.
Seal or Casing Leakage
Symptoms: Visible water or gas leakage, air ingress, unstable vacuum.
Likely causes: Worn mechanical seal, damaged gaskets, or corroded casing/flanges. Leaks can occur at the primary face between two seals or at a hidden secondary seal, which is why a surface check alone often isn't enough.
Why Liquid Ring Vacuum Pumps Fail
Most liquid ring vacuum pump failures trace back to operating conditions:
- Operational stress: running near vacuum limits, sudden process load changes, high discharge pressure
- Environmental exposure: hard water scaling, corrosive gas contact, ambient temperature swings
- Improper installation: misalignment, incorrect rotation direction, wrong seal liquid flow rate
- Skipped maintenance: no seal or bearing inspections, no seal liquid quality checks
Left unaddressed, these issues compound:
- Higher energy costs from reduced efficiency
- Process quality issues from unstable vacuum
- Safety and compliance risks from leaks or overheating
- Unplanned downtime and secondary damage to bearings, impellers, or motors

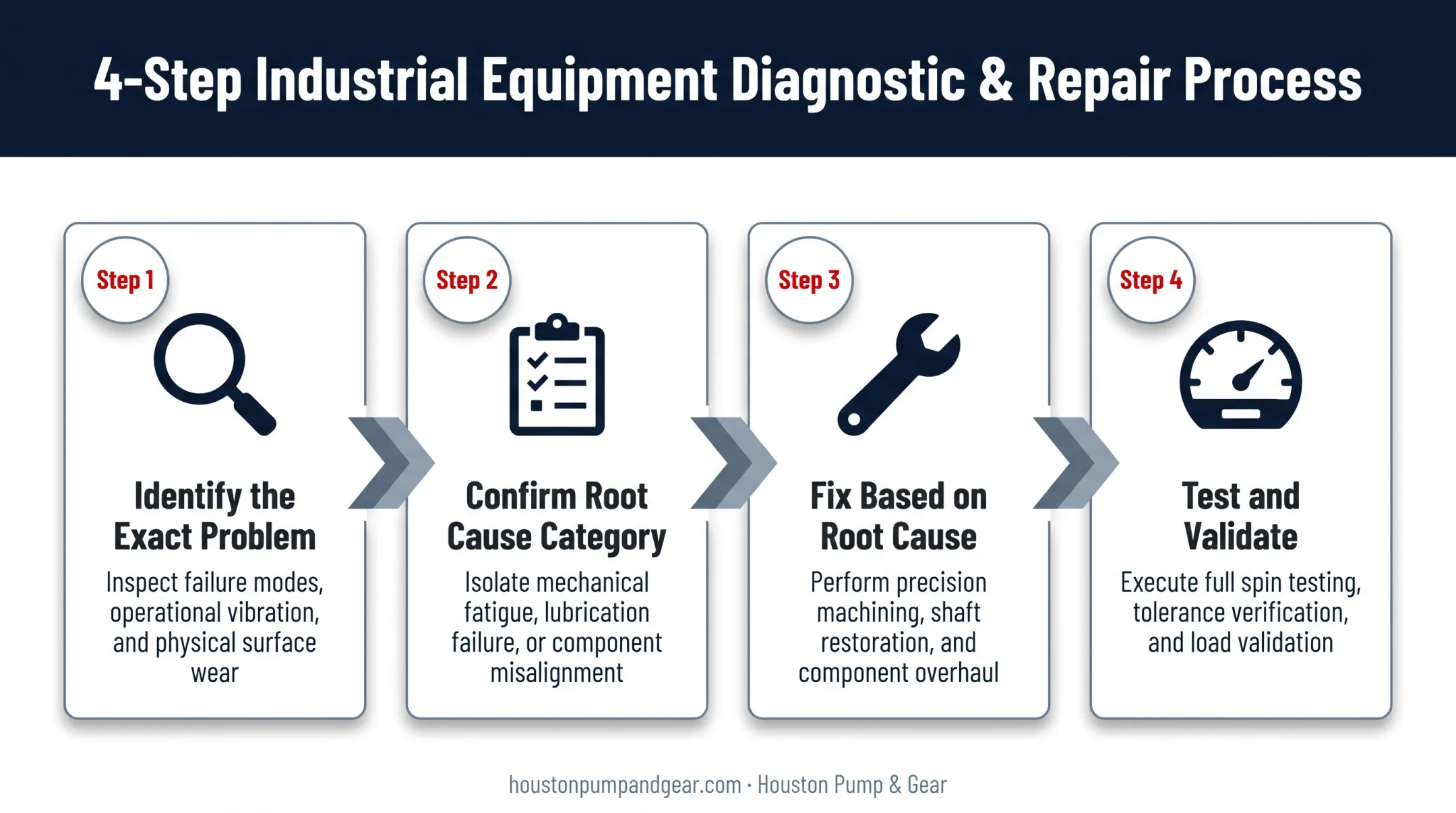

How to Fix a Liquid Ring Vacuum Pump (Step-by-Step)
Opening the pump before diagnosing the problem wastes time and money. It also tends to produce the same failure a few months later. Work through this sequence instead: confirm the symptom, isolate the root cause, apply the matching fix, then validate under load.
Step 1: Identify the Exact Problem
- Observe visible symptoms: leaks, noise, vibration, overheating, loss of vacuum
- Note when the deviation started — startup, under load, or continuous running
- Check gauges, alarms, and trend data against baseline readings
- Document recent changes: maintenance, electrical work, process rate shifts
Step 2: Confirm the Root Cause Category
Sort the fault into one of four categories before you open the casing:
- Mechanical (clearances, bearings, alignment, seals)
- Seal-liquid / hydraulic (flow rate, temperature, contamination)
- Electrical (phase loss, rotation, overload)
- Process / environmental (gas load, cooling water, corrosive exposure)
Rule out external factors first: suction leaks, condenser fouling, and discharge restrictions. Swapping parts before the cause is confirmed is one of the fastest ways to fix the same problem twice.
Step 3: Fix the Pump Based on the Root Cause
This is where cost and turnaround time get won or lost.
Mechanical issue:
- Typical faults: worn impeller/casing clearances, misalignment, damaged bearings
- Reset clearances to OEM spec, realign the shaft/coupling, and replace bearings or the mechanical seal as needed
- Check clearances against model-specific service limits before reassembly
Seal liquid or hydraulic issue:
- Typical faults: incorrect flow rate, hot seal liquid, contaminated water
- Measure actual flow against spec, clean strainers and the heat exchanger, and correct recirculation temperature
- Verify make-up water quality and adjust treatment if scaling or corrosion appears
Electrical issue:
- Typical faults: phase loss, incorrect rotation, motor overload
- Check voltage and current per phase, confirm rotation after any electrical work, and reset overload protection
Process or environmental factors:
- Typical conditions: increased gas load, higher cooling-water temperature, corrosive gas exposure
- Adjust process load, improve cooling, and review material compatibility
- Plan longer-term changes such as upgraded cooling or revised operating limits when the duty has permanently shifted
Step 4: Test and Validate the Fix
Run the pump under normal and peak load, then verify against baseline:
- Vacuum level, motor current, temperature, noise, and vibration
- Multi-point readings with a vibration meter and infrared thermometer over a few hours
- Performance against the pump curve for that model
- No recurrence across a defined monitoring window before sign-off

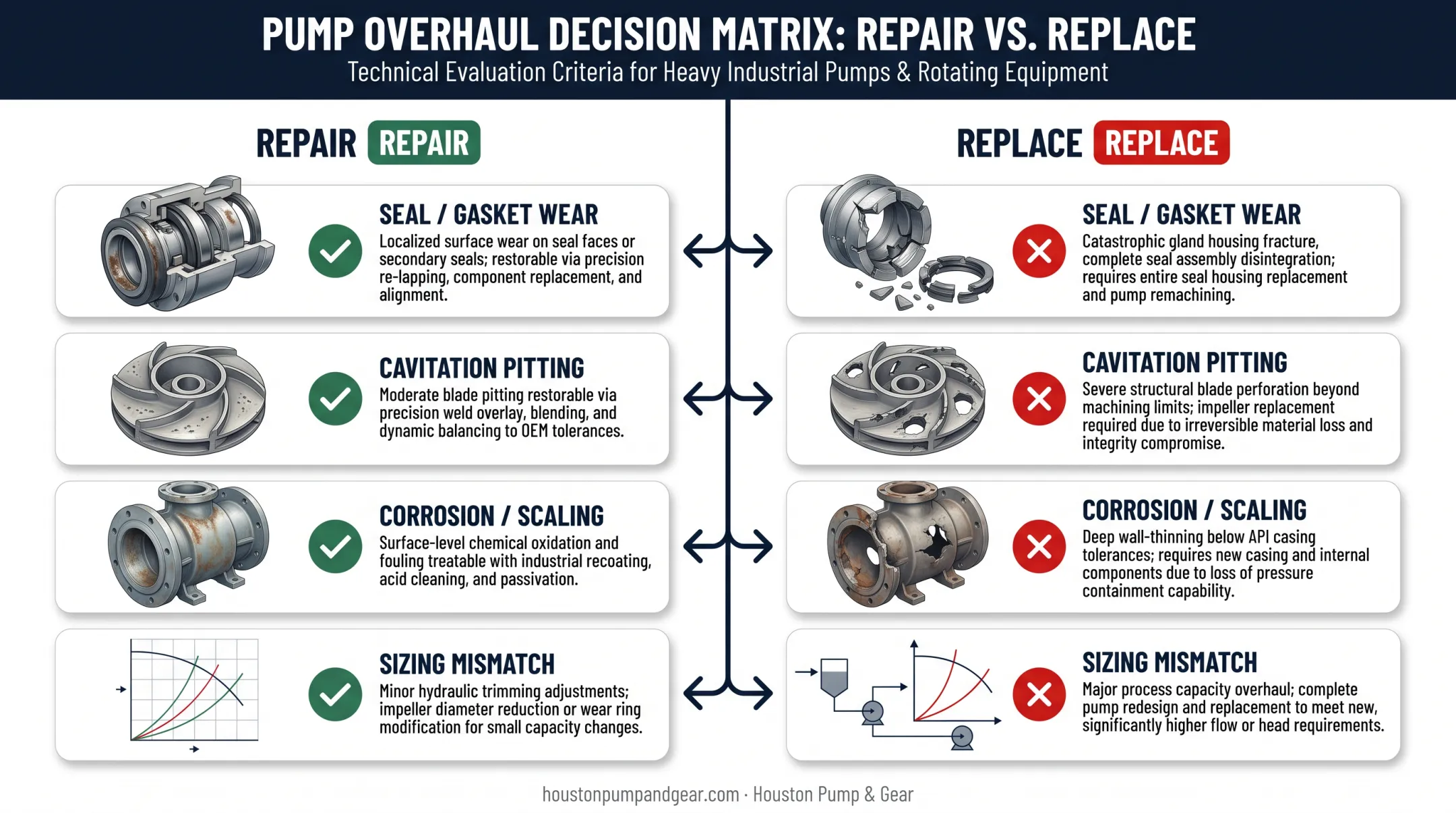

Fix vs. Replace: Making the Call
Weighing repair cost, downtime risk, and remaining service life is a case-by-case decision. Here's how it typically breaks down:
| Scenario | Repair | Replace |
|---|---|---|
| Isolated seal, gasket, or bearing wear | Replace the specific worn component and realign | Only if the casing is also compromised |
| Repeated cavitation damage | If pitting is minor and conditions can be corrected | If impeller or port plate material loss is extensive |
| Corrosion or scaling | If cleaning and material-compatible repair resolve it | If corrosion has significantly thinned the casing or impeller |
| Pump no longer matches process needs | Not applicable: this is a sizing mismatch | Upgrade to a two-stage pump or larger system |
One rule of thumb: any impeller with cracks, fractures, or significant distortion needs replacement. The only question is when the damage progresses to outright failure.
For emergency situations at power plants or heavy industry sites, Houston Pump & Gear offers 24/7 mobile field response and rapid turnaround repair. The team has returned critical equipment to service in as little as 72 hours.
Common Mistakes to Avoid
- Treating symptoms, not causes. Chasing low vacuum readings without tracing the issue upstream or inside the pump usually leads to a repeat failure within months.
- Skipping post-repair testing. Returning a pump to service without validating under real load conditions risks a second unplanned shutdown.
- Using mismatched parts. Seal liquid, gaskets, or replacement components not rated for the process gas or temperature will fail again quickly.
- Ignoring lockout/tagout. Skipping pressure isolation during inspection or repair puts technicians at risk and breaks basic LOTO practice.
Preventive Measures to Avoid Future Issues
A documented preventive maintenance plan is consistently cheaper than reactive repair. One industry estimate puts replacing or overhauling a single heavy-duty pump after failure at more than $25,000, plus roughly $1,000 per hour in lost production. An annual preventive maintenance cost for the same unit sits closer to $5,000.
Build your plan around:
- Inspect seals, bearings, and seal liquid quality on a set cadence
- Lubricate components and clean heat exchangers per OEM intervals
- Maintain proper seal liquid flow, temperature, and discharge pressure
- Train staff and document baseline readings for early trend detection
For facilities without in-house expertise on complex or legacy models, partnering with an experienced repair provider fills the gap. Houston Pump & Gear has serviced more than 15 units for a single long-term client, a relationship that grew out of consistent, reliable service over time rather than a one-off repair.
Final Thoughts
Most liquid ring vacuum pump problems are fixable when caught early and diagnosed correctly. The pumps that end up needing replacement are almost always the ones where symptoms got ignored or misdiagnosed for too long.
Root-cause diagnosis is what makes a repair last. Swapping parts on guesswork rarely holds. Knowing when to repair versus replace protects your facility from costly downtime that power plants and heavy industry operations can't absorb.
Frequently Asked Questions
Can a liquid ring vacuum pump be repaired?
Yes, in most cases. Seal wear, bearing damage, alignment issues, and minor cavitation are typically repairable. Severe casing or impeller damage, however, may require replacement instead.
What are the most common issues with liquid ring vacuum pumps?
The most frequent problems are insufficient vacuum, cavitation (gravel-like noise and vibration), overheating, and seal liquid leakage. Most trace back to seal liquid conditions or air leaks.
What are the main components of a liquid ring vacuum pump?
Key components include the casing, impeller, mechanical seals or packing, bearings, and the heat exchanger/seal liquid system. A separator may also recover and recirculate discharged liquid.
How do you know if a liquid ring vacuum pump is cavitating?
Listen for a gravel-like crackling or rattling noise combined with rising vibration. Confirming it requires checking operating pressure against seal-liquid temperature and inspecting the impeller for pitting.
How often should a liquid ring vacuum pump be serviced?
Service intervals vary by model, but generally include daily operational checks, monthly seal and lubrication tasks, and a full annual inspection of bearings, alignment, and seals per the OEM manual.
When should I call a professional for liquid ring vacuum pump repair?
Call a specialist when you suspect internal mechanical damage, seal failure beyond field repair, or repeated failures. During emergency shutdowns, Houston Pump & Gear provides 24/7 industrial pump repair to help limit downtime costs.
