Seals wear out. Dry running, misalignment, chemical exposure, and poor installation all take a toll over time, eventually causing leaks and unplanned downtime. Given that over two-thirds of industrial businesses experience unplanned outages at least monthly, often costing close to $125,000 per hour, a failed seal is rarely a minor inconvenience.
This guide covers common seal problems, a step-by-step replacement process, how to decide between fixing and replacing, and when it's time to call in a professional like Houston Pump & Gear.
TL;DR
- Most seal failures trace back to dry running, misalignment, contamination, or chemical incompatibility.
- Minor leaks with intact faces often need only new O-rings; scored or pitted faces need full replacement.
- Replacement: isolate the pump, follow the OEM manual, inspect shaft and chamber, then install a media-matched seal.
- Emergencies in power plant and heavy industry work need 24/7 professional help to limit downtime.
What Is a Screw Pump Mechanical Seal?

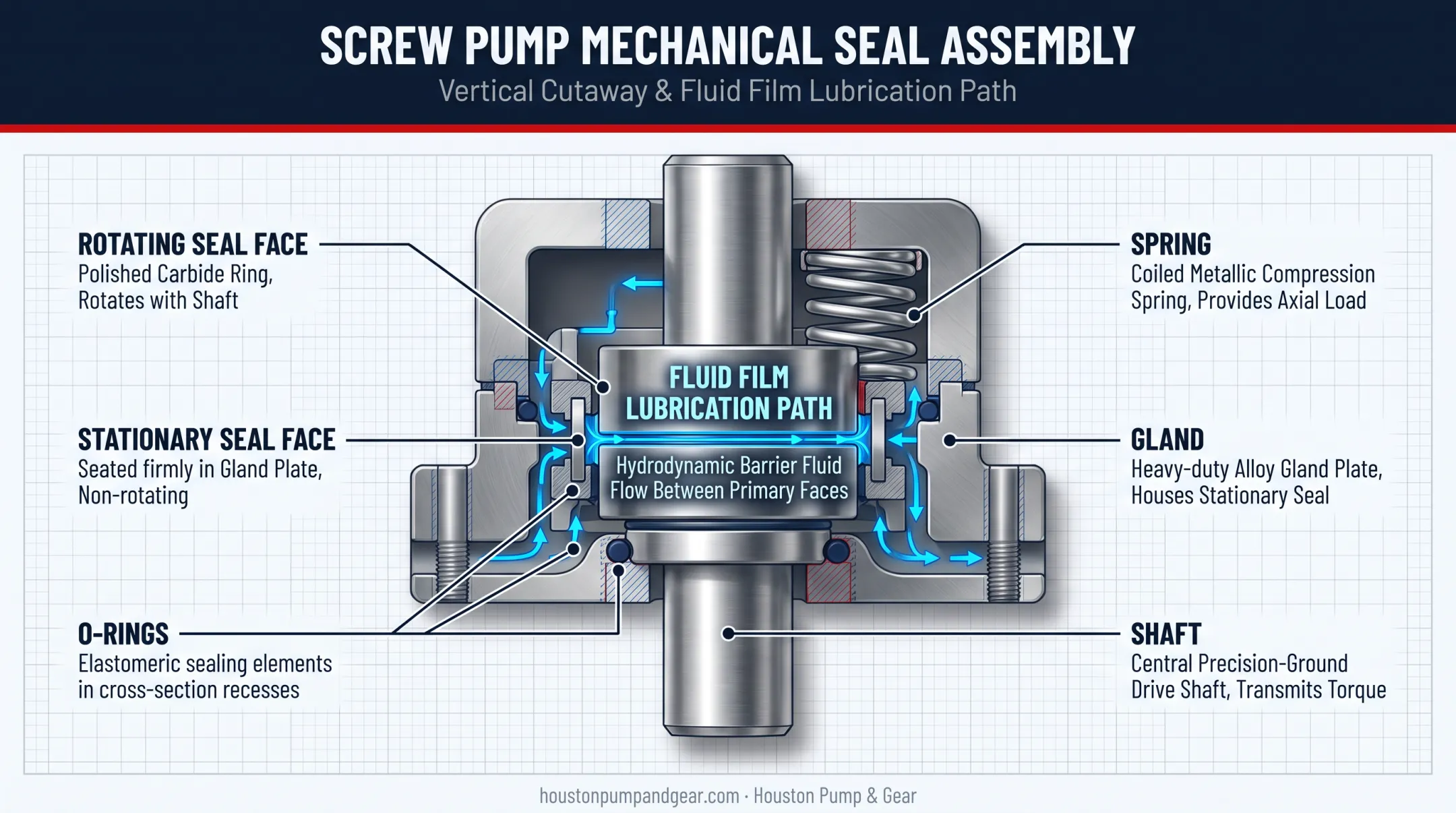

A mechanical seal prevents fluid from leaking out where the pump's rotating shaft passes through the stationary housing. It relies on two lapped faces, one rotating with the shaft and one fixed to the housing, pressed together to form a barrier.
In screw pumps, this seal handles viscous fluids, oils, and chemicals under pressure and temperature swings that vary by application. A thin film of the pumped liquid (or a dedicated barrier fluid) lubricates and cools the faces as they slide against each other.
Screw pumps built for suction-only pressure often use a single seal, while more demanding applications may call for an API 682 cartridge seal design. Regardless of configuration, the seal is a wear component. Friction, heat, and chemical exposure degrade it steadily, so periodic replacement is inevitable.

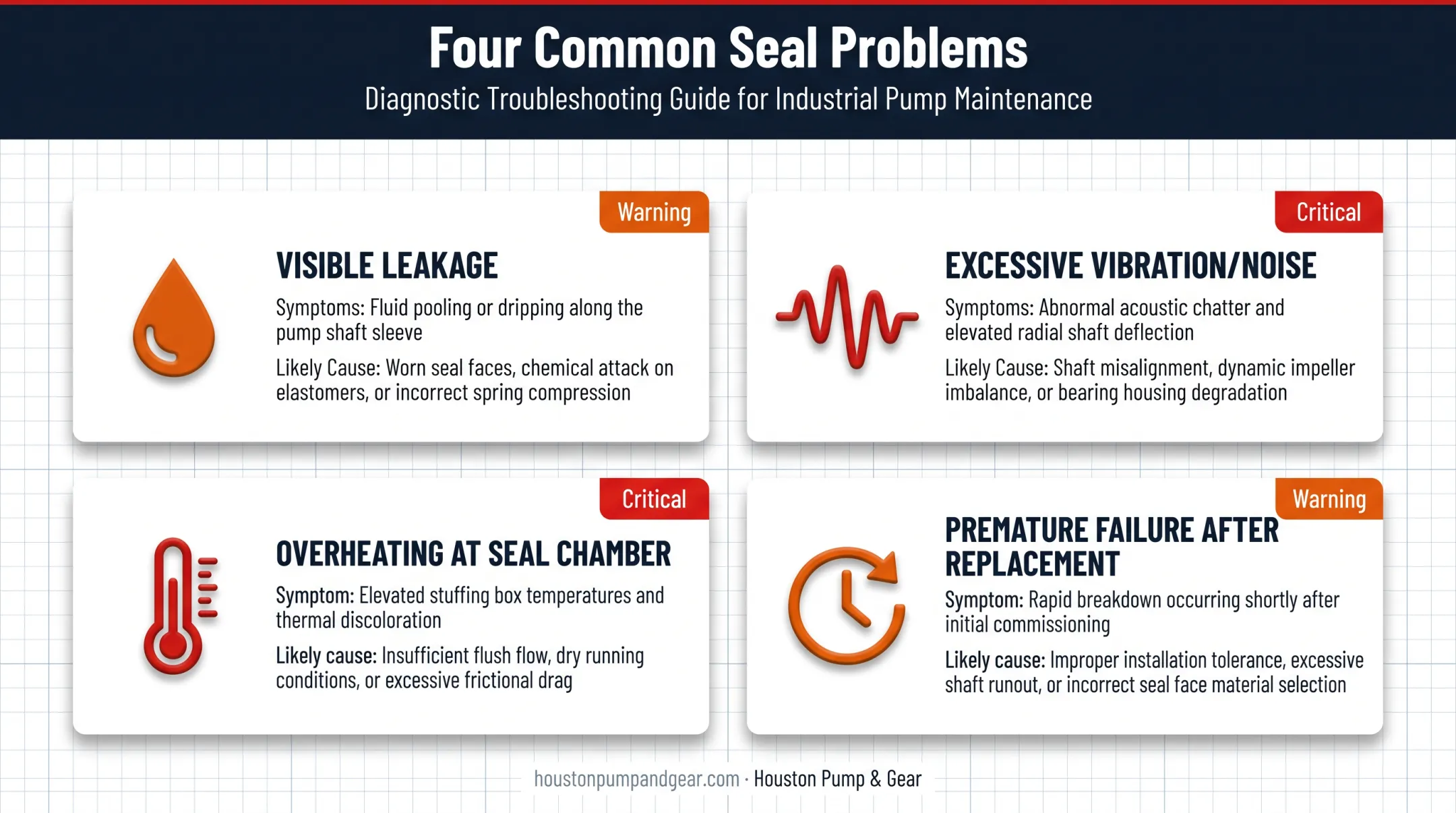

Common Problems With Screw Pump Mechanical Seals
Most seal failures follow patterns experienced technicians can recognize quickly. Here's what to watch for.
Problem 1: Visible Leakage at the Seal
Symptoms: Fluid pooling near the shaft or dripping during operation.
Likely cause: Worn seal faces, damaged O-rings, or a improper installation. Leaks can also originate at a secondary seal buried deeper in the assembly — not every leak point is obvious from the outside.
Problem 2: Excessive Vibration or Noise
Symptoms: Grinding, chattering, or shaft wobble during operation.
Likely cause: Misalignment, dry running, or worn bearings putting uneven load on the seal faces. Operating with an out-of-alignment coupling for even a short time can cause serious downstream damage.
Problem 3: Overheating at the Seal Chamber
Symptoms: Discoloration, a burning smell, or a seal chamber that's hot to the touch.
Likely cause: Inadequate lubrication or flushing, high-viscosity media, or insufficient cooling flow across the faces.
Problem 4: Premature Seal Failure After Recent Replacement
Symptoms: The leak reappears within days or weeks of a seal change.
Likely cause: Incompatible seal materials, contamination introduced during installation, or an unresolved root cause like ongoing misalignment.
Why Screw Pump Seals Fail (Root Causes)
Seal failure almost always traces back to operating conditions, not random wear alone:
- High viscosity, pressure swings, or dry running overload the seal faces
- Corrosive or abrasive process media erode faces, elastomers, and seats
- Incorrect spring compression or misaligned faces leave the seal leaking from day one
- Skipped inspections and condition monitoring let small leaks become full failures
Left unaddressed, those causes stack into larger operational hits:
- Reduced pumping efficiency
- Product contamination or quality problems
- Safety and environmental compliance risks from leaks
- Costly unplanned downtime, especially in power plant operations where each offline hour is expensive

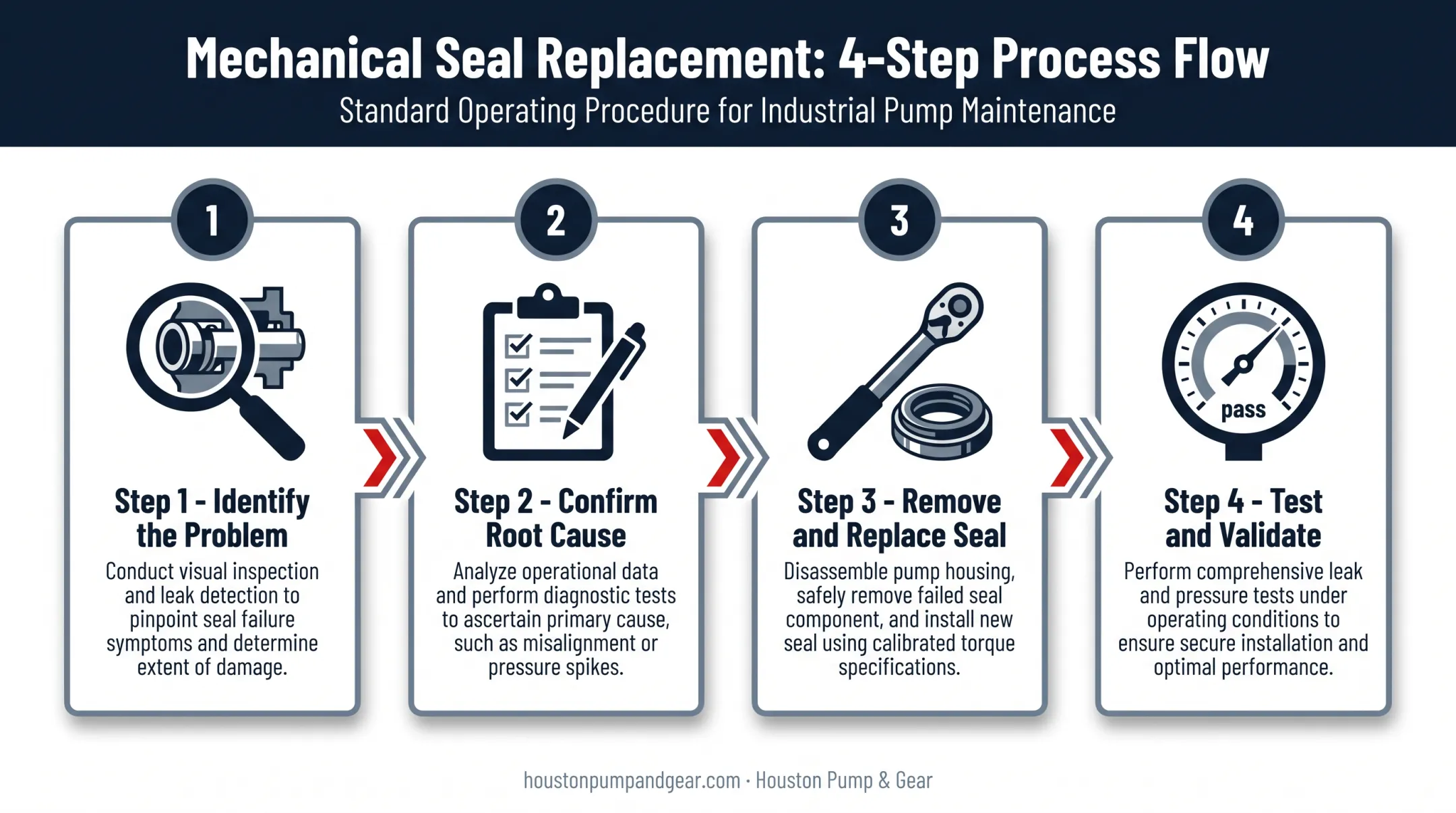

How to Replace a Screw Pump Mechanical Seal (Step-by-Step)
Jumping straight to a parts swap without diagnosing the failure mode is how seals fail again within weeks. The process below identifies the root cause, selects the right seal type and material, and makes the fix stick.
Step 1: Identify the Exact Problem With the Seal
Start with the visible symptoms:
- Leak location, seal face condition, and spring tension
- When the leak shows up — at startup, under load, or continuously
- Dry running, chemical attack, or thermal damage on the removed seal
Document the media type, temperature, and pressure the pump runs under.
Step 2: Confirm the Root Cause
Determine whether the failure stems from mechanical wear, misalignment, chemical incompatibility, or an operating condition issue. Rule out external factors like cavitation, coupling misalignment, or bearing wear. Don't install another seal that fails the same way.
Step 3: Remove and Replace the Seal
- Shut down and lock out power, isolate suction/discharge valves, and drain the pump.
- Disassemble the pump per its IOM manual to access the shaft and seal chamber.
- Remove old seal components, clean the shaft and chamber, and inspect for scoring or corrosion.
- Install the new seal, matching face material to the pumped media (silicon carbide or tungsten carbide for abrasive fluids).
- Reassemble carefully, confirming correct spring compression and face alignment.
Installation order matters: the static ring and gland go in first, followed by the moving ring and spring.
Step 4: Test and Validate the Repair
Restart the pump and watch for leaks, unusual noise, or vibration. Check seal chamber temperature during the initial run.
After a couple of hours, measure vibration and temperature at multiple points with a vibration meter and infrared thermometer. Confirm flow and pressure match expected performance. Schedule a follow-up inspection within a few days to confirm the fix holds.
With the right tools, a straightforward seal replacement can often be done in a single afternoon. Scored shafts, chemical attack, or seals that fail again usually need shop-level repair—Houston Pump & Gear handles mechanical seal service and shaft restoration in-house for industrial screw pumps.
When Should You Fix vs Replace the Seal (or Pump)?
The right call depends on cost, downtime risk, and long-term reliability.
| Scenario | Fix | Replace |
|---|---|---|
| Minor leak caught early | New O-rings/gaskets if faces are undamaged | Full seal swap if faces show scoring or pitting |
| Repeated failures, same pump | Address root cause (alignment, flushing) with same seal type | Upgrade to a double seal or different material combination |
| Failure during critical operation | Emergency seal replacement to restore service fast | Full pump rebuild if housing or shaft is also damaged |
| Aging pump, multiple worn parts | Seal-only replacement if body and shaft are sound | Full pump/gearbox overhaul if downtime costs outweigh repair |

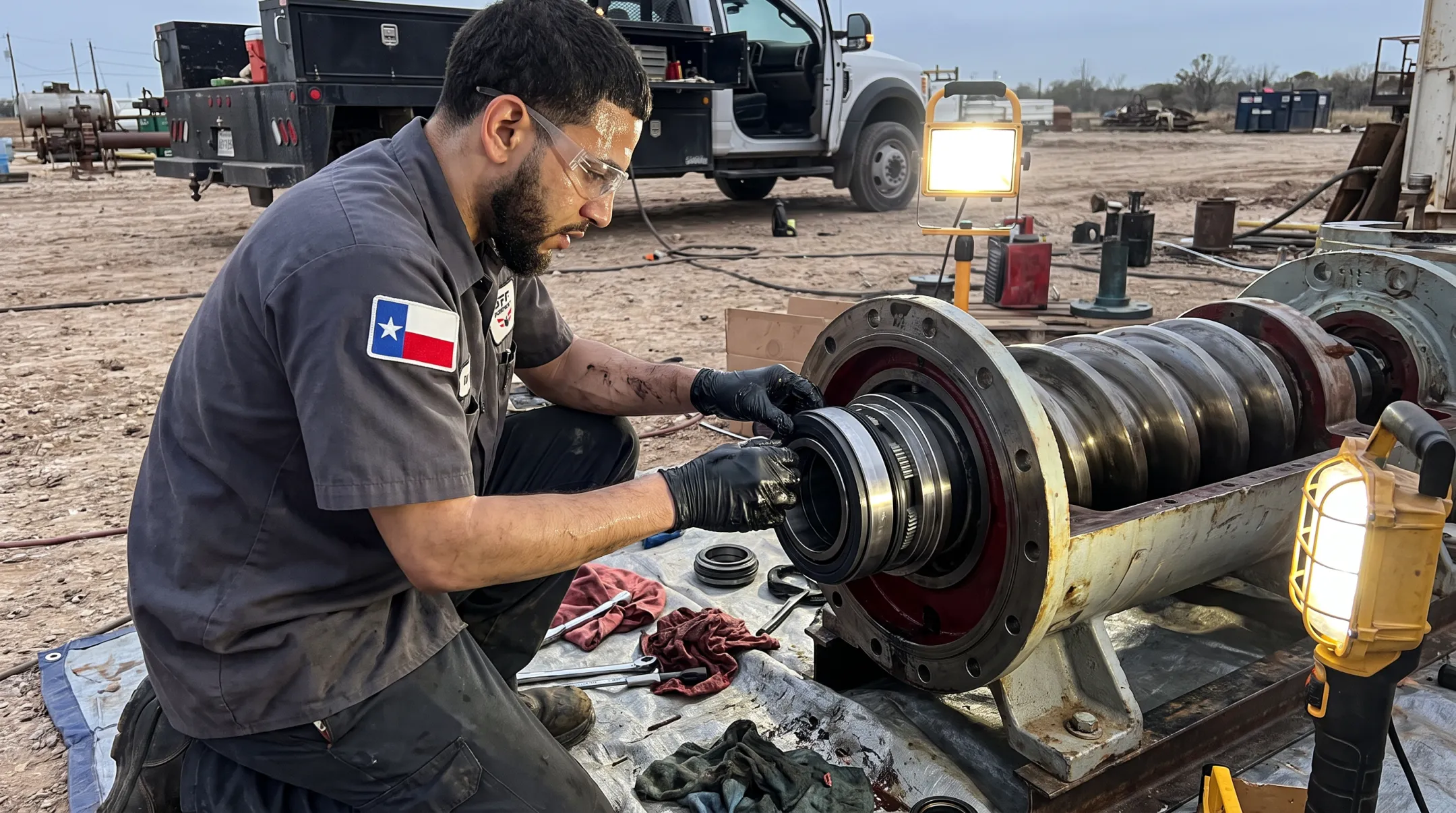

For critical power plants and industrial facilities, a seal failure mid-shift means speed matters most. Houston Pump & Gear offers 24/7 emergency response with same-day pickup, so failed equipment gets into the shop and back into service without sitting idle for days.
Common Mistakes to Avoid When Replacing Screw Pump Seals
Most repeat seal failures trace back to a few avoidable errors during replacement:
- Replacing the seal without diagnosing what caused the original failure
- Putting the pump back in service without testing under real operating load
- Installing seal faces or O-rings that are incompatible with the pumped media
- Bypassing lockout/tagout and pressure isolation during disassembly
Preventive Measures to Avoid Future Seal Failures
Prevention costs far less than emergency repair. Build these checks into your operating routine:
- Inspect seal chambers, flush lines, and vibration levels on a regular schedule
- Run light checks every 8 operating hours and a full-service inspection around every 250 hours, reviewing seals and lubricants each time
- Maintain proper alignment, flushing, and cooling conditions
- Partner with an experienced provider for scheduled maintenance and rapid emergency support
Houston Pump & Gear provides scheduled maintenance visits and 24/7 emergency coverage across Texas and Louisiana, so a seal issue does not turn into a multi-day shutdown.
Conclusion
Most screw pump mechanical seal problems are fixable — if they're caught early and diagnosed correctly. Skipping the root-cause step is how facilities end up replacing the same seal every few months instead of once.
Knowing when to repair versus replace, and having Houston Pump & Gear available around the clock, keeps critical operations online when a seal fails.
Frequently Asked Questions
What is a mechanical seal on a pump?
A mechanical seal uses two flat, lapped faces (one rotating, one stationary) to stop fluid leaking where the shaft exits the pump housing.
What are the three basic types of mechanical seals used in pumps?
Single seals suit non-hazardous, lubricating fluids; double seals use an independent buffer or barrier fluid for hazardous or high-containment needs; cartridge seals are pre-assembled units that simplify and speed up installation.
How long does a mechanical seal replacement take on a screw pump?
Time varies by pump size, accessibility, and seal design. With the right tools, a straightforward job can finish in a single afternoon; more complex industrial units may take a full day.
Can a screw pump run with a leaking mechanical seal?
Short-term operation is possible but risky. Leaks can worsen quickly, damage surrounding components, and create safety or environmental hazards. Prompt replacement keeps a small leak from becoming a bigger failure.
How do I know if I need a single or double mechanical seal?
Choice depends on how hazardous the pumped media is, the operating pressure, and whether barrier fluid lubrication is required. Higher-hazard or poorly lubricating fluids generally call for a double seal.
What causes a mechanical seal to fail prematurely?
Dry running, misalignment, incompatible seal materials, and contamination introduced during installation are the most common causes of early failure.
