Most dosing pump breakdowns aren't random. They trace back to a handful of preventable causes: chemical incompatibility, worn seals, clogged lines, or bad pressure settings. Catching these early through proactive maintenance saves facilities significant downtime and repair costs.
This guide covers the common failure causes, DIY maintenance steps you can implement today, warning signs that mean it's time to call a professional, and when to bring in an emergency repair partner like Houston Pump & Gear.
Key Takeaways
- Most dosing pump failures come from chemical incompatibility, worn seals, clogged lines, or wrong pressure settings
- Routine inspection schedules extend pump life and cut unplanned downtime
- Motor failures, control board issues, and calibration drift require certified technician expertise
- 24/7 emergency response matters most when downtime threatens safety or production

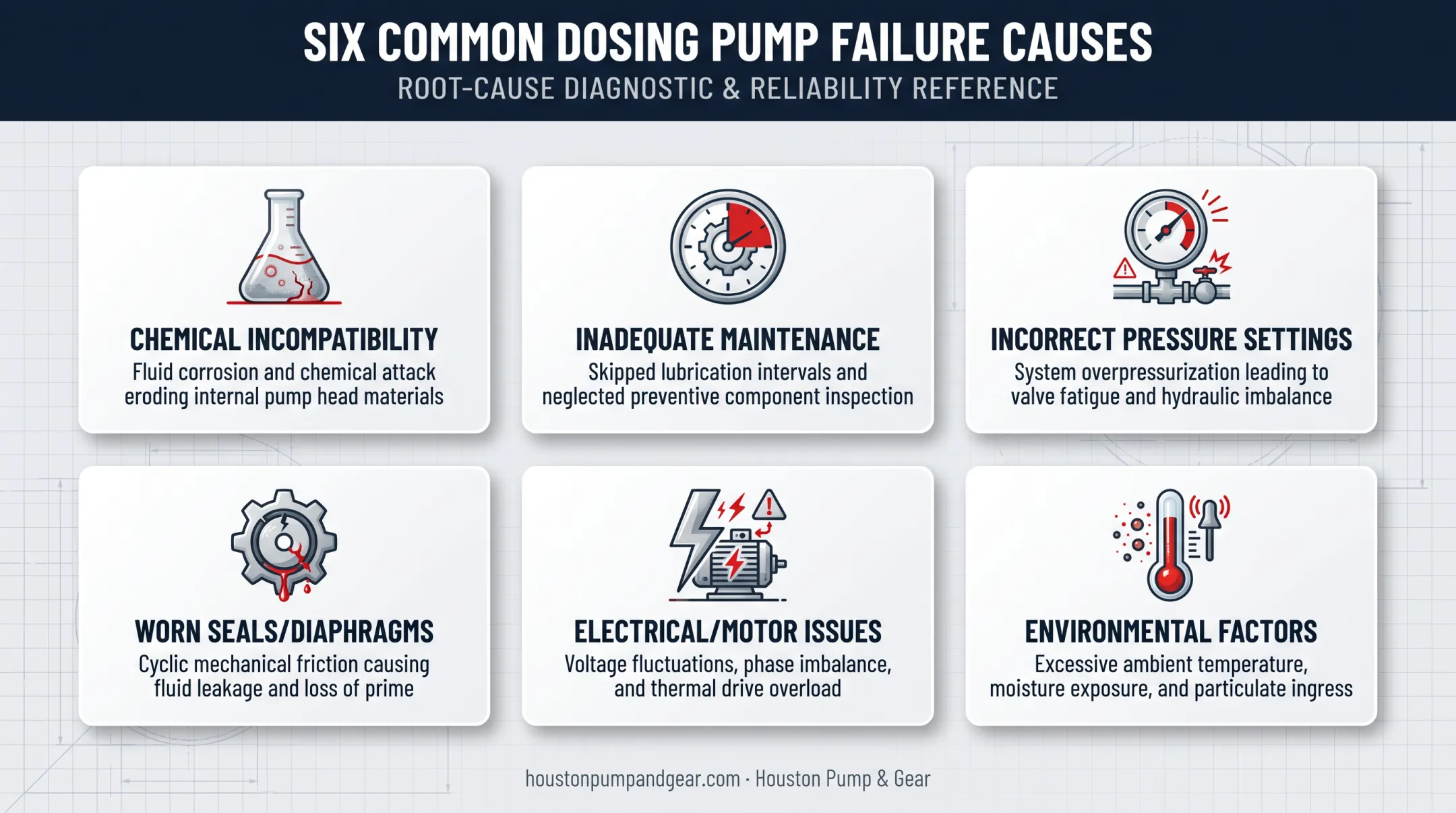

What Are the Common Causes of Chemical Dosing Pump Failure?
Chemical Incompatibility With Pump Materials
Dosing pumps use wetted materials like PTFE, PVC, and stainless steel to handle corrosive or reactive chemicals. When the material doesn't match the chemical being dosed, seals and diaphragms degrade fast.
Manufacturer guidance is clear on this:
- LMI stresses matching liquid-handling materials to the chemical with a resistance chart before installation
- ProMinent notes that soft PVC tubing lacks the chemical resistance of rigid PVC, so OEM-specified tubing is essential
Inadequate Maintenance and Cleaning
Skipped cleaning cycles let chemical residue build up inside valves and lines. Over time, this buildup:
- Clogs valves and reduces dosing accuracy
- Restricts flow through narrow tubing sections
- Creates blockages at the suction line or foot valve
Incorrect Pressure or Flow Rate Settings
Excessive injection pressure damages tubing, fittings, and check valves. Conversely, incorrect calibration against actual system back pressure causes cavitation, inconsistent output, or flow deviation alarms.
Worn Seals, Diaphragms, and Valves
Normal wear eventually degrades every seal ring and diaphragm. Watch for:
- Liquid pooling at the dosing-head drain opening (a classic diaphragm rupture indicator)
- Leakage from damaged fittings or tubing connections
- Chemical attack visible on the liquid-handling assembly
Electrical and Motor Issues
Power supply faults, damaged wiring, or blocked motors prevent startup entirely or cause erratic dosing. A motor-blocked alarm often points to excessive back pressure, incorrect diaphragm installation, or damaged internal gearing.
Environmental Factors
These conditions accelerate wear well before a pump reaches its expected service life:
- Dry-running
- Air intrusion at the suction side
- Curved or coiled tubing
- Improper storage
Catching these failure modes early—through inspection, correct materials selection, and timely seal or diaphragm service—keeps dosing systems accurate and online.

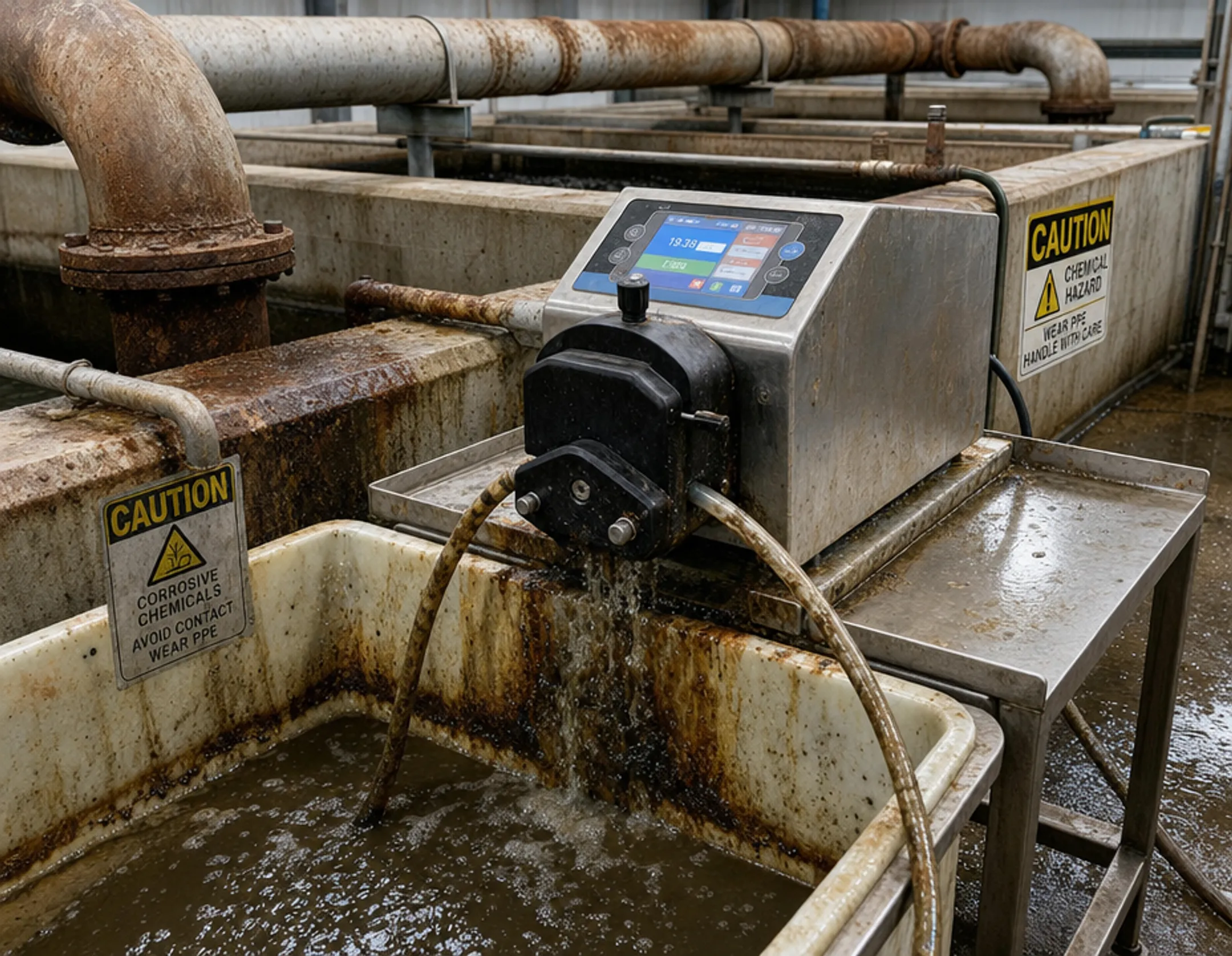

Recognizing the Warning Signs of a Failing Dosing Pump
Inconsistent or inaccurate dosing output is usually the first red flag. If actual flow drifts from your target rate, it's time to check calibration before the deviation grows worse.
Leaks, chemical residue, or corrosion around the pump housing signal seal or diaphragm failure. Never operate a pump with a blocked or soiled drain opening. A blocked drain masks a failing diaphragm and risks a sudden chemical release.
Excessive noise, vibration, or overheating point to misalignment, cavitation, or bearing wear. Trust your senses here:
- Squeaking or grinding noises during operation
- Unusual heat radiating from the pump housing
- New or increased vibration during operation
Catch these signs early and a simple part swap usually solves the problem. Left unchecked, the same issues can force a full pump teardown or an unplanned shutdown.
DIY Maintenance Steps to Extend Dosing Pump Life
Routine Inspection Checklist
Build a repeatable inspection routine around these checkpoints:
- Check diaphragm and seal condition for signs of leakage or degradation
- Inspect valves and tubing for kinks, cracks, or chemical attack
- Clean filters and strainers to prevent debris from reaching the pump head
- Verify lubrication schedule is on track for gear-driven components
- Watch packing leakage: production pumps should stay under 20 drops per minute; anything more means it's time for new packing
Safe Cleaning Procedures
Always power down and depressurize before opening any dosing head or check valve. Flush lines to remove chemical deposits before they harden into clogs. Skipping this step is one of the most common causes of preventable valve damage.
Keep a Maintenance Logbook
Document every inspection, part replacement, and alarm event. The record helps you spot repeat failures early and decide whether to repair or replace.
Stock critical spares on the shelf so a failed part does not become days of downtime:
- Diaphragms
- Seals and O-rings
- Valves

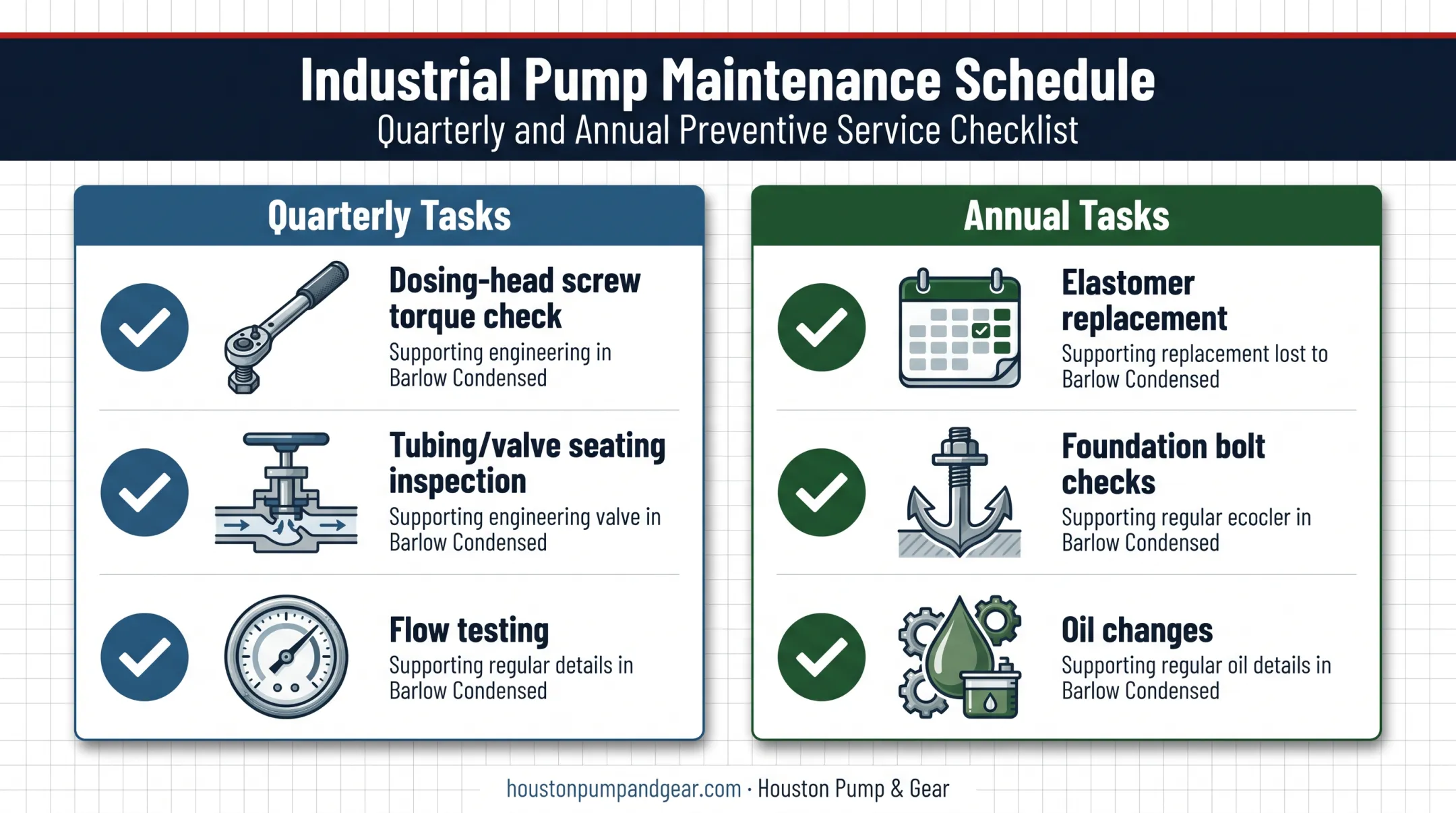

Quarterly vs. Annual Tasks
| Frequency | Tasks |
|---|---|
| Quarterly | Dosing-head screw torque check, tubing/valve seating inspection, flow testing |
| Annual | Elastomer replacement (diaphragm, O-rings, valve springs), foundation bolt checks, oil changes |
If the same fault returns after routine care, or the repair goes past field-replaceable parts, a specialist shop such as Houston Pump & Gear can overhaul the pump head, seals, and drive and return the unit to reliable service.
When to Call a Professional for Dosing Pump Repair
Some issues go beyond routine maintenance. Call a certified technician when you see:
- Motor failures that stop or stall the drive under load
- Control board faults or erratic speed/stroke commands
- Calibration drift that returns after a full recalibration
- Repeated leaks after a correct seal replacement
- Persistent flow deviation that checklists and recalibration do not correct These point to deeper mechanical or electrical faults, not a missed PM step. Handling corrosive or hazardous chemicals during repair work carries real risk without proper training and PPE. Pressurized liquid ends can spray chemical feed on release, and hazardous energy sources need proper lockout/tagout before any technician opens the pump. Houston Pump & Gear provides 24/7 emergency response and mobile field service for power plants and heavy industry across Texas and Louisiana. When a Lufkin S2212C gearbox failure put a power plant into emergency shutdown, our team restored the unit within 72 hours. That same rapid-turnaround approach applies to critical dosing pump failures. For continuous-process facilities, every hour of downtime compounds.
Preventive Maintenance Best Practices for Long-Term Reliability
A few operating habits prevent most chemical dosing pump failures long before seals wear out or a scheduled teardown is due:
- Match flow rate, chemical compatibility, and operating conditions to the duty so failures never get a foothold
- Use digital monitoring and alarms to catch flow deviation, cavitation, leakage, and overpressure in real time
- Shut the system down automatically on fault so minor issues do not turn into expensive equipment damage
- Train operators on manufacturer guidelines so they recognize an abnormal dosing cycle weeks before an inspection
- Treat operator training as a reliability upgrade — it costs almost nothing and often outlasts a hardware swap
Frequently Asked Questions
What are the common causes of a dosing pump failure?
Chemical incompatibility, worn seals or diaphragms, clogged lines, incorrect pressure settings, and electrical faults account for most dosing pump failures. See the detailed breakdown above for how each manifests.
How often should a chemical dosing pump be inspected?
Quarterly inspections are a reasonable baseline for most applications. Facilities dosing highly corrosive chemicals or running continuous heavy-duty cycles should inspect more frequently.
Can a dosing pump run without damage if it loses prime or runs dry?
Dry-running doesn't always cause immediate mechanical damage, but it does throw off dosing accuracy right away. Correct the loss of prime quickly to avoid compounding wear on seals and diaphragms.
What is the average lifespan of a chemical dosing pump with proper maintenance?
Lifespan varies widely by pump type, duty cycle, and chemical exposure. Proper maintenance, however, consistently extends service life well beyond what neglected pumps achieve — sometimes by years.
How quickly can a failed dosing pump be repaired in an emergency?
Turnaround depends on failure severity and part availability. Houston Pump & Gear's emergency team has completed critical repairs in as little as 72 hours for facilities facing shutdown.
Should I repair or replace a chemical dosing pump?
Repair usually makes sense for younger pumps with isolated, fixable damage. Replacement becomes the smarter call when a pump requires frequent repairs, has outdated parts, or shows extensive wear across multiple components.
