Improper sealing is a common root cause of premature bearing and gearbox failure. When a felt seal degrades, lubricant leaks out and contaminants get in — a combination that wears down gears, pits bearing races, and eventually leads to unplanned downtime. For power plants and heavy industry operations, that downtime is expensive and sometimes dangerous.
This article covers what felt ring seals actually are, how they protect rotating equipment, their strengths and limitations, and when it's time to call in professional service or replacement.
Key Takeaways
- Felt ring seals use capillary action and fiber density to retain lubricant while blocking dirt, requiring minimal shaft pressure
- Low-to-moderate speed, moderate-temperature industrial applications get the most reliable felt seal performance
- Wear builds gradually, so inspection during scheduled maintenance beats waiting for failure
- Houston Pump & Gear technicians flag worn seals during gearbox teardown, repair, and rebuild so units return sealed and service-ready
What Are Felt Ring Seals and Gaskets?
Felt ring seals are precision-cut washers or rings made from wool or synthetic fiber felt. They sit near ball or roller bearings to retain lubricant and keep out contamination. Felt gaskets use the same materials in flat sheets or cut shapes to seal static joints between housings, covers, and flanges.
Unlike lip seals or squeeze packings, which rely on continuous contact pressure against the shaft, felt seals need very little shaft pressure to work effectively. Some designs, like SKF's housing felt seal, form a small gap at speed and function as a non-contact seal.

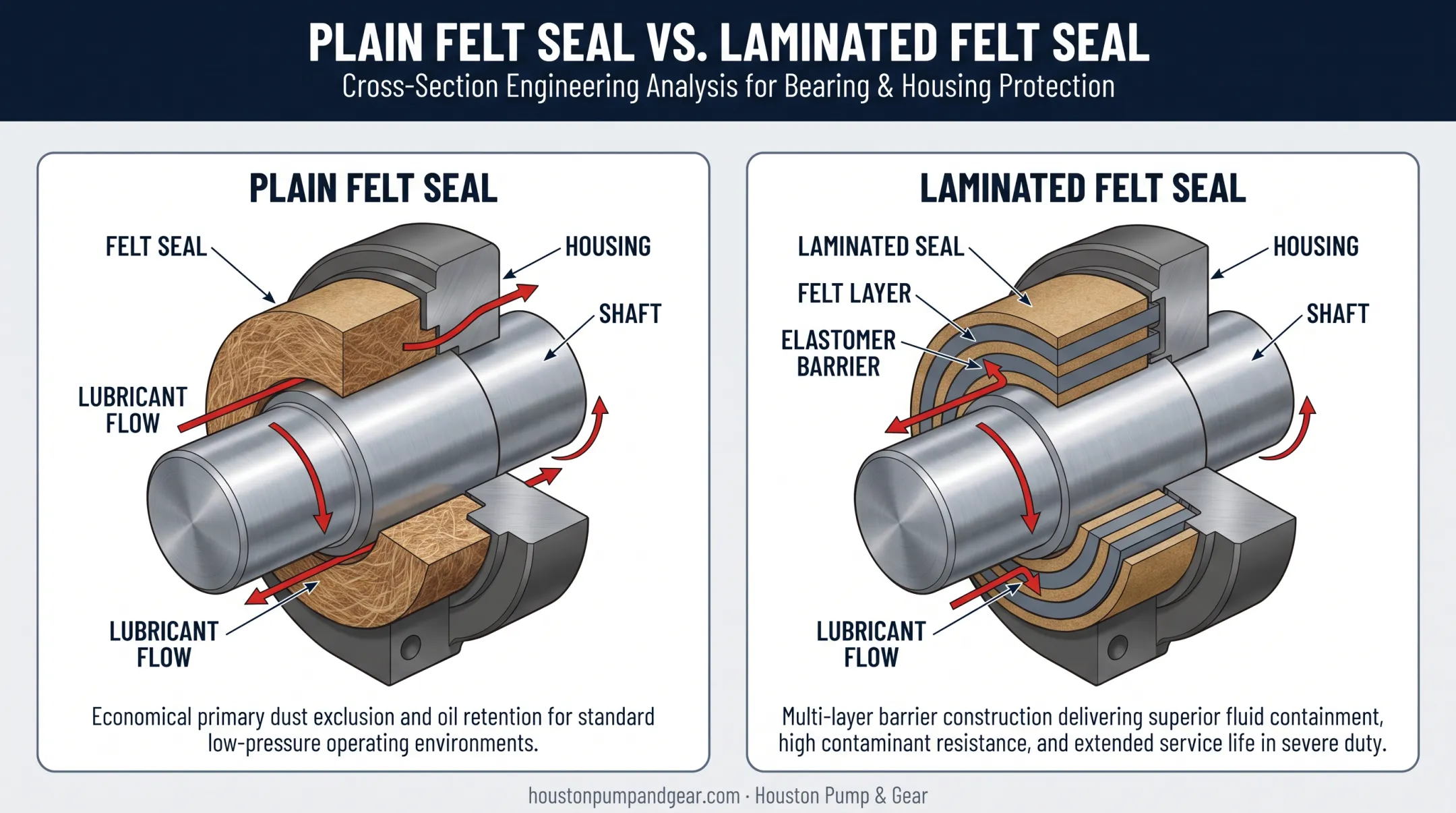

There are two main constructions:
- Plain felt seals — single-density, precision-cut washers. Simple and effective for standard duty.
- Laminated felt seals — combine multiple felt grades or densities with layers of elastomer, improving low-viscosity oil retention and reducing leakage.
Manufacturers often impregnate felt with paraffin, petroleum, or colloidal graphite. These treatments improve resistance to water and mud while lowering friction against the shaft.
Common Applications
Felt ring seals are commonly used in:
- Industrial gearboxes
- Pump bearing housings
- Motors and other rotating equipment
Radial lip seals — the type with a cylindrical outer part and a sealing lip — often work alongside felt seals in the same housing, each handling a different part of the sealing job.
What Are Felt Ring Seals Used For?

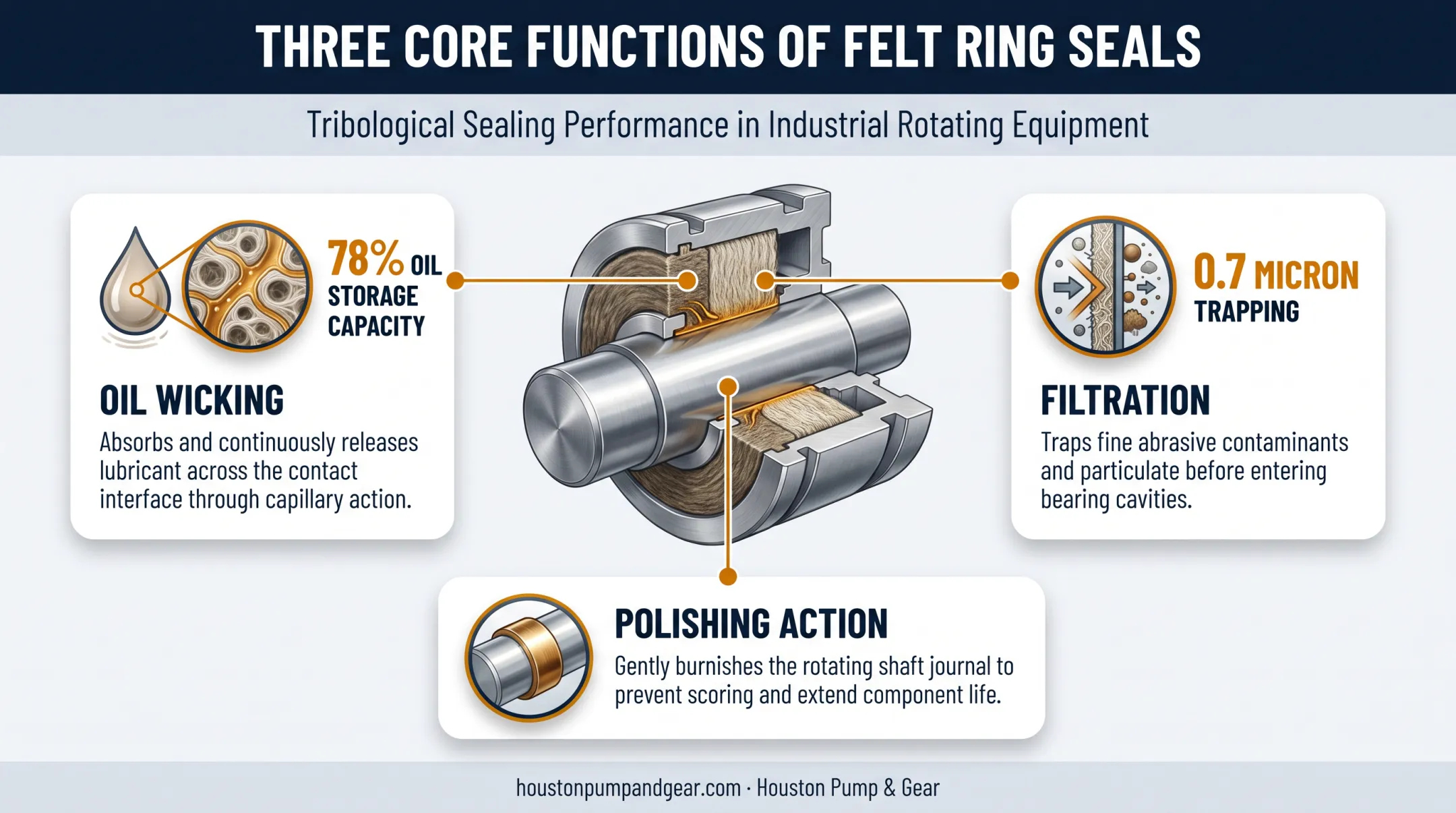

Felt seals do three jobs at once:
- Retain lubricant
- Exclude dirt and dust
- Protect bearing surfaces from wear
Oil wicking is the standout feature. Felt's capillary structure keeps components lubricated even after long idle periods — critical for standby equipment that might sit for weeks between run cycles.
This wicking action also means the felt itself acts as a lubricant reservoir. Roughly 78% of felt-seal volume is reported as oil storage capacity, according to a Machine Design technical analysis.
Filtration is the second function. Dry wool felt traps particles as small as 0.7 microns. Once saturated with oil, the felt's structure tightens further and catches even smaller contaminants.
Here's the part maintenance techs appreciate most: the polishing action. Abrasive particles get trapped inside the felt fibers rather than sitting at the shaft interface. Instead of scoring the shaft surface, the felt actually polishes it over time.
Houston Pump & Gear technicians encounter felt seals constantly during gearbox teardown. They're often one of the first components examined during a root-cause failure analysis.
Are Felt Ring Seals Good? Advantages and Limitations
Yes—for the right job. Felt seals are effective and economical across many industrial applications, but they have clear performance boundaries. Knowing those limits up front prevents costly mismatches.
Advantages:
- Chemical resistance: wool felt handles dilute acids and oils; synthetic felt withstands strong acids, bases, and hydraulic fluids
- Low friction: dry coefficient around 0.22, dropping further once oil-saturated
- Resilience under minor wear and shaft misalignment better than rigid seal types
- Aging resistance without the embrittlement some elastomers develop over time

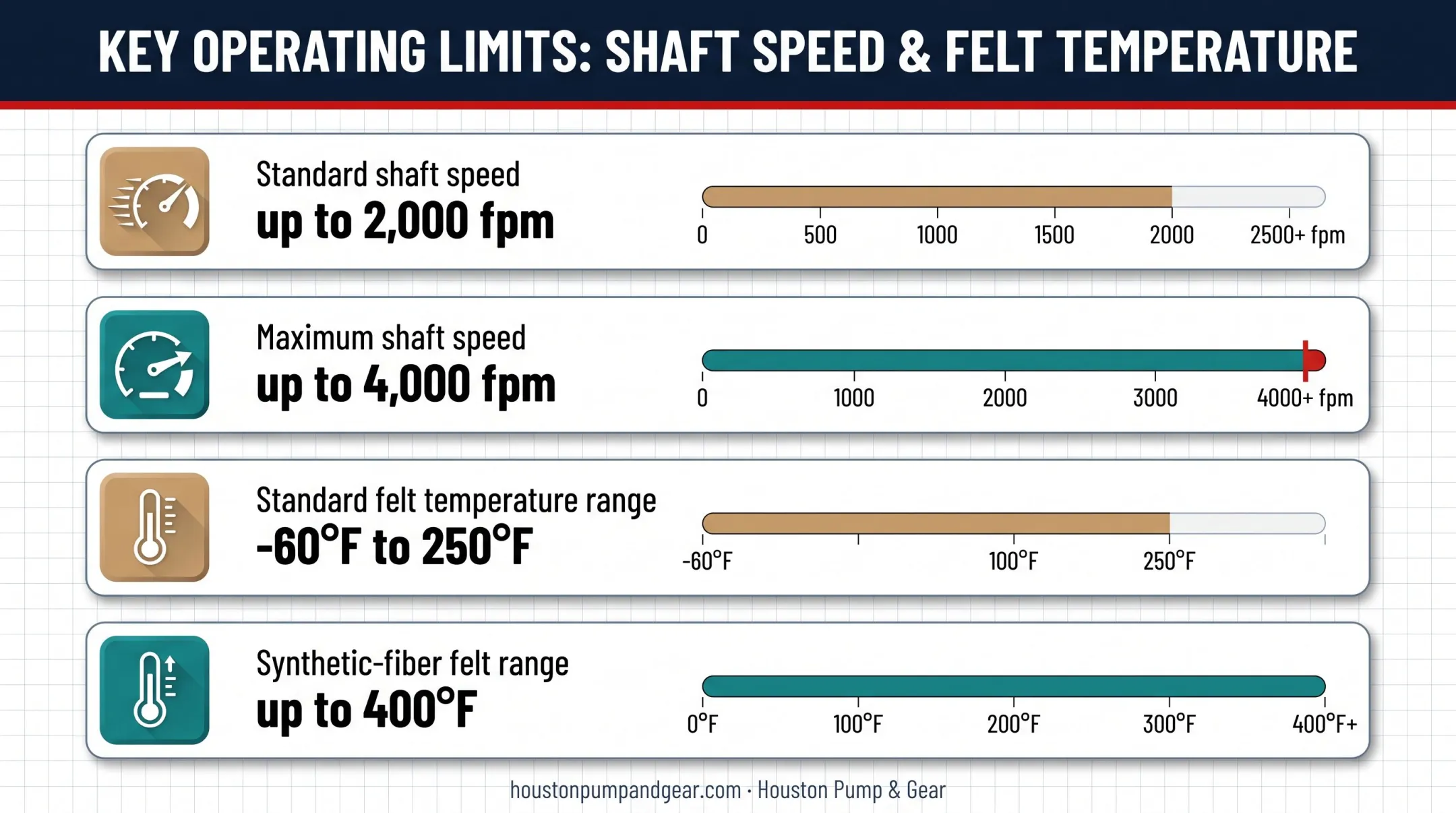

Speed and temperature limits:
| Condition | Typical Rating |
|---|---|
| Standard shaft speed | Up to 2,000 fpm |
| Maximum (hard, smooth, well-lubricated shaft) | Up to 4,000 fpm |
| Standard felt temperature range | -60°F to 250°F |
| Synthetic-fiber felt temperature range | Up to 400°F |
Where felt falls short:
- Plain felt is a poor fit with extremely low-viscosity oils
- Not designed to retain pressurized lubricant
- Laminated or impregnated felt, or a different seal type, is the better call in those cases
Felt still wears with use despite solid aging resistance. Inspect seals during routine maintenance rather than treating them as permanent fittings.
Signs of Felt Seal Wear and When to Replace Them
Watch for these warning signs:
- Visible lubricant leakage around the shaft or housing
- Contamination found inside the gearbox or bearing housing during inspection
- Unusual noise (grinding, whining, or clunking) that often signals poor lubrication or seal failure
Felt seals are usually replaced during a full equipment overhaul, not as a standalone job. Reaching them almost always means disassembling the unit, so most gearbox repair workflows inspect and replace seals while the housing is already open.
Whenever a gearbox is opened for any other repair, have the seals checked. That low-cost step prevents a second teardown and extra downtime later.
Why Proper Sealing Matters for Gearbox and Pump Reliability
A failed or degraded felt seal lets contamination in and lubricant out at the same time. That double hit accelerates wear on gears, bearings, and pump shafts and housings alike. Seal and lubrication problems are among the most common contributors to gearbox and pump failures across heavy industry.
Emergency gearbox and pump failures often trace back to exactly this kind of seal or lubrication issue. One Houston Pump & Gear client, a power plant operator, faced that outcome when a Lufkin S2212C gearbox failure triggered an emergency shutdown. The team picked up the unit the same day and had the plant back online within 72 hours.

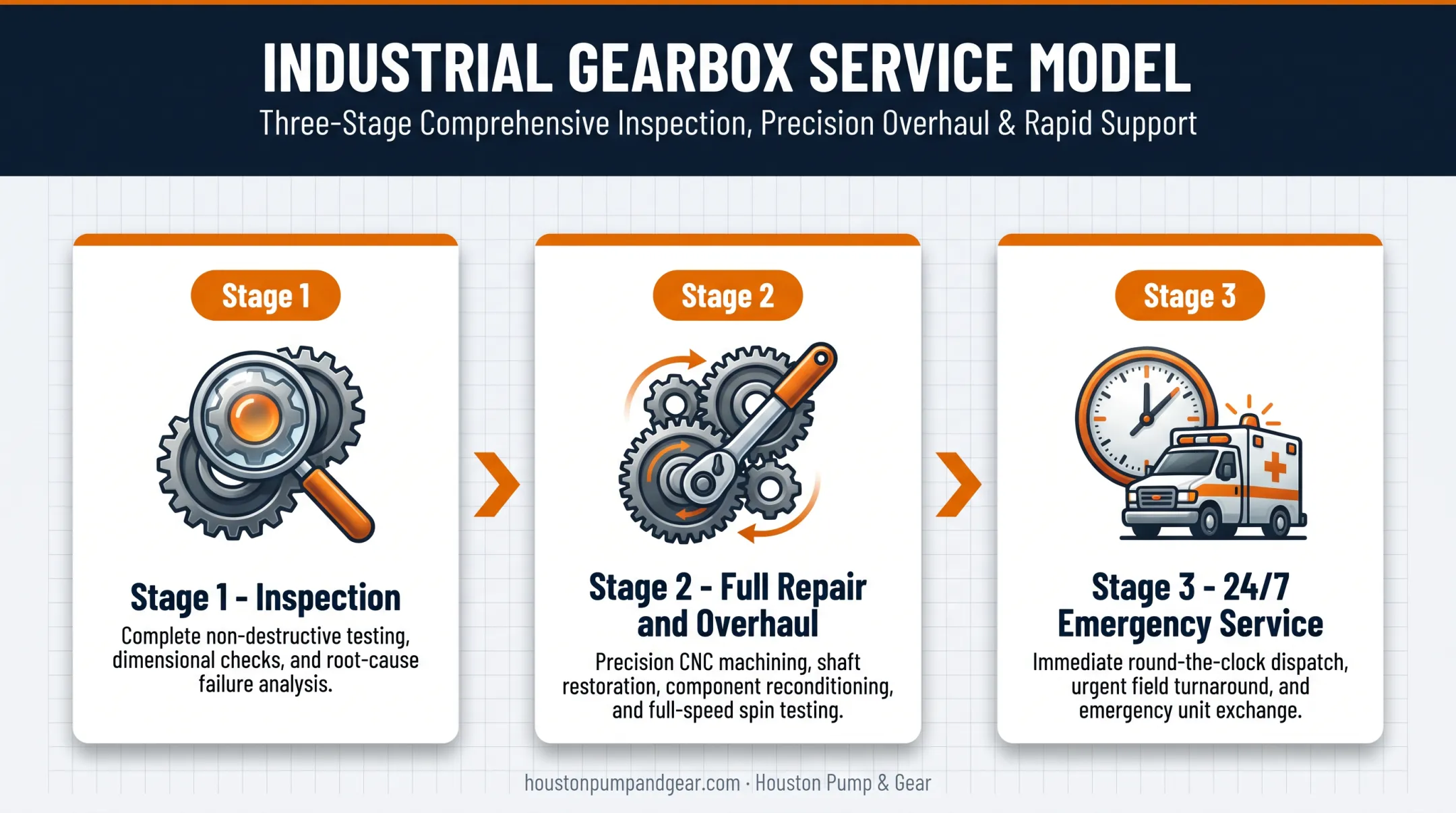

Preventing that downtime—and recovering fast when it still happens—is what the service model is built for:
- Inspection: catching seal and lubrication issues before they cause failure
- Full repair and overhaul: bearing and mechanical seal work through complete rebuilds
- 24/7 emergency service: same-day pickup for facilities across Texas and Louisiana
Catching a worn felt seal during a routine inspection is far cheaper than an emergency shutdown. If your gearbox is already open for other work, get the seals checked while it's apart.
Frequently Asked Questions
What are felt ring seals used for?
Felt ring seals retain lubricant, exclude dust and dirt, and protect bearing surfaces from wear in rotating machinery. They combine oil wicking with fine particulate filtration in one simple component.
Are felt ring seals good?
Yes, for the right application. They're effective and economical for moderate speed and temperature applications, but they're not suited for pressurized lubricant systems or extremely low-viscosity oils.
How long do felt seals typically last?
Felt seals generally last until the next scheduled equipment overhaul. However, they should be inspected for leakage, contamination, or wear signs any time a gearbox is opened.
Can felt seals be used with synthetic lubricants?
Synthetic-fiber felts handle a broader range of chemicals, temperatures, and lubricants than standard wool felt. Check the specific felt grade against your lubricant's chemistry before assuming compatibility.
What's the difference between plain and laminated felt seals?
Plain felt seals are single-density, precision-cut washers suited for standard duty. Laminated felt seals combine multiple felt grades with elastomer layers, improving performance with low-viscosity oils.
Who should I call if I suspect a seal failure in my gearbox?
Get a professional inspection before the issue becomes an emergency shutdown. Houston Pump & Gear offers both scheduled and 24/7 emergency gearbox service for power plants and heavy industry across Texas and Louisiana.
