Over time, contamination, cavitation, wear, and skipped maintenance take their toll. Pressure loss, leaks, unusual noise, and overheating are the most common symptoms operators encounter. Contaminated hydraulic fluid is behind an estimated 70-80% of hydraulic system failures, according to Machinery Lubrication's analysis of hydraulic pump failures.
This article covers common piston pump problems, a step-by-step diagnostic and repair process, guidance on fixing versus replacing, and when to call an emergency repair team like Houston Pump & Gear.
TL;DR
- Common problems: pressure instability, leaks, overheating, unusual noise, and reduced flow
- Most piston pumps are repairable when housing and major castings are intact and issues are caught early
- Repair process: diagnose symptoms, isolate the root cause, repair or replace parts, then test under load
- Call a professional when you lack OEM tools or expertise, or when downtime is critical
What Is a Hydraulic Piston Pump?
A hydraulic piston pump is a positive-displacement pump that uses reciprocating pistons inside a cylinder block to generate high-pressure fluid flow. As each piston moves through its stroke, it traps a fixed volume of fluid and forces it through the system.

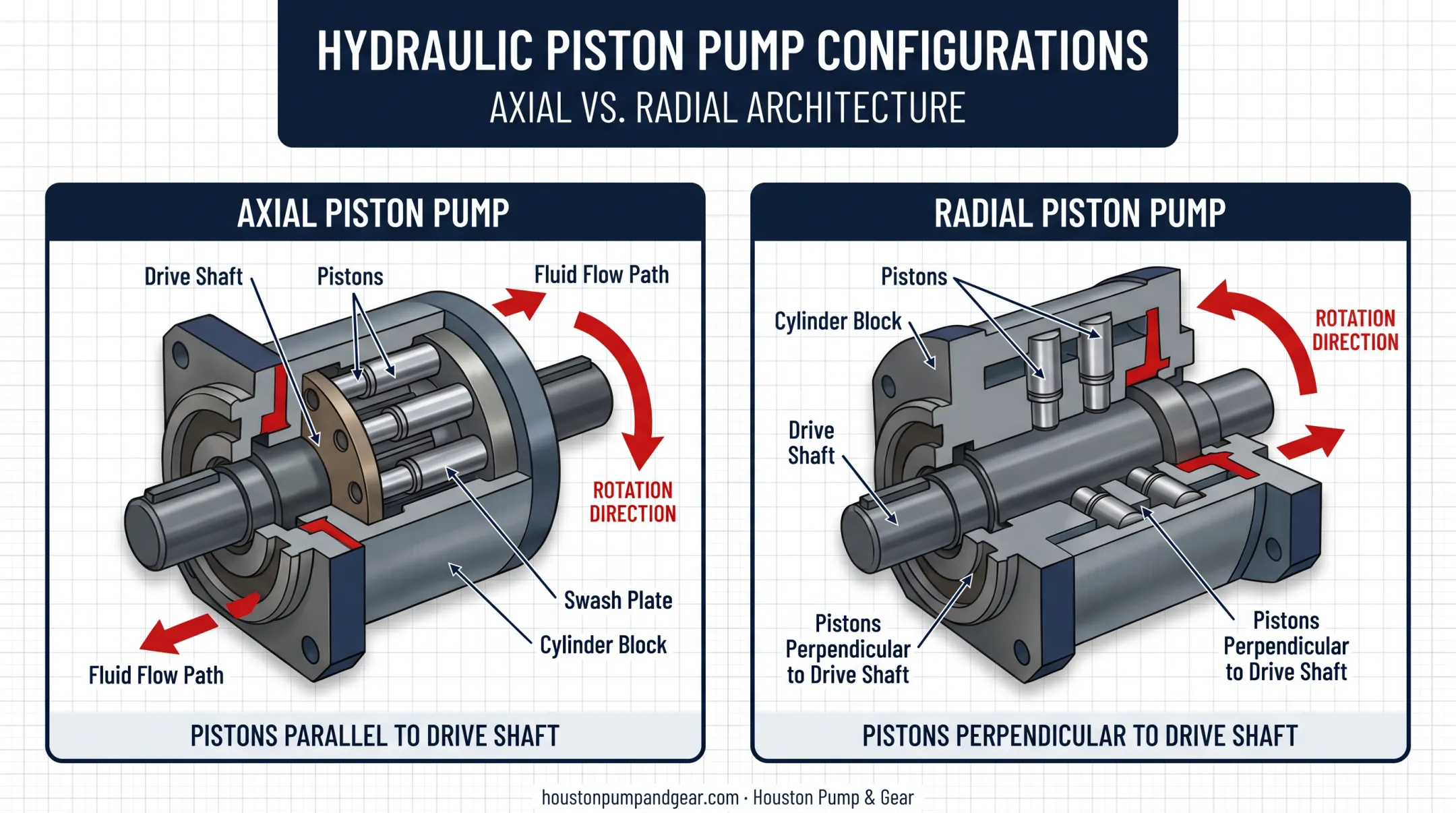

Two common configurations deliver that flow differently:
- Axial: Flow scales with drive speed and displacement; a swash plate (or cradle) sets stroke length by changing swivel angle
- Radial: Same principle, with pistons arranged perpendicular to the drive shaft
According to Bosch Rexroth's A10VOH pump documentation, increasing the swash plate angle raises displacement; reducing it drops output.
These are precision systems. Tight tolerances between pistons, bores, and valve plates make them efficient, but that same precision means wear, contamination, and operating stress degrade performance faster than in simpler pump types. That's why periodic inspection and repair matter more here than with basic centrifugal pumps.

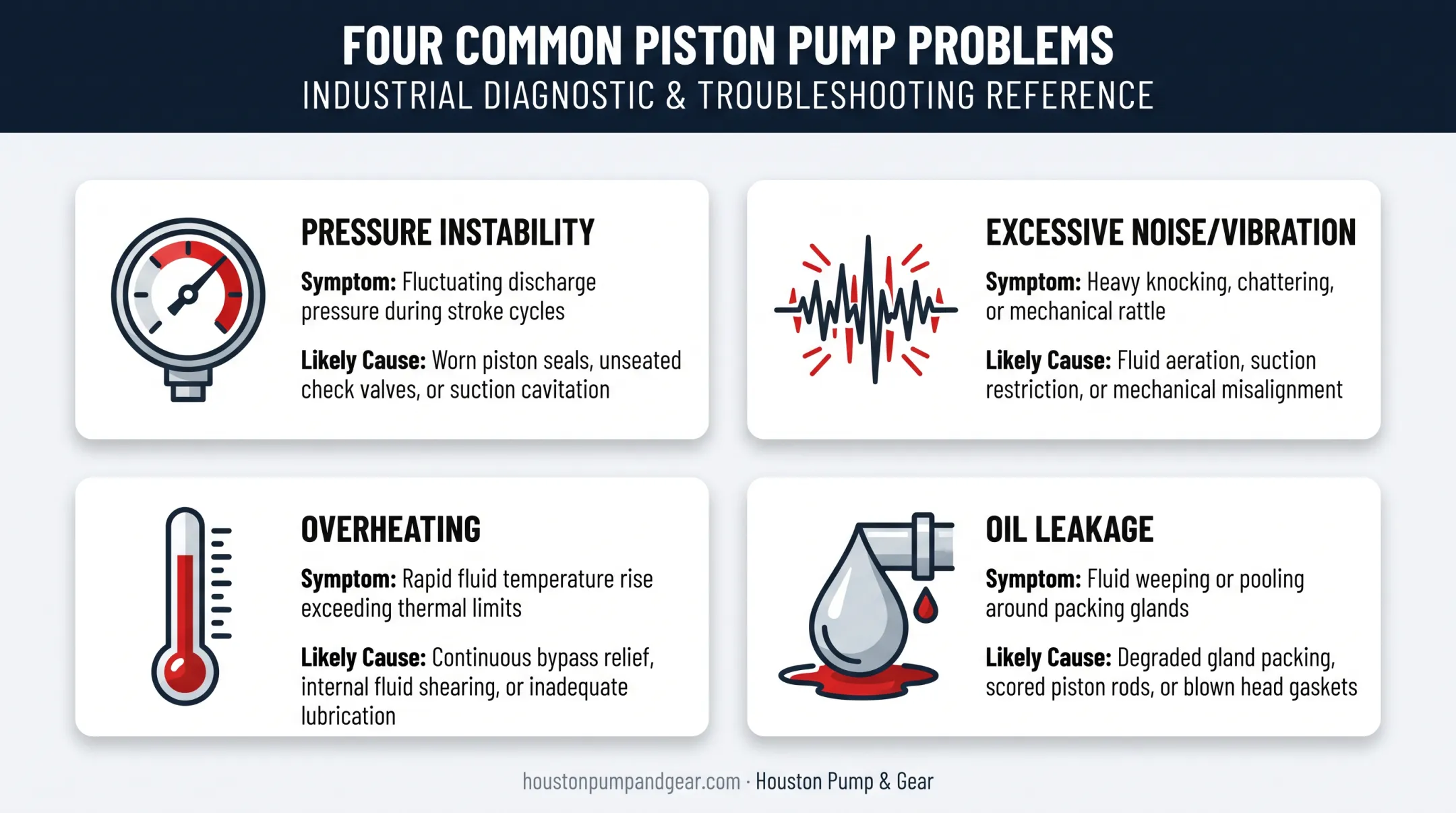

Common Problems With Hydraulic Piston Pumps
Most piston pump failures follow predictable, diagnosable patterns. Catching the pattern early is what separates a quick seal swap from a full rebuild.
Pressure Instability or Loss
Symptoms: Fluctuating or weak output pressure, sluggish actuator response.
Likely causes: Worn pistons, a damaged valve plate, or internal leakage. If isolating the pump and relief valve doesn't restore pressure buildup, the pump internals are typically the culprit, per Machinery Lubrication's troubleshooting guide.
Excessive Noise or Vibration
Symptoms: Knocking, whining, or cavitation-type noise.
Likely causes: Air ingress, low fluid level, a blocked suction filter, or bearing wear. A high-pitched whine often signals the pump isn't getting the oil volume it needs.
Overheating
Symptoms: Rising oil temperature, degraded lubrication, sudden efficiency drop.
Likely causes: Internal leakage, incorrect oil viscosity, or poor cooling. High temperature often means the fluid viscosity is too low for the operating conditions.
Oil Leakage
Symptoms: Visible pooling, dropping reservoir levels.
Likely causes: Worn shaft seals, cracked housing, or loose fittings. A useful benchmark: external leakage above 20 drops per minute signals it's time to replace the shaft seals.
Why Hydraulic Piston Pumps Fail (Root Causes)
Failures rarely come out of nowhere. They usually trace back to a handful of real-world conditions:
- Operational stress — continuous high-pressure cycling in power plants and heavy industry
- Environmental exposure — contamination and temperature extremes that push fluid outside its ideal viscosity range
- Improper installation — misalignment or incorrect rotation from the start
- Skipped preventive maintenance — no fluid monitoring, no scheduled inspections
Left unchecked, these conditions compound fast:
- Reduced efficiency and output
- Internal damage that spreads to adjacent components
- Safety risks in critical power plant operations
- Costly, unplanned downtime

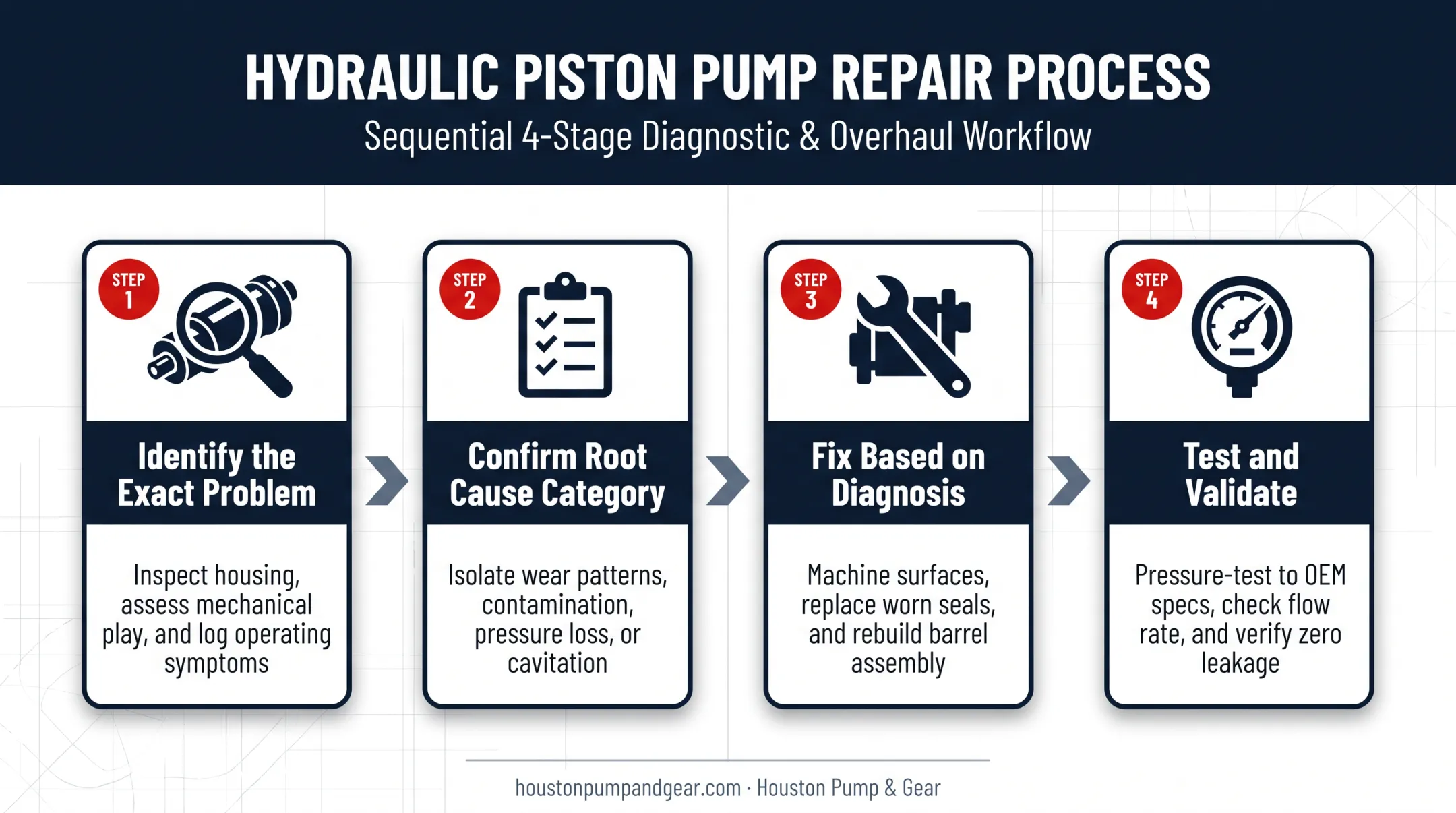

How to Fix a Hydraulic Piston Pump (Step-by-Step)
Attempting a repair without confirming the exact problem often wastes time and money—and can void your warranty. Confirm the root cause first so you use the right parts and avoid a repeat failure.
Step 1: Identify the Exact Problem
- Observe visible symptoms: leaks, noise, vibration, overheating, output loss
- Note performance deviations using pressure and flow diagnostic tools
- Document when the issue occurs — at startup, under load, or during continuous run
Step 2: Confirm the Root Cause Category
Determine whether the issue is:
- Mechanical — pistons, valve plate, bearings
- Fluid-related — contamination, wrong viscosity
- Installation or operational — misalignment, incorrect settings
Rule out external factors like power supply or ambient conditions first. This step prevents unnecessary part swaps and repeat failures.
Step 3: Fix the Pump Based on the Identified Problem
If the issue is mechanical wear: Piston scoring, valve plate pitting, and bearing failure are common culprits. Disassemble the pump, replace damaged parts, and reassemble to the correct torque specs.
Houston Pump & Gear's team checks bore condition and seal fit before closing the unit back up.
If the issue is contamination or fluid-related: Flush the system, replace filters, and refill with correct-viscosity fluid. Recalibrate pressure settings afterward.
If the issue is installation or operational: Check for misalignment, incorrect rotation direction, or wrong pressure settings. Realign components, verify rotation, and adjust the compensator or relief valve as needed.
Step 4: Test and Validate the Fix
- Run the pump under normal and peak load conditions
- Monitor pressure output, noise, and temperature. A vibration meter and infrared thermometer after a couple hours of runtime give a reliable read
- Confirm performance matches OEM benchmarks
- Watch for recurrence over a defined monitoring period
When Should You Fix vs Replace a Hydraulic Piston Pump?
The right call weighs repair cost against downtime risk and remaining service life. Here's how that plays out in practice:
| Scenario | Fix | Replace |
|---|---|---|
| Early-stage wear, isolated seal/gasket failure | Reseal and return to service — often doable in one afternoon | Only if the housing is cracked |
| Widespread internal wear (pistons, valve plate, bearings) | Full rebuild with OEM-quality parts | If rebuild cost approaches new pump cost |
| Critical power plant equipment needing rapid restart | Emergency repair with rapid turnaround | Only if no repairable parts remain on-site or in stock |
| Obsolete or discontinued models | Source reverse-engineered or cross-referenced parts | Swap in a compatible modern equivalent |
Houston Pump & Gear has shown what rapid turnaround looks like: a 72-hour gearbox restoration for a power plant client after an emergency shutdown. The unit was picked up, rebuilt, and shipped back to the plant.
That same urgency applies to piston pump emergencies. When a facility can't source repairable parts and has no comparable unit in stock, reverse engineering or a custom-manufactured replacement often costs far less than buying new.
Preventive Measures and When to Call a Professional
Most catastrophic pump failures are preventable. Build these habits into your maintenance routine:
- Run regular fluid analysis to catch contamination before it damages internals
- Schedule inspections instead of running equipment to failure
- Verify proper alignment after any reinstallation or maintenance
- Train staff to spot early warning signs like unusual noise or temperature creep
Facilities without in-house hydraulic expertise shouldn't guess. If your team lacks manufacturer-specific tools or experience to make an informed repair decision, bring in a trusted repair partner.
Houston Pump & Gear provides 24/7 emergency service with mobile field response and dedicated transport trucks across Texas and Louisiana, serving power plants and heavy industry when equipment goes down without warning.
Conclusion
Most hydraulic piston pump issues are fixable when they're diagnosed early and addressed methodically. Correctly identifying the root cause before ordering parts or starting disassembly prevents wasted time and repeat failures.
Knowing when to fix versus replace protects both your uptime and your budget. When a pump fails at 2 a.m. on a critical line, Houston Pump & Gear provides 24/7 emergency support to get you back online.
Frequently Asked Questions
Can a hydraulic piston pump be repaired?
Yes, in most cases, as long as the housing and major castings are intact. A typical rebuild covers seals, pistons, valve plates, and bearings.
What is the lifespan of a hydraulic piston pump?
Lifespan varies widely by duty cycle and maintenance, with some units rated for 10,000-20,000 hours under ideal conditions. Preventive care and clean fluid extend that range significantly.
What is the most common cause of hydraulic piston pump failure?
Contaminated hydraulic fluid is the leading cause, followed by cavitation from insufficient fluid supply and lack of preventive maintenance.
How much does it cost to repair a hydraulic piston pump versus replacing it?
Repair costs depend on parts, labor, and downtime. A seal job can cost a fraction of a new pump; a full rebuild on a badly damaged unit can approach replacement cost. Weigh remaining service life against rebuild scope before you decide.
How quickly can an emergency hydraulic piston pump repair be completed?
Rapid-response repairs are possible within days when a dedicated team and transport are available. Houston Pump & Gear has completed a 72-hour emergency gearbox turnaround for a power plant client, and similar timelines apply to urgent pump repairs.
How often should hydraulic piston pumps be inspected?
Perform daily visual checks for leaks and unusual noise, weekly fluid and filter checks, and a comprehensive inspection monthly or per OEM guidance.
