Many facility operators struggle with the same pattern. A pump runs fine for months, then suddenly won't start, or it hums without moving water. Debris, electrical stress, and poor installation all take a toll eventually.
This guide covers the most common submersible pump problems, how to diagnose and fix them, when repair makes more sense than replacement, and when to bring in a professional.
TL;DR
- Most common issues: won't start, humming with no output, low flow, or tripped breakers
- Often fixable early: clogs, float switches, and worn seals rarely require full replacement
- Diagnose before parts: isolate mechanical, electrical, or installation causes first
- Call a professional when troubleshooting fails, or when motor or gearbox work is required
What Is a Submersible Utility Pump?
A submersible utility pump is designed to operate fully submerged in the fluid it's moving, whether that's groundwater, stormwater, sewage, or process fluid in an industrial setting. Unlike above-ground pumps, the entire motor housing sits underwater.

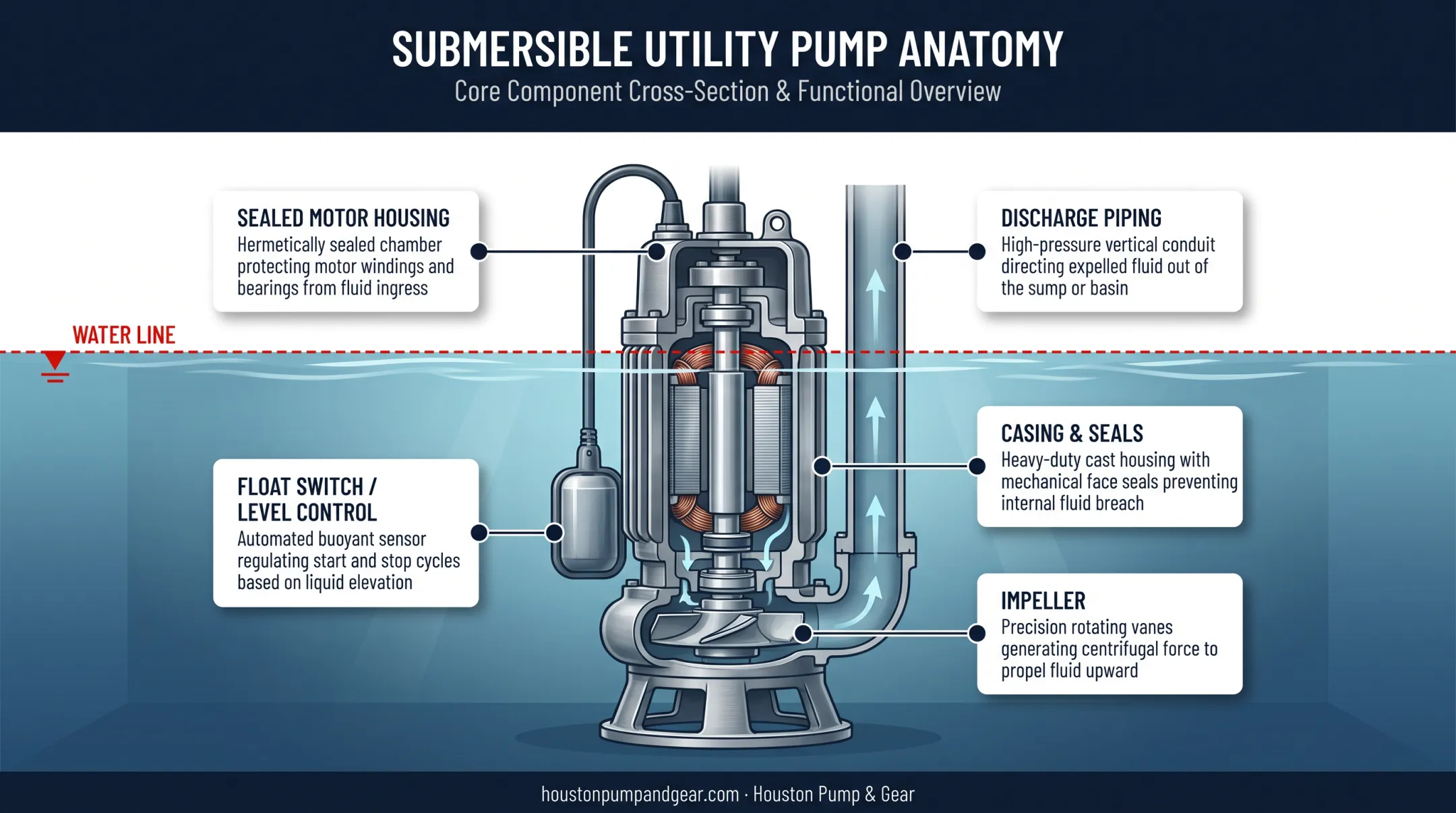

The core components work together as a sealed system:
- A sealed motor, protected from fluid intrusion by casing and seals
- An impeller that spins to move fluid through the discharge line
- Level controls—float switches, probes, or external controllers—that manage automatic start/stop
- Discharge piping that carries fluid away from the pump
In industrial settings, they handle pit dewatering, stormwater and washdown drainage, and process fluid transfer. Like any working system, they degrade: seals wear, impellers erode, and electrical components take stress every time the motor cycles. Catching that wear early is what keeps a nuisance leak from becoming an unplanned shutdown.

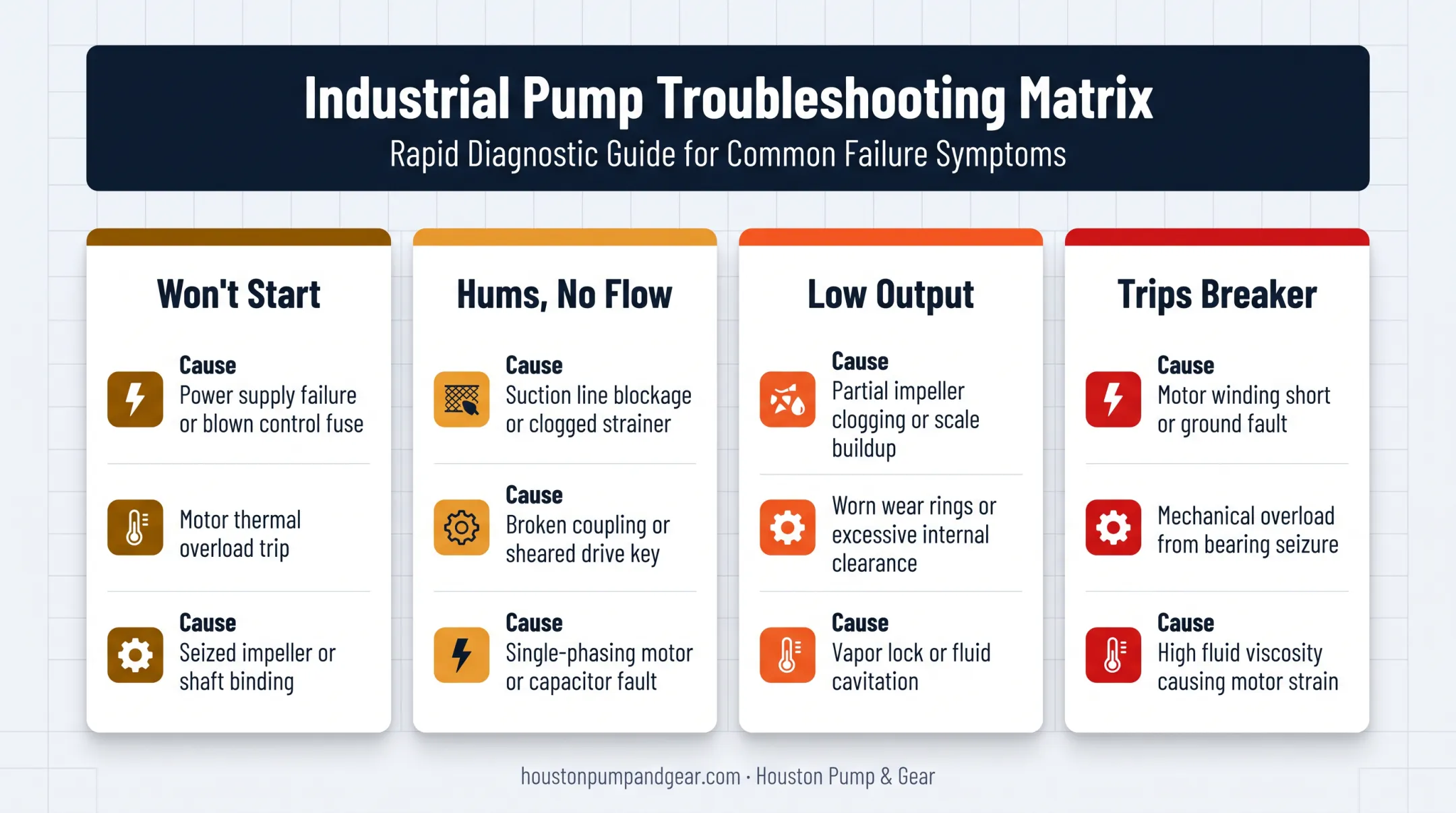

Common Problems With Submersible Utility Pumps
Most submersible pump failures aren't random. They follow a small number of recognizable patterns, which means most problems are diagnosable if you know what to look for.
Pump Won't Start
Symptoms: No hum, no response when powered on.
Likely causes:
- Tripped breaker or control-circuit fault
- Failed float or level control
- Blown capacitor
- No voltage at the motor leads
Verify control power, float/level status, and voltage at the motor leads first — these checks resolve many no-start events before anyone pulls the pump.
Pump Hums But Doesn't Pump Water
Symptoms: Motor noise, but no discharge flow.
Likely causes:
- Clogged or jammed impeller
- Blocked intake screen
- Stuck check valve
A steady hum usually means the motor is energized, but debris, a locked impeller, or a stuck check valve is keeping the hydraulic end from turning freely.
Low Flow or Reduced Output
Symptoms: Weak discharge, inconsistent pressure.
Likely causes:
- Worn impeller
- Clogged intake screen
- Leaking pipe, fitting, or worn wear rings
- Discharge restriction or higher-than-design head
Impeller wear is progressive. Once vanes or clearances open up, output drops for good — machining rarely restores lost hydraulic performance, so replacement is the practical fix.
Pump Trips Breaker or Overheats
Symptoms: Frequent shutoffs, thermal cutout triggers.
Likely causes:
- Motor overload
- Phase imbalance
- Running dry
- Seal failure allowing water into the motor
Resetting protection without finding the cause only masks overload, dry-run, or seal leakage — and repeated trips often finish off the motor windings. Seal or winding damage usually means a shop teardown, not another reset.
Why Submersible Utility Pumps Fail (Root Causes)
Failures trace back to a handful of real-world conditions:
- Operational stress: running dry or overloading beyond the pump's service factor
- Environmental exposure: debris, abrasive fluids, sediment buildup
- Improper installation: bad float positioning, missing check valve, coupling misalignment
- Lack of preventive maintenance: no seal inspection, no screen cleaning
Running a pump outside its intended conditions—even briefly—can destroy seals, bearings, and the motor. A misaligned coupling compounds that damage by transferring vibration straight into the drive train.
Left unaddressed, these root causes lead to:
- Reduced efficiency and higher energy draw
- Motor burnout or bearing failure
- Sump overflow and process-area flooding
- Costly emergency downtime for industrial operations

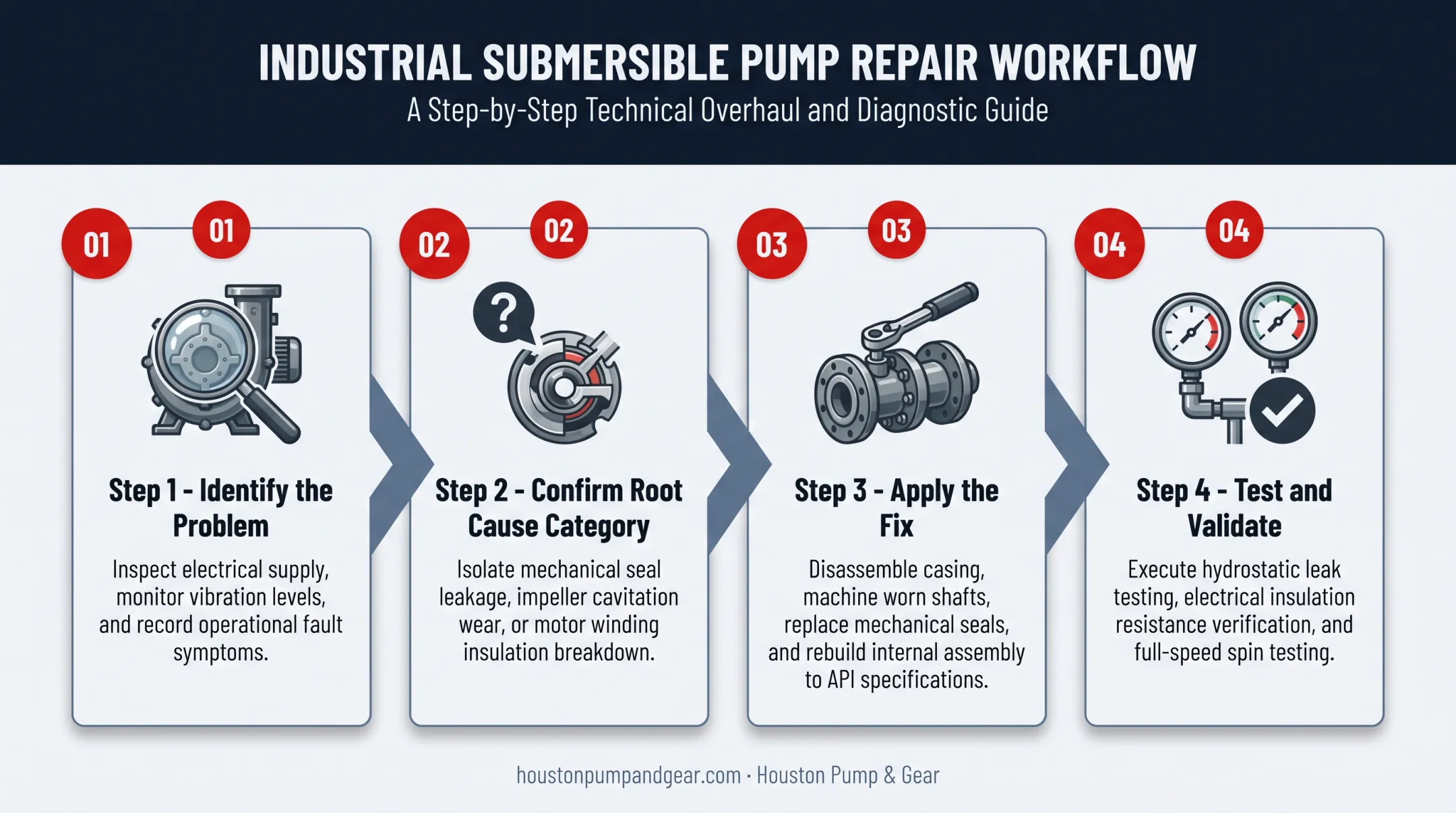

How to Fix a Submersible Utility Pump (Step-by-Step)
Jumping straight to a fix without diagnosing the actual problem wastes time and often leads to the same failure repeating. A structured process isolates the root cause and applies the right fix the first time.
Step 1: Identify the Exact Problem
- Observe symptoms: no start, humming, low flow, tripping, unusual noise or vibration
- Note when it happens: at startup, under load, or during continuous run
- Check the breaker panel, float position, and any control alarms
Step 2: Confirm the Root Cause Category
Determine whether the issue is mechanical, electrical, or installation/environmental. Rule out external factors like supply voltage and debris in the sump or well first.
Unnecessary part swapping is one of the biggest causes of repeat breakdowns. You end up fixing a symptom, not the cause.
Step 3: Apply the Fix Based on the Problem
Mechanical issues:
- Clear a clogged impeller or intake
- Inspect blades for wear
- Replace mechanical seals if oil appears milky
Electrical issues:
- Test the capacitor and windings with a multimeter
- Check for phase imbalance
- Repair damaged cable splices
Installation/environmental issues:
- Re-seat the pump on its guide rail
- Replace a stuck float switch
- Install or replace a check valve
Heavy-duty industrial units often pair a submersible pump with a gearbox or motor assembly. When electrical or mechanical faults persist on these larger systems, a simple part swap rarely solves the problem. That is when you need a service partner experienced with industrial pump and gear systems. Houston Pump & Gear handles this work, including reverse-engineering obsolete components when OEM parts aren't available.
Step 4: Test and Validate the Fix
- Run the pump under normal and peak load conditions
- Monitor amp draw, flow output, and noise or vibration
- Confirm performance holds steady over a trial period
Skipping this step is how "fixed" pumps end up back on the repair bench within weeks.
When Should You Fix vs Replace a Submersible Utility Pump?
The decision comes down to repair cost, downtime risk, and how much service life is left.
| Scenario | Fix | Replace |
|---|---|---|
| Minor clog or worn float switch | Clean and reset; swap the low-cost switch | Only if repeated clogging suggests the pump is undersized for the job |
| Motor winding or seal failure on a newer pump | Professional rewind/reseal if the unit is otherwise sound | If repair cost approaches a large share of a new pump's price |
| Old pump, recurring electrical trips | Temporary fix if one component (capacitor, cable) is the cause | If the pump is past its expected life and failures keep compounding |
| Critical industrial application, emergency shutdown | Rapid emergency repair to restore service fast | Only if repair timeline exceeds what the operation can tolerate |
Repair generally makes sense when the casing, shaft, impeller, or core components can be restored cost-effectively and the pump still meets performance requirements. Replacement makes more sense once repair costs consume a large share of a new unit's price — some industry guidance uses roughly 50% as a screening trigger, though it's not a hard rule.
For critical facilities, speed matters as much as cost. When a submersible pump failure risks an unplanned shutdown, fast repair often keeps replacement off the table. Houston Pump & Gear provides 24/7 emergency pump and gearbox repair; the team returned a Lufkin S2212C gearbox to service within 72 hours, bringing a power plant back online after an unplanned shutdown. That kind of turnaround is often what separates "fix it" from "we have to replace it now."
Common Mistakes to Avoid When Fixing a Submersible Utility Pump
These repair shortcuts often cause repeat failures:
- Treating symptoms, not causes: resetting a breaker repeatedly instead of finding why it trips
- Skipping post-repair testing: returning the pump to service without a real-load check
- Using generic replacement parts: installing non-matched components instead of manufacturer-matched ones
- Ignoring lockout/tagout procedures: handling a submerged pump before it is isolated
Most pump failures have a traceable root cause. Fix that cause, not just the symptom, to keep the same failure from returning within months.
Preventive Measures to Avoid Future Issues
Prevention costs less than emergency repair—and far less than unplanned downtime. A short maintenance rhythm catches most submersible failures before they take a unit offline.
- Inspect screens, impellers, and seals on a set schedule for cracks, leaks, or dried-out seals
- Run routine service and insulation resistance tests so winding or seal trouble shows up early
- Hold proper submersion levels and keep float switches set so the pump does not run dry or short-cycle
- Call an experienced industrial repair partner for complex or heavy-duty units before minor wear becomes a teardown
Facilities that run industrial-grade submersible pumps alongside gearboxes and motors can use Houston Pump & Gear for 24/7 emergency service across Texas and Louisiana, with more than 20 years repairing pumps and gearboxes for power plants and heavy industry.
Conclusion
Most submersible utility pump problems are fixable when caught early and diagnosed correctly. The pattern holds across nearly every failure type: identify the actual root cause, apply the right fix, and test it under real conditions.
Knowing when to repair versus replace, and when gearbox or motor-level work needs a specialist, saves money and downtime. For failures beyond a field fix, Houston Pump & Gear handles industrial submersible pump overhauls and 24/7 emergency repair so equipment gets back online without a repeat teardown six months later.
Frequently Asked Questions
What are the common causes of a submersible pump not working?
Tripped breakers, failed float or pressure switches, clogged impellers, and electrical faults like bad capacitors are the most frequent culprits. Checking the breaker panel and float position first catches many of these quickly.
What is the average lifespan of a submersible water pump?
Most submersible utility pumps last 8–15 years. Duty cycle, fluid abrasiveness, and how consistently the unit is maintained drive where a given pump falls in that range.
Can a submersible pump be repaired instead of replaced?
Most mechanical and electrical issues are repairable if caught early, including clogged impellers, worn seals, and failed switches. End-of-life motors with extensive winding damage may not be cost-effective to fix.
Why does my submersible pump keep tripping the breaker?
Overload, phase imbalance, seal failure letting water into the motor, and ground faults are the usual suspects. Repeatedly resetting the breaker without diagnosing the cause risks further motor damage.
How do I know if my submersible pump's impeller is damaged?
Watch for reduced flow, unusual noise, or vibration during operation. These symptoms usually call for a visual inspection to confirm impeller wear or blockage.
Is it safe to repair a submersible pump myself?
On-site maintenance teams can safely handle breaker checks, float switch position, and visible intake clogs. Electrical testing, seal replacement, and motor work on industrial units should go to a qualified pump repair shop.
