Introduction
Impeller trimming is a precision machining process that permanently reduces a centrifugal pump impeller's outer diameter. The goal: lower flow rate, head, and power draw to match what the system actually needs.
This matters most for plant engineers, reliability managers, and maintenance teams running power plants and heavy industrial facilities across Texas and Louisiana. Oversized pumps are common in cooling water and process water systems, and they drive up energy costs and accelerate wear.
Impeller trimming gets mentioned constantly in energy-efficiency discussions and troubleshooting calls, yet few teams understand how it works operationally. This article covers what it is, how it's calculated, where it applies, and when it isn't the right fix.
Key Takeaways
- Impeller trimming cuts outer diameter to permanently reduce flow, head, and power—cheaper than valves or VFDs
- Affinity laws: flow drops linearly, head by the square, power by the cube of the diameter ratio
- Stay above the manufacturer's minimum diameter; over-trimming ruins the impeller
- Oversized cooling- and process-water pumps with design margin are the top candidates
- Bad calculations cause cavitation, vibration, or a scrapped impeller with no way back
What Is Impeller Trimming and Why It's Used in Industrial Pump Systems
Impeller trimming means machining down an impeller's outer diameter, and sometimes its vane length, on a lathe or CNC machine. The result is a permanent change to the pump's hydraulic output. Cut the diameter, and you cut peripheral velocity — which cuts flow, head, and horsepower all at once.
The point is to match delivered flow and head to the real system curve. No more energy wasted forcing a pump to overperform, then throttling it back down with a valve.
Trimming isn't the only way to change pump output, and it's easy to confuse it with other methods. A variable frequency drive (VFD) changes rotational speed, not impeller geometry — reversible and adjustable, where trimming is neither. On a multistage pump, pulling an entire stage eliminates a full impeller's worth of head; trimming reshapes one impeller instead.
Why Power Plants and Heavy Industry Rely on Impeller Trimming
Design engineers routinely round up system capacity. They build in margin for future expansion, fluid property changes, and pipe roughening over time. The result: most installed pumps run well above their actual required duty point from day one.

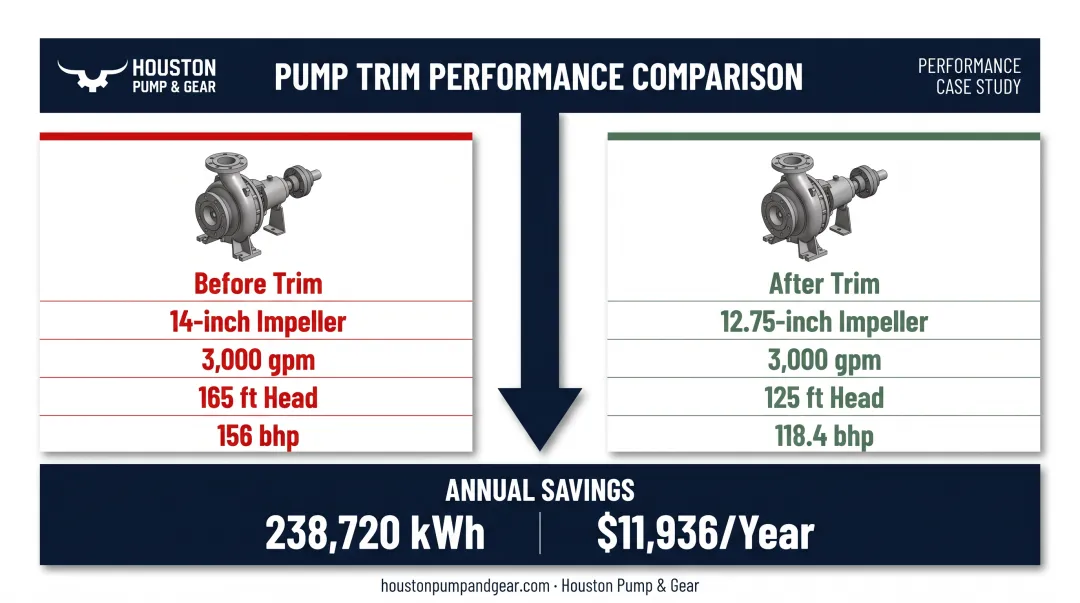

A U.S. Department of Energy case study makes the cost plain. DOE documented a double-suction centrifugal pump with a 14-inch impeller delivering 3,000 gpm at 165 feet of head, running 8,000 hours a year at 156 brake horsepower.
After trimming the impeller to 12.75 inches, the same flow was delivered at 125 feet of head and just 118.4 bhp. That single change saved an estimated 238,720 kWh and $11,936 per year, according to DOE's pumping systems tip sheet on trimming oversized impellers.
Skip the trim, and here's what typically happens instead:
- Continuous throttling wastes energy every single hour the pump runs
- Valve wear accelerates from constant partial-closure operation
- Recirculation-driven cavitation sets in, damaging impeller vanes
- Seals and bearings fail early from the added stress
Trimming isn't mandated by regulation, but it's a widely recognized best practice referenced in Hydraulic Institute standard ANSI/HI 14.3 and in DOE's pump efficiency guidance.
How Impeller Trimming Works (Conceptual Flow)
A technician removes a calculated amount of material from the impeller's outer diameter or vane tips using precision machining equipment. Every cut is guided by manufacturer performance curves or affinity-law calculations, never by guesswork.
The process needs four inputs before anyone touches a lathe:
- Original impeller diameter
- Current pump performance curve
- Target duty point (the actual flow and head the system needs)
- Manufacturer trim charts, if available
Material removal varies by impeller design:
- Radial-flow: cut uniformly across the diameter
- Mixed-flow: trimmed obliquely
- Axial-flow: rarely trimmed at all
Each approach reduces peripheral velocity, which drives the performance change.
Every calculation gets cross-checked against manufacturer curves and NPSH-required data before any metal comes off. Skip that step, and you're trimming blind.
The net result: flow, head, and input power all drop at the same rotational speed. There's a modest efficiency trade-off, too, since the widened impeller-to-casing clearance introduces some internal recirculation.

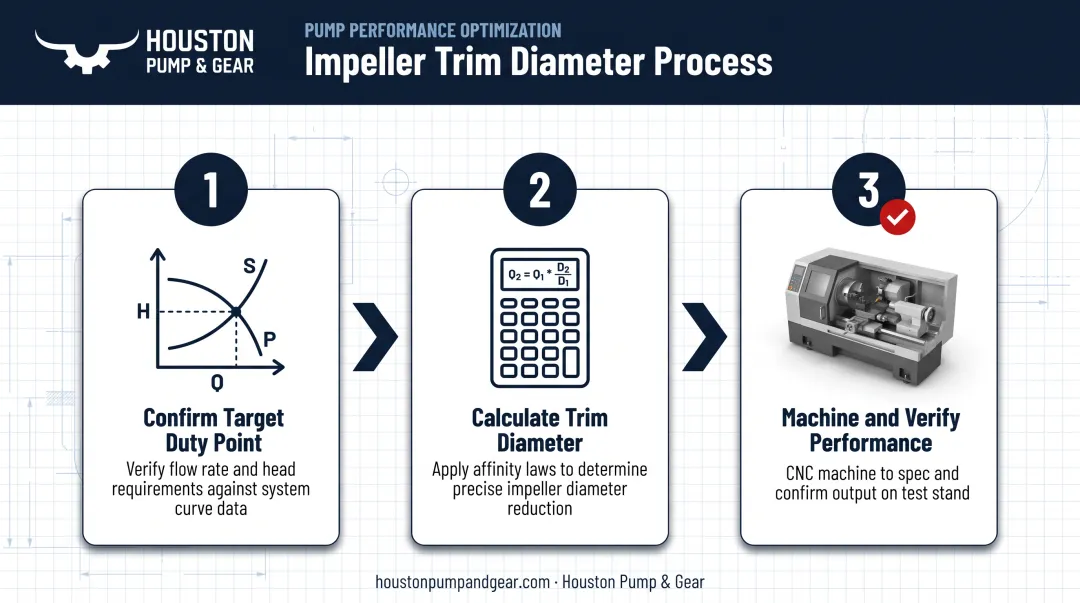

Step 1: Confirm the Target Duty Point
The engineer starts by identifying the actual required flow and head from the real system curve, not the original oversized design specification. That number gets compared against the current pump curve to quantify exactly how much of a gap exists.
Step 2: Calculate the Trim Diameter
Next comes the math. Affinity-law formulas or manufacturer trim charts determine the new diameter. NPSHr sensitivity gets checked at this stage too, and the reduction stays within whatever safe limits the manufacturer publishes.
Step 3: Machine and Verify Performance
The shop mounts the impeller on a lathe or CNC machine and removes material to the calculated diameter. Edges are deburred or chamfered, then the pump goes back in service and is tested against the target duty point.
This is precision work. Cut too much, and there's no undo button. Experienced machine shops such as Houston Pump & Gear typically handle the job, not in-house maintenance crews without dedicated lathe and CNC capability.
Where Impeller Trimming Is Applied and Key Factors That Affect It
Trimming shows up most often in single- and double-suction centrifugal pumps used in cooling water, process water, and circulation systems — the backbone of most power plant and heavy industrial operations.
Two moments in a pump's lifecycle typically trigger it:
- Commissioning: The pump gets tested and turns out to be oversized against the real system it's connected to.
- Scheduled overhaul: The pump is already pulled apart for service, making it a convenient time to correct known oversizing.
Common triggers that flag a trim candidate:
- Persistent valve throttling to control flow
- Valves showing excessive wear from constant partial closure
- Energy costs that don't match expected pump efficiency
- An energy audit flagging an oversized pump asset
Trimming is one-time and permanent. A VFD can be readjusted repeatedly as conditions change. Once an impeller is cut, that's the new baseline for good.
Key Factors That Affect Impeller Trimming Outcomes
A few variables decide whether a trim goes smoothly or creates new problems:
| Factor | Impact |
|---|---|
| Impeller type | Radial-flow trims well; mixed-flow less so (vane overlap); axial-flow is rarely trimmed and needs a liner if it is |
| Trim limits | Manufacturer curves set safe reduction ranges — exceed them and the impeller can become unstable |
| NPSHr sensitivity | Trimming changes required suction pressure; re-verify against available system NPSH |
| Equipment and expertise | Needs reliable performance curves plus precision lathe/CNC work from techs who know pump geometry |
| Scale and duty cycle | Highest payback on continuous, high-horsepower pumps where savings compound over thousands of run hours |
According to Hydraulic Institute guidance on trimming impellers, mixed-flow impellers should be cut only at the outlet diameter — never near the hub.
Common Issues, Misconceptions, and When Trimming Isn't the Right Fix

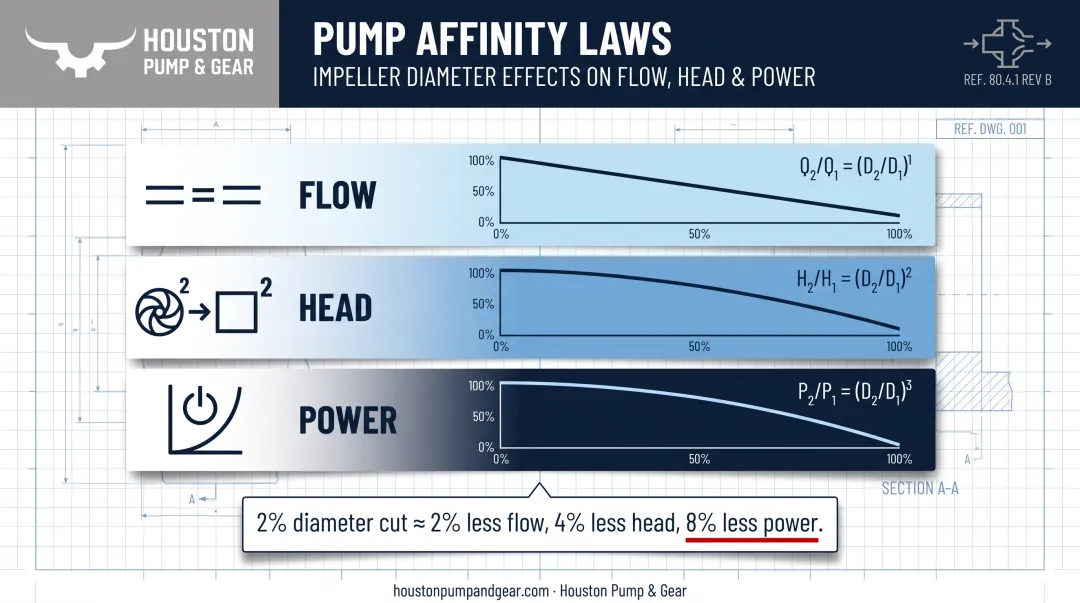

The biggest misconception: people assume trim amounts scale in a straight line across every variable. They don't.
- Flow drops linearly with diameter reduction
- Head drops by the square of the diameter ratio
- Power drops by the cube of the diameter ratio
A small 2% diameter cut can mean roughly 2% less flow, but around 4% less head and 8% less power. That nonlinearity is exactly why manufacturer curves matter more than a napkin calculation.
There's also a difference between reduced head/flow (the intended result) and reduced efficiency (an unavoidable side effect). Widening the impeller-to-casing clearance introduces some recirculation loss. That's the trade-off, not a sign something went wrong.
Even when the affinity laws are applied correctly, trimming still isn't always the answer.
Trimming isn't the right call when:
- A multistage pump needs a large correction: removing a stage often works better than an aggressive trim
- The application needs multiple duty points over time — a VFD handles variable conditions far better
- The same pump gets re-trimmed repeatedly instead of asking why it was oversized in the first place
- Material gets cut without consulting manufacturer curves and NPSHr data, which is how impellers end up in the scrap bin
Conclusion
Impeller trimming permanently reduces flow, head, and power draw by precisely machining down an impeller's outer diameter. Every cut should be guided by affinity-law math and manufacturer curves, not a best guess.
For power plants and heavy industry, the cost of a wrong decision is high. A correct trim cuts wasted energy. It also prevents the cavitation and premature wear that come from running an oversized pump against a throttled valve. An incorrect trim creates performance and reliability problems with no way to reverse them.
This is precision machining, and it belongs with a shop that does it regularly. Houston Pump & Gear provides 24/7 emergency and scheduled pump and gear repair across Texas and Louisiana, built for facilities that can't afford extended downtime on a critical pump.
Frequently Asked Questions
What is trimming an impeller?
It's the process of machining down a centrifugal pump impeller's outer diameter to permanently reduce flow, head, and power consumption to match actual system needs. The change is irreversible once completed.
What are the symptoms of a bad impeller?
Reduced flow or pressure, unusual noise or vibration, visible cavitation damage, and higher-than-expected energy draw are common signs. Wear-related failure looks different from a mismatched, untrimmed impeller. The latter usually shows up as chronic throttling rather than physical damage.
How much can an impeller be trimmed?
Safe trim amounts depend on impeller type and manufacturer performance curves, typically within a conservative percentage of the original diameter. Exceeding the published minimum diameter risks instability or a permanently unusable impeller.
Does trimming an impeller reduce flow?
Yes. Per the affinity laws, flow decreases linearly with diameter reduction, while head and power drop more sharply: head by the square, power by the cube of the reduction ratio.
Is impeller trimming better than a VFD?
For a single fixed duty point, trimming is cheaper and simpler. A VFD makes more sense when duty points vary, since it can adjust speed repeatedly instead of locking in one permanent change. That trade-off is confirmed in DOE's variable speed pumping guide.
Can a trimmed impeller be restored to its original size?
No. Trimming is a one-way modification. Once material is removed, restoring original performance requires installing a new, full-diameter impeller.
