Many facilities struggle to pinpoint which of several impeller stages actually failed, and that guesswork wastes hours during teardown. Wear, misalignment, cavitation, and skipped maintenance intervals are the usual culprits behind declining pump performance. Because each stage feeds the next, a small issue in stage two can snowball into stage-three and stage-four damage before anyone notices a problem.
Quick summary: The most common failures are seal leaks, bearing wear, impeller and wear ring erosion, and cavitation. Most of these problems are repairable if caught early — replacement is usually only necessary for cracked casings or bent shafts. Repair follows a structured process: diagnose, confirm root cause, disassemble and fix, then test before return to service. For emergency shutdowns, a 24/7 provider can mean the difference between hours of downtime and days.
Key Takeaways
- Seal leaks, bearing wear, impeller erosion, and cavitation account for most multistage pump failures.
- Correct root-cause diagnosis before teardown prevents wasted labor and repeat breakdowns.
- Cracked casings or bent shafts typically call for replacement, not repair.
- Multistage units compound damage fast — a failed stage stresses adjacent stages.
- 24/7 emergency repair support limits downtime during unplanned shutdowns.
What Is a Multistage Centrifugal Pump?
A multistage centrifugal pump uses two or more impellers arranged in series on a single shaft. Fluid moves through each impeller and diffuser stage in sequence, and each stage adds incremental pressure to the discharge head. At the same speed and dimensions, adding stages increases head and input power in direct proportion to stage count, while flow stays constant.
That design makes these pumps the go-to choice for demanding, high-pressure jobs:
- Boiler feedwater systems in power plants that need sustained high discharge pressure
- High-pressure injection in oil and gas, including waterflood and produced-water service
- High-rise water supply, where tall buildings need consistent pressure across dozens of floors
Those high-head duties are the units Houston Pump & Gear most often inspects and repairs. Multistage boiler-feed pumps for power and petrochemical clients typically run three or more impellers to reach required head.
More stages also mean more wear-prone parts. Every stage has its own impeller, wear ring, and clearance tolerances. With more failure points than a single-stage pump, accurate diagnosis is essential before any repair plan is set.

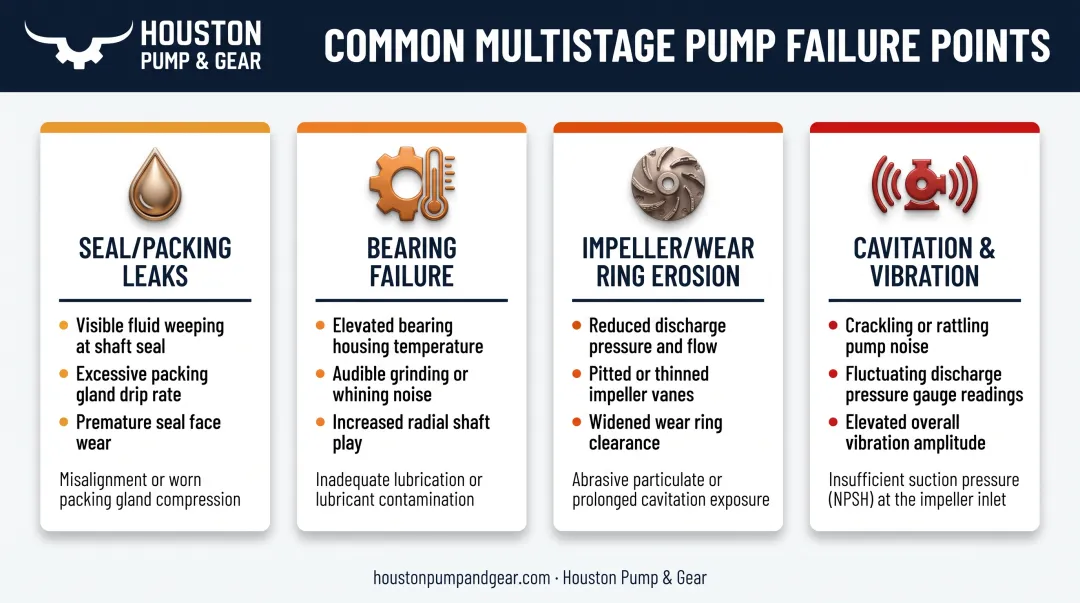

Common Problems With Multistage Centrifugal Pumps (And Why They Happen)
Multistage pump failures tend to follow patterns. Recognizing the pattern early, before it spreads to a neighboring stage, saves both money and downtime.
Seal and Packing Leaks
Symptoms: Visible leakage at the shaft, drips at the packing gland, or a slow pressure drop over weeks.
Likely cause: Worn mechanical seals, improper packing tension, or seal misalignment after years of continuous duty. Houston Pump & Gear's inspection process flags packing leakage exceeding 20 drops per minute as a sign the packing needs replacement.
Bearing Failure
Symptoms: Grinding noise, excessive heat at the bearing housing, abnormal vibration.
Likely cause: Inadequate lubrication, contamination, or shaft misalignment that piles extra radial load onto the bearings.
Impeller and Wear Ring Erosion
Symptoms: Reduced flow or head, higher power draw, inconsistent pressure readings between stages.
Likely cause: Cavitation, abrasive particles in the process fluid, or wear ring clearance that's opened up beyond spec after years of service.
Cavitation and Excessive Vibration
Symptoms: Rattling or crackling noise, fluctuating discharge pressure, pitting on impeller surfaces.
Likely cause: Insufficient suction pressure, air entrainment, or running the pump well outside its rated curve. According to the Hydraulic Institute, running at NPSHA equal to NPSH3 already means a 3% head loss from cavitation. Margin above NPSH3 is required, and more margin is needed the further you operate from the preferred region.
Root Causes and Risks of Ignoring Them
Operational stress, corrosive or abrasive media, poor alignment, and skipped preventive maintenance all feed into the same outcome: accelerated wear. In a multistage unit, a fault at one impeller doesn't stay isolated. It accelerates wear on the stages next to it.
Ignore these signs long enough and you're looking at:
- Efficiency losses and higher energy costs
- Safety and compliance exposure in power plant settings
- Unplanned shutdowns that halt production entirely
The efficiency hit is measurable. Restoring wear ring clearances by 50% has been shown to improve pump efficiency by 2% to 4% in typical process pumps. Multistage pumps have more leakage paths than single-stage units, so the potential gain from proper clearances is often greater.

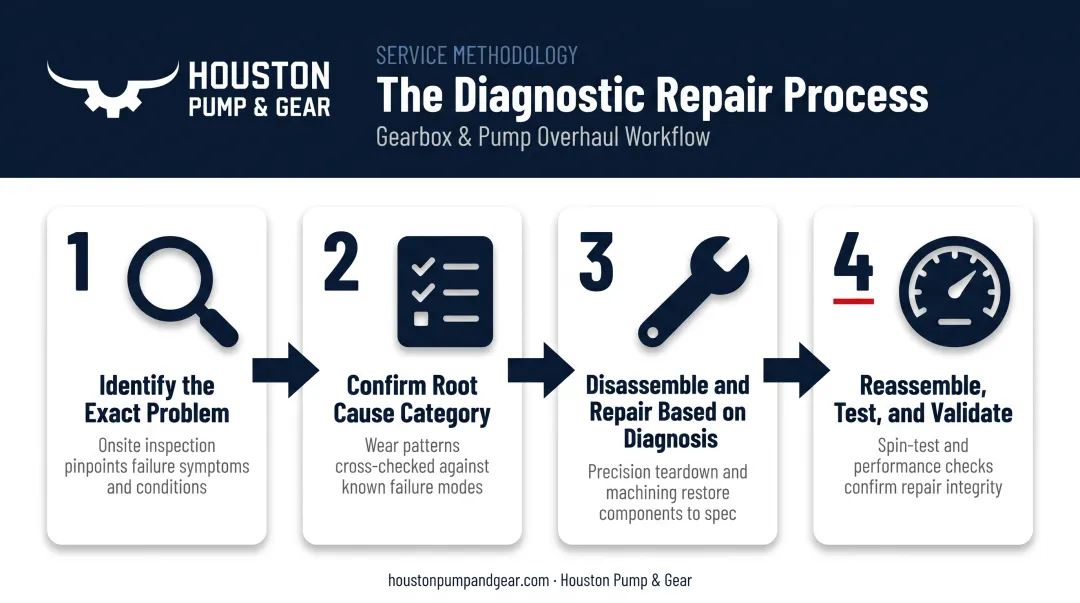

How to Repair a Multistage Centrifugal Pump (Step-by-Step)
Skipping straight to teardown without confirming which stage failed almost always backfires. You'll spend hours pulling components that weren't the problem, and the actual fault often gets missed. A structured process isolates the failed component, applies the right fix, and validates performance before the pump goes back online.
Step 1: Identify the Exact Problem
- Observe symptoms directly: leaks, unusual noise, vibration, overheating, or dropping discharge pressure
- Compare current performance against the pump curve or nameplate data
- Check instrumentation, alarms, and trip signals — common on feedwater and process pumps
- Document when the problem occurs: at startup, under full load, or during continuous run
Step 2: Confirm the Root Cause Category
Sort the issue into one of three buckets:
- Mechanical: seals, bearings, alignment
- Hydraulic: cavitation, worn stage, clogging
- System-related: suction conditions, piping, valves
Rule out the easy stuff first. A blocked suction strainer, low tank level, or power supply fault can mimic internal pump failure. Confirm the cause with visual inspection and measured clearances before assuming anything.
Step 3: Disassemble and Repair Based on the Diagnosis
Multistage pumps require sequenced disassembly. Impellers, diffusers, and wear rings have to come off and go back on in the correct order.
If mechanical:
- Replace worn mechanical seals and packing; check the shaft sleeve for scoring
- Regrease or replace bearings; inspect housings for heat damage or pitting
- Re-check coupling and shaft alignment with a laser or dial indicator before final reassembly
If hydraulic:
- Inspect and re-machine or replace worn impellers, diffusers, and wear rings to restore clearances
- Clean debris or scale from impeller passages; check suction piping for restrictions
- Verify the balancing device and axial thrust components; these are unique to multistage designs
If a shaft shows wear or corrosion rather than a crack, it doesn't automatically need replacing. Houston Pump & Gear uses HVOF (High-Velocity Oxygen Fuel) metal spray to restore worn shaft surfaces to operating dimensions. That path is often faster and cheaper than sourcing a new shaft, especially on older or hard-to-find pump models.
If system-related:
- Correct suction conditions such as low NPSH, insufficient tank level, or air entrainment
- Adjust the operating point to match the pump curve instead of running far off-design
- Review piping and valve settings for restrictions placing abnormal load on the pump
Step 4: Reassemble, Test, and Validate the Repair
Torque all stage bolts and tie rods to spec, and confirm correct stage sequence as you go. Then validate the repair under load:
- Run the pump under normal and peak load while watching vibration, noise, and bearing temperature
- Confirm discharge pressure and flow against the original curve for each stage
- Monitor for recurrence over the following operating cycles before releasing the unit

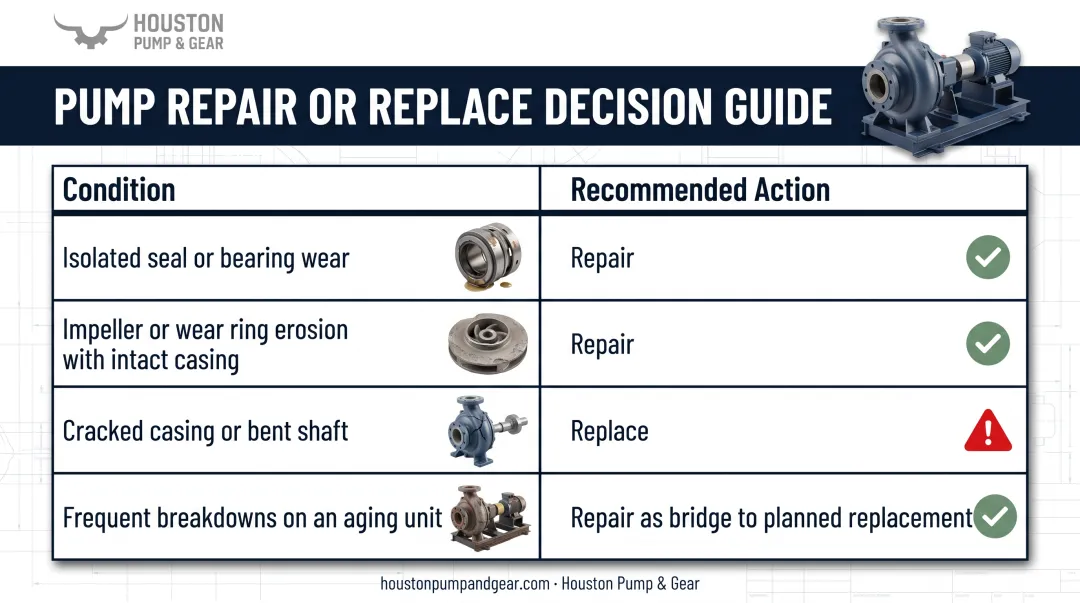

When Should You Fix vs Replace a Multistage Centrifugal Pump?
With multiple impellers and diffusers involved, repair costs on multistage pumps add up faster than on single-stage units. Weigh that cost against the unit's age, criticality, and downtime risk before deciding.
Isolated seal or bearing wear: Repair the seals and bearings if the housing and shaft are still in good shape. Only consider replacement if repeated failures point to a chronic alignment or foundation issue.
Impeller or wear ring erosion on one or two stages: Machine or replace the affected stage components if the casing is undamaged. Replacement becomes the better call once erosion reaches the casing walls or tie rods.
Cracked casing or bent shaft: Welding or machining a cracked multistage casing is rarely worth it given its pressure rating. Replace it. A cracked casing is a serious safety risk in high-pressure service.
Frequent breakdowns on an aging unit: Repair can bridge you to a planned outage, especially with a rapid-response partner on the work. Houston Pump & Gear's 24/7 emergency service has returned critical equipment to production in as little as 72 hours in past power plant engagements. That window gives facilities time to plan a proper replacement instead of scrambling under pressure.
There's no universal percentage rule. The commonly repeated "50% of replacement cost" figure isn't backed by any pump standard for multistage units. Base the decision on:
- Teardown findings
- Parts availability
- Repeat-failure history
- Lead time to source and install a replacement
Common Mistakes to Avoid & Preventive Maintenance Tips
Mistakes that cost time and money:
- Diagnosing by guesswork instead of isolating the failed stage first
- Skipping post-repair performance testing against the pump curve
- Using non-OEM parts that don't match wear ring clearances
- Bypassing lockout/tagout procedures during teardown
Preventive steps that reduce unplanned downtime:
- Follow OEM-recommended inspection intervals for seals, bearings, and wear rings
- Install vibration and temperature sensors for early warning
- Maintain precise shaft alignment during every reassembly
- Train operators to recognize early symptoms such as rising bearing temperature or noise changes
A documented maintenance log pays off in faster decisions and fewer repeat failures. Tracking wear trends across stages over time turns a fix-vs-replace choice from a guess into a data-backed call. It also speeds diagnosis the next time something goes wrong.
Conclusion
Most multistage centrifugal pump problems — seal leaks, bearing wear, impeller erosion — are repairable when caught early and diagnosed correctly. Getting the root cause right the first time prevents repeat failures, while knowing when to replace protects both safety and your long-term maintenance budget.
For emergency shutdowns or complex multistage teardowns, a specialized partner on call makes the difference. Houston Pump & Gear supports power plants and heavy industry across Texas and Louisiana with 24/7 emergency response. Project managers like Vince Parker coordinate everything from pickup to return-to-service so you can get back online with less downtime.
Frequently Asked Questions
Can a multistage pump be repaired?
Yes. Most problems—including seal leaks, bearing wear, and impeller erosion—are repairable. Replacement is usually limited to cracked casings, bent shafts, or cases where repair cost nears a new unit.
What is the procedure for overhauling a multistage centrifugal pump?
Overhaul starts with full disassembly of all stages, then inspection and measurement of impellers, wear rings, and bearings. Worn parts are replaced, the pump is reassembled to correct clearances, and performance is tested against the pump curve before return to service.
How much does it cost to repair a multistage centrifugal pump?
Cost depends on how many stages are affected, parts availability, and whether emergency service is required. Get a diagnostic-based quote after inspection rather than relying on a flat estimate.
How long does a multistage pump repair take?
Isolated seal or bearing work can often be done in days. A full overhaul may take one to two weeks. Shops with 24/7 emergency capability can often expedite critical repairs to limit downtime.
What are the early warning signs a multistage pump needs repair?
Watch for unusual vibration or noise, declining discharge pressure, rising bearing temperature, and visible leaks around the shaft or casing. Catching these early prevents cascading stage damage.
Can a multistage pump run dry without damage?
No. Running dry removes the cooling and lubrication the fluid provides, causing rapid overheating and seal or bearing damage across all stages. Dry-run protection devices are strongly recommended.
