Neglect that maintenance and you're courting oil breakdown, vane wear, seal failure, and overheating. Each of those can end in unplanned downtime that halts production or shuts down critical equipment entirely.
This guide covers why maintenance matters, the types you need to know, warning signs to watch for, and a practical schedule you can actually follow.
TL;DR
- Maintenance centers on oil quality, vane condition, filter cleanliness, and seal integrity
- Preventive maintenance runs about $13 per hp-year vs. $18 for reactive repairs (12–18% savings per DOE/FEMP)
- Watch for reduced vacuum, unusual noise, dark oil, and rising oil consumption
- Set service intervals by operating hours and contamination load
- Unplanned downtime can cost thousands to millions per day; scheduled maintenance prevents that loss
Why Maintenance of Rotary Vane Vacuum Pumps Is Important
Consistent maintenance isn't busywork. It's what determines whether your pump lasts a decade or fails at year three, and whether your total cost of ownership stays predictable or spirals.
Performance and Efficiency
Oil isn't just lubrication in these pumps. It also:
- Seals the rotor against the vanes and the vanes against the stator
- Cools the rotor during continuous duty
- Prevents corrosion on internal surfaces (Edwards Vacuum)
Degraded oil breaks down that seal. The result: slower pump-down times and an inability to reach your target vacuum level, no matter how long you run the unit.
Lifespan and Replacement Cycles
Neglected pumps don't fail gracefully:
- Worn vanes scrape against the stator wall
- Contaminated oil leaves tar-like residue that blocks internal oil passages
- Bearings take on load they weren't built to handle
What should've been a $500 oil change becomes a full rotor and bearing replacement.
Safety and Process Quality
For facilities running packaging, chemical, or lab processes, oil contamination quickly becomes a product problem. Seal failure can introduce contaminants into your process stream. Overheating from oil starvation creates a genuine fire and burn hazard on the shop floor.
The Cost Case for Prevention

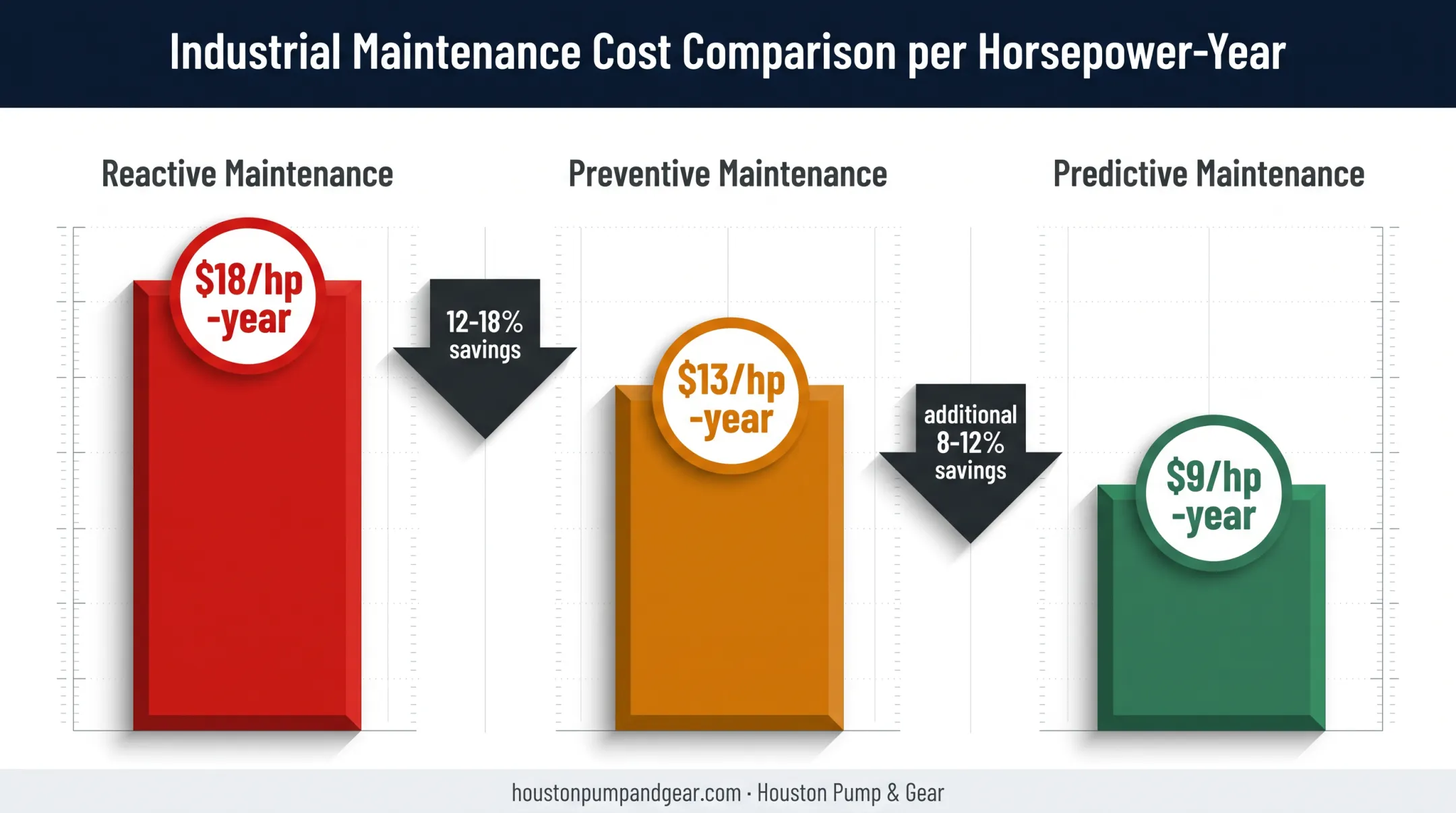

DOE's O&M benchmarks put reactive maintenance at $18 per horsepower-year, preventive at $13, and predictive at $9 (DOE/FEMP guide). Preventive approaches save 12-18% over reactive ones. Predictive saves another 8-12% on top of that.
Houston Pump & Gear sees this pattern play out constantly across power plants and industrial facilities. Unplanned downtime can cost businesses thousands or even millions per day, while scheduled maintenance happens during planned outage windows — not at 2 a.m. when a pump seizes mid-run.

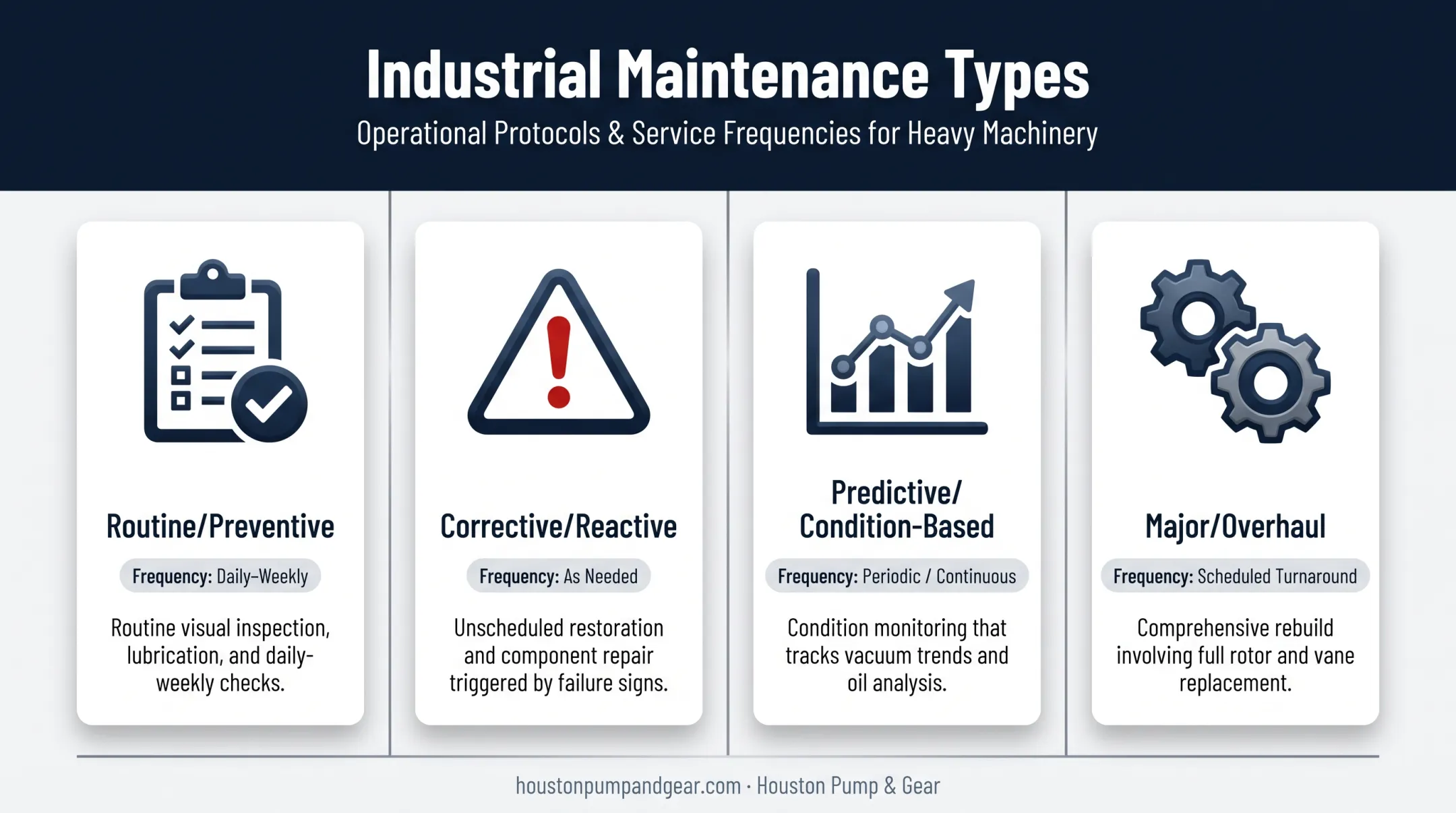

Types of Maintenance for Rotary Vane Vacuum Pumps
There's no single maintenance formula. Usage intensity, contamination levels, and oil-lubricated versus dry-running design all shape which approach fits—and how often you apply it.
Routine / Preventive Maintenance
Scheduled tasks that catch problems before they start:
- Checking oil level and color through the sight glass
- Cleaning inlet filters
- Listening for abnormal startup noise (a bit of blade hammering on cold start is normal — but it should disappear within two minutes)
High-use industrial pumps need daily-to-weekly checks. This approach is sufficient for clean, low-contaminant applications running under consistent conditions.
Corrective / Reactive Maintenance
This kicks in after a sudden performance drop, a visible leak, unusual vibration, or a pump that simply won't start. Leaning on this approach too heavily is risky — one worn vane can cascade into rotor and bearing damage fast.
When a pump fails without warning, fast turnaround limits secondary damage and downtime. Houston Pump & Gear provides 24/7 emergency response with same-day pickup across Texas and Louisiana for industrial pump and gearbox repair.
Predictive / Condition-Based Maintenance
Rather than guessing, this approach tracks:
- Vacuum level trends over time
- Oil analysis results
- Motor amperage draw
- Vibration and noise patterns
Tracking operating hours lets you time oil changes and vane inspections precisely instead of on a generic calendar. Plants that log these signals usually catch vane wear and seal drift before a hard failure.
Major / Overhaul Maintenance
Full rotor, vane, and seal replacement. Bearing and coupling inspection. Cartridge kit swaps. This deep service is required after extended run time, a major contamination event, or when the pump can no longer hit its ultimate pressure spec even after a fresh oil change.

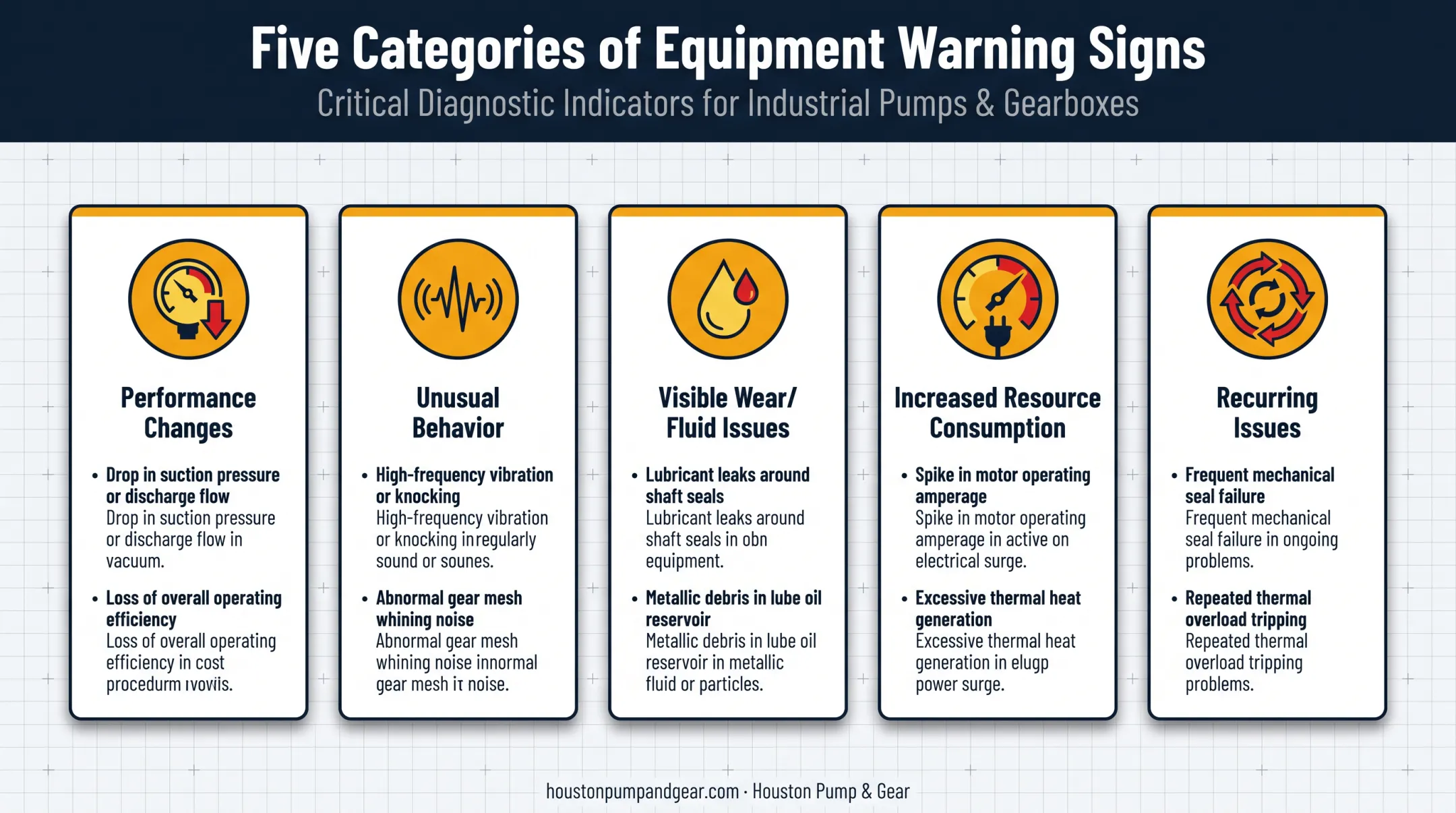

How to Check If a Rotary Vane Vacuum Pump Needs Maintenance
Watch for these early indicators—they usually show up well before a full failure takes the pump offline.
Performance Changes
- Reduced vacuum level or slower pump-down compared to your baseline
- Difficulty reaching or holding target vacuum pressure
Unusual Behavior or Operation
- Rattling, knocking, or high-pitched whining, often a sign of vane or bearing wear
- Overheating or premature shutdowns during otherwise normal operation
Visible Wear or Fluid Issues
- Oil turning dark or discolored, which indicates degradation or contamination (Edwards Vacuum)
- Visible leaks at shaft seals, gaskets, or the pump housing
Increased Resource Consumption
- Rising oil consumption or more frequent top-offs than usual
- Higher energy draw for the same workload
Recurring Issues
- Repeated minor faults that return after temporary fixes point to deeper mechanical wear, not another patch job

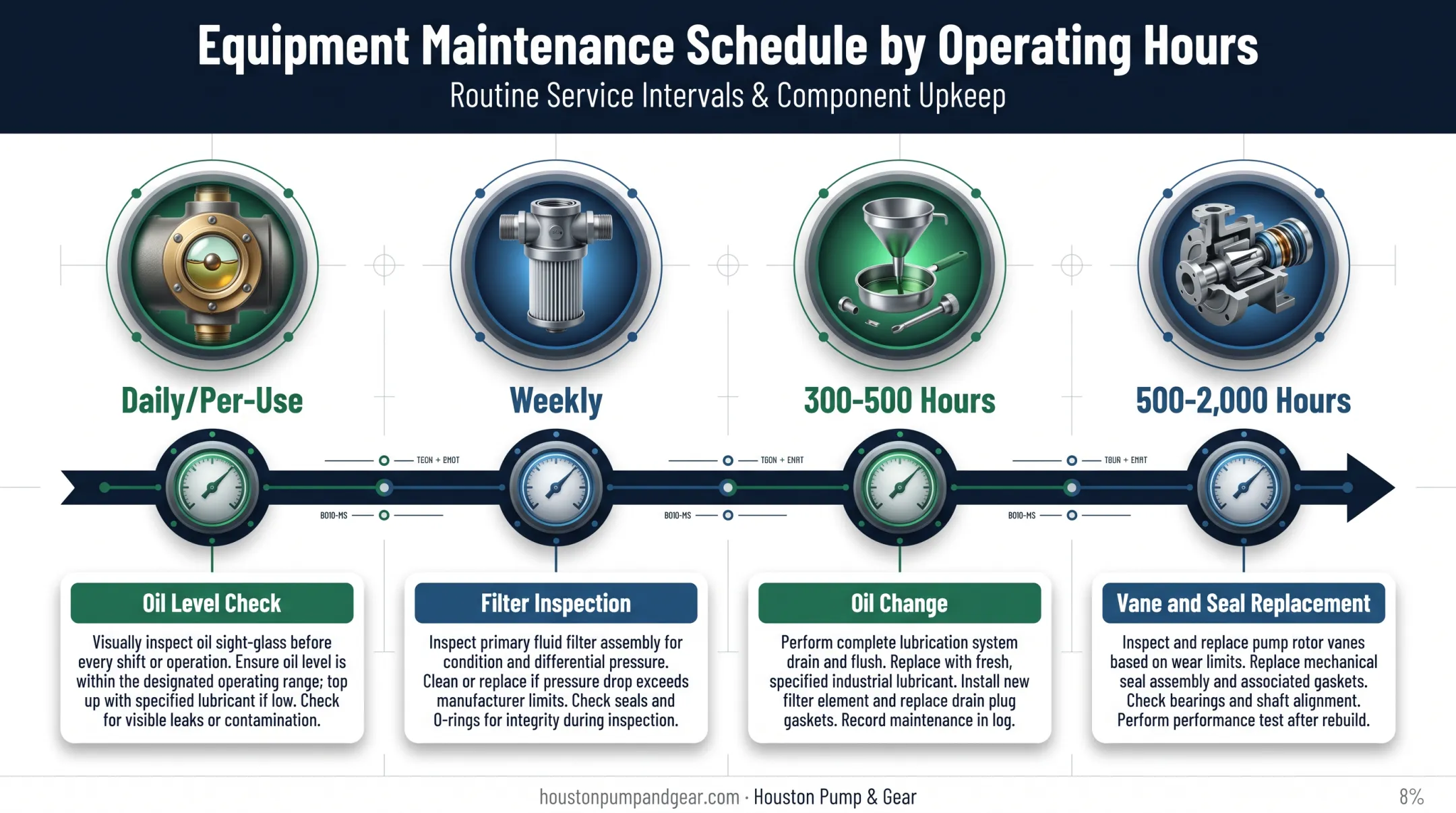

Rotary Vane Vacuum Pump Maintenance Schedule
Schedules vary based on operating hours, contamination level, and whether the pump runs continuously or intermittently. Treat the intervals below as a starting point, then adjust to your model's manual.
| Frequency | Tasks |
|---|---|
| Daily/per-use | Check oil level and sight glass color; listen for abnormal noise |
| Weekly | Inspect inlet filter; check for leaks around seals and gaskets |
| Every 300-500 hours (monthly, high-use) | Oil change; inspect vanes if accessible |
| Every 500-2,000 hours (quarterly-annual) | Replace vanes and seals; inspect motor/coupling; replace oil mist filter |
Manufacturer intervals vary widely. Some Edwards models specify oil changes at 3,000 hours and blade replacement at 30,000 hours, while other manuals recommend changes as often as every 500 hours (Gardner Denver V-Series manual). Always check your model's documentation as the final word.
Environment shapes the calendar as much as runtime:
- Low-usage, clean environments can stretch toward the longer end of these ranges
- Moisture, solvents, or particulate-heavy applications need more frequent service, sometimes well below the 300-hour mark
When you run multiple vacuum pumps, keeping every unit on a consistent inspection cycle is harder than it looks. A service partner that handles scheduled maintenance and 24/7 emergency response can lock the intervals in and cut unplanned downtime.
Conclusion
Maintenance on rotary vane vacuum pumps isn't optional if you want sustained performance. It's the difference between a pump that runs reliably for a decade and one that fails unpredictably at year three.
The right approach balances routine upkeep, condition monitoring, and readiness for fast corrective action when something does go wrong — because eventually, something will. A structured maintenance plan protects long-term equipment value and keeps operations free of the unplanned downtime that hits budgets and schedules.
When repairs exceed in-house capability, Houston Pump & Gear provides industrial pump overhaul and 24/7 emergency support to get equipment back online quickly.
Frequently Asked Questions
How often should a vane pump be serviced?
Check oil daily or weekly based on usage, and change it every 300–500 operating hours. Full vane and seal inspections usually fall between 500 and 2,000 hours, depending on application cleanliness.
What type of oil should be used in a rotary vane vacuum pump?
Always use the manufacturer-recommended vacuum pump oil, never generic motor oil. Wrong oil types can form residue, block internal passages, and cause overheating or premature failure.
What are the signs that a vacuum pump needs an oil change?
Dark or discolored oil signals degradation or contamination and is the clearest indicator. Rising oil consumption or more frequent top-offs are also worth watching.
Can a rotary vane vacuum pump run without oil?
No. Oil-lubricated pumps depend on oil for sealing, cooling, and lubrication. Running dry quickly damages vanes and bearings and should be treated as a fault condition.
How long do rotary vane vacuum pump vanes typically last?
Vane life varies by model and contamination level. Some manufacturers rate vanes up to 30,000 hours; others call for earlier inspection. Follow your model’s manual rather than a generic number.
What should I do if my vacuum pump or its gearbox fails unexpectedly?
Contact an experienced emergency repair provider immediately for rapid diagnosis. Houston Pump & Gear offers 24/7 emergency response with same-day pickup across Texas and Louisiana, minimizing downtime on critical equipment.
