But that same rotor-stator design is also the pump's biggest vulnerability. Skip maintenance, and you're looking at accelerated rotor-stator wear, unplanned downtime, and repair bills that dwarf what routine upkeep would have cost. Worse, a neglected pump running dry or overheating creates real safety hazards on a plant floor.
This guide covers the maintenance types that matter, the warning signs to watch for, realistic scheduling guidelines, and when it's time to call in specialists like Houston Pump & Gear for emergency support.
TL;DR
- Preventive maintenance extends rotor-stator life and avoids costly emergency shutdowns
- Key checks: rotor-stator clearance, lubrication, seals, alignment, vibration, and temperature
- Daily through annual checks catch wear early and prevent unplanned shutdowns
- Never run a PCP dry — it destroys the stator within minutes
- Fast professional repair response minimizes downtime when wear or failure occurs
Why Progressive Cavity Pump Maintenance Is Important
A progressive cavity pump (PCP) is only as reliable as the maintenance behind it. Skip inspections, and rotor-stator clearance widens over time, cutting into your pressure and flow output long before anyone notices a problem.
Component wear is the core issue. Stators and rotors are consumable parts by design. They're built to wear down gradually with proper care, or fail catastrophically without it.
Left unchecked, dry-running or chemically incompatible media can burn stator material and cause total failure in minutes.
Safety is at stake too. Overheating, seal failure, and dry-running can create hazardous situations, particularly in power plants where one pump failure cascades into larger process disruptions.
The financial case for prevention is strong. Research from the Pacific Northwest National Laboratory estimates clear gains from planned programs:
- Preventive maintenance saves 12% to 18% vs. reactive repair
- Predictive maintenance adds another 8% to 12% in savings
- Reactive-heavy facilities take on far more downtime and production loss
Houston Pump & Gear sees this pattern constantly in the field: unplanned pump downtime can cost a facility thousands of dollars per hour, while the same maintenance work scheduled during a planned outage window barely registers as an expense.

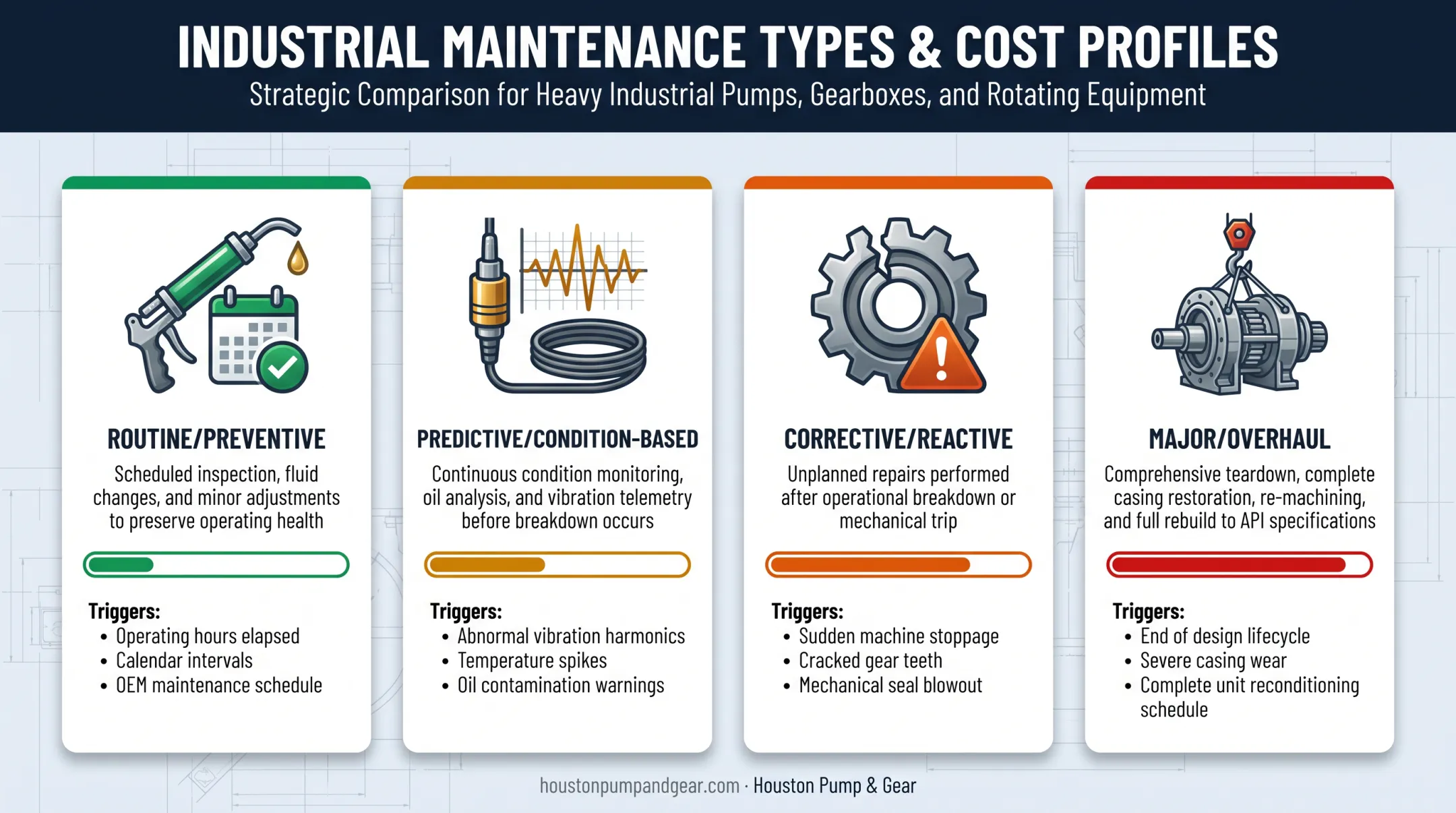

Types of Maintenance for Progressive Cavity Pumps
Not every PCP needs the same maintenance approach. The right strategy depends on the media being pumped, how critical the application is, and how the pump is used day to day.
Routine / Preventive Maintenance
This is scheduled, planned work — lubrication checks, seal inspection, cleaning, and visual rotor-stator assessments.
- Best for: stable operating conditions with non-abrasive media
- Cost profile: low and predictable, since it's planned rather than emergency work
- Startup step: fill the suction-side casing before first rotations so the rotor and stator lubricate properly
Corrective / Reactive Maintenance
This kicks in when something's already gone wrong: sudden flow loss, visible leaks, unusual noise, or complete failure.
- Triggers: confirmed defects like worn rotor-stator parts, blocked suction lines, or damaged joints
- Risks: extended downtime, secondary damage to bearings and seals, and the scramble of emergency parts sourcing
- Cost profile: significantly higher than preventive work, often inflated by rush labor and expedited shipping
Predictive / Condition-Based Maintenance
This approach monitors vibration, temperature, and current draw to catch wear trends before they become failures.
- What it tracks: pressure, flow, temperature, and vibration to flag wear, cavitation, or blockages early
- Scheduling: shifts from calendar-based to data-driven, tied to runtime hours and wear patterns
- Cost profile: moderate upfront investment in monitoring equipment, but lower long-term repair spend
Major / Overhaul Maintenance
Full disassembly for rotor and stator replacement, along with bearing and seal renewal.
- Required when: the pump has hit extended service life, or a major failure has already occurred
- Cost profile: the highest single expense, but it restores full performance and buys years of additional service life
When a major failure hits, response time matters as much as the repair itself. Houston Pump & Gear supports industrial pump overhauls with mobile field response and 24/7 emergency service, so critical equipment gets back online without a prolonged scramble for parts or shop time.
How to Check If a Progressive Cavity Pump Needs Maintenance
Early warning signs give you a window to act before a small issue becomes an expensive one.
Performance or Output Changes
- Reduced flow or pressure compared to rated specifications
- Inconsistent discharge despite stable input conditions
- Difficulty starting, especially after the pump has sat dry for a period
Unusual Behavior or Operation
- Abnormal vibration, knocking, or grinding from rotor-stator contact
- Sudden current draw spikes signaling jamming or overload
- Cavitation noise pointing to insufficient suction pressure
Visible Wear, Leaks, or Overheating
- Stator rubber degradation, cracking, or chunking visible during inspection
- Packing or shaft seal leakage above 20 drops per minute, the typical limit before replacement
- Bearing housing or motor casing temperatures exceeding safe operating thresholds

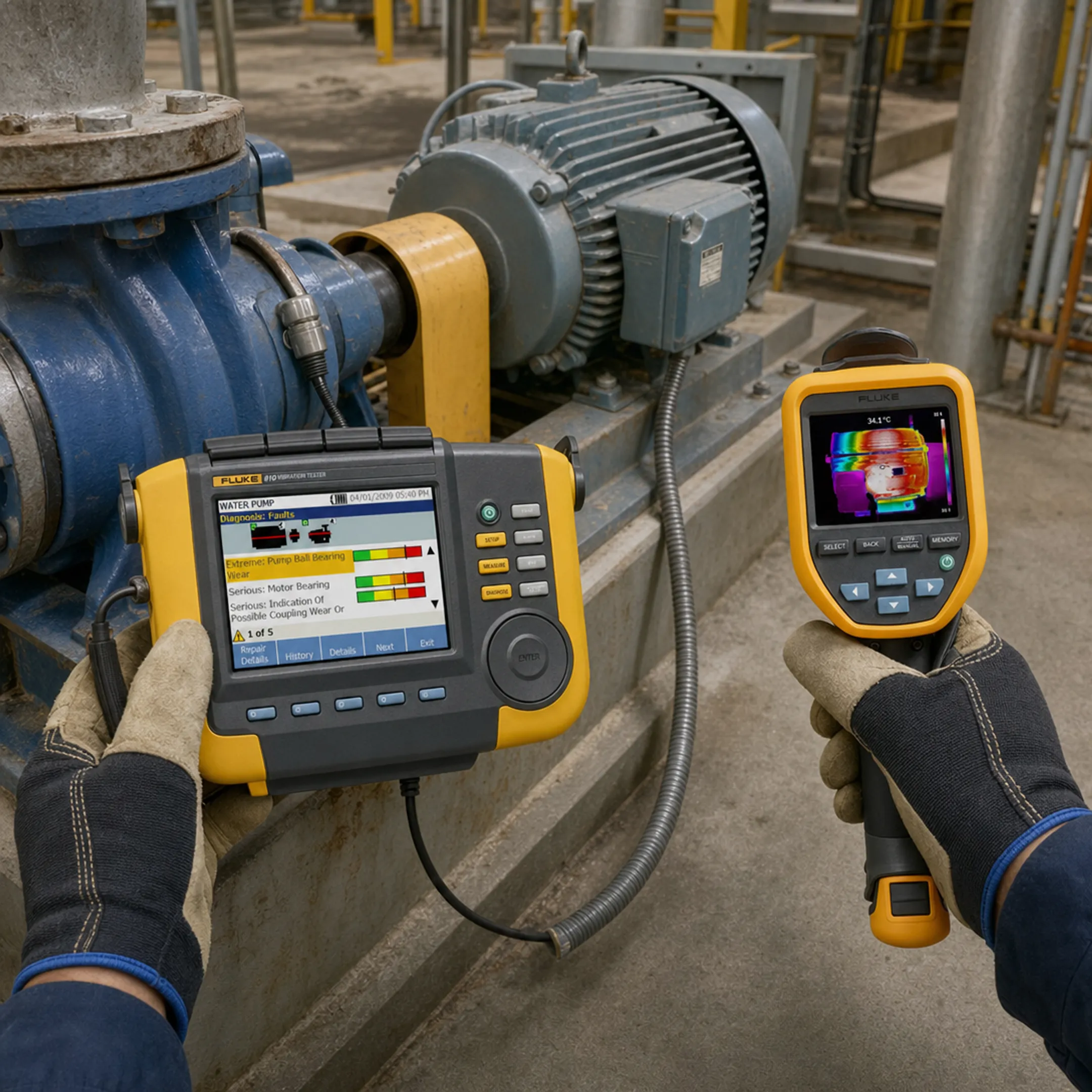

A simple, effective field check: run the pump for a couple of hours, then measure vibration and temperature at multiple points using a vibration meter and infrared thermometer. Trend those readings over time, and you'll catch developing problems long before they show up as a failure.

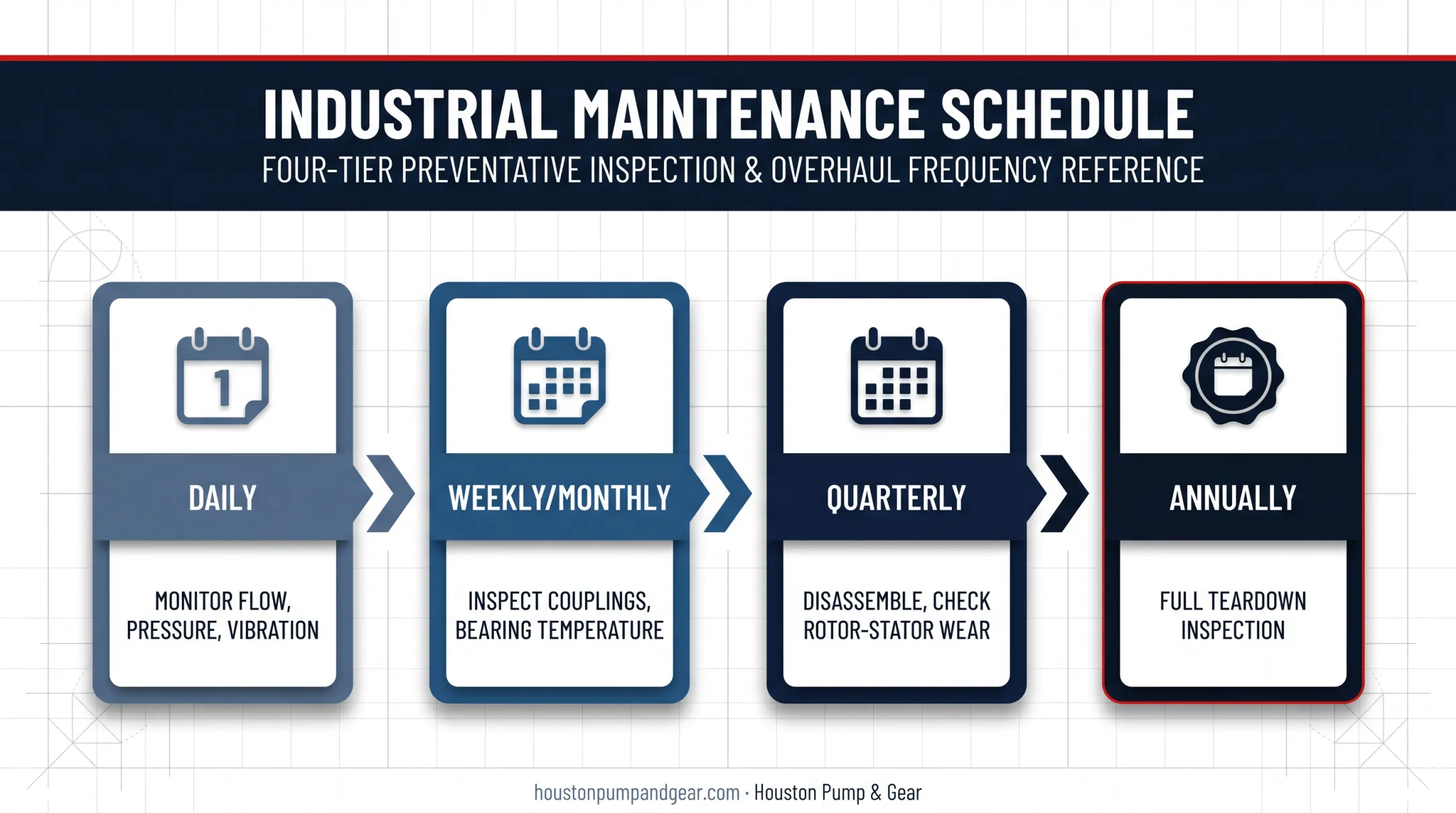

Progressive Cavity Pump Maintenance Schedule (General Guidelines)
Maintenance intervals are not fixed. They shift with media abrasiveness, duty cycle, and operating environment.
| Frequency | Tasks |
|---|---|
| Daily | Monitor flow, pressure, current draw, and vibration; check for visible leaks |
| Weekly/Monthly | Inspect couplings and terminals; check bearing temperature and insulation resistance |
| Quarterly | Disassemble to check rotor-stator wear; verify alignment; overhaul seals |
| Annually | Full teardown inspection of bearings, shafts, and foundation |
Duty cycle changes the math. One manufacturer's operating guidance specifies stator and joint inspections at least twice yearly for pumps running more than 16 hours a day, dropping to once yearly for lower-usage applications.
Continuous, high-duty operation on abrasive media warrants tighter intervals and more condition monitoring than intermittent, low-abrasion service.
Conclusion
Progressive cavity pump maintenance keeps critical fluid transfer systems running without surprises. The strongest programs blend routine upkeep with predictive monitoring, catching wear trends before they turn into downtime.
Even with a solid in-house maintenance program, major failures and emergencies happen. When they do, having a rapid-response partner matters. Houston Pump & Gear provides 24/7 emergency service across Texas and Louisiana, helping power plants and heavy industry facilities restore production quickly when a PCP failure hits.
Frequently Asked Questions
What maintenance tasks are required for a progressive cavity pump?
Core tasks include lubrication checks, seal inspection, rotor-stator wear assessment, alignment verification, and cleaning after each use. Staying on this cadence cuts unplanned shutdowns and extends stator life.
How often should a progressive cavity pump be serviced?
Daily monitoring, monthly inspections, and quarterly-to-annual overhauls are standard practice. Adjust these intervals based on duty cycle and how abrasive the pumped media is.
Can you run a progressive cavity pump dry?
No. Running dry rapidly increases rotor-stator friction, generates excessive heat, and can burn the stator material within minutes. Always confirm suction-side flow before startup.

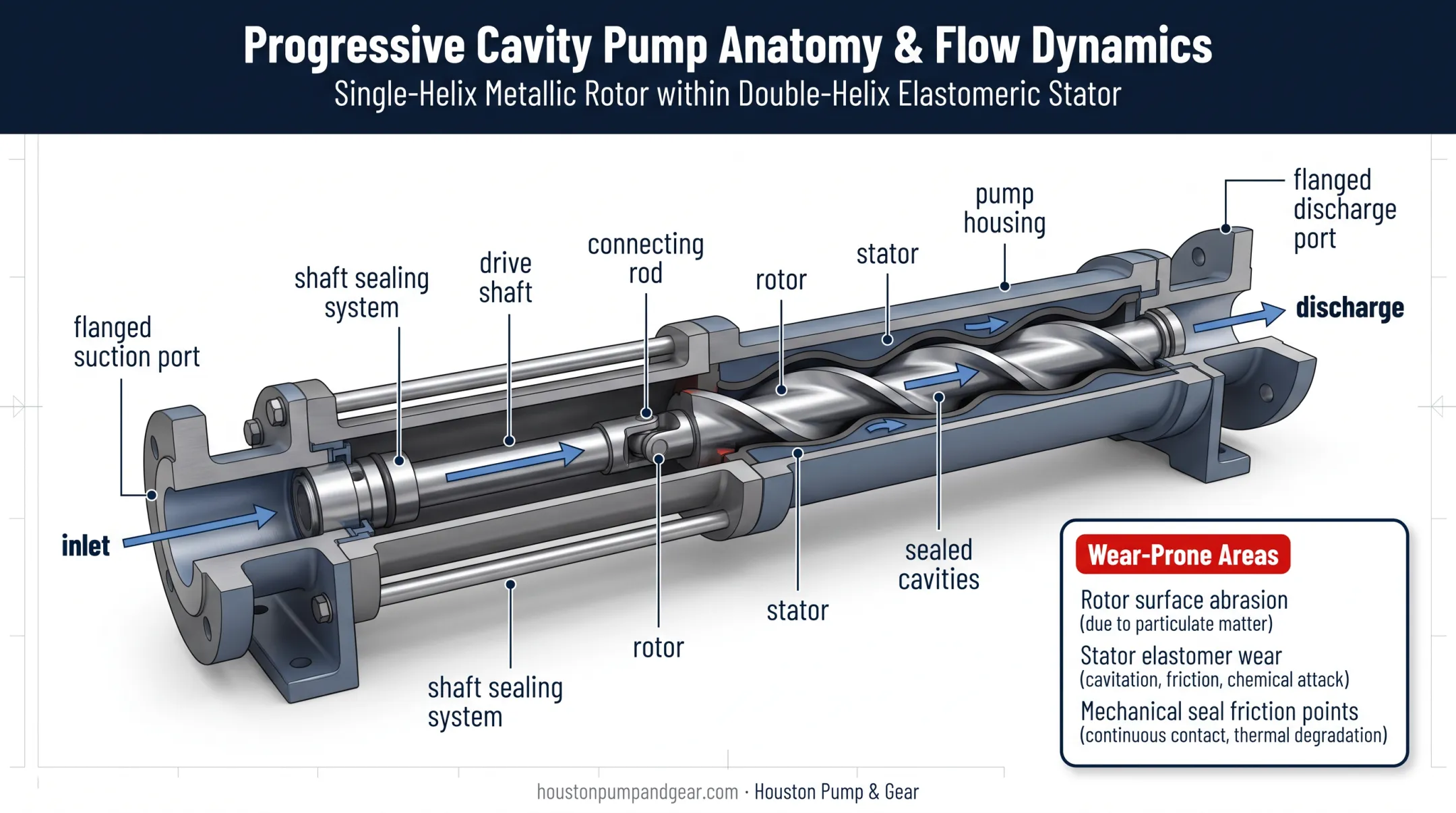

What is a progressive cavity pump?
It's a positive-displacement pump using a single-helix rotor turning inside a double-helix stator. The design creates sealed cavities ideal for moving viscous, abrasive, or solids-laden fluids.
How do I know if my progressive cavity pump's stator needs replacing?
Watch for reduced pressure output, visible rubber cracking or chunking, and rotor-stator clearance exceeding acceptable wear limits during inspection.
When should I call a professional for progressive cavity pump repair?
Call a specialist for rotor-stator replacement, major alignment corrections, seal failures, or full pump overhauls that need shop tooling and precision machining. Houston Pump & Gear's 24/7 team handles these pump repairs to minimize downtime.
