This guide covers how these pumps work, their most critical parts, the maintenance schedule that keeps them running, and the warning signs that tell you it's time to call in a repair team. We'll also cover what happens when maintenance alone isn't enough — because sometimes it isn't.
Houston Pump & Gear offers 24/7 emergency repair for exactly these moments, but the goal of this guide is to help you avoid needing that call in the first place.
Key Takeaways
- Routine, quarterly, and annual checks each catch different failure modes
- Poor bearing lubrication and worn shaft seals cause most pump failures
- Catch impeller wear early and you can often repair instead of replace
- Vibration, noise, and flow loss signal trouble before a full failure
- Emergency response teams can restore critical equipment in days, not weeks

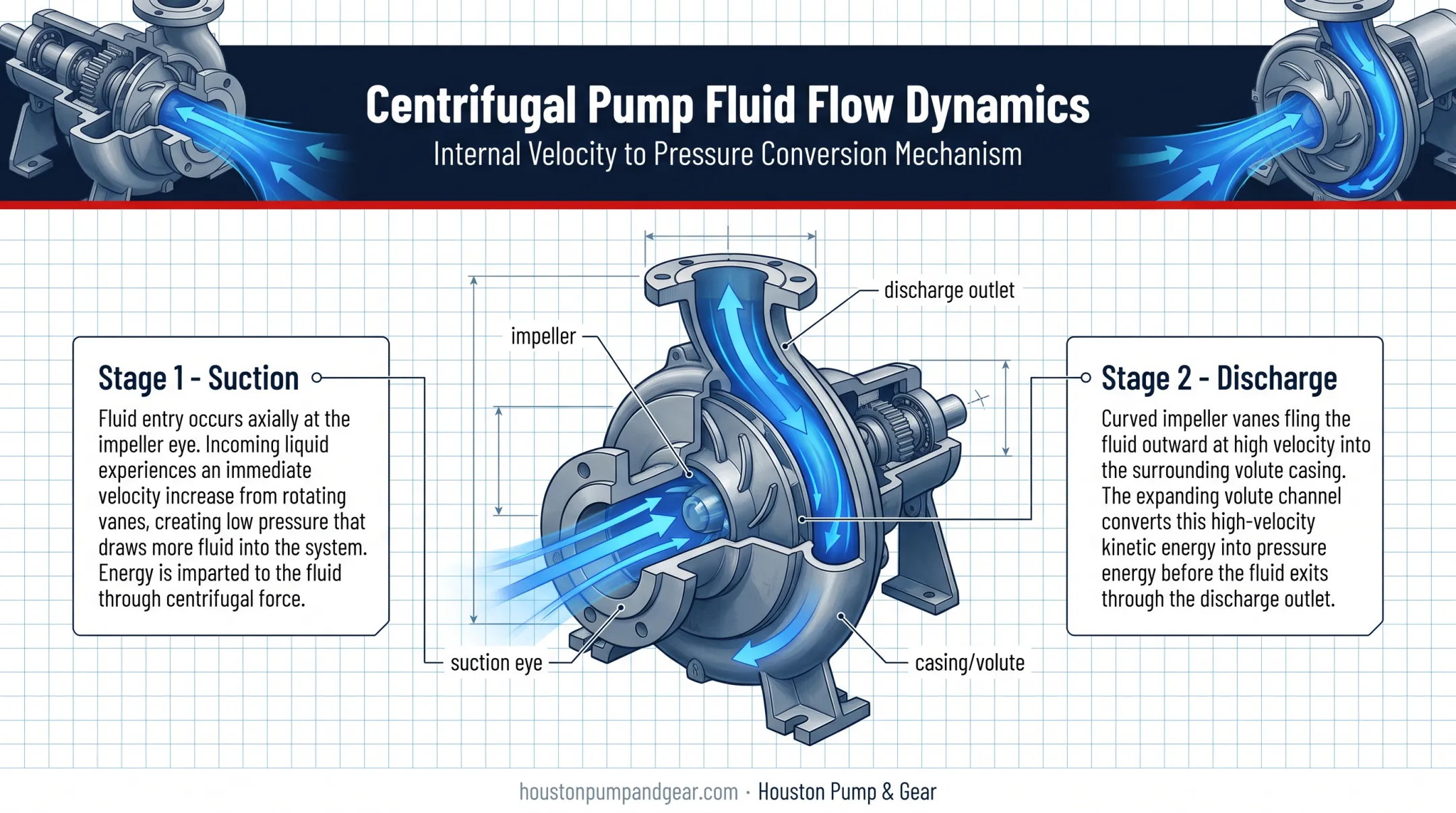

How Does a Centrifugal Pump Work?
A centrifugal pump moves fluid using a rotating impeller inside a casing, or volute. It's a straightforward two-stage process:
- Suction stage: Fluid enters at the impeller eye, where decreasing flow area increases velocity and drops pressure, pulling more fluid in behind it.
- Discharge stage: The impeller's curved vanes fling fluid outward into the expanding volute, which gradually slows the fluid and converts that velocity into usable pressure at the discharge outlet.
This is why impeller condition matters so much: it's doing the actual work of moving your fluid.

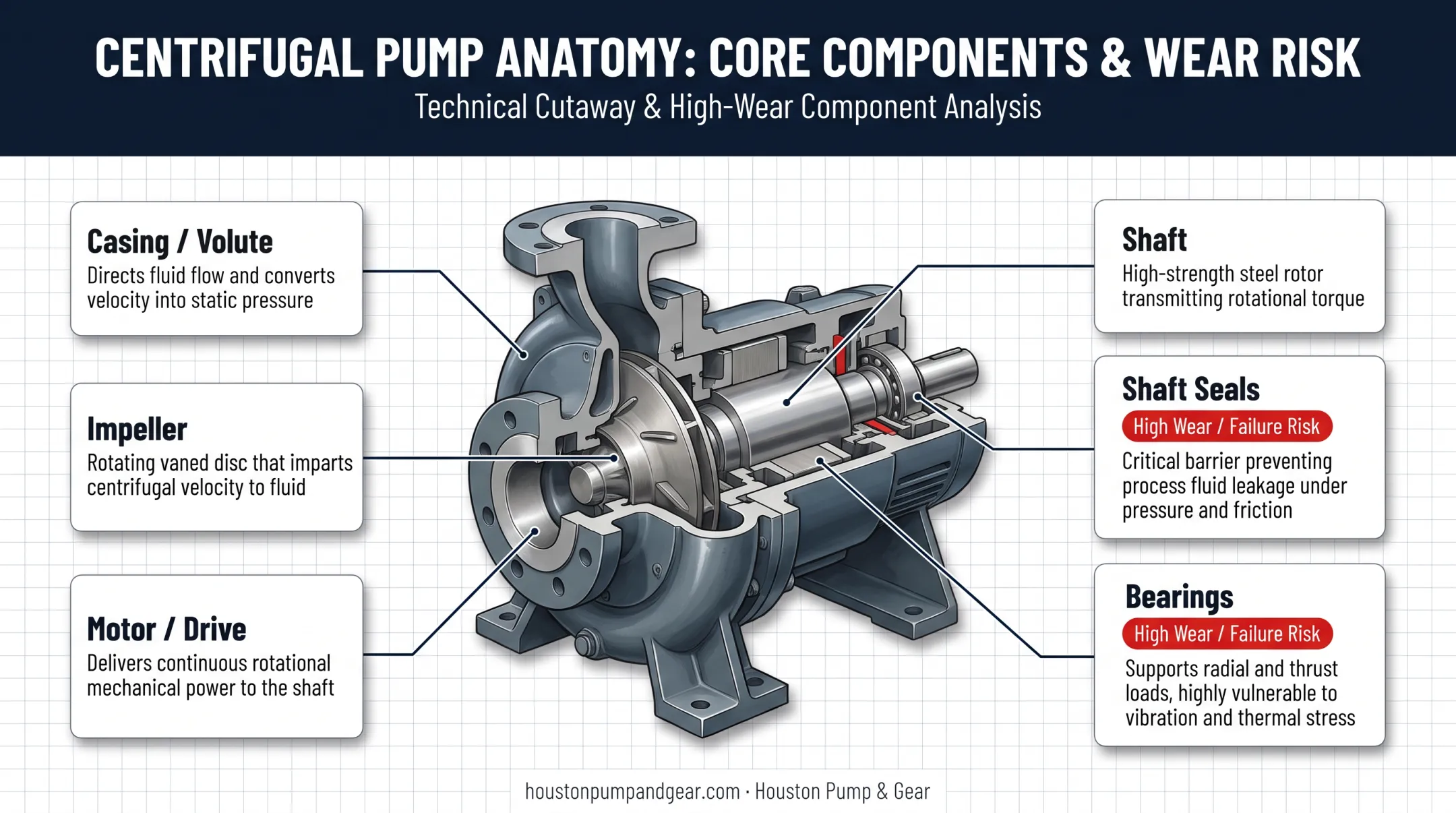

What Are the Most Important Parts of a Centrifugal Pump?
Six components make up the core of a centrifugal pump:
- Casing/volute – directs flow and converts velocity into pressure
- Impeller – rotating vanes that impart kinetic energy to the fluid
- Motor/drive – supplies rotational power
- Shaft – transmits torque from motor to impeller
- Shaft seals – contain the pumped fluid and prevent leakage
- Bearings – support the rotating assembly and keep it aligned
Bearings and seals wear out faster than anything else on the pump. They're also the two components most responsible for unexpected failures, which is why routine checks focus heavily on them.

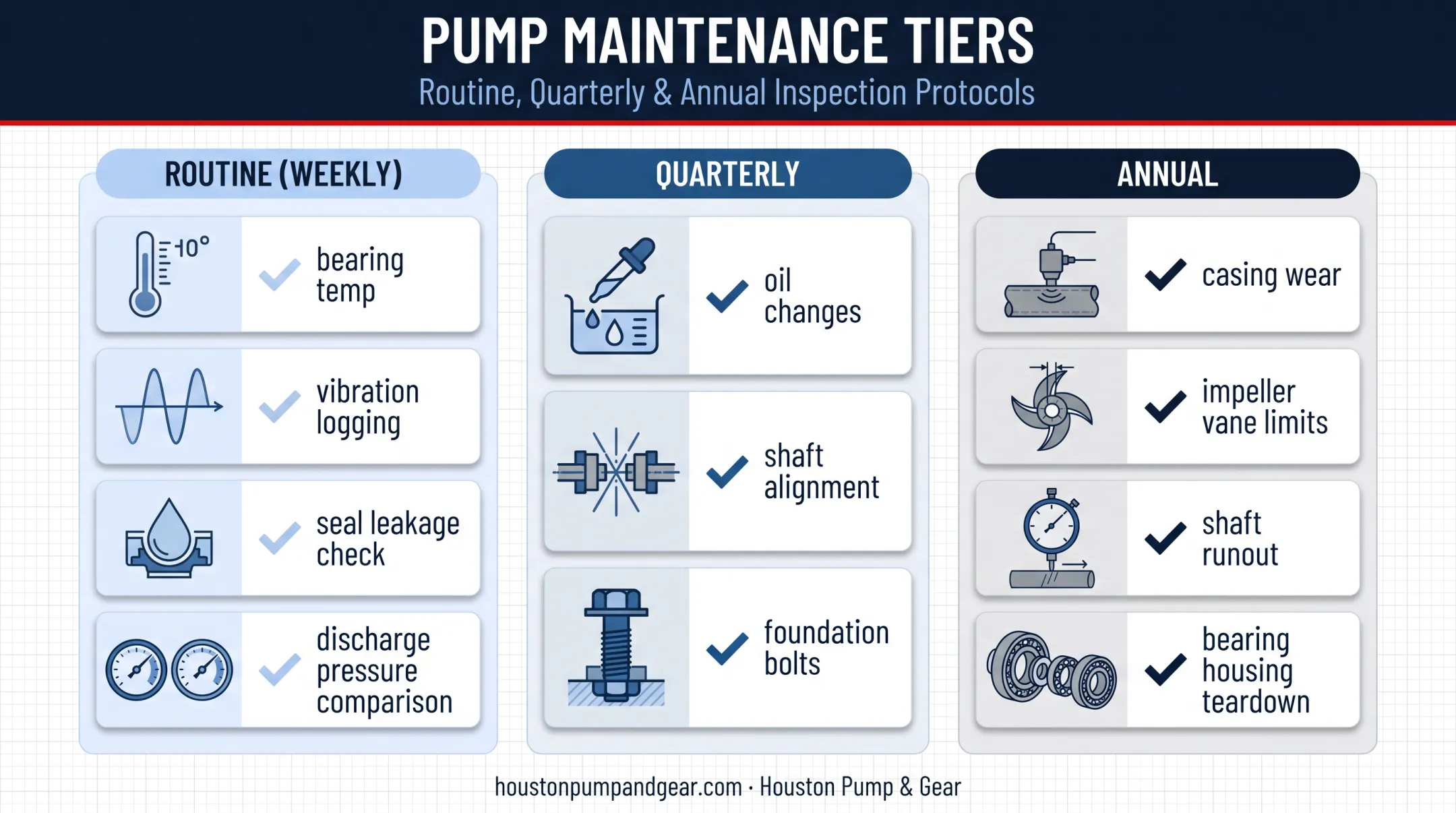

Centrifugal Pump Maintenance Schedule
Effective pump maintenance runs on three layers: routine, quarterly, and annual. Each targets different failure indicators, and consistent logging across all three makes diagnosing problems faster when something goes wrong.
Routine Maintenance Checks
Run these checks regularly, ideally every shift or at minimum weekly:
- Measure bearing temperature and lubricant condition with an infrared thermometer against the pump manual's baseline values
- Log vibration at consistent points so you catch gradual drift, not just sudden spikes
- Inspect shaft seals for leakage; production leakage should stay under 20 drops per minute, and anything beyond that means the packing needs replacing
- Compare discharge pressure against OEM performance specs to catch gradual efficiency loss
Don't over-lubricate. Excess grease or oil actually generates more heat during operation, which defeats the purpose.
Quarterly and Annual Maintenance
Quarterly, per Goulds Pumps' IOM manual, includes oil changes and shaft alignment verification. New bearings need their first oil change after 200 operating hours, then every 2,000 hours or three months after that. Check foundation bolts and packing condition too, especially if the pump has sat idle.
Annually, plan for a full teardown inspection covering:
- Casing wear tolerance
- Impeller vane wear limits
- Shaft runout
- Bearing housing condition
This is also when you benchmark head pressure, flow rate, amp draw, and vibration against the pump's original commissioning data. Vibration severity should be measured against ANSI/HI 9.6.4 standards rather than a single generic number, since acceptable levels vary by pump design and operating point. Benchmarking this way catches degradation while it's still cheap to fix.

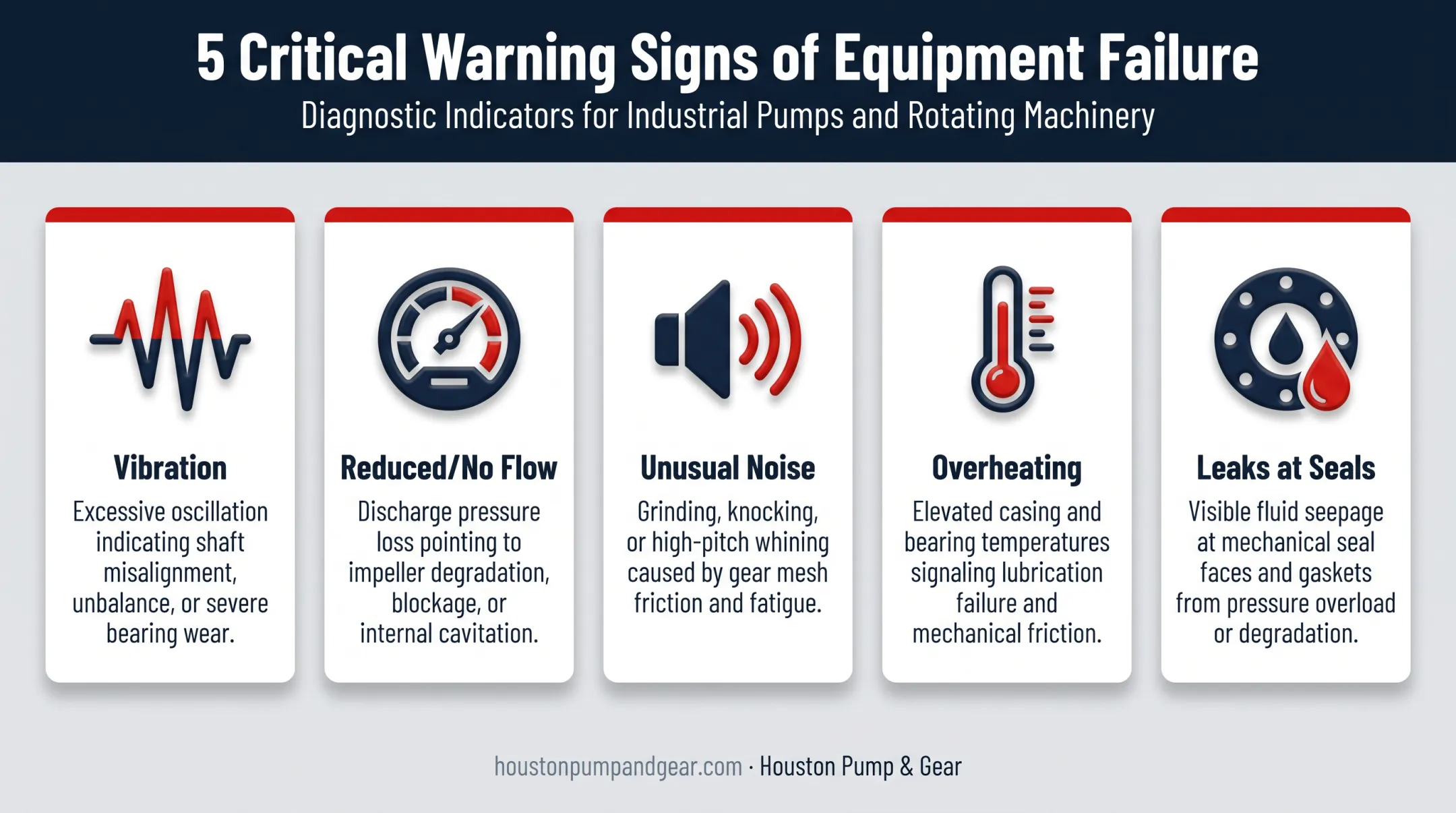

How to Tell If a Centrifugal Pump Is Failing
Five signs show up again and again before a pump fails outright. Catching them early is the difference between a scheduled repair and an emergency shutdown.
- Vibration — Intense or rising vibration usually points to impeller damage, misalignment, or worn bearings. It rarely fixes itself.
- Reduced or no flow — Often caused by clogs, air pockets, a worn impeller, or cavitation. A downward trend in discharge pressure at quarterly checks is the early warning.
- Unusual noise — Grinding or rattling typically signals cavitation or bearing failure.
- Overheating — Usually poor lubrication, insufficient cooling, or misalignment. Excess heat at the bearing housing is one of the clearest early indicators.
- Leaks at seals or gaskets — A small leak today becomes a larger repair tomorrow and can damage equipment well beyond the seal.
Cavitation occurs when pressure at the impeller inlet drops below the fluid’s vapor pressure, forming bubbles that collapse against internal surfaces. KSB’s pump engineering reference lists it as a leading cause of impeller erosion—treat the noise as a countdown.
Any one of these signs is worth investigating. Two or more usually means stop the next maintenance cycle and get a professional assessment.
Impeller Damage: Causes and Repair Options
Impellers take more abuse than almost any other pump component, and understanding why helps you catch damage before it spreads.
Common causes:
- Cavitation: pressure surges from collapsing vapor bubbles erode the vane surfaces
- Erosion: abrasive fluids gradually wear down vane edges and surfaces
- Corrosion: chemically aggressive fluids attack the metal over time
- Debris impact or clogging: bent or chipped vanes that throw the impeller out of balance
Repair or Replace?
Not every damaged impeller needs replacing. Minor wear and surface pitting can often be repaired through coating restoration or precision machining, restoring OEM tolerance.
Once wear exceeds the manufacturer's specified limit, replacement is the safer call. An out-of-tolerance impeller invites vibration, imbalance, and eventual bearing damage.
Houston Pump & Gear has repaired industrial centrifugal pumps for over 20 years. The team can assess impeller damage quickly and machine or recondition components in-house, limiting downtime instead of waiting on a slow OEM turnaround.
Average Lifespan of Centrifugal Pumps
There's no single number that applies to every centrifugal pump. Service life depends on:
- The fluid being pumped
- Duty cycle
- Operating conditions
- How consistently the pump is maintained
Industry data from Pumps & Systems suggests most ANSI centrifugal pumps should run at least 18 to 24 months between repairs, with well-maintained units exceeding that mark comfortably. That's a repair interval, not a total lifespan.
Maintenance matters most. Consistent upkeep and prompt repairs stretch service life far beyond what neglected equipment achieves. A pump that gets its quarterly and annual checks done on schedule will often outlast one running the same duty cycle without them by a wide margin.
When to Call in Professional Repair Services
Maintenance catches most problems. But persistent vibration, noise, or performance loss that continues despite proper lubrication and alignment work means something deeper is wrong. That calls for expert diagnosis, not another round of routine checks.
Call a professional repair team when you see:
- Vibration or noise that returns after alignment and lubrication
- Flow, pressure, or efficiency loss that routine checks cannot explain
- Seal, bearing, or shaft damage beyond standard in-house parts work
- Repeat failures on the same pump within a short operating window
- An emergency shutdown where every hour of downtime carries real cost At that point, Houston Pump & Gear provides 24/7 emergency repair with mobile field response and dedicated transport trucks for power plants and heavy industry across Texas and Louisiana. When a client's power plant lost a Lufkin S2212C gearbox to failure, the team picked it up the same day and had the plant running again within 72 hours, a timeline most OEMs need weeks or months to match. That turnaround is why the same client has since had over 15 units serviced by the team. When a centrifugal pump is down, fast diagnosis and return-to-service protect production far more than another cycle of routine checks.
Frequently Asked Questions
How do you maintain a centrifugal pump?
Maintenance involves routine checks on bearing lubrication, vibration, and seal condition, plus scheduled quarterly oil changes and alignment checks. Annual teardowns inspect casing wear, impeller condition, and shaft runout to catch problems before they cause failure.
How can you tell if a centrifugal pump is failing?
Watch for vibration, unusual grinding or rattling noise, reduced flow, overheating, and leaks at seals or gaskets. Any of these signs, especially in combination, warrants immediate inspection.
Can a centrifugal pump impeller be repaired?
Yes, if wear is minor and within manufacturer tolerance, impellers can often be restored through coating repair or precision machining. Damage beyond that tolerance, such as cracking or severe pitting, typically requires replacement.
What are common causes of impeller damage?
Cavitation, corrosion, erosion from abrasive fluids, and physical impact from debris or clogging are the leading causes. Cavitation is especially damaging because it erodes metal through repeated micro-impacts.
What is the average lifespan of centrifugal pumps?
There is no single average—fluid type, duty cycle, and maintenance matter more than age alone. Pumps on a disciplined maintenance program routinely outlast neglected equipment by years, not months.
What are the most important parts of a centrifugal pump?
The casing, impeller, shaft, shaft seals, and bearings are the critical components. Bearings and seals wear fastest and are the most common cause of unplanned failures.
