As industrial equipment runs faster, larger, and closer to continuous duty cycles, the margin for error keeps shrinking. A rotor that's slightly out of balance doesn't just vibrate — it eats bearings, chews through seals, and eventually forces a shutdown nobody budgeted for.
This article breaks down low-speed versus high-speed balancing, where field/trim balancing fits into the picture, and how maintenance teams can pick the right method instead of defaulting to whatever's familiar.
TL;DR
- Balancing corrects mass distribution to reduce vibration and prevent premature failure.
- Low-speed balancing runs below first critical speed: standard for most gears, motors, and gearboxes.
- High-speed balancing is done at or near operating speed and is required for flexible rotors and critical turbomachinery under API/ISO standards.
- Field/trim balancing is on-site correction without full disassembly, ideal for emergencies.
- Method selection depends on rotor design, critical speed, applicable standards, and how fast you need equipment back online.
What Is Balancing and Why It Matters for Industrial Rotating Equipment
Rotor balancing is the process of adding or removing mass so a rotating component's center of gravity aligns with its actual center of rotation. When those two points don't match, the rotor generates shaking forces every time it spins, and those forces get worse as speed increases.

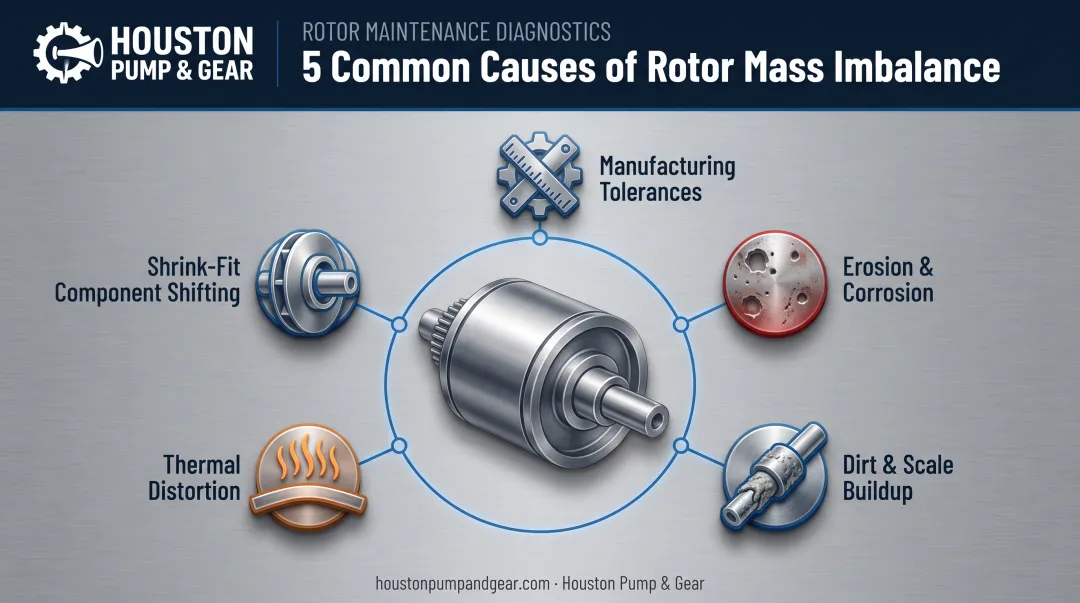

Common causes of imbalance include:
- Manufacturing tolerances that stack up across assembled components
- Erosion, wear, and corrosion that remove mass unevenly
- Dirt, scale, or process residue building up on rotating surfaces
- Thermal distortion from heating and cooling cycles
- Shrink-fit components (like impellers) shifting or seating differently once speed increases
Left unaddressed, imbalance shows up as excessive vibration, accelerated bearing and seal wear, leaks, and eventually a shutdown nobody planned for.
According to ABB's 2023 survey of over 3,200 industrial maintenance decision-makers, unplanned downtime now costs facilities an average of $125,000 per hour. Imbalance-driven bearing and seal failures are a routine contributor to that number.
This isn't a theoretical exercise. Balancing is governed by real specifications — API 617 for covered compressors, API TR 684-1 for rotordynamics, and the ISO 21940 series for rigid, flexible, and in-situ balancing. Which standard applies depends entirely on how the specific rotor behaves, not just what it's called on a nameplate.

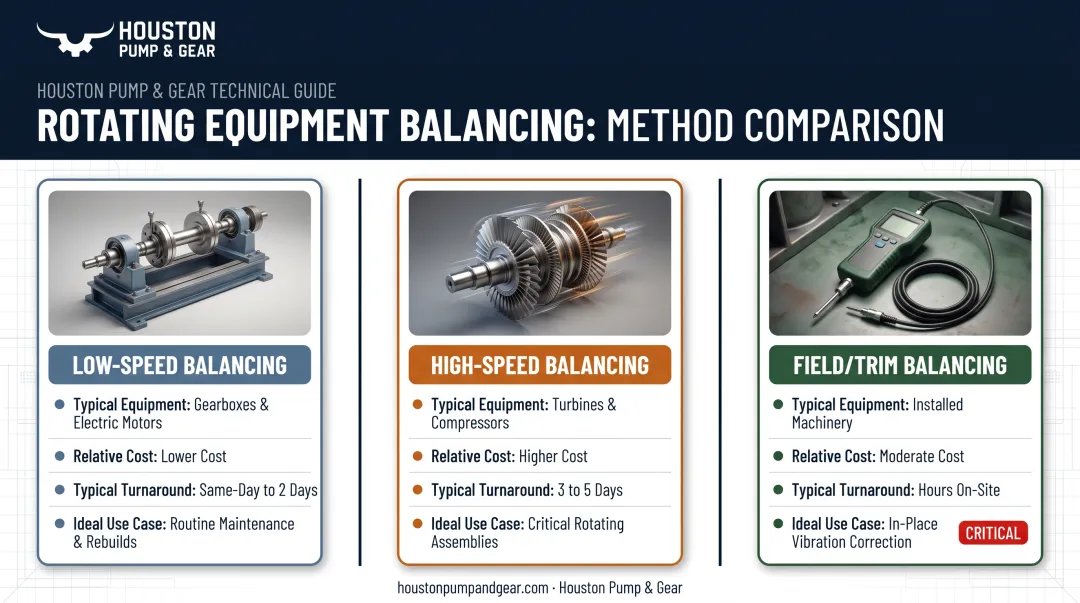

Types of Balancing: Low-Speed, High-Speed, and Field/Trim
Balancing isn't one-size-fits-all. The right method depends on how a rotor behaves relative to its critical (bending) speed and how much is riding on it staying in service. Repair shops, OEMs, and standards bodies typically use these three methods together, not as competing alternatives.
Low-Speed Balancing
Low-speed balancing corrects imbalance well below a rotor's first critical speed, using a dedicated balancing machine to detect and fix static and couple unbalance before final assembly.
Key characteristics:
- Performed on individual components or subassemblies, not the fully operating system
- Doesn't replicate real operating dynamics. It catches mass imbalance, not speed-dependent shifts
- Best suited to rotors that stay rigid throughout their service range — most industrial gearboxes, motors, and gears fall here
Houston Pump & Gear runs three in-house balance machines for this exact purpose: an IRD unit rated at 500 pounds, a second IRD rated at 5,000 pounds, and a Schenck machine rated at 17,000 pounds. That range covers everything from a small motor rotor to a large gearbox shaft assembly, which is why low-speed balancing remains the default for the majority of gearbox and pump overhauls that come through the shop.
Why it works for most equipment:
- Lower cost than specialized high-speed testing
- Simpler setup, no need for a dedicated bunker or tunnel
- Faster turnaround for time-sensitive repairs
- Safer process overall, with less specialized handling required
The trade-off: low-speed balancing can't capture dynamic effects like centrifugal growth or component seating that only show up at true operating speed. For a rigid rotor, that's fine. For a long or flexible one, it isn't.
High-Speed Balancing
High-speed (or operating-speed) balancing spins the rotor at or near its actual design speed, usually in a dedicated high-speed balancing pit or tunnel. GE Vernova describes the process as running the rotor up to speed, using sensors to pinpoint imbalance, adding or removing correction weight, then repeating the run until a final acceptance test confirms the fix.
This method exists because some rotors simply behave differently once they're spinning at full speed. Shrunk-on components can seat differently. Long shafts flex. Resonances appear that a static or low-speed test would never reveal.
Best suited for:
- Long, flexible rotors and rotors operating near or through a critical speed
- High-speed compressors and turbines
- Equipment falling under API 684 or ISO 21940-12 for flexible-behavior rotors
A POWER magazine case study documented a utility whose 7FA turbine rotor shifted balance once it reached 3,600 rpm. After correction, the unit ran below OEM vibration limits and the plant called it the smoothest-running machine in its fleet. A separate utility in the same report saw fewer bearing and hydrogen-seal problems and lower maintenance spend after switching to operating-speed balancing.
The catch:
- Requires a specialized facility (some can handle rotors up to 20,000 rpm and 27,500 pounds, per Mitsubishi Heavy Industries' published bunker specs)
- Longer lead times and higher cost
- Often unnecessary — a rotor that never approaches its bending mode gains nothing from it
Field/Trim Balancing
Field or trim balancing corrects imbalance on equipment that's already installed and running, without pulling it apart. Technicians use portable vibration sensors and influence-mass calculations — take a baseline reading, add a known trial weight, measure the change, calculate the correction, and confirm with a final run.
What sets it apart is location and timing: this happens on-site, on assembled equipment, not on a shop floor with a dedicated balancing machine.
Best suited for:
- Emergency situations where equipment can't wait for shop turnaround
- Machines too large, critical, or inconvenient to remove from service
- Final fine-tuning after a shop repair or reinstallation
Field trim is the right call for on-site fine-tuning. When imbalance is severe, the rotor is damaged, or the unit needs a full overhaul, shop balancing is the better path—and response speed still matters.
After a Lufkin S2212C gearbox failure forced an emergency shutdown at a Texas power plant client, Houston Pump & Gear dispatched a truck the same day, repaired the unit in-house, and had the plant back online 72 hours later. That relationship has since grown to more than 15 serviced units.
Limitations to keep in mind:
- Requires accessible measurement and correction points on the installed machine
- Needs a stable, repeatable vibration signature across multiple start-stop cycles
- Won't fix severe manufacturing-level imbalance, rotor cracks, or looseness — it's a fine-tuning step, not a replacement for proper shop balancing
How to Choose the Right Balancing Method (and Mistakes to Avoid)
The right method depends on rotor design, operating conditions, and the applicable standard, not on what's fastest to book or most familiar to the maintenance team.
Key factors to weigh:
- Operating speed relative to critical speed: Rotors that stay well below their first bending mode rarely need more than low-speed balancing. Most gears and motors fit here.
- Consequence of failure: Offshore, inaccessible, or high-consequence turbomachinery typically falls under API/ISO requirements that mandate operating-speed balancing.
- Whether equipment can be removed: If pulling the rotor means extended downtime the facility can't absorb, field or trim balancing may be the only realistic option.
- Budget and turnaround: Weigh the cost and lead time of a high-speed facility against how urgently the equipment needs to return to service.
Common Mistakes to Avoid
- Assuming higher speed always means better: A rigid rotor that never approaches a bending mode gains nothing from an expensive high-speed run.
- Ignoring OEM recommendations: Skipping the specific API/ISO standard for the equipment type leaves you exposed on compliance and warranty.
- Overlooking cost and lead time: A properly executed low-speed balance often already meets spec without the extra spend.
- Picking a method based on vendor availability: Choose based on the rotor's actual dynamic behavior, not which shop has an open slot.
Conclusion
Balancing keeps gearboxes, motors, turbines, and compressors running the way they're supposed to. Skip it, or apply the wrong method, and the bill shows up later: in bearing wear, seal failures, and downtime nobody planned for.
Low-speed, high-speed, and field/trim balancing each solve a different problem. Most gearboxes and motors never need more than a shop-based low-speed correction. Long, flexible turbomachinery often does. When equipment can't be pulled out of service, field balancing bridges the gap.
Choosing the right method only helps if you can act on it quickly. A responsive repair partner diagnoses the imbalance, applies the correct method, and returns equipment to service without unnecessary delay.
Houston Pump & Gear supports power plants and heavy industry with 24/7 emergency response and in-house balancing for gearboxes and related rotating equipment.
Frequently Asked Questions
What is high-speed balancing?
High-speed balancing corrects imbalance at or near a rotor's actual operating speed, capturing real dynamic behavior and resonances that low-speed methods can't detect.
How do you know if you need a high-speed balance?
You likely need it for long, flexible rotors, high-speed compressors/turbines, or equipment covered by API 684/ISO standards, especially if vibration persists after a low-speed balance.
What are the two types of balancing methods?
The two primary categories are low-speed (shop-based, below critical speed) and high-speed/operating-speed balancing. Field/trim balancing is an on-site variation of the latter.
What is low-speed balancing and when is it sufficient?
Low-speed balancing corrects static and couple unbalance below a rotor's first critical speed. It's sufficient for most gears, motors, and industrial gearboxes that operate well within their rigid-body range.
Can rotating equipment be balanced without removing it from service?
Yes. Field/trim balancing lets technicians correct imbalance on installed, running equipment using portable sensors, minimizing downtime for critical operations.
How often should industrial gearboxes and rotors be checked for balance?
Follow OEM guidance and monitor operating hours. Warning signs like rising vibration, new noise, or unusual bearing wear should trigger an immediate check regardless of schedule.
