Wear, cavitation, calibration drift, and gaps in maintenance all take a toll over time. Many plant teams struggle with the same question: is this a quick repair, or does the valve need to come out entirely?
This article walks through the most common control valve problems, a step-by-step repair process, how to decide between fixing and replacing, and when to bring in an emergency repair partner.
TL;DR
- Common failures: Internal/external leakage, sticking (stiction), and noise from cavitation or flashing
- Repair vs. replace: Most valves are repairable; replace when the body is cracked or the valve no longer meets process demands
- Repair process: Identify the symptom, confirm the root cause, fix the issue, then test under real conditions
- Emergency downtime: Fast diagnosis and repair limit production loss when a critical valve fails in service
What Is a Control Valve?
A control valve regulates fluid flow, pressure, or temperature by adjusting its opening based on a signal from a controller. It's the mechanical muscle behind the process control loop.

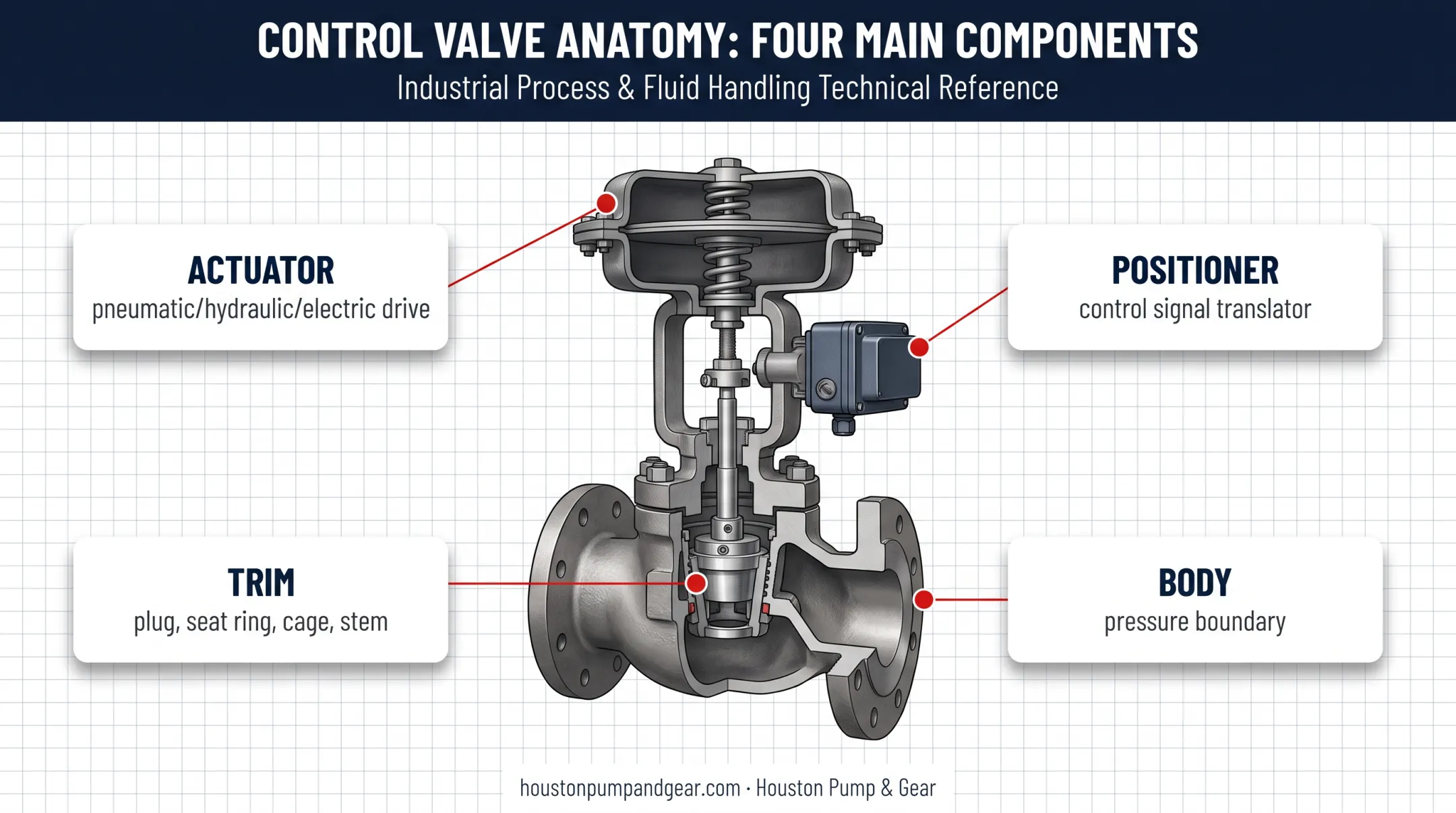

Four components work together in every unit:
- Body — the pressure boundary that houses the flow passage and seating surfaces
- Trim — internal parts (plug, seat ring, cage, stem) that actually modulate flow
- Actuator — pneumatic, hydraulic, or electric device that provides the force to move the valve
- Positioner — the accessory that translates the control signal into precise valve position
Every one of these parts wears with use. A control valve is a working system: it needs ongoing inspection and, eventually, repair.
Common Problems With Control Valves
Most valve failures fall into a handful of predictable categories. Catching symptoms early makes diagnosis much faster.
Internal Leakage
Symptoms: The valve won't fully shut off, or process leakage exceeds its rated classification.
Likely causes:
- Worn trim
- Improper actuator setup
- Incorrect positioner calibration
Seat leakage classes (per ANSI/FCI 70-2) range from Class I, which requires no test, to Class VI, which permits leakage as low as 0.15 ml/min on a 1-inch port.
External Leakage
Symptoms: Visible fluid or gas escaping at the packing, bonnet, or body joints.
Likely causes:
- Packing wear
- Thermal cycling
- Vibration from prolonged operation without maintenance
Sticking Valve
Symptoms: Delayed or inconsistent response to control signals, or erratic movement.
Likely causes:
- Overtorqued packing
- Debris buildup
- Positioner malfunction
This condition, known as stiction, happens when static friction between the stem and packing is high enough to cause abrupt, jerky movement instead of smooth response. Research from Valve World found that roughly half of cycling control-loop problems can be traced back to the control valve itself.
Excessive Noise or Vibration
Symptoms: Loud operation, rattling, or vibration during flow.
Likely causes:

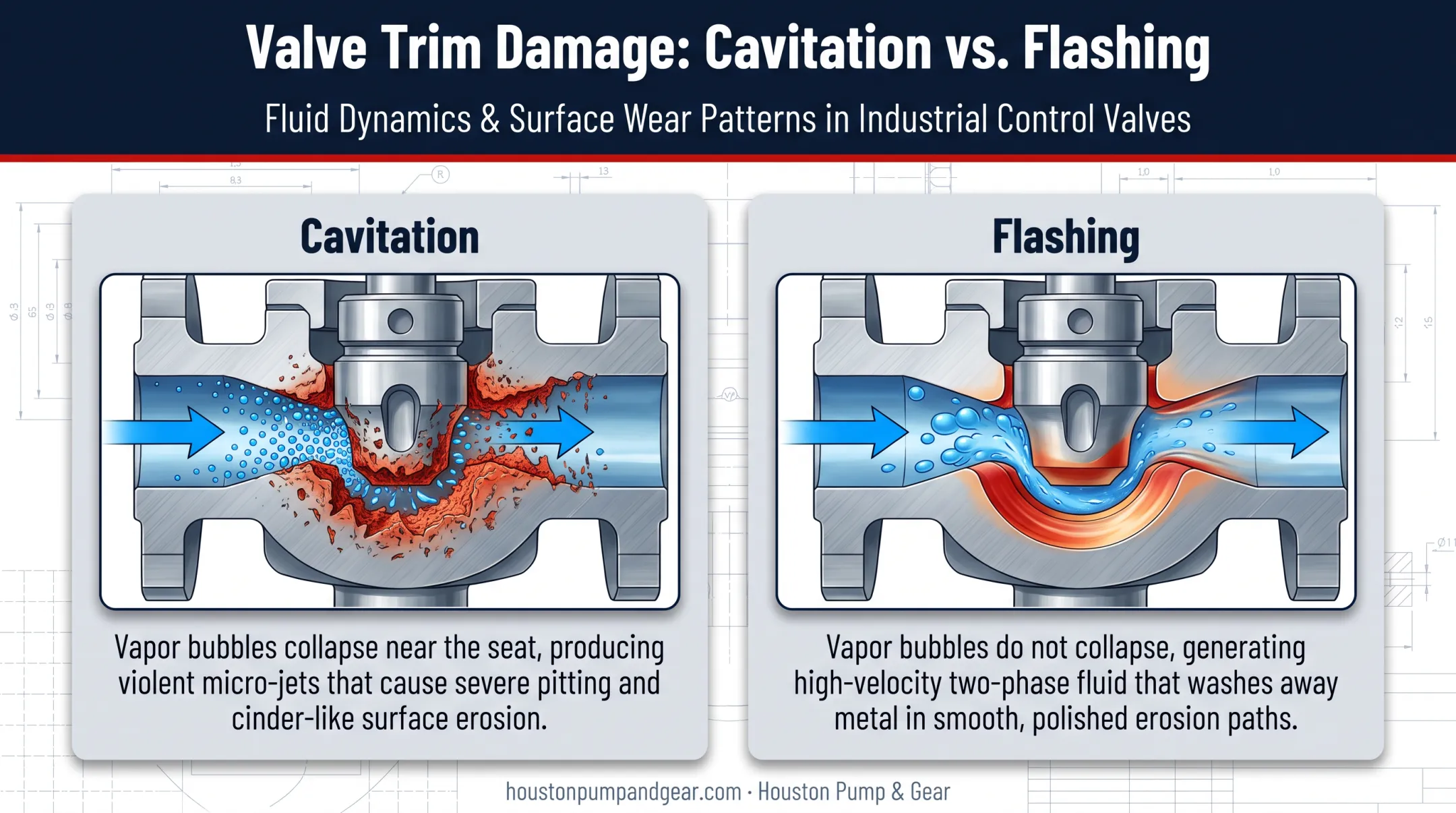

- Cavitation — vapor bubbles form, then collapse violently, creating gravel-like noise and pitted, cinder-like surface damage
- Flashing — bubbles never fully collapse, causing smooth erosion concentrated near the seat
Why Control Valves Fail (Root Causes)
Failures rarely come out of nowhere. They usually trace back to one of these:
- Operational stress — constant cycling or running beyond design specifications
- Environmental exposure — corrosive process media or extreme temperature swings
- Improper setup — incorrect sizing, installation, or actuator/positioner configuration
- Maintenance gaps — no inspection schedule, so small issues go unnoticed until they become failures
Ignoring these problems gets expensive fast. Beyond lost process efficiency, safety exposure, and emissions compliance risk, unplanned downtime carries a real dollar cost.
A 2024 Siemens industry analysis found that heavy industry downtime costs jumped 319% over five years, far outpacing general inflation over the same period. For small and mid-sized facilities, top-end downtime costs can reach $150,000 per hour.
Catching valve issues early is how you avoid that shutdown bill.

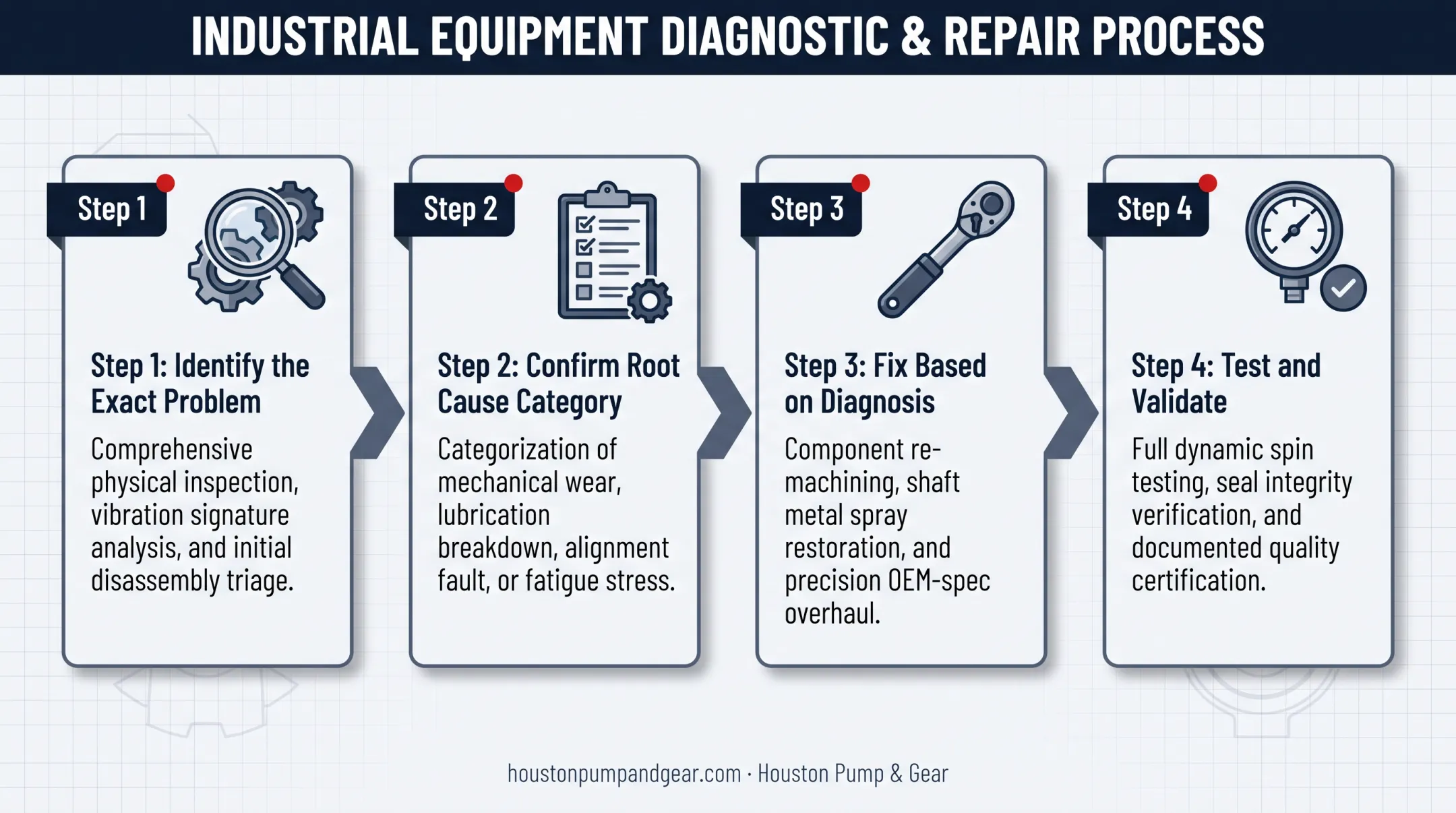

How to Fix a Control Valve (Step-by-Step)
Jumping straight to parts replacement without confirming the actual problem wastes money and often leads to repeat failures. A structured process gets it right the first time.
Step 1: Identify the Exact Problem
Start by observing what's actually happening:
- Visible leaks, unusual noise, vibration, or loss of flow control
- Performance deviations from the expected setpoint or control signal response
- DCS alarms or diagnostic readings showing abnormal behavior
- Timing patterns — issues at startup, under load, or continuously
Step 2: Confirm the Root Cause Category
Before touching any parts, determine whether the problem is:
- Mechanical — trim, seals, or seat wear
- Electrical/pneumatic — actuator or positioner malfunction
- Control/configuration — signal or setpoint related
Also rule out external factors like DCS signal issues or supply pressure problems. Correct categorization here prevents repeat failures and unnecessary parts spend.
Step 3: Fix the Valve Based on the Diagnosis
Mechanical issues (worn trim, seat, or seal damage):
- Disassemble and clean the valve
- Replace worn seals or trim components
- Reassemble with verified part compatibility and correct torque specs
Actuator/positioner issues (diaphragm wear, calibration drift, air supply problems):
- Inspect tubing and air supply for leaks or blockages
- Recalibrate the positioner
- Replace worn actuator components
- Run a post-repair functional test before returning to service
Control/configuration issues:
- Check signal and configuration drift when trim looks fine but response stays erratic
- Use diagnostic software to reset or reconfigure control parameters
- Preserve correct setpoint data when reconfiguring parameters
Environmental or operational factors (cavitation, corrosive media, oversized valve):
- Upgrade trim materials for corrosion or erosion resistance
- Resize the valve for actual process conditions
- Adjust upstream/downstream pressure conditions where possible
Step 4: Test and Validate the Fix
Run the valve under normal and peak process conditions, then confirm the repair holds:
- Monitor leaks, noise, and setpoint accuracy with diagnostic tools
- Compare results against manufacturer benchmarks
- Continue monitoring for a defined period after return to service
A repair that passes day one but fails again in week three was never fully resolved.
When Should You Fix vs Replace a Control Valve?
This comes down to weighing repair cost, downtime risk, and long-term reliability.
| Scenario | Fix | Replace |
|---|---|---|
| Minor leak or worn packing | Repack or reseal the valve | Only if the body itself is cracked or corroded |
| Repeated failures on an aging valve | Temporary patch if shutdown isn't feasible | If recurring issues now cost more than a new unit |
| Emergency shutdown | Rapid emergency repair to restore operation | Only if parts are unavailable and downtime cost outweighs replacement |
| Valve mismatched to current process | Adjust internals if within range | If sizing no longer matches operational demands |
In emergencies, response time matters most. Houston Pump & Gear demonstrated this on a Lufkin S2212C gearbox repair: picked up after a power plant emergency shutdown and back in service within 72 hours. That same principle applies to control valves. A fast, well-diagnosed repair is often the difference between a controlled fix and a prolonged outage.
Common Mistakes to Avoid When Fixing a Control Valve
Watch out for these traps — they turn a one-time repair into a recurring headache:
- Treating symptoms, not causes — tightening packing without diagnosing why it loosened in the first place
- Skipping post-repair testing — returning the valve to service without verifying performance under real operating conditions
- Using non-OEM parts — aftermarket parts aren't always built to original specifications and can void warranty coverage
- Ignoring lockout/tagout — OSHA 29 CFR 1910.147 requires isolating all energy sources (electrical, pneumatic, mechanical) before servicing
Preventive Measures to Avoid Future Issues
Preventive maintenance costs less than emergency repair, every time. These practices cut the risk of unplanned valve failures:
- Schedule inspections and diagnostic testing by valve criticality, not a generic calendar
- Follow a documented preventive maintenance program instead of reacting to failures
- Confirm proper valve sizing matches actual operating conditions
- Partner with an experienced, 24/7 repair provider for rapid response when something does go wrong
Houston Pump & Gear offers 20+ years of industrial repair experience and round-the-clock availability when a valve failure threatens a weekend plant shutdown.
Conclusion
Most control valve problems are fixable when caught early through routine inspection. Identify the root cause first — mechanical, actuator/positioner, or configuration-related — before reaching for a wrench or a replacement part.
Knowing when to repair versus replace matters just as much. A reliable emergency repair partner on call cuts both cost and downtime when a valve fails.
Frequently Asked Questions
How do I know if a control valve is bad?
Watch for leakage beyond its rated classification, sticking or delayed response, erratic setpoint tracking, or unusual noise like rattling or gravel-like sounds. Any of these points to a failing valve.
What are the common causes of control valve failure?
Worn trim or seals, calibration drift, cavitation or flashing, incorrect sizing, and lack of preventive maintenance are the leading causes.
What should I do if my pressure control valve is leaking?
First check whether leakage exceeds its allowable classification. Then inspect the packing, seals, and actuator, or bring in an experienced repair provider to diagnose the cause.
Can a control valve be repaired instead of replaced?
In most cases, yes. Worn components like trim, seals, and packing can be replaced. Replacement is usually only necessary when the valve body is structurally damaged or repair costs exceed the price of a new unit.
How often should control valves be inspected?
Inspection frequency should be based on process severity and valve criticality, with additional checks after any abnormal operation or alarm event.
How quickly can an emergency control valve repair be completed?
Turnaround depends on damage severity and parts availability. Experienced 24/7 providers can often restore critical valves to service within a few days.
