That silence is deceptive. Unlike a pump with a noisy bearing or a leaking seal, a gearbox in trouble often gives few obvious clues before it seizes, strips a gear tooth, or fails to close during an emergency shutdown. The cost of that failure isn't just a repair bill — it's unplanned downtime, safety exposure, and in the worst cases, a process safety event.
This guide covers why valve gearbox maintenance matters, the different maintenance approaches available, the warning signs worth watching for, and a practical schedule you can adapt to your facility.
TL;DR
- Valve gearboxes rarely show obvious wear like pumps do; scheduled inspection catches problems early
- Preventive maintenance (visual checks, lubrication, stop adjustment) costs far less than emergency repair
- Grease seepage, unusual resistance, or travel mismatch are early warning signs worth investigating
- Match lubrication frequency to duty: standard service vs. outdoor or high-cycle use
- Internal gear damage calls for professional repair, overhaul, or replacement, including emergency response when downtime is critical
Why Maintenance of Valve Gearboxes Is Important
A valve gearbox controls position. When it fails, the valve it operates can't open, close, or throttle correctly — and depending on that valve's role, an entire process line can grind to a halt.
Performance usually degrades before a gearbox fails outright. Worn gears or degraded grease rarely cause an instant seizure. Early warning signs include:
- Jerky movement during travel
- Uneven stroke or incomplete positioning
- A handwheel that suddenly needs more force than before

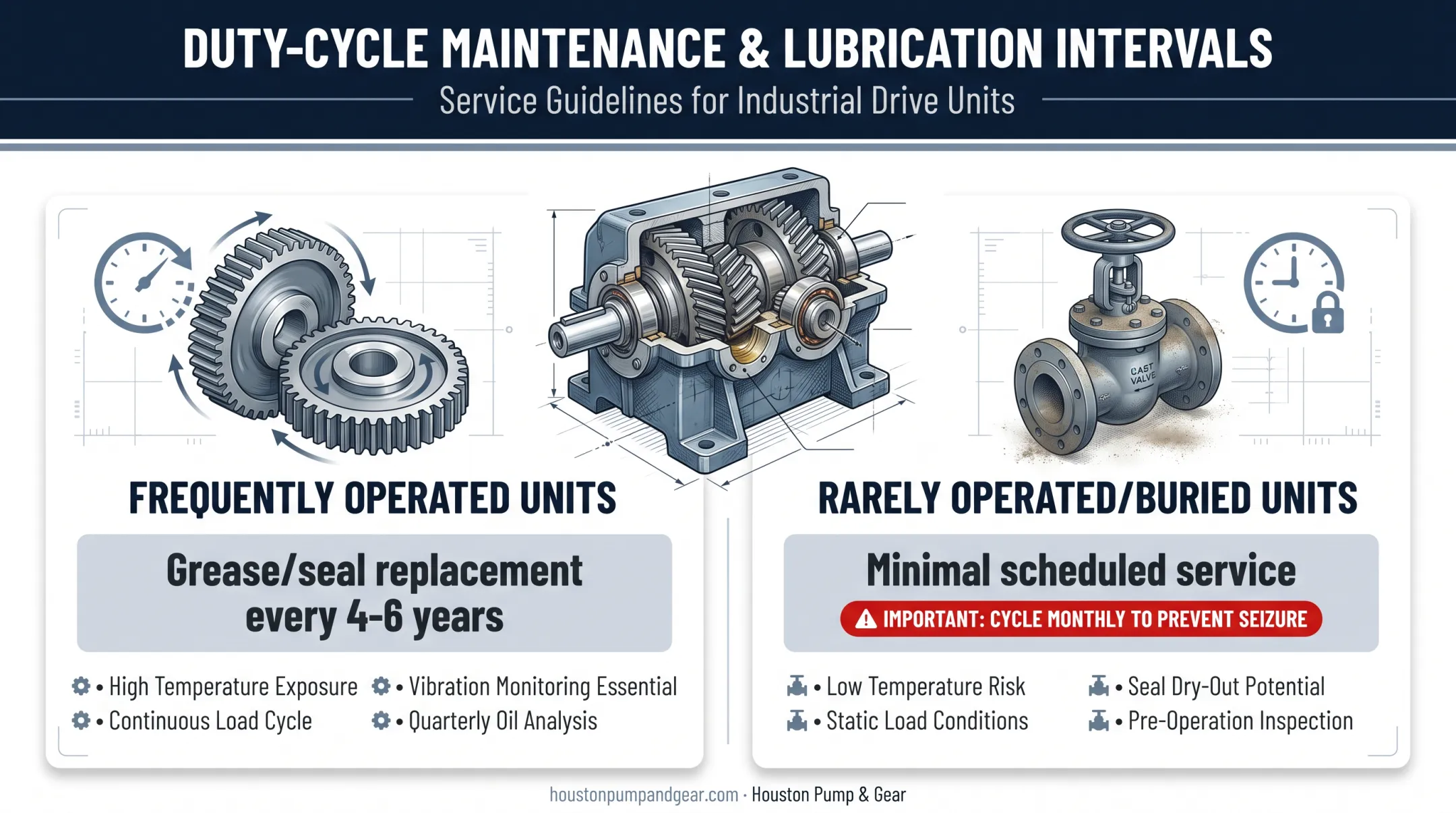

Well-maintained gearboxes simply run longer. OEM guidance is consistent: proper lubrication and scheduled care support smooth operation and longer service life. AUMA, for example, notes maintenance should match duty cycle:
- Frequently operated units: grease and seal replacement every four to six years
- Rarely operated or buried units: may need little or no scheduled service
Safety and Compliance Come Into Play
For valves tied to emergency shutdown or fire protection systems, this isn't just an efficiency question. Under OSHA's process safety management rule, mechanical integrity requirements explicitly cover valves and emergency shutdown systems — meaning written procedures, inspection at OEM-recommended frequencies, and documented deficiency correction aren't optional for critical service.
The Financial Case for Prevention
The math backs this up. The U.S. Department of Energy's Operations & Maintenance Best Practices Guide estimates that preventive maintenance can deliver 12%-18% cost savings compared to reactive, run-to-failure approaches. That figure is a general equipment benchmark, not a valve-specific guarantee.
Even with solid planning, a gearbox can still fail. When it does, response speed matters. Houston Pump & Gear has handled cases like this firsthand: in 2014, a gearbox failure pushed a power plant into emergency shutdown. The team sent a truck for same-day pickup of the failed Lufkin S2212C unit, and the plant was back online 72 hours later. Fast turnaround is what keeps an unplanned outage from becoming a multi-day production loss.

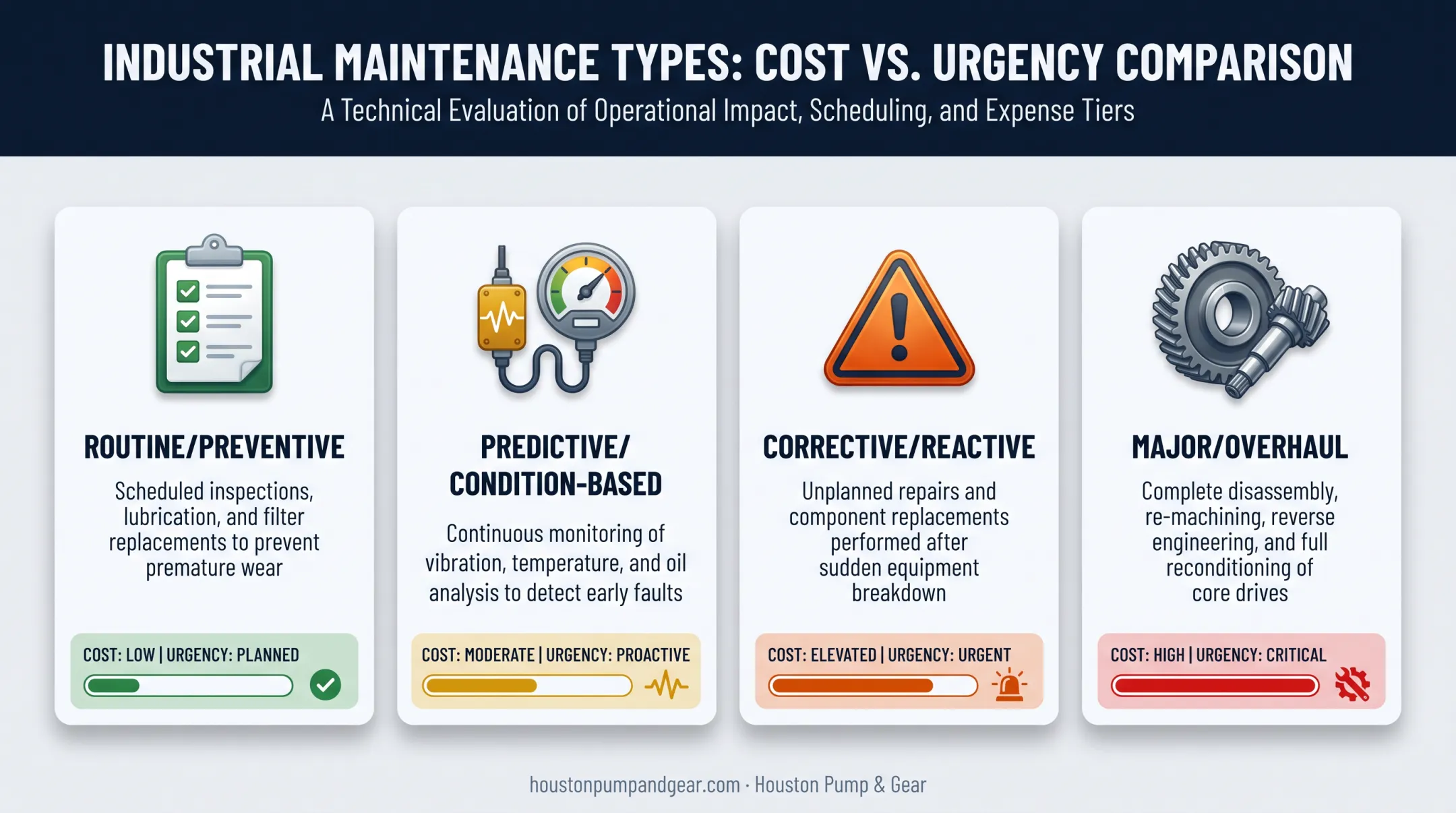

Types of Maintenance for Valve Gearboxes
Not every valve needs the same maintenance intensity. The right approach depends on the valve's criticality and how often it cycles.
Routine / Preventive Maintenance
This is scheduled, planned work: the baseline every valve gearbox should get.
- Visual walkdowns checking fasteners, seals, and position indicators
- Operational cycling checks through full travel
- Scheduled lubrication based on duty cycle
- Grease condition checks for contamination
Best for: standard-duty, indoor, low-cycle valves. Costs stay minimal since work happens during planned outages with routine labor and consumables.
Corrective / Reactive Maintenance
This is unplanned work triggered by a problem already underway: a stuck handwheel, a grinding noise, or a valve that won't seat properly.
Relying on this approach alone is risky. On critical isolation valves, it means unplanned shutdowns and potential safety incidents. Costs run higher too:
- Expedited parts
- Overtime labor
- Lost production time
Those add up fast, which is why most plants pair reactive fixes with a stronger preventive or condition-based plan.
Predictive / Condition-Based Maintenance
Instead of a fixed calendar, this approach tracks actual equipment condition:
- Travel resistance trends over time
- Cycle counts per valve
- Grease condition and contamination history
- CMMS data flagging valves trending toward failure
It takes moderate upfront investment in monitoring and documentation. In return, plants usually cut long-term repair spend by catching problems before they turn into emergencies. When condition data shows internal wear past that point, the next step is overhaul.
Major / Overhaul Maintenance
This is full teardown territory: complete strip inspection, gear replacement, or full gearbox rebuild. It's required when internal teeth show pitting or the output shaft has measurable play.
Costs here are significant, but turnaround time matters as much as price. A manufacturer-direct repair can take 16 to 18 weeks, and ordering a new unit can stretch to 8-10 months.

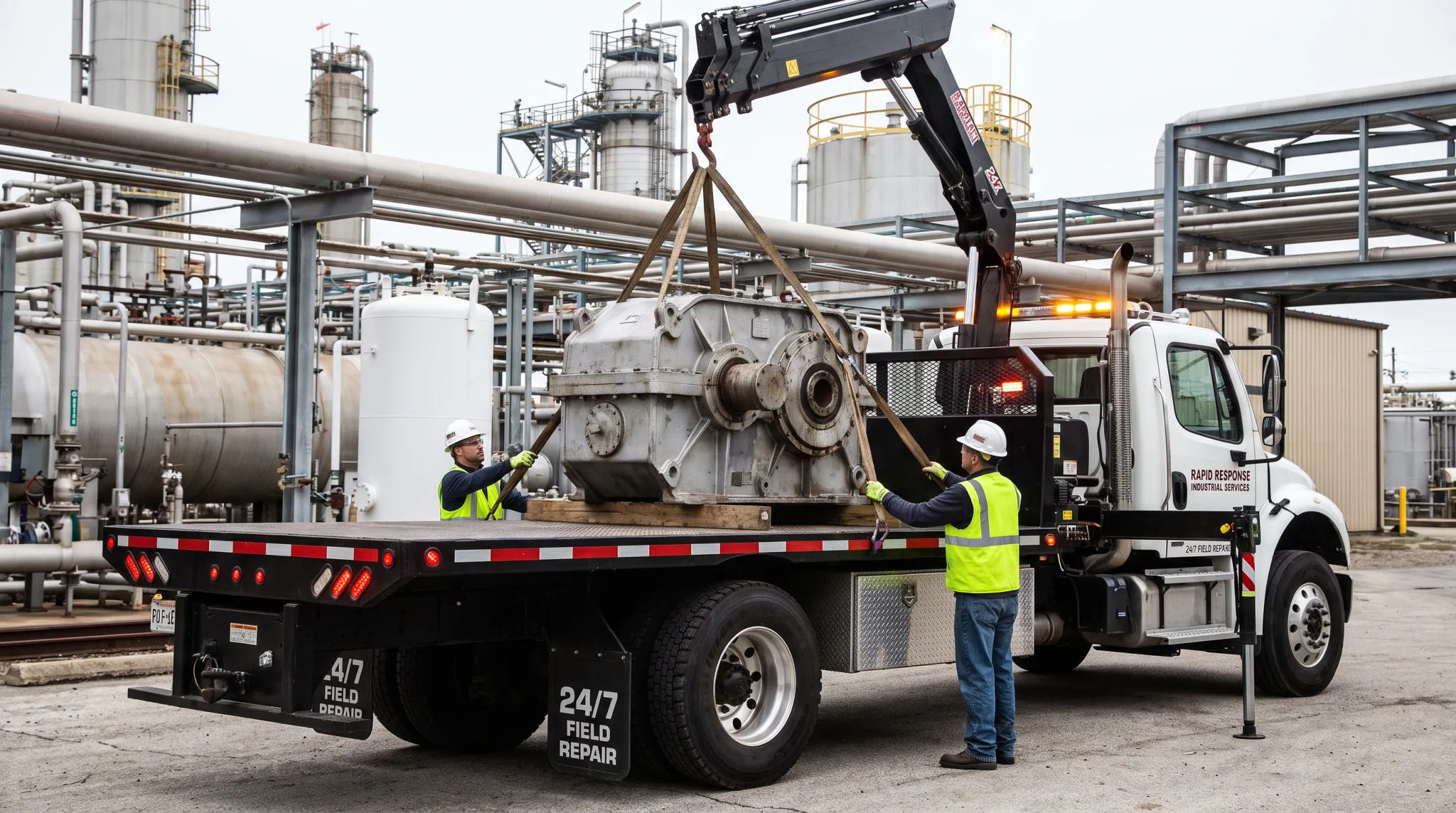

A mobile field-response provider that picks up equipment directly, such as Houston Pump & Gear's dedicated transport trucks, shortens that timeline. The gearbox moves into the shop for disassembly, chemical cleaning, and inspection without waiting on freight schedules.

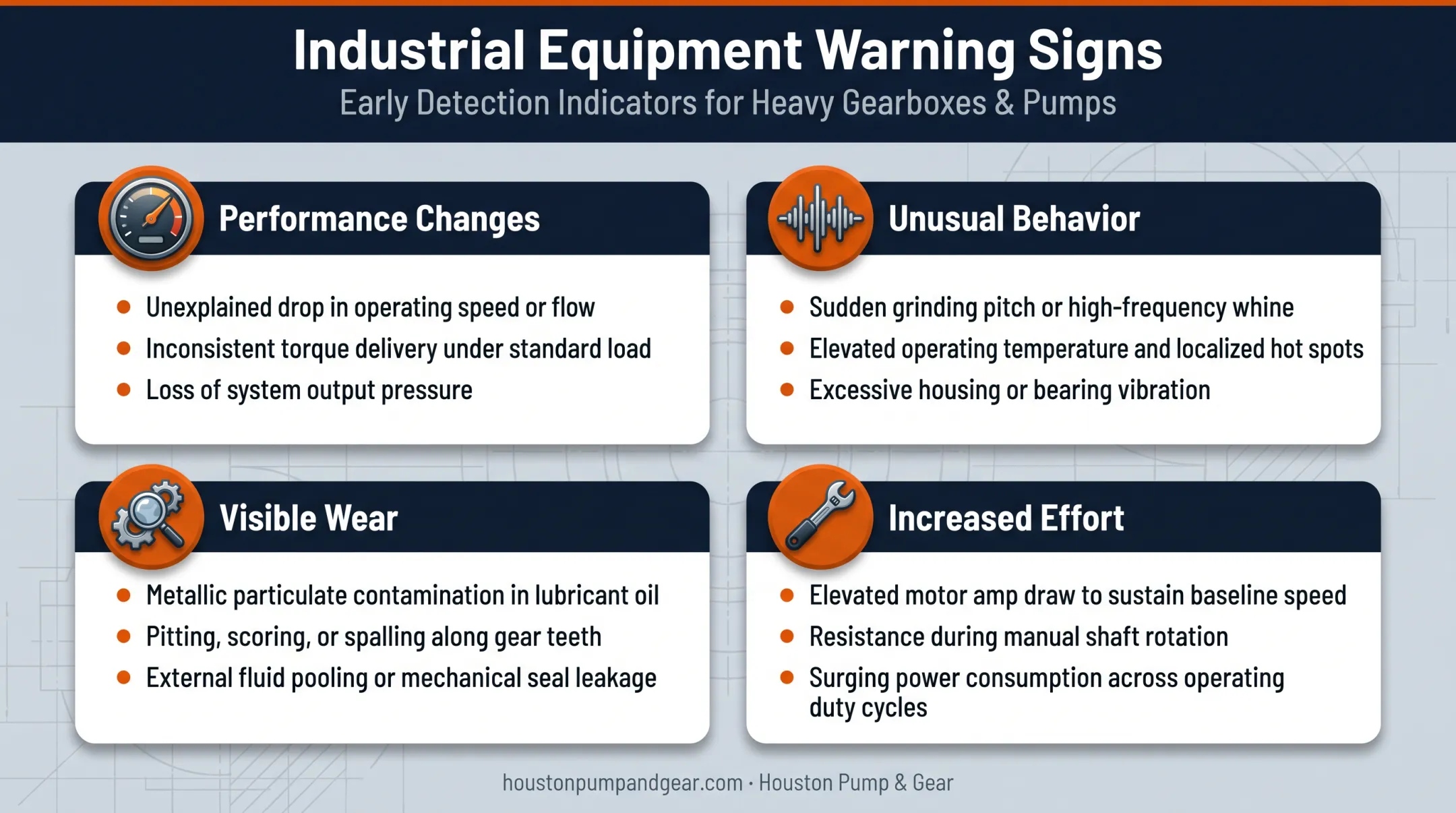

How to Check If a Valve Gearbox Needs Maintenance
Catching these signs early is the difference between a scheduled repair and an emergency one.
Performance or Output Changes
- Slower or inconsistent valve travel compared to baseline
- Handwheel or actuator requiring noticeably more force than before
- Valve not reaching full open or full closed position
Unusual Behavior or Operation
- Grinding, clicking, or scraping sounds during operation
- Jerky or uneven movement instead of smooth travel
- Mechanical stops engaging harshly rather than smoothly
Important: If the gearbox fails to operate properly, stop and investigate. Never use a cheater bar, pipe wrench, or other add-on leverage device to force it through — that's how a manageable problem becomes a stripped gear.
Visible Wear or Irregularities
- Grease or oil seepage around housing seals or output shaft
- Corrosion, cracks, or impact damage on the housing
- Cracked or missing position indicator covers, or loose fasteners
Light grease weepage during infrequent operation is often normal and doesn't automatically signal failure. Persistent leakage, contaminated grease, or water ingress is the real red flag.
Increased Effort or Recurring Issues
- Frequent manual resets or retries to fully seat the valve
- Repeated minor leaks or resistance issues that keep coming back
- Unplanned shutdowns tied to a specific valve gearbox
Related check: A "dirty" valve body can mimic gearbox problems. Debris buildup at the seat, or leakage despite a closed position indicator, often traces back to limit-stop adjustment rather than the gearbox mechanism. Check both before assuming gearbox failure.
Valve Gearbox Maintenance Schedule (General Guidelines)
Frequency should track duty, environment, and criticality — not a one-size-fits-all calendar. An indoor, low-cycle isolation valve doesn't need the same attention as an outdoor emergency shutdown valve exposed to weather and vibration.
| Maintenance Task | Standard Duty | High-Cycle / Outdoor / Critical |
|---|---|---|
| Visual inspection | Quarterly | Quarterly (minimum) |
| Operational check (full travel cycle) | Every 6 months | Every 6 months or more often |
| Lubrication / regreasing | Annually | Every 6 months |
| Full strip inspection / overhaul | Every 5 years | After any overtorque or impact event, or sooner per OEM guidance |
Build these duty-based adjustments into your program:
- Low-usage valves (rarely cycled, buried gearboxes) may need little to no grease changes, but still need visual checks
- High-cycle or modulating valves wear faster and deserve tighter intervals
- Emergency shutdown and fire protection valves need more frequent checks than baseline duty — a failed close on demand carries serious consequences
Document the reasoning behind every interval you set. If an OEM manual specifies something different from these general guidelines, follow the manufacturer's numbers first.
Conclusion
Valve gearbox maintenance is inexpensive insurance. A quarterly visual check and an annual regreasing cost a fraction of an unplanned shutdown or emergency overhaul, and they buy years of reliable, predictable operation.
The right approach covers both routine upkeep and emergency readiness: a maintenance schedule that catches problems early, and a response plan for when something slips through anyway.
Houston Pump & Gear has spent over 20 years supporting power plants and heavy industry across Texas and Louisiana with both sides of that equation — scheduled inspection and overhaul work, plus 24/7 emergency repair with same-day pickup when a gearbox goes down without warning.
Frequently Asked Questions
What are the symptoms of a dirty valve body?
Watch for leakage when the gearbox indicator shows closed, incomplete seating, and a handwheel that is hard to turn. Cleaning and reseating the valve often clears these problems.
How often should a valve gearbox be lubricated?
Standard indoor service typically needs annual regreasing. Outdoor or high-cycle valves should be checked every six months, using the grease type specified by the manufacturer.
Can a seized valve gearbox be repaired in the field, or does it need replacement?
Grease-starvation seizures can often be repaired if caught early. Visible gear tooth damage usually means you need a replacement or a full overhaul.
How do I know if the mechanical stops on my valve gearbox need adjusting?
If the valve doesn't fully open or close even though the gearbox completes its travel, the stops likely need resetting according to the manufacturer's procedure.
What's the difference between preventive and emergency valve gearbox repair?
Preventive maintenance is scheduled, planned, and relatively low-cost. Emergency repair responds to a sudden failure and focuses on getting critical equipment back online quickly.
Who should I call for emergency valve gearbox repair on a power plant or industrial gearbox?
Look for a provider with 24/7 availability and mobile pickup capability. Houston Pump & Gear, for instance, services complex gearbox models and has restored equipment to service in as little as 72 hours after an emergency shutdown.
