On high-torque industrial gearboxes, like the gear drives running turbines and compressors in power plants, precision shaft alignment, correct torque sequencing, and strict safety protocols aren't optional extras. They're the difference between years of reliable service and a coupling that fails within weeks.
Who should do the work? Routine, low-torque couplings can often be handled by trained in-house maintenance technicians. Large or high-torque industrial couplings, however, typically call for specialists with laser alignment tools and hands-on experience.
Get it wrong, and you're looking at premature coupling failure, excessive vibration, bearing damage, unplanned downtime, and real safety hazards. This guide walks through the correct installation process, following industry best practices from start to finish.
Key Takeaways
- Shaft prep, precise alignment, correct torque, and proper lubrication drive a reliable coupling install
- Misalignment tolerance varies by coupling type: use the manufacturer’s spec sheet, not a rule of thumb
- Poor lubrication and skipped alignment checks cause most early coupling failures
- Large industrial gearbox couplings often justify professional installation and alignment support
- A low-load validation run before full operation catches problems before they become expensive
Prerequisites and Safety Considerations
Before any tools come out, the site and the components need to be ready.
Site and system readiness:
- Clear, unobstructed access to both shaft ends
- A clean work area free of debris, grit, and standing fluids
- Adequate lifting equipment on hand for couplings too heavy to handle manually
Compatibility checks matter just as much as physical prep. Verify the coupling's bore size, keyway dimensions, and torque rating against both the gearbox shaft and the connected motor or driven shaft. A coupling rated for the wrong torque load will fail under load, regardless of how well it's aligned.
Safety Requirements
Lockout/tagout (LOTO) procedures aren't a formality here; they're federally mandated for a reason. OSHA's hazardous energy control standard requires isolating and verifying zero energy state before any servicing begins.
The agency estimates that proper LOTO compliance prevents roughly 120 fatalities and 50,000 injuries every year.
Before starting work, confirm:
- Equipment is fully de-energized and locked out
- Shafts are secured against unexpected rotation
- Appropriate PPE is worn based on your site's hazard assessment
When to Stop and Call in Help
Do not proceed if:
- Shafts show visible wear, scoring, or pitting at the coupling interface
- The coupling is undersized for the application's actual torque load
- Proper alignment tools simply aren't available on site

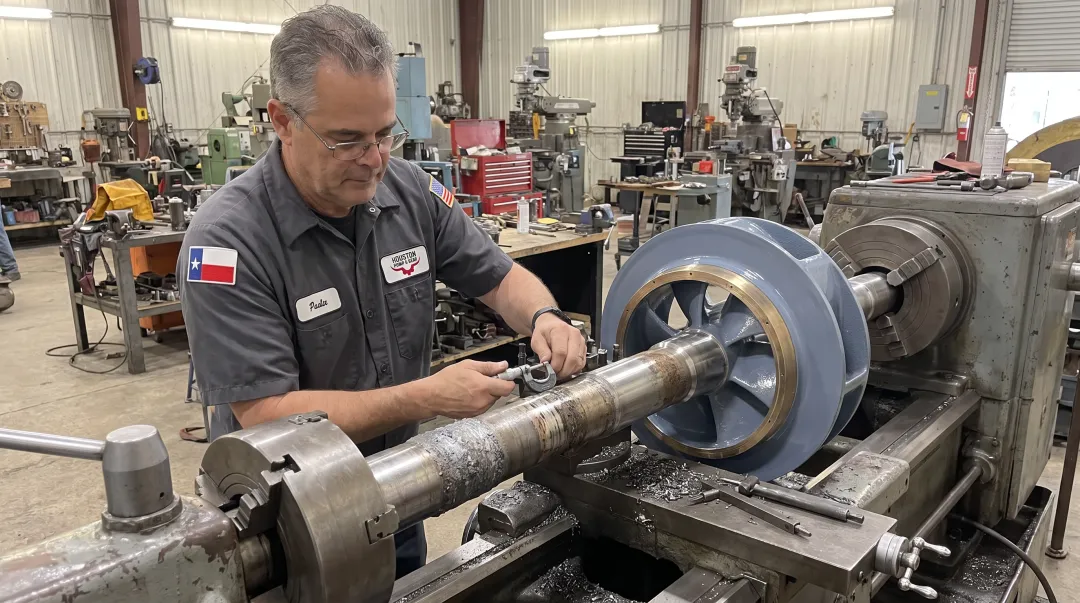

If you hit any of these, particularly on a large industrial gearbox coupling, bringing in an experienced provider like Houston Pump & Gear makes more sense than pushing forward. Damaged shafts often need precision machining or metal spray restoration before a new coupling can seat correctly — not a repair you want to improvise in the field.
Tools and Parts Required
The right tools determine both the accuracy and speed of your alignment work will be.
| Tool | Purpose | Essential or Optional |
|---|---|---|
| Dial indicator or laser alignment system | Measures angular and parallel shaft alignment | Essential (laser preferred for large/high-speed units) |
| Calibrated torque wrench | Applies correct, consistent bolt torque | Essential |
| Feeler gauges | Checks gap spacing between hub faces | Essential |
| Coupling puller | Removes old or misfit hubs without shaft damage | Essential for hub removal |
| Manufacturer-specified lubricant | Fills gear or grid coupling teeth | Essential for lubricated coupling types |
Laser vs. dial indicators: Laser alignment systems are faster and more accurate, and most techs find them easier to run—making them the better choice for large or high-speed couplings. Dial indicators remain perfectly adequate for smaller, lower-speed units where budget or job frequency doesn't justify a laser rig.
A straightedge and feeler gauge can serve as a basic substitute for alignment checks, but only on low-speed, low-precision applications. Don't rely on this method for anything running at meaningful torque or speed. The margin for error is too tight.
Parts to have on hand:
- Coupling hubs matched to shaft diameter and keyway
- Keys and key stock per the coupling spec
- Grade-rated fasteners and lock hardware
- Shim stock for vertical alignment correction
- Seals, gaskets, or O-rings if the coupling design requires them
Confirm hub bore, keyway, and fastener grade against the manufacturer drawing before the outage starts. Wrong-fit parts are one of the faster ways to turn a planned swap into extended downtime.

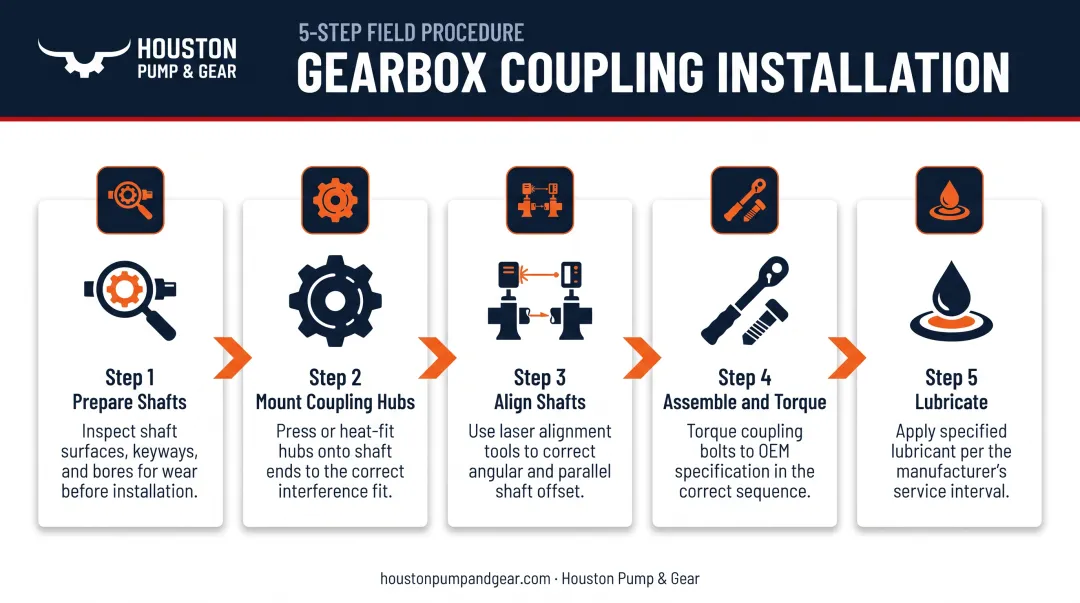

How to Install a Gearbox Coupling (Step-by-Step)
Installation follows a defined sequence for a reason. Skip alignment or torque verification, and you're often buying yourself a repeat visit within months.
Prepare the shafts. Clean shaft ends thoroughly, inspect for burrs, scoring, or corrosion, and confirm the keyway fits the key without excessive play or tightness. Address any damage here before mounting continues.
Mount the coupling hubs. Use the mounting method specified for that coupling: press fit, shrink fit, or a keyed connection. Maintain the correct hub spacing per the manufacturer's drawing. This gap matters for both alignment accuracy and future maintenance access.
Align the shafts. Perform angular and parallel alignment using dial indicators or a laser system, working within the tolerance stated in the coupling's documentation.
Don't assume a universal tolerance range applies. According to the Lovejoy Coupling Handbook, a standard gear coupling typically accommodates around 1.5° of angular misalignment per mesh; specialty designs can reach up to 6°, and rigid couplings tolerate almost none. Always use the figure from your coupling's spec sheet.
Assemble and torque the components. Tighten sleeves, bolts, and flanges in the sequence specified for that coupling, usually a star or crisscross pattern applied in stages (about 50%, then final torque). Use a calibrated torque wrench and hit the manufacturer's table values. Recheck the first bolt after the final pass; it often loosens slightly as the others tighten.
Lubricate where applicable. Gear and grid couplings need the correct type and quantity of grease packed into the teeth and seals, per the manufacturer's table. General-purpose or bearing grease is not an acceptable substitute. Use only the qualified coupling grease specified for that model.
Post-Installation Checks and Validation
Don't consider the job finished once the last bolt is torqued. Validation is what catches problems before they turn into failures.
Visual and structural checks:
- All bolts torqued to specification and rechecked
- Guards reinstalled and secured
- No visible gaps, misalignment indicators, or lubricant seepage
Functional testing: Run the equipment at low load and low speed first. Listen and watch for:
- Abnormal noise, knocking, or grinding
- Excessive vibration
- Unusual heat buildup at the coupling or adjacent bearings
Smooth, quiet operation with stable temperatures signals a correct installation. Knocking, vibration, or lubricant leakage means something needs another look before you ramp up to full load.
Why this step can't be skipped: Hidden misalignment doesn't always announce itself immediately. It can accelerate bearing wear or coupling fatigue that only surfaces weeks or months later, often at the worst possible time and as a much bigger repair bill than it would have been at commissioning.
Common Installation Problems and Fixes
Three issues show up more than any others during or immediately after coupling installation.
Issue 1: Excessive Vibration After Installation
Problem: Unusual vibration shows up during the initial run-in period.
Likely cause: Shaft misalignment or an unbalanced coupling component. Misalignment is the most common field problem and often the culprit even when vibration seems minor at first.
Fix: Recheck alignment with a dial indicator or laser tool, and retorque all bolts to spec. Don't assume it will "work itself out." It won't.
Issue 2: Premature Coupling Wear or Overheating
Problem: The coupling shows visible wear or runs hot within days of startup.
Likely cause: Inadequate or incorrect lubrication is the leading cause of gear coupling failure, according to gear coupling reliability research published by Machinery Lubrication. An undersized coupling for the torque load is the other common culprit.
Fix: Verify lubrication type and quantity against the manufacturer's table, and confirm the coupling's torque rating actually matches the application's load.
Issue 3: Coupling Bolts Loosening
Problem: Bolts loosen shortly after the equipment goes into service.
Likely cause: Improper torque sequence, or missing lock washers and thread-locking compound where specified.
Fix: Retorque using the correct star or crisscross pattern to the specified values, and apply thread-locking compound where the manufacturer calls for it.
Pro Tips for Installing Gearbox Couplings Effectively
A few practical habits separate a clean installation from one that needs revisiting.
- Take final alignment readings only after the gearbox and coupling reach ambient temperature—thermal expansion shifts shaft position and throws off cold numbers
- Keep couplings clean and shielded from dirt and moisture before install, especially on active industrial or power plant sites
- Record alignment readings, torque values, and lubrication details for warranty claims and the next technician

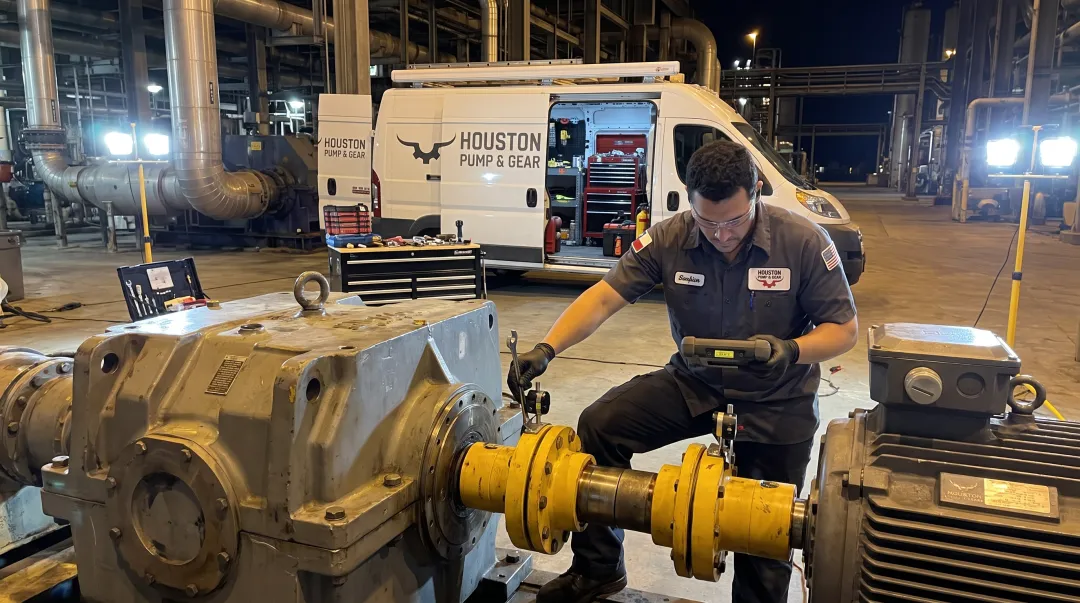

- Call a specialist for large high-torque couplings or emergency shutdowns—Houston Pump & Gear offers 24/7 mobile field response across Texas and Louisiana, plus in-house shaft restoration when damage is part of the job
Conclusion
Installation quality directly determines coupling performance, operating safety, and service life of the gearbox and driven equipment. Shaft prep, alignment, torquing, and a validation run are core work, not optional extras. Skip any of them and you trade a few saved hours now for unplanned downtime later.
Frequently Asked Questions
What is a gear coupling?
A gear coupling is a flexible coupling with two hubs featuring external gear teeth that mesh with internally toothed sleeves. It transmits high torque while accommodating minor shaft misalignment.
What are the different types of gearbox couplings?
Main categories include gear, grid, disc, diaphragm, jaw, sleeve, and fluid couplings. Selection depends on the application's torque, misalignment tolerance, and vibration requirements.
What are the signs of a failing gearbox coupling?
Watch for abnormal noise, excessive vibration, visible wear or lubricant leakage, and overheating. Any of these warrants an inspection before the equipment returns to service.
How much misalignment can a gearbox coupling tolerate?
It varies by type. Gear couplings typically handle a few degrees of angular misalignment, while rigid couplings tolerate almost none. Always confirm the exact figure in the manufacturer's documentation.
How often should gearbox coupling lubrication be checked after installation?
Relubrication intervals depend heavily on duty cycle and grease type, ranging from six months to several years. Check more frequently during the first few months after installation to catch early issues.
Can I install a gearbox coupling myself, or should I hire a professional?
Smaller, low-torque couplings can often be installed in-house by trained technicians. Large industrial gearbox couplings usually benefit from professional alignment and installation services to avoid costly downtime.
