Over time, contamination, heat, and normal wear take their toll. The good news: most vane pump failures follow predictable patterns, and most are fixable if you catch them early.
This guide walks through the common problems, step-by-step fixes, when to repair versus replace, and when it's time to call in a repair partner like Houston Pump & Gear.
TL;DR
- Most failures come from shaft seal leaks, cartridge/cam ring wear, burned pressure plates, or cavitation
- A cartridge kit usually fixes the pump—no full unit swap required
- Diagnose the symptom, confirm the root cause, repair, then test before restart
- Call a pro for severe internal damage, repeat failures, or when downtime isn’t an option
What Is a Hydraulic Vane Pump?
A hydraulic vane pump is a positive displacement device. Spring-loaded or pressure-activated vanes slide out from a rotor and press against a cam ring, trapping fluid and forcing it through the system in a continuous cycle.

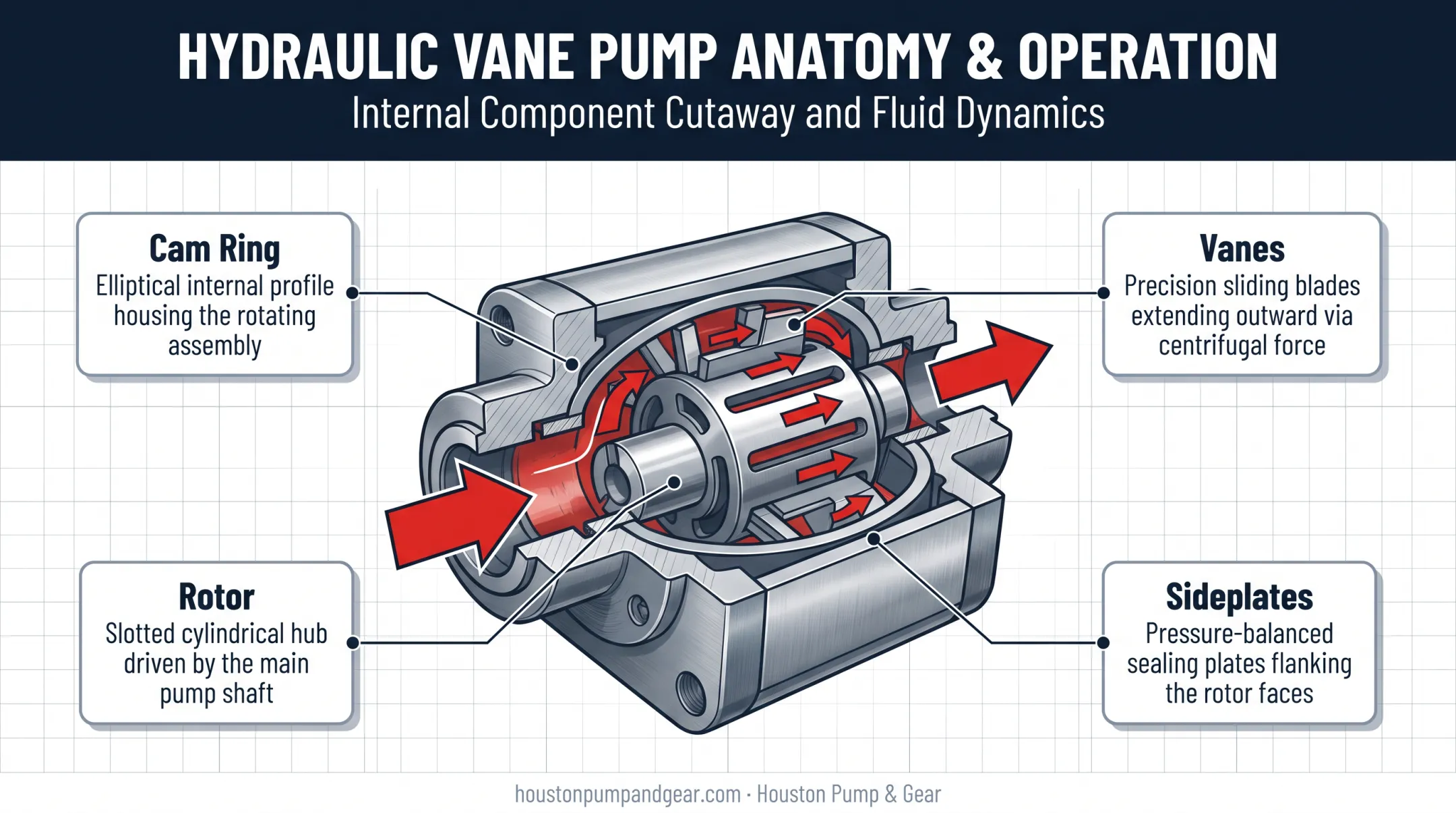

Main components:
- Rotor — holds the vanes and spins with the drive shaft
- Vanes — extend outward against the cam ring to create sealed chambers
- Cam ring — the surface the vanes ride against, shaping the pumping action
- Sideplates — seal the rotating assembly and direct fluid flow
Vane pumps come in fixed and variable displacement models. Fixed units deliver constant output at a given speed. Variable units use a moving cam ring to adjust displacement on the fly.
Either design wears down predictably. Left unchecked, small issues compound into expensive failures.

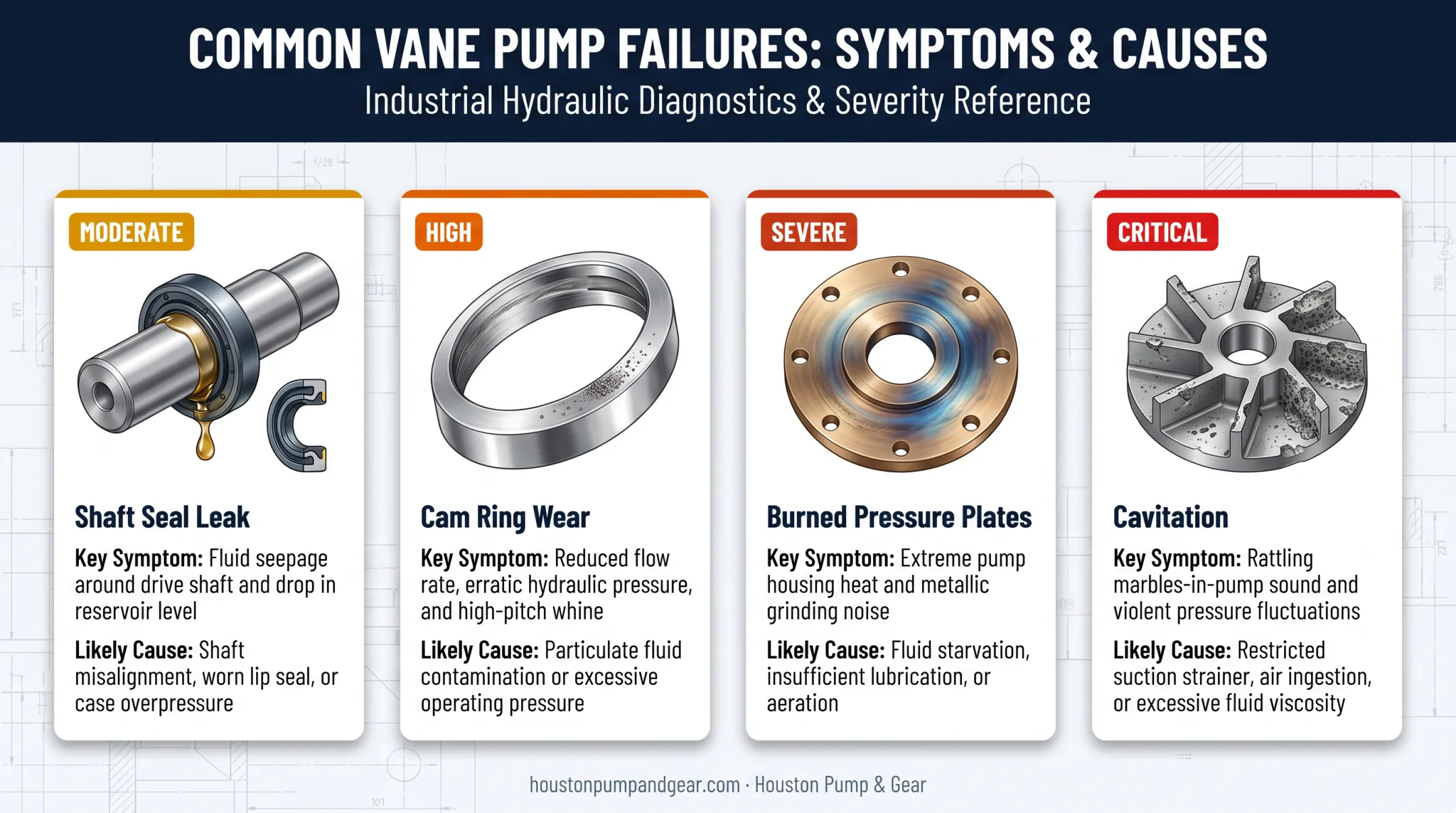

Common Problems With Hydraulic Vane Pumps
Most vane pump failures trace back to a handful of recognizable patterns. Once you know the pattern, you can narrow the fault faster and avoid tearing down the wrong assembly.
Shaft Seal Leak
Symptoms: Fluid dripping or pooling at the pump's front end, or an oily film building up near the shaft.
Likely causes:
- Bearing failure
- Seal hardening from sustained overheating
- Contamination that has cut a groove into the shaft
Fluid Power World notes that extended operation above 140°F is a common trigger for seal hardening.
Cam Ring Rippling and Cartridge Kit Wear
Symptoms: Loud grinding or rubbing noise under pressure, with noticeably reduced flow output.
Likely cause: Worn cam ring surface, usually from abrasive contamination or running the pump past its service interval.
Burned or Scored Pressure Plates and Rotor
Symptoms: Severe pressure or flow loss, discolored or scored surfaces visible on disassembly.
Likely cause: Running the pump dry, or abrasive particles causing rapid heat buildup inside the housing.
Cavitation
Symptoms:
- Growling or rattling noise
- Milky or aerated fluid
- Erratic pressure readings
- Elevated temperature
Likely causes:
- Restricted inlet line
- Clogged strainer
- Low fluid level
- Fluid viscosity mismatch for the application
Why Vane Pumps Fail (Root Causes)
Failures rarely come out of nowhere. They trace back to a few real-world conditions:
- Fluid contamination — at least 75% of hydraulic system failures stem from contaminated or aging fluid (Machinery Lubrication)
- Sustained overheating beyond the seal manufacturer's recommended threshold
- Improper installation — dry starts or shaft misalignment
- Skipped maintenance — no scheduled cartridge inspection or fluid/filter changes
Ignore these long enough, and the consequences stack up:
- Reduced efficiency and flow output
- Secondary damage to the housing, shaft, or connected system components
- Safety risks from unexpected pressure loss
- Costly unplanned downtime for power plants and heavy industry — often thousands per day
How to Fix a Hydraulic Vane Pump (Step-by-Step)
Repairing a vane pump without confirming the root cause is how you end up replacing the same part twice. This process identifies, isolates, and fixes the actual issue.
Step 1: Identify the Exact Problem
- Note visible symptoms: leaks, noise, vibration, overheating, flow loss
- Compare current output and pressure to normal baseline
- Listen carefully — cavitation sounds like growling; cartridge wear sounds like grinding
- Document when the symptom appears: startup, under load, or continuous operation
Step 2: Confirm the Root Cause Category
Is the problem internal (cartridge, seal, cam ring) or system-level (contamination, restricted inlet, overheating reservoir)? Rule out the easy stuff first: fluid level, fluid condition, filter status, and operating temperature. Confirm the category before you order parts.
Step 3: Fix Based on the Identified Problem

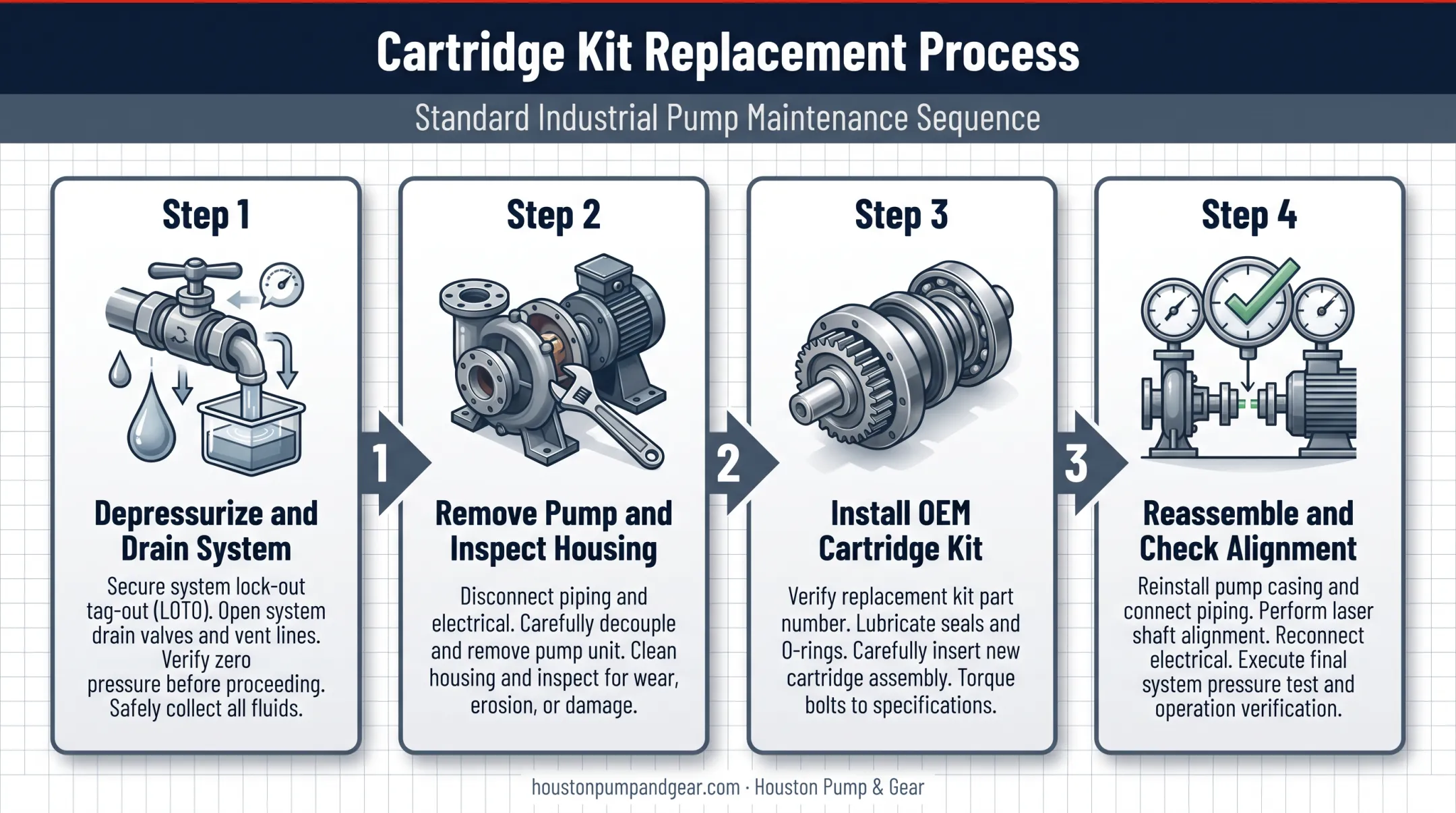

If the vane cartridge or cam ring is worn:
The rotating group — vanes, rotor, cam ring, sideplates — gets replaced as one cartridge kit. Steps:
- Depressurize and drain the system
- Remove the pump and inspect the housing
- Install a new OEM-spec cartridge kit
- Reassemble carefully, checking dowel pin alignment
Mismatched aftermarket tolerances are a common cause of premature repeat failure.
If the shaft seal is leaking:
- Remove the pump and support the shaft
- Press out the old seal
- Inspect the shaft for grooves or scoring
- Press in the new seal and verify alignment
Fix whatever caused the overheating or contamination first. Otherwise, the new seal fails the same way.
If pressure plates are burned or the rotor is scored:
This usually needs a full rebuild, not a simple cartridge swap. Inspect the housing and shaft for damage that may require replacement. When scoring or burn marks run that deep, a professional pump overhaul—such as the industrial pump repair work Houston Pump & Gear performs for mills, refineries, and power plants—is typically the more practical route.
If cavitation is the root cause:
Fix the system side first: clean or replace the strainer, inspect the inlet line, verify fluid level and viscosity. Extended cavitation causes internal pitting, which may still require cartridge replacement afterward.
Step 4: Test and Validate the Fix

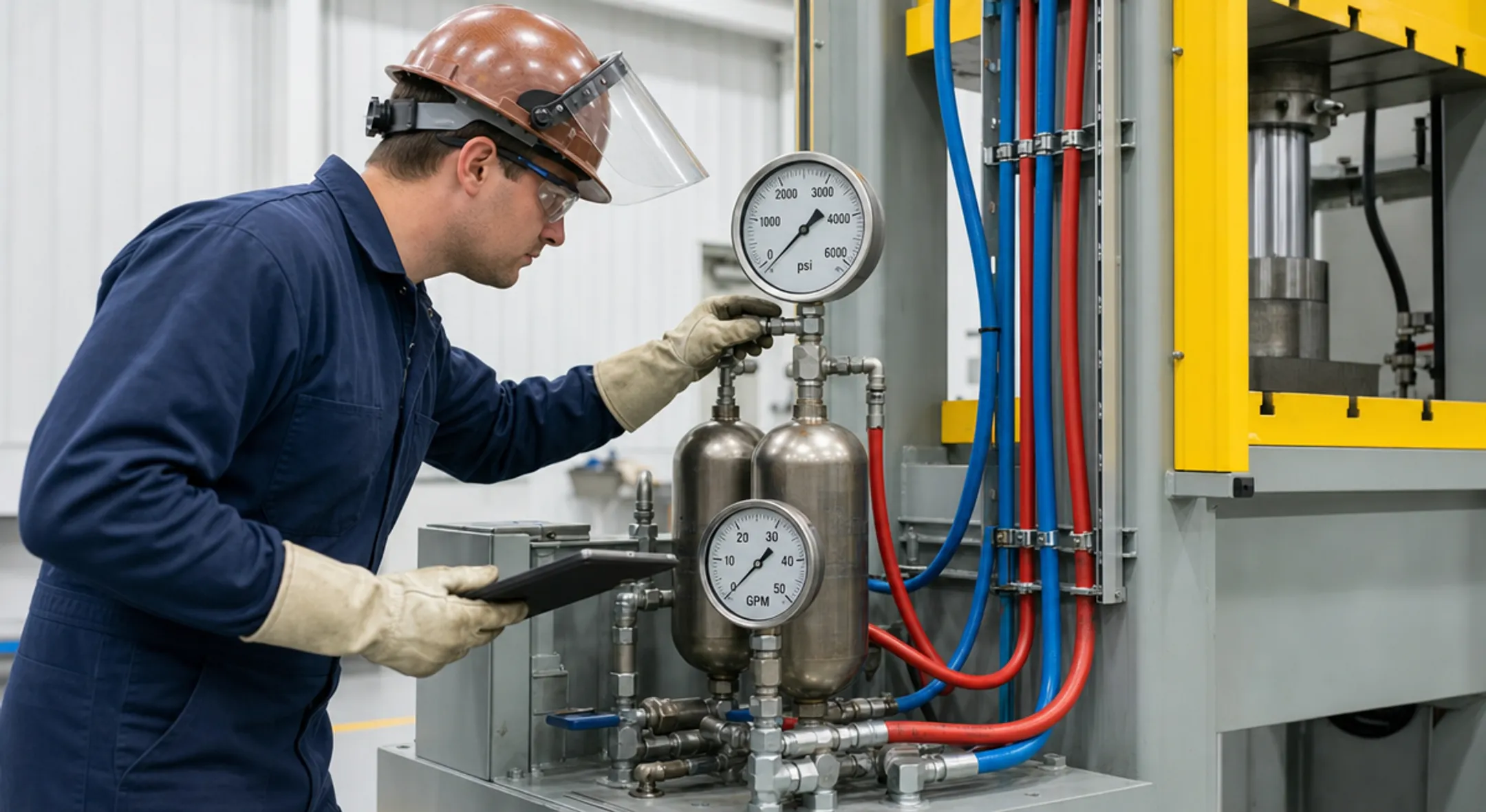

Prime the pump properly before startup — a dry start after reassembly can undo the entire repair. Run at low pressure first, then bring it up to full operating pressure gradually. Monitor flow, pressure, temperature, and noise over the first few operating hours to confirm the fix holds. If symptoms return or internal damage exceeds a cartridge kit, stop and have the pump inspected before another failure takes the system down.
When Should You Fix vs Replace a Vane Pump?
The decision comes down to damage extent, repair cost, and how critical uptime is.
| Scenario | Fix | Replace |
|---|---|---|
| Isolated cartridge or seal failure | Fast and cost-effective when the housing and shaft are fine | Rarely needed unless failures repeat |
| Cracked or heavily scored housing | Rarely viable once integrity is compromised | A rebuilt or exchange unit is safer and faster |
| Repeated failures in a short window | Only if a new root cause is found and corrected | More cost-effective long-term if failures persist |
| Critical uptime (power plant, heavy industry) | Fine if a same-day cartridge swap restores operation | Needed if downtime risk is high |
When uptime is critical, a 24/7 emergency partner matters. Houston Pump & Gear has delivered that kind of response before, including a 72-hour emergency turnaround on a Lufkin gearbox for a power plant client. The same rapid-mobilization approach applies to critical pump failures.
Common Mistakes to Avoid When Fixing a Vane Pump
A solid rebuild still fails when these mistakes slip through:
- Replacing the cartridge without addressing the root cause — contamination, cavitation, or overheating will wear out the new cartridge too
- Dry-starting the pump after reassembly — skipping proper priming risks immediate damage on first run
- Using non-OEM cartridge kits — incompatible tolerances accelerate wear and shorten service life
Preventive Measures to Avoid Future Issues
Preventive maintenance is cheaper than emergency repair, every single time. A few habits go a long way on hydraulic vane pumps:
- Maintain fluid cleanliness with scheduled filter and fluid changes
- Monitor operating temperature to stay within the seal manufacturer's limits
- Schedule cartridge inspections by actual operating hours, not guesswork
- Train staff on proper startup priming and consistent maintenance documentation
Stick to the schedule and you catch vane, ring, and seal wear before it takes the pump offline.
Conclusion
Most hydraulic vane pump problems are fixable if caught early, usually through a cartridge or seal repair rather than a full unit replacement. The key is correct root-cause diagnosis. Skip that step, and you're just delaying the next breakdown.
For power plants and heavy industry operations across Texas and Louisiana, Houston Pump & Gear’s 24/7 emergency pump repair minimizes the cost of unplanned downtime when a pump fails.
Frequently Asked Questions
Can a hydraulic pump be repaired?
Yes. Vane pumps are among the most repairable pump types, typically fixed through cartridge kit replacement rather than a full unit swap. Housing and shaft damage are the main exceptions that push toward replacement.
What are the symptoms of a failing hydraulic vane pump?
Watch for shaft seal leaks, grinding or growling noise under pressure, reduced flow output, elevated operating temperature, and milky or aerated hydraulic fluid.
How long does a hydraulic vane pump typically last?
Service life depends heavily on fluid cleanliness, operating temperature, and maintenance consistency rather than a fixed hour count. Pumps maintained to OEM cleanliness and temperature specs last longer than neglected units.
What causes a hydraulic vane pump to run dry, and how can it be prevented?
Dry starts commonly happen right after maintenance or reassembly when the pump hasn't been properly primed. Following a correct priming procedure and confirming fluid fill before startup prevents this.
How do I know if my vane pump needs a new cartridge kit vs a full rebuild?
Isolated wear in the vanes, rotor, or cam ring usually calls for a cartridge kit swap. Burned pressure plates, scored rotors, or housing damage typically require a full rebuild.
When should I call a professional repair service instead of fixing it myself?
Call a professional for severe internal damage, repeat failures despite repairs, or critical uptime needs. Houston Pump & Gear provides 24/7 emergency pump repair when power plants and heavy industry can't risk extended downtime.
