Continuous-duty service wears casings down. Corrosion eats at walls, cavitation pits surfaces, and cycling stress opens cracks. Common problems, yes, but rarely catastrophic if caught early.
This guide breaks down the most frequent casing failures, a step-by-step repair process, and how to decide between fixing and replacing. We'll also cover when it makes sense to bring in an emergency specialist like Houston Pump & Gear.
TL;DR
- Leakage from casing wear or cracks is the top industrial pump problem; over 20 drops per minute signals trouble.
- Most casings can be repaired through welding, epoxy composite, or metal spraying, depending on damage severity.
- The repair sequence: diagnose the exact damage, confirm the root cause, apply the correct repair method, then test under load.
- Critical failures often need professional repair; Houston Pump & Gear has delivered 72-hour turnaround on emergency industrial equipment.
What Is a Pump Casing?
A pump casing is the stationary outer housing that encloses the impeller, contains system pressure, and directs fluid flow toward the discharge nozzle. In a centrifugal pump, the casing converts the impeller's kinetic energy into usable pressure energy as fluid moves outward through the volute.

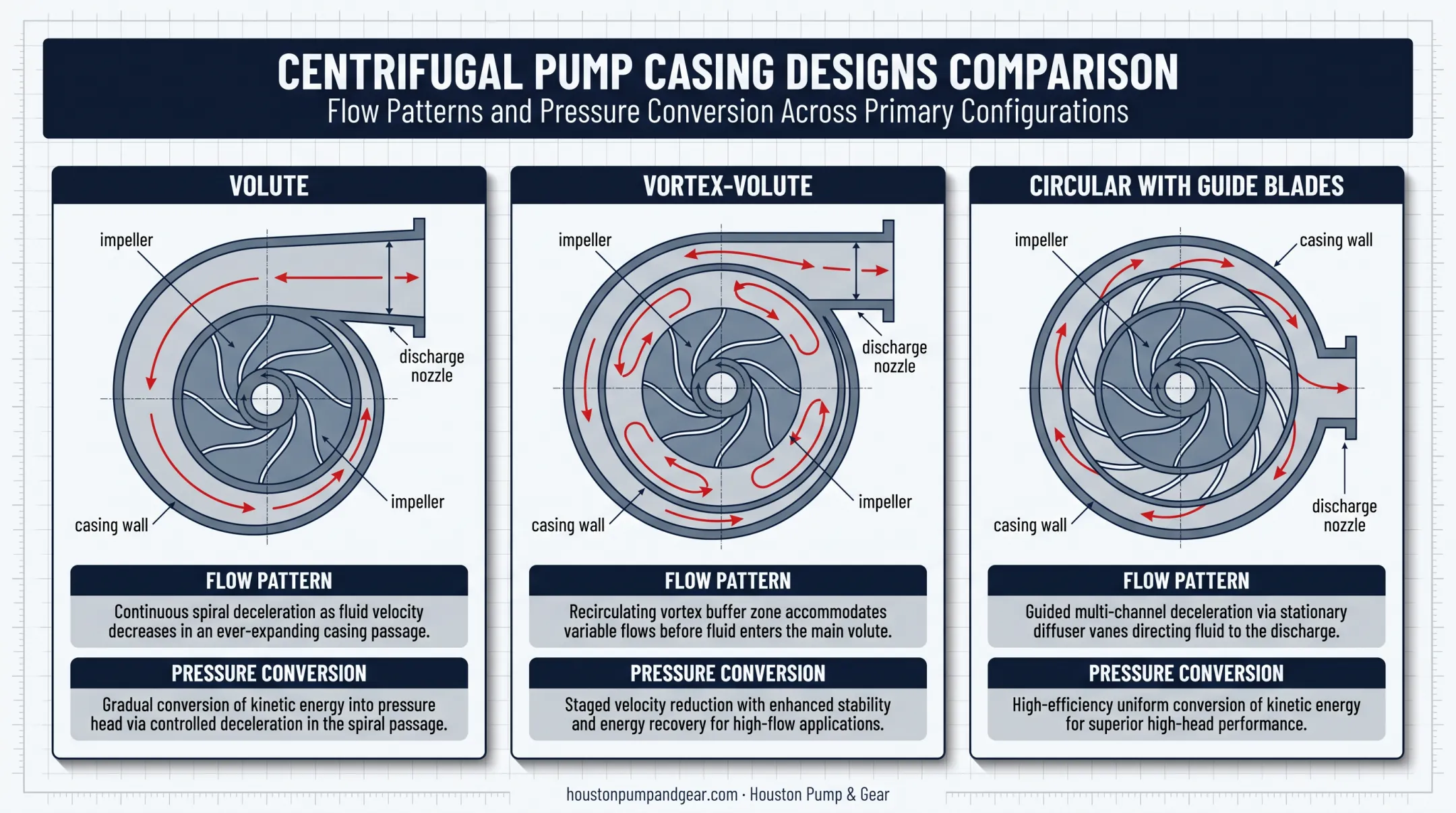

Common casing designs include:
- Volute
- Vortex-volute
- Circular with guide blades
Each shape manages flow and pressure differently depending on duty and application.
Here's the mistake a lot of maintenance teams make: treating the casing as a "set and forget" component. It's not. Like bearings or seals, it wears. Periodic inspection isn't optional if you want to avoid surprise failures.

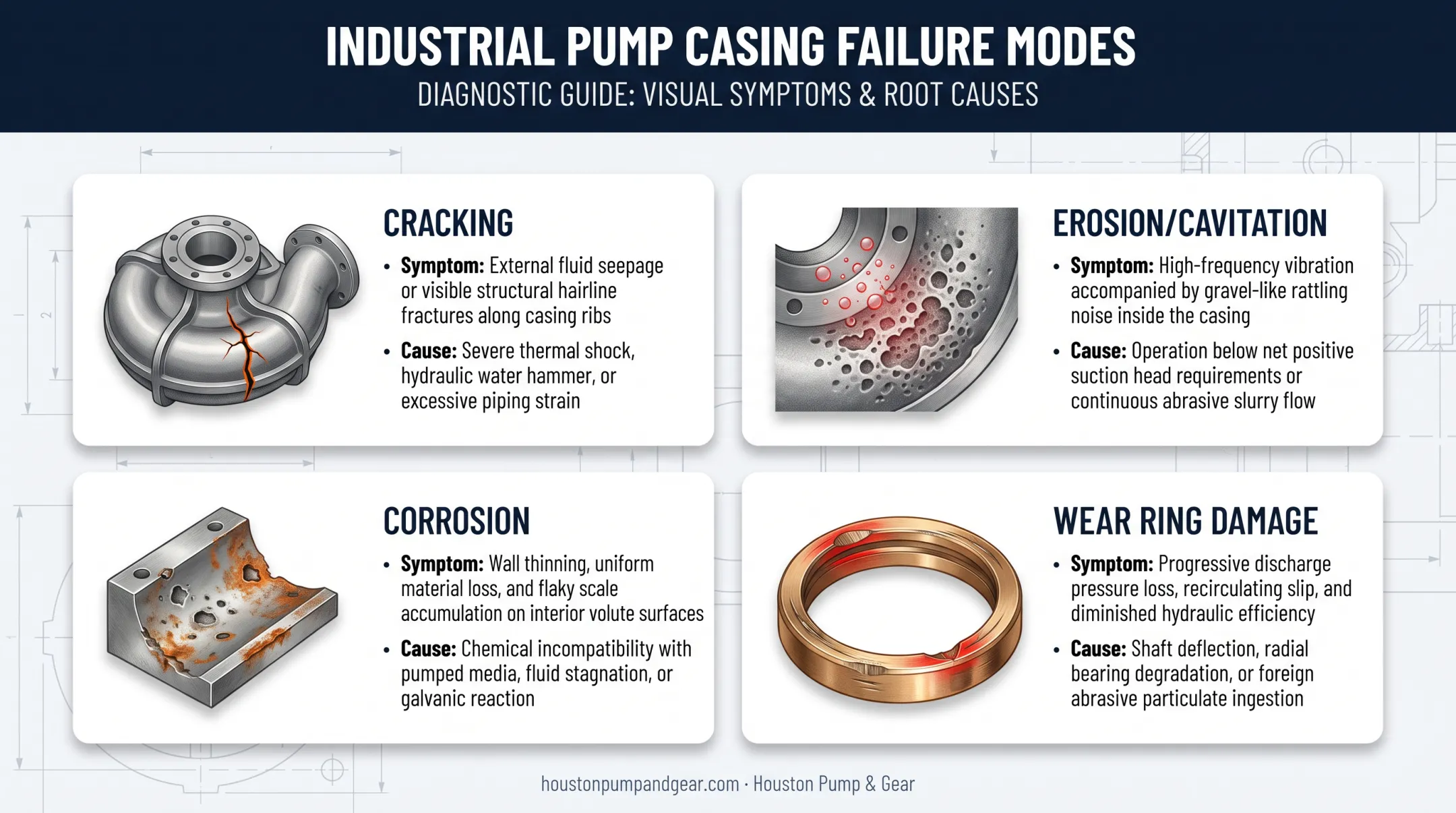

Common Problems With Pump Casings
Casing failures tend to follow the same handful of patterns, tied closely to fluid conditions and operating stress.
Cracking
- Symptoms: Visible fissures, external leakage, sudden pressure drop.
- Likely cause: Thermal stress, water hammer, fatigue, or impact damage.
Thermal transients are a frequent trigger. Tensile thermal stress stacks on top of pressure-induced stress, raising the overall stress range on the casing wall and accelerating fatigue cracking over time.
Erosion/Cavitation Damage
- Symptoms: Pitting, a gravel-like rattling noise, reduced flow or pressure output.
- Likely cause: Insufficient NPSH (net positive suction head), entrained solids, or vapor bubble collapse.
Cavitation happens when local pressure drops below the fluid's vapor pressure. Bubbles form, then collapse violently against the casing wall, causing mechanical damage over time.
Corrosion
- Symptoms: Thinning walls, pinhole leaks, discoloration.
- Likely cause: Casing material incompatible with fluid chemistry, or coating breakdown.
Chemical attack eats wall thickness from the process side until pinholes or thin spots give way under pressure.
Casing Bore/Wear Ring Damage
- Symptoms: Performance loss despite an intact impeller, increased power draw.
- Likely cause: Clearance growth from abrasive wear or misalignment.
As those clearances open, internal recirculation rises and the pump draws more power to hold the same duty point.
Why Pump Casings Fail (Root Causes)
Most casing failures trace back to a handful of real-world conditions:
- Operational stress — cycling, water hammer, or running against a closed valve
- Environmental exposure — corrosive or abrasive process fluids attacking the material
- Improper installation — pipe strain or misalignment loading the casing unevenly
- Skipped inspections — minor wear left to progress into structural damage
Ignore these long enough, and the consequences compound:
- Reduced pump efficiency and output
- Product or fluid containment issues
- Safety and environmental compliance risks from leaks
- Costly unplanned downtime
Unplanned downtime carries the heaviest cost. The Hydraulic Institute notes that over a pump's 15-to-20-year life, the initial purchase price accounts for only about 10% of total cost — energy, maintenance, and downtime make up the rest.
In many facilities, a few days of unexpected lost production can dwarf the original cost of the pumping system entirely.

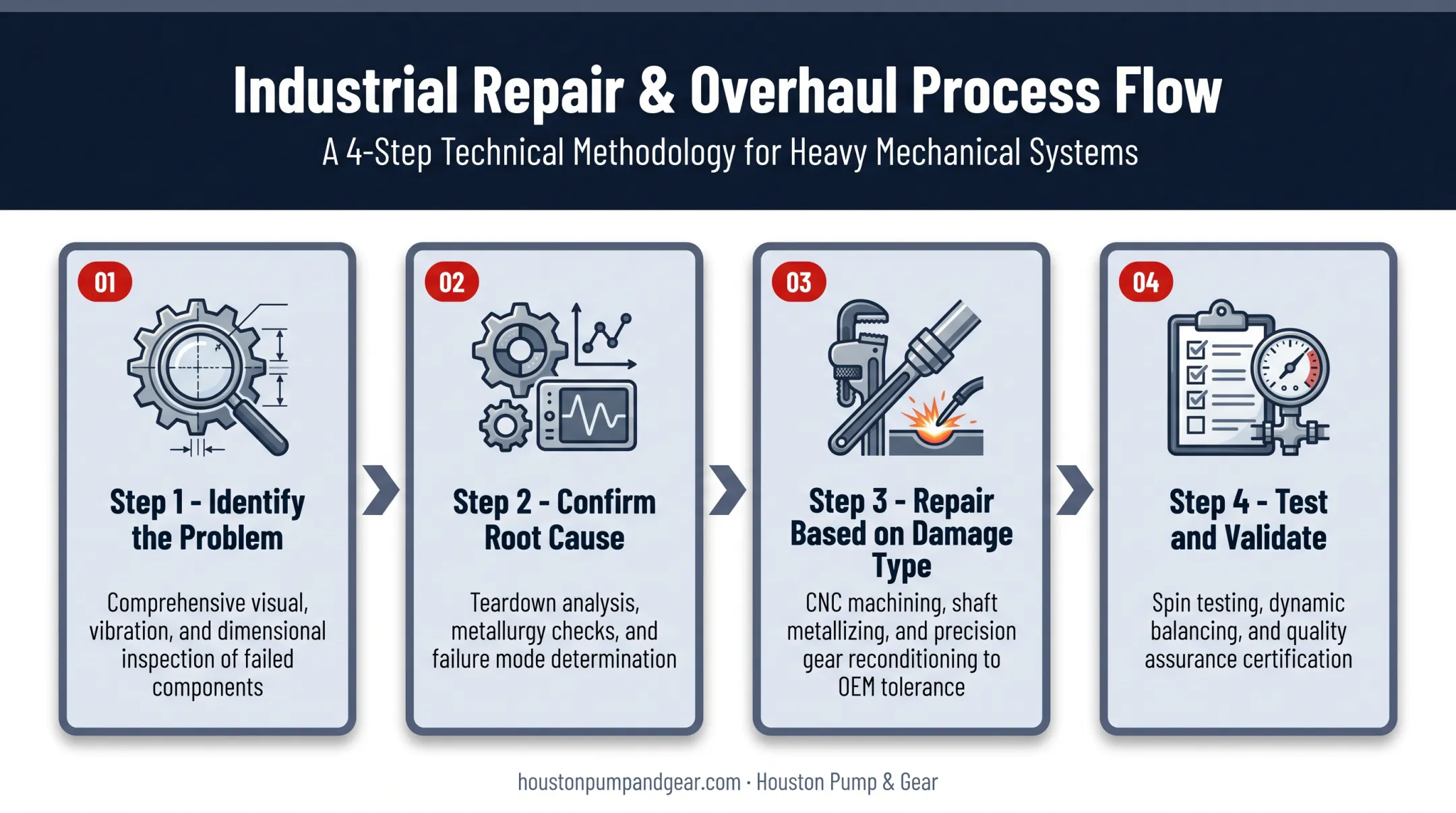

How to Fix a Pump Casing (Step-by-Step)
Skipping diagnosis and jumping straight to repair is how facilities end up fixing the same casing twice. The process below ensures the damage is correctly identified, the cause addressed, and the repair validated before the pump goes back online.
Step 1: Identify the Exact Problem
- Observe visible symptoms — leaks, cracks, pitting, unusual vibration or noise
- Measure wall thickness against OEM spec using a caliper or thickness gauge
- Check for performance deviation from the pump's rated curve
- Document when symptoms appear: at startup, under load, or during continuous run
Step 2: Confirm the Root Cause Category
Classify the failure before you commit to a repair method:
- Mechanical: wear, fatigue, or impact
- Material: corrosion or chemical attack
- Process-related: cavitation or abrasive erosion
- Installation-related: misalignment or pipe strain
Rule out external factors like suction conditions and fluid chemistry before pinning the blame on the casing itself.
Skip this step, and you risk paying for an expensive repair that fails again in six months because nobody addressed the actual cause.
Step 3: Repair Based on the Damage Type
Cracks or structural damage:
- Isolate, depressurize, and drain the pump completely
- Weld or braze compatible metals; use epoxy or composite resin with fiberglass reinforcement for smaller cracks
- Check the reinforced area for full cure and even coverage before reassembly
Erosion or corrosion damage:
- Clean and sandblast the affected surface to remove oxide buildup and improve adhesion
- Apply metal spraying, chrome plating, or epoxy coating suited to the fluid and pressure conditions
- Verify wall thickness meets minimum design tolerance after buildup
Internal clearance/wear ring issues:
- Machine or replace wear rings to restore OEM clearance
- Check the casing bore for out-of-round wear before reassembly
Step 4: Test and Validate the Repair
Reassemble and run the pump under normal and peak load conditions. Check results against the original pump curve:
- Flow and discharge pressure
- Vibration and temperature
- Leakage at joints and seals
Confirm stable performance over a monitored run with no drop from baseline.
For facilities without in-house capability for extensive casing work, this is typically where an outside specialist comes in. Houston Pump & Gear offers mobile field response, dedicated transport for pickup, and rapid turnaround for industrial and power plant clients dealing with critical repairs.

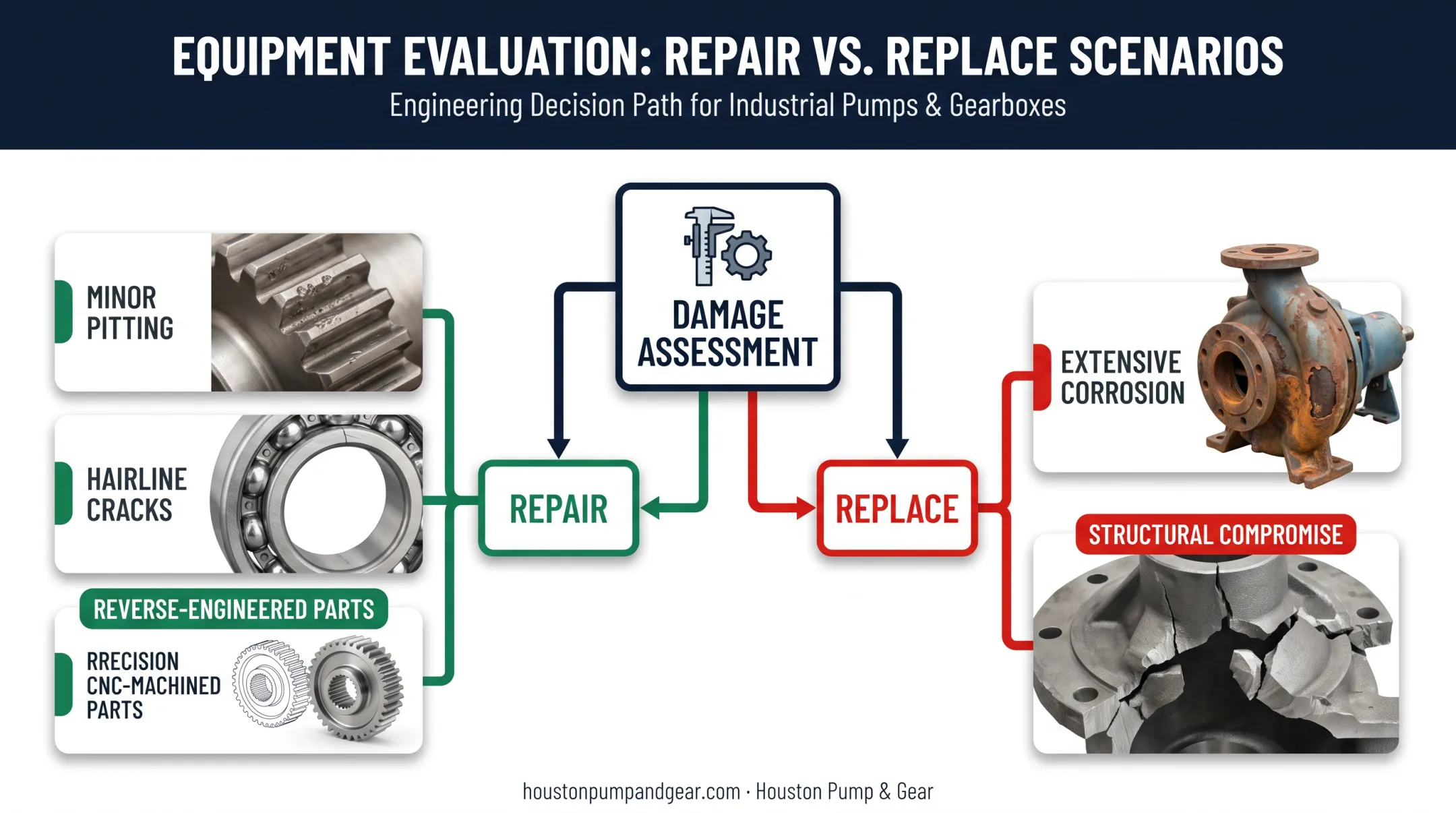

When Should You Fix vs. Replace a Pump Casing?
The call between repair and replacement hinges on damage severity, part availability, and how much downtime you can absorb.
| Scenario | Fix | Replace |
|---|---|---|
| Minor pitting or hairline crack, caught early | Epoxy or welding repair is usually cost-effective | Not needed unless damage recurs in the same spot |
| Extensive corrosion, wall thickness below minimum spec | Not viable once structural integrity is compromised | Required to avoid catastrophic failure under pressure |
| Obsolete/unavailable OEM part with critical failure | Custom machining or reverse engineering is usually the path | Only if a compatible unit fits your downtime window |
| Repeated failures at the same location | Address the underlying process cause, not just the symptom | Consider if the root cause can't be corrected in the current setup |
For that third scenario, reverse engineering is usually the practical path. Houston Pump & Gear recreates damaged or obsolete pump components from a sample, drawing, or spec—frequently faster and cheaper than sourcing a discontinued OEM part.
Common Mistakes to Avoid When Fixing a Pump Casing
A solid casing repair still fails when root causes, materials, or safety steps get skipped. Avoid these errors:
- Symptom-only patches: sealing a leak without diagnosing cavitation, corrosion, or misalignment underneath
- No curve check after repair: returning the pump to service without validating performance against the original pump curve
- Wrong repair materials: coatings or resins that don't match your fluid chemistry fail fast
- Skipped lockout/isolation: bypassing LOTO during teardown puts technicians at risk
Preventive Measures to Avoid Future Casing Issues
Preventive maintenance directly reduces both downtime and lifecycle cost. These practices help keep casings in service longer:
- Schedule regular thickness and visual inspections on critical pumps
- Monitor vibration, power draw, and suction conditions to catch cavitation and wear early
- Ensure proper installation, alignment, and pipe support to avoid loading stress on the casing
- Train operators and keep documented repair history for each unit
Continuous monitoring at set intervals, rather than waiting for a failure to prompt inspection, catches wear while it is still low-cost to correct.
Conclusion
Most pump casing issues are repairable, provided they're caught and diagnosed early. The real difference between a lasting repair and a repeat failure almost always comes down to root-cause diagnosis, not the repair method itself.
For power plants and heavy industry facing an emergency shutdown, that diagnosis needs to happen fast. Houston Pump & Gear's 24/7 emergency response and demonstrated rapid turnaround, including a 72-hour repair that restored a power plant from full shutdown, are built for those situations.
Frequently Asked Questions
Can a cracked pump casing be repaired?
Small to moderate cracks are often repairable through welding or epoxy composite methods. Extensive structural cracking that compromises wall integrity usually requires replacement instead.
How do I know if a pump casing is cracked?
Watch for visible leakage, unexplained pressure or flow loss, and unusual vibration or noise. Confirm with a visual inspection and wall-thickness testing before deciding on a repair method.
What is the purpose of a pump casing?
A pump casing houses the impeller, directs fluid flow, and converts kinetic energy into pressure. It also forms the pressure boundary that safely contains the system.
How long does a pump casing repair typically take?
Turnaround depends on damage extent and parts needs. Houston Pump & Gear offers 24/7 emergency pump repair with rapid pickup and has demonstrated 72-hour turnaround on critical industrial equipment restorations.
Is epoxy repair as durable as welding for pump casings?
Epoxy composite works well for moderate damage and cases where welding isn’t suitable for the base metal. Welding holds up better for structural, high-pressure applications where long-term strength matters most.
Can a damaged casing be repaired without permanently pulling the pump from service?
Mobile field response and rapid pickup/turnaround services minimize total downtime for critical operations. In many cases, technicians can diagnose on-site and coordinate transport for faster repair.
