Skip maintenance long enough and the risks stack up fast: seal failure, lobe damage, unplanned downtime, and in power plants or chemical facilities, real safety hazards from leaks or over-pressurization. This guide breaks down why maintenance matters, the different maintenance strategies available, warning signs to watch for, and a practical service schedule you can adapt to your pump's O&M manual.
Key Takeaways
- Rotary lobe pumps need less upkeep than many pump types, but seal, oil, and quench checks still matter
- Predictive maintenance cuts downtime far more than waiting for failures to force repairs
- Unscreened solids, dry running, and blocked discharge lines drive most premature wear
- Hours-based and calendar-based schedules together protect uptime better than either alone
Why Maintenance of Rotary Lobe Pumps Is Important
Facilities choose rotary lobe pumps for low-shear, consistent flow with sensitive or abrasive media. That advantage only holds if internal clearances and seals stay within spec. Once wear creeps in, the pump stops doing the job it was bought to do.
Performance and Lifespan Impact
Worn lobes, bearings, or seals increase slippage between the rotor tips and casing. That means:
- Reduced flow consistency and more pulsation
- Higher power draw to maintain output
- Gradual efficiency loss that's easy to miss without pressure monitoring
Manufacturer service intervals vary widely by model and duty:
- Waukesha Universal 3: gear oil every 750 operating hours
- Alfa Laval SX UltraPure: about 3,000 hours
- Boerger Classic AL: roughly 10,000 hours, or every two years
Your pump's manual should set the schedule—not a generic rule of thumb.
Safety and Cost Stakes
Neglected rotary lobe pumps don't just underperform. They can seize, over-pressurize, or leak process fluid—serious hazards in power plant and chemical environments where the wrong leak is more than a floor puddle.

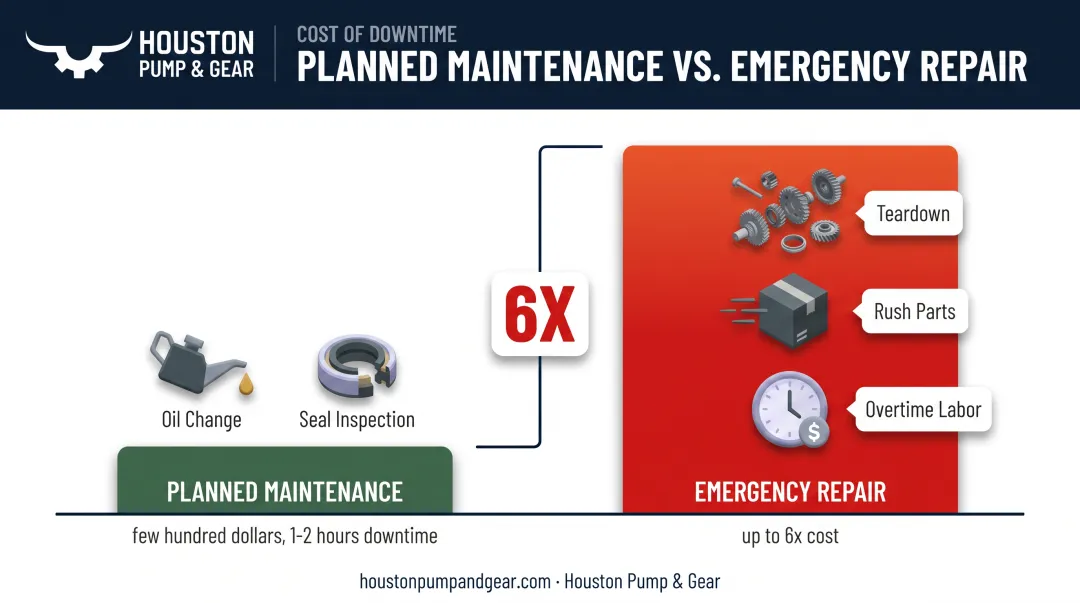

The financial case is just as blunt. Emergency pump repairs can cost up to six times more than planned maintenance, according to an analysis in Pumps & Systems. A scheduled oil change or seal inspection runs a few hundred dollars and an hour or two of downtime. An emergency teardown after a seizure adds lost production, rush parts, and overtime labor on top of the repair itself.

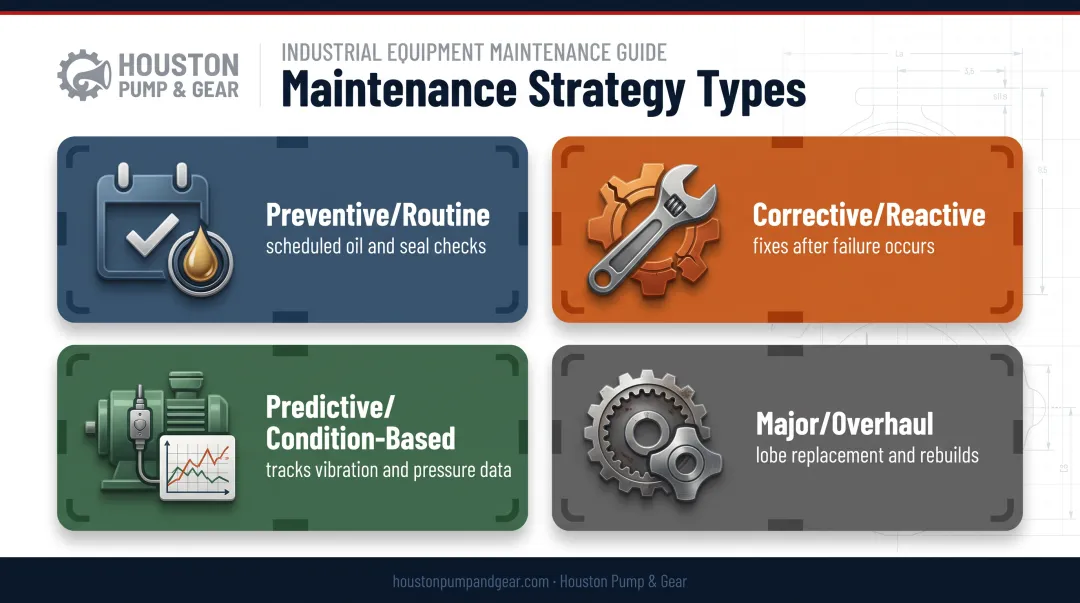

Types of Maintenance for Rotary Lobe Pumps
There's no single right way to maintain a rotary lobe pump. The best approach depends on the media, duty cycle, and how critical that pump is to your process. Most facilities end up using a blend of the strategies below.
Routine / Preventive Maintenance
This is scheduled, calendar- or hours-based work regardless of how the pump is running. Typical tasks include:
- Checking gearbox oil level and condition
- Inspecting the seal or quench/flush system
- Greasing bearings per the manufacturer's interval
- Checking belt tension on belt-driven units
Preventive maintenance alone works well for standard-duty applications running clean, non-abrasive media on a consistent schedule. Once solids, intermittent operation, or high criticality enter the picture, it needs backup.
Corrective / Reactive Maintenance
Reactive maintenance kicks in after something's already gone wrong: a sudden noise, a leak, or a drop in flow. Common triggers include unscreened solids getting into the pumping chamber, dry running, or seal failure from stop-start operation.
Leaning too hard on this approach is expensive. Beyond the repair itself, secondary damage often spreads to shafts, lobes, or the gearbox before anyone notices the original problem.
Predictive / Condition-Based Maintenance
Instead of fixed intervals, predictive maintenance tracks real operating data: pressure differential, vibration, noise, and oil condition. High-frequency vibration, current, and pressure sensors are particularly useful for flagging failure modes before they become breakdowns.
For high-criticality installations like power plants, this data-driven approach avoids two problems at once: over-servicing pumps that don't need it, and missing the ones that do.
Major / Overhaul Maintenance
Eventually, wear or a failure event outpaces what routine servicing can fix. That's when you're looking at lobe replacement, seal carrier rebuilds, or a full gearbox overhaul.
These jobs are complex. Not every in-house team has the machining capability or spare capacity to handle them under pressure, especially during an unplanned outage. Houston Pump & Gear provides 24/7 emergency response and mobile pickup for power plants and heavy industry clients across Texas and Louisiana when outside help is needed on an urgent overhaul.
How to Check If a Rotary Lobe Pump Needs Maintenance
Most catastrophic pump failures give warning signs first. Catching them early usually means the difference between a scheduled repair and an emergency one.
Unusual Noise or Vibration
Excessive noise or vibration often points to worn bearings, gear trouble, or rotors dragging against the casing. It can also signal cavitation from insufficient NPSHa (net positive suction head available).
Other causes worth ruling out:
- Product temperature or viscosity running higher than design spec
- Foreign objects or debris caught in the pumping chamber
- Operating speed set too high for the application
Pressure and Flow Irregularities
A drop in discharge pressure or a dip in flow rate can mean air ingress, worn gears or bearings, a blocked discharge line, or the pump running in bypass. These issues rarely announce themselves loudly at first. They show up as a slow drift from normal readings.
Installing suction and discharge pressure gauges gives you a baseline to measure against, so deviations get caught before they turn into a shutdown.
Visible Wear, Leakage, or Oil Issues
During routine inspection, look for:
- Oil leaking from the gearbox housing or a lower-than-expected oil level
- Seal or lip-seal leakage around the shaft
- Physical wear on the lobes, especially if abrasive solids have been getting past a screen
Mechanical seal leakage is frequently tied to incorrect gland adjustment, inadequate flush flow, or dry running. All are fixable if caught early.
Recurring Downtime or Temporary Fixes Not Holding
If you're re-tightening the same fitting every month or swapping seals more often than the manual suggests, your preventive intervals need tightening.
Shutdowns that keep recurring despite quick fixes usually point to an underlying issue that needs a full inspection, not another band-aid.

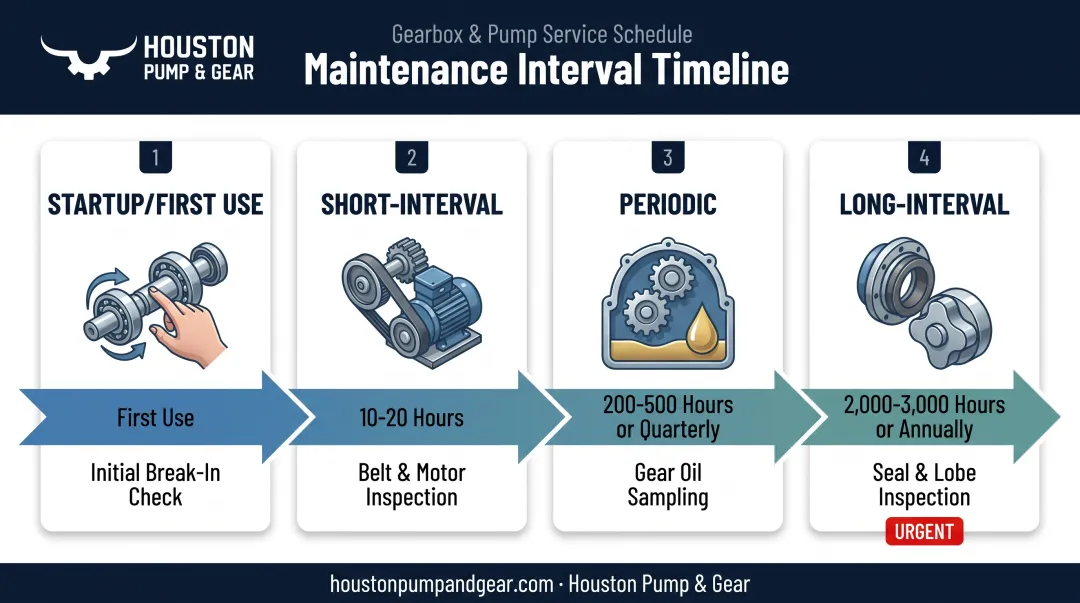

Rotary Lobe Pump Maintenance Schedule (General Guidelines)
Exact intervals vary by manufacturer, media, and duty cycle, so treat this as a framework to check against your pump's O&M manual, not a replacement for it.
| Interval | Typical Tasks |
|---|---|
| Startup / first use | Rotate the shaft by hand, grease fittings, confirm gearbox oil level before running |
| Short-interval (10–20 hours) | Verify belt tension (belt-driven units), tighten motor mounting screws, check quench/buffer fluid |
| Periodic (200–500 hours or quarterly) | Inspect quench/flush system pressure and flow, check gear oil condition |
| Long-interval (2,000–3,000 hours or annually) | Change gear oil, replace quench/buffer fluid, inspect seals and lobes, schedule full preventive service |
Some manufacturer manuals push this further out. Alfa Laval's SX UltraPure instruction manual specifies gear oil changes every 3,000 hours or two years, whichever comes first. Time-based limits matter as much as run hours.
A few adjustments worth making:
- Low-usage pumps still need calendar-based checks even if hour counts stay low; seals and oil degrade with time, not just cycles
- High-usage pumps in abrasive or high-solids service should shift toward the shorter end of each interval
- Idle pumps offline 30+ days need a rotate-and-grease startup check before return to service; static seals and bearings suffer from prolonged inactivity
Conclusion
Rotary lobe pump maintenance protects the pulsation-free performance, seal life, and process safety that make these pumps worth running. The units that last are the ones kept on a real schedule instead of patched up after a failure.
The strongest approach blends preventive routine with condition monitoring, plus a plan for when a major repair becomes unavoidable. When a rotary lobe pump or its drive gearbox needs urgent professional attention, Houston Pump & Gear's 24/7 emergency repair team is available across Texas and Louisiana to get equipment back online with minimal downtime.
Frequently Asked Questions
How do you perform lobe pump maintenance?
Core maintenance covers checking oil levels, inspecting seals and quench systems, and monitoring pressure and flow for deviations from normal. Follow the manufacturer's hour-based schedule for oil changes and seal servicing rather than a generic timeline.
Can you run a PD pump dry?
Generally, no. Positive displacement pumps, including rotary lobe pumps, rely on process fluid for lubrication and cooling. Running dry risks rapid seal and lobe damage, sometimes within seconds depending on the seal and rotor material.
How often should you change the oil in a rotary lobe pump?
Intervals vary significantly by model, from 750 hours on some units to 3,000+ hours or two years on others. Always confirm the interval in your pump's manufacturer manual.
What causes premature wear in rotary lobe pumps?
The usual culprits are unscreened or unexpected solids, poor grit removal, seal issues from inconsistent operation, and over-pressurization from a blocked discharge line. Misalignment and insufficient gearcase lubrication also contribute.
How long do rotary lobe pumps typically last?
Lifespan depends heavily on duty cycle, media, and how consistently maintenance is followed. Pumps on a steady preventive and condition-based schedule routinely outlast neglected units by years.
Should a worn rotary lobe pump be repaired or replaced?
Most wear issues (lobes, seals, bearings, gearbox components) can be repaired cost-effectively. A qualified industrial pump shop can often restore a critical unit faster than sourcing and installing a replacement.
