Booster pumps take on this pressure job around the clock. Over time, wear, electrical faults, poor installation, and skipped maintenance catch up with them. The good news? Most problems follow predictable patterns and respond to the right fix.
This guide walks through common booster pump problems, a step-by-step troubleshooting process, how to decide between repair and replacement, and when it's time to bring in a professional.
TL;DR
- Most common issues: low/inconsistent pressure, no-start, noise, overheating, and leaks
- Repair vs. replace: fix isolated faults on newer pumps; replace older units with recurring failures
- Diagnosis first: identify the problem, confirm root cause, fix it, then test under real load
- Call a specialist for electrical faults, motor issues, or industrial equipment when downtime is costly

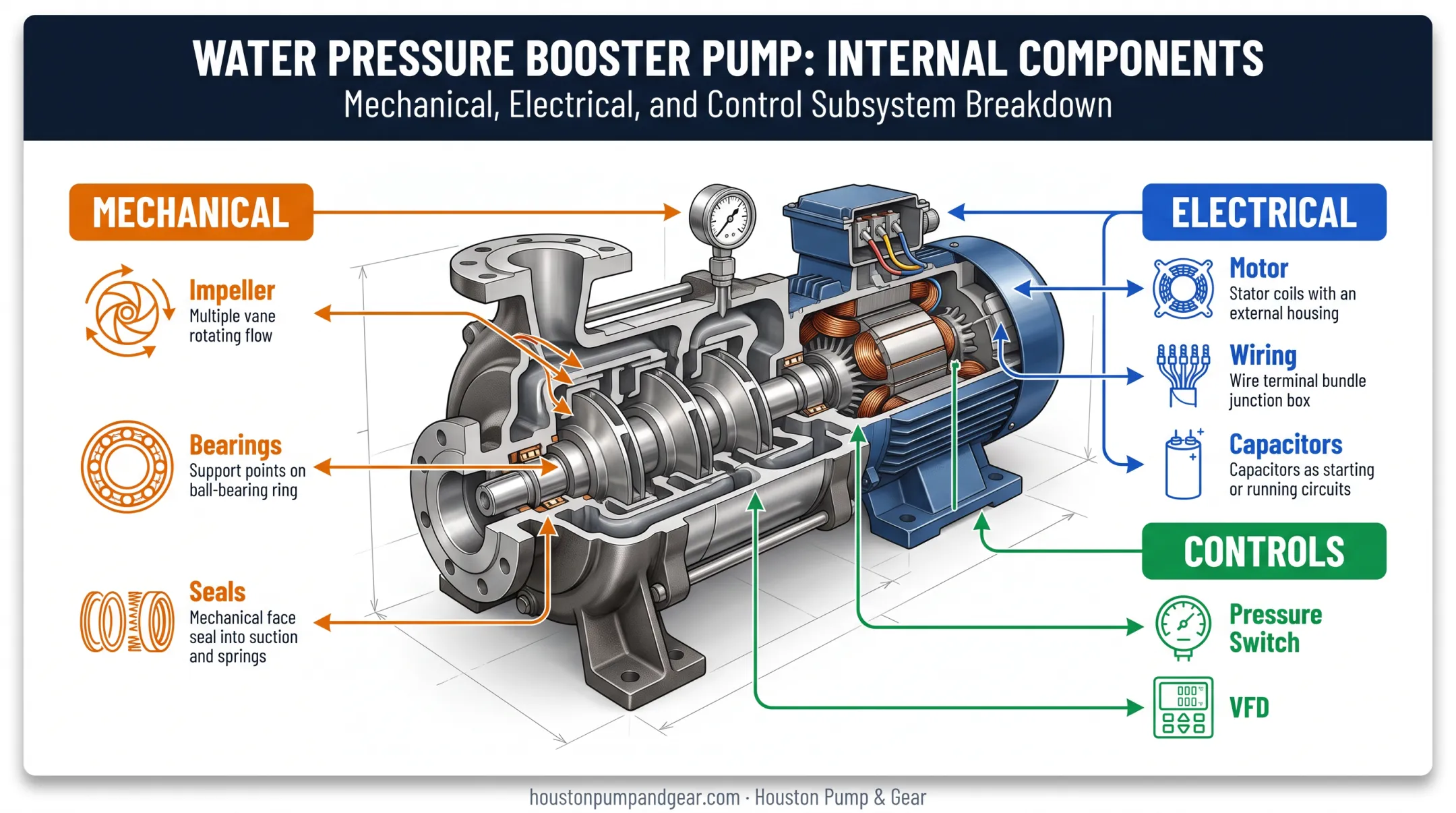

What Is a Water Pressure Booster Pump?
A water pressure booster pump is a mechanical system that increases water pressure or flow when the existing supply can't meet demand. Industrial plants, multi-story facilities, and process lines rely on them when consistent pressure is non-negotiable. In operation, the pump draws water in and a motor-driven impeller spins to raise pressure before sending it back into the distribution system. Liquid moves through the impeller vanes and out through the casing diffuser, gaining energy along the way. Booster pumps are working systems with parts that wear under load. The main wear groups are:
- Mechanical: impellers, bearings, and seals
- Electrical: motors, wiring, and capacitors
- Controls: pressure switches and VFDs Left unchecked, that wear becomes the failures covered next.
Common Problems With Water Pressure Booster Pumps
Most booster pump failures fall into five recognizable categories. Catching the pattern early cuts downtime and repair cost.
Low or Inconsistent Water Pressure
Symptoms: Weak flow at outlets, noticeable pressure drops during peak demand.
Likely causes:
- Worn impellers that can no longer move water efficiently
- Air leaks in suction lines
- Blocked pipes restricting flow
- A faulty pressure switch failing to trigger properly
Pump Not Starting or Suddenly Stopping
Symptoms: No response when the system calls for water, and no flow at discharge points.
Likely causes:
- Power supply failure or tripped breaker
- Airlock or lost prime
- Faulty pressure switch not sending the start signal
Noisy Operation or Vibration
Symptoms: Grinding, rattling, humming, or knocking sounds during operation.
Cavitation is a frequent culprit. When pressure at the impeller eye drops below the water's vapor pressure, vapor bubbles form and then collapse in higher-pressure zones. That collapse erodes the impeller over time, according to Hydraulic Institute research on NPSH and pump operating regions.
Other common causes:
- Loose mounting hardware
- Worn bearings
- Trapped air in the system
Overheating or Frequent Shutdowns
Symptoms: Hot pump casing, thermal trip-outs, motor cutting out mid-cycle.
Likely causes:
- Prolonged operation without adequate rest cycles
- Poor ventilation around the unit
- Bearing friction
- Electrical overload

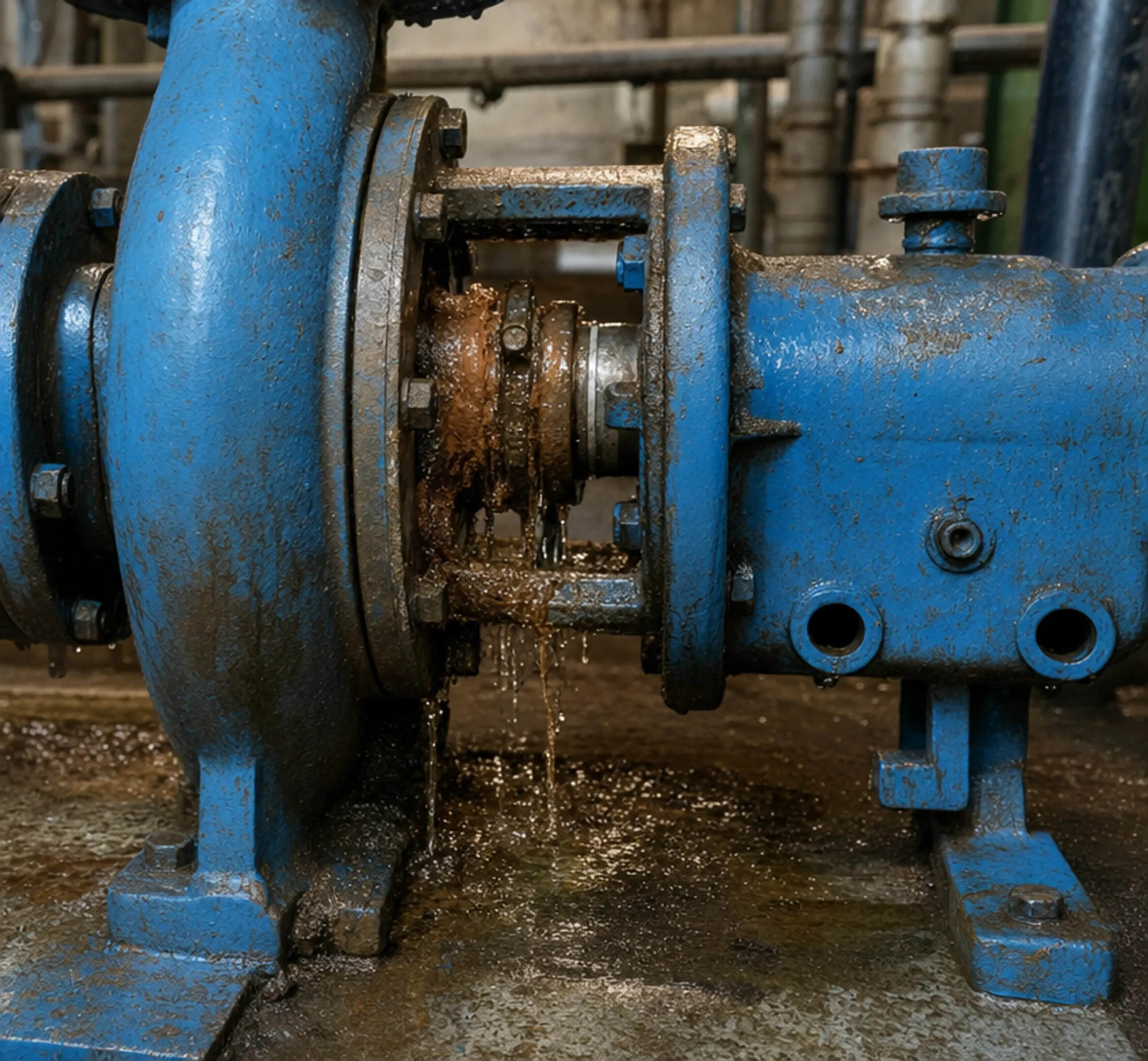

Leaks Around Pump or Fittings
Symptoms: Visible pooling, dripping, or a gradual drop in system pressure.
Likely causes:
- Worn seals or gaskets
- Loose fittings
- Cracked casing
Houston Pump & Gear technicians treat leakage, pressure loss, overheating, vibration, and contamination near the seal area as classic signs of mechanical seal failure.
Why Booster Pumps Fail (Root Causes)
Failures rarely come out of nowhere. They trace back to a handful of real-world conditions:
- Operational stress: continuous or overloaded running pushes components past their design limits
- Environmental exposure: humidity, corrosion, and temperature swings accelerate wear
- Improper installation: misalignment or incorrect sizing creates chronic stress points
- Skipped maintenance: small issues compound into major failures
Coupling misalignment is worth calling out on its own. Overloading ranks among the top failure drivers. Run a coupling out of alignment even briefly, and the damage can spread across the pump and motor in ways that cost far more to reverse than to prevent.
Ignoring these root causes has consequences:
- Reduced efficiency and climbing energy bills
- Water quality or supply reliability problems
- Safety risks from electrical faults
- Costly downtime for industrial operations that need uninterrupted water flow
One manufacturing client working with Houston Pump & Gear cut unplanned pump services by 40% through regular maintenance. Repair costs dropped 25%, and energy consumption fell 15%. That's the payoff for catching root causes early instead of reacting to symptoms.

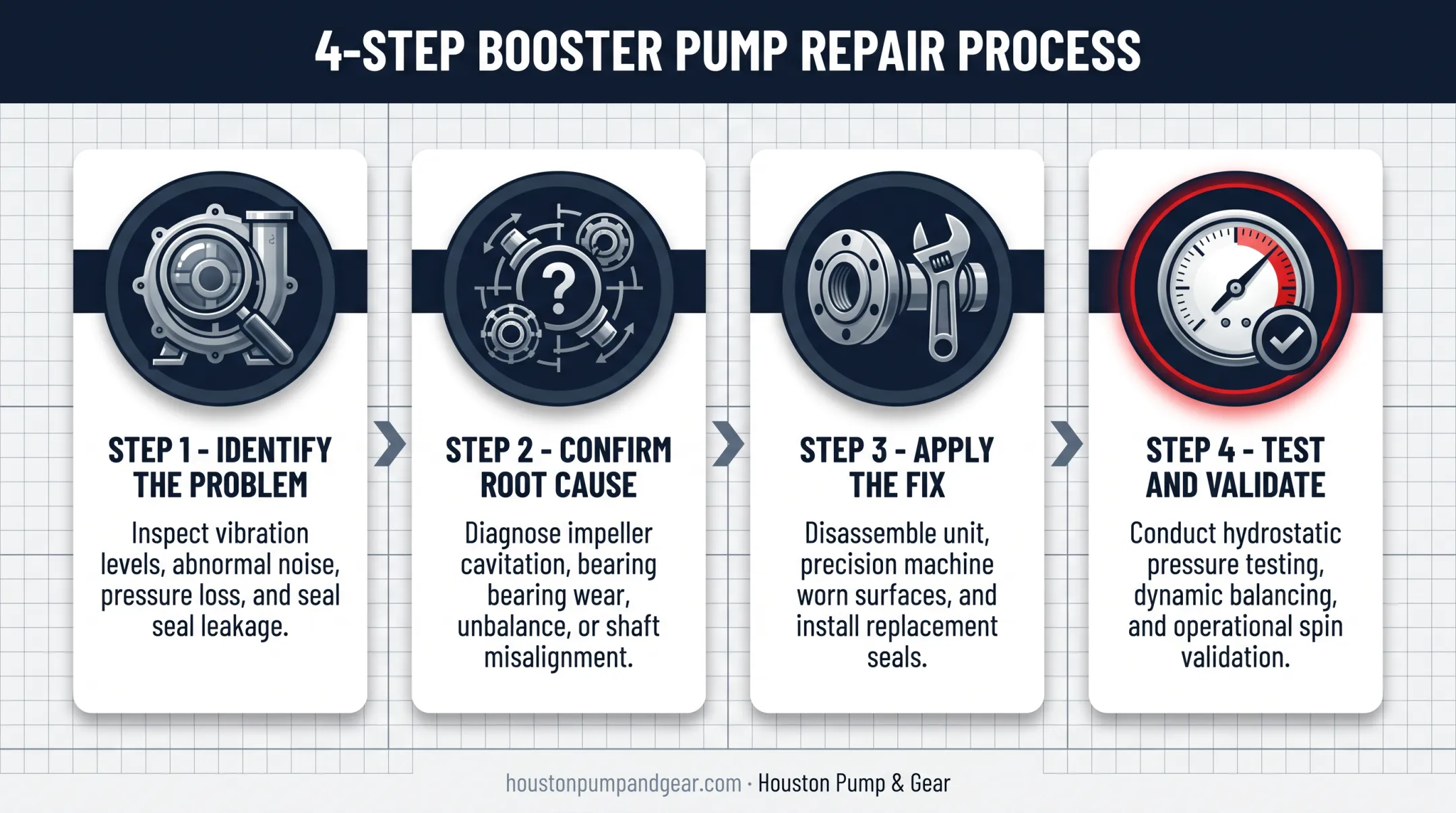

How to Fix a Water Pressure Booster Pump (Step-by-Step)
Skipping diagnosis and jumping straight to repairs wastes parts and invites repeat failures. This structured process identifies the issue, isolates the cause, applies the correct fix, and confirms it sticks.
Step 1: Identify the Exact Problem
Observe the symptoms carefully:
- Is it leaking, noisy, vibrating, overheating, or losing pressure?
- Does the issue happen at startup, under load, or continuously?
- Check circuit breakers, pressure gauges, and any control panel alarms
Step 2: Confirm the Root Cause Category
Determine whether you're dealing with a mechanical, electrical, or environmental/operational issue. Rule out external factors like a supply interruption or voltage irregularity first. Doing so prevents unnecessary part swaps and repeat failures.
Step 3: Fix Based on the Identified Problem
If mechanical: Worn impellers, bad bearings, and misalignment are common culprits.
- Clean or replace the impeller
- Lubricate or replace bearings, and realign the pump-motor coupling
- Check seals and gaskets before reassembly
- Replace bearings, seals, or couplings if you find metal shavings If electrical: Tripped breakers, faulty capacitors, and worn wiring are frequent causes.
- Test the motor with a multimeter
- Inspect wiring and pressure switch contacts
- Reset or recalibrate the control panel after repairs If control or configuration related: Watch for pressure switch miscalibration or VFD settings that have drifted.
- Document the original settings before you change anything
- Reset or reprogram the controller to match building height and demand If environmental or operational: Poor ventilation, corrosion, and sediment buildup in filters cause many failures.
- Clean filters, improve ventilation, and flush suction lines
- For longer-term reliability, use corrosion-resistant components or relocate the enclosure
Step 4: Test and Validate the Fix
Run the pump under normal and peak demand conditions. Monitor pressure output, noise, and vibration. A practical validation pass:
- Let the pump run for a couple of hours after repair
- Measure vibration and temperature at multiple points with a vibration meter and infrared thermometer
- Confirm performance matches manufacturer specifications
- Watch for recurrence over the following days to weeks If seals, bearings, shafts, or hydraulic components still fail validation—or the pump needs a full industrial overhaul—specialist pump repair support can restore the unit to spec and limit downtime.
When Should You Fix vs. Replace a Booster Pump?
Age, repair frequency, parts cost, and downtime risk drive the fix-versus-replace call. Use the scenarios below to decide before a minor fault turns into an unplanned outage.
| Scenario | Fix | Replace |
|---|---|---|
| Under 5 years old, isolated fault | Repair the failed component (seal, bearing, switch, or control) | Only if damage is severe or parts cannot be sourced |
| 8–10+ years old, recurring breakdowns | Temporary repair only if a replacement unit is not yet available | Replace—repair cost usually exceeds remaining service life |
| Rising energy use at normal demand | Clear strainers, correct suction issues, or fix worn internals | Replace with a higher-efficiency or VFD-equipped unit |
| Visible corrosion on an industrial pump | Viable only on non-structural areas | Required when corrosion hits casing integrity or safety compliance |
On corroded units, inspect the casing for cracks or wall loss that could compromise integrity before you decide. In power plant and heavy industry settings, downtime is expensive—once corrosion reaches structural areas, replacement is usually the safer call.
Common Mistakes to Avoid When Fixing a Booster Pump
Most repeat booster pump failures come from rushed fixes, not hard-to-solve defects. Avoid these common mistakes:
- Treating symptoms instead of causes. Tightening a leaking fitting without checking why it loosened only delays the next failure.
- Skipping post-repair testing under real load. A pump that runs fine at idle can still fail once it returns to peak demand.
- Using incompatible or off-spec parts. Replacements should match original specifications or be reverse-engineered to the same tolerances. A rough fit is not a repair.

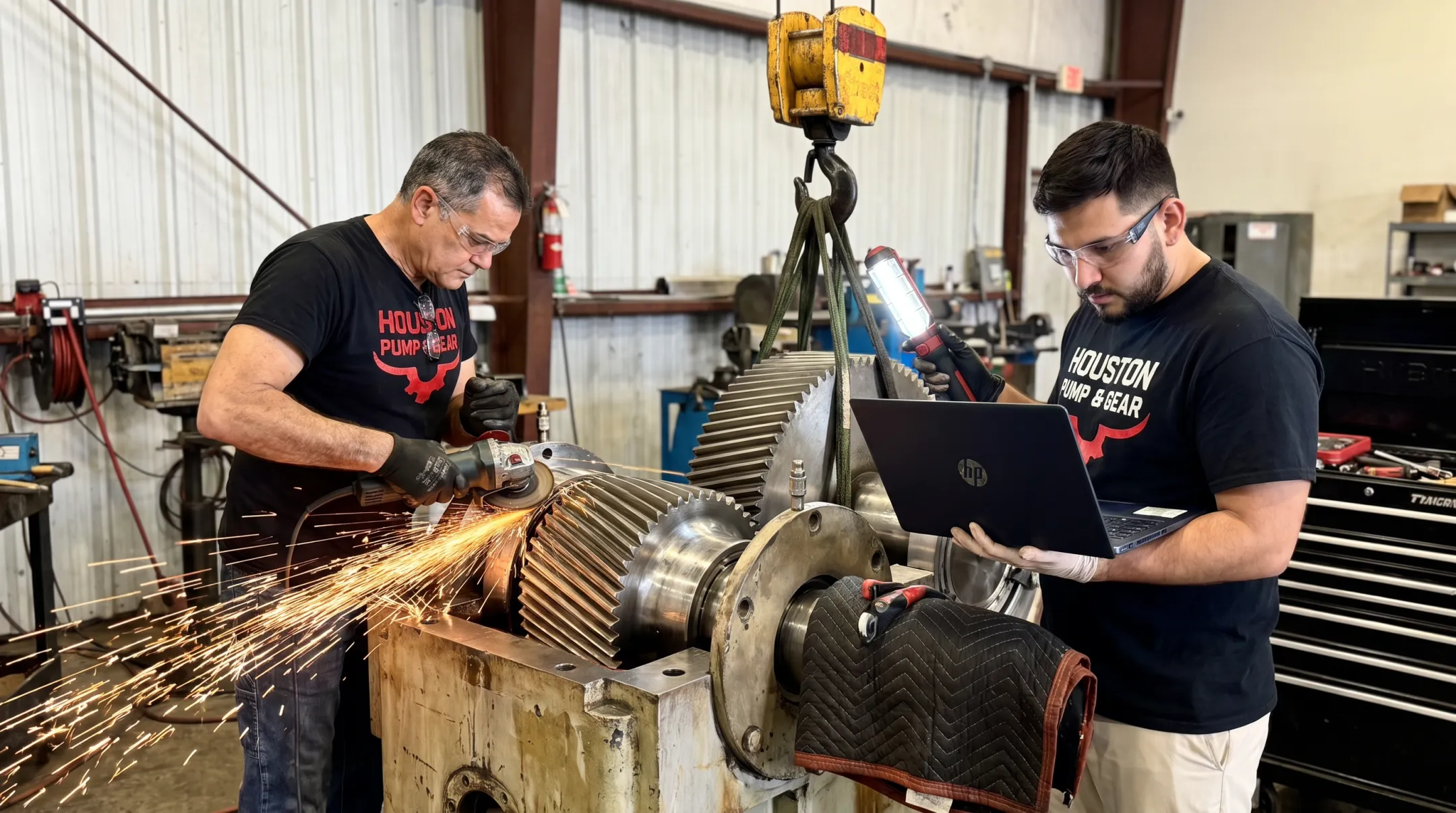

When to Call a Professional (and How Houston Pump & Gear Can Help)
Basic troubleshooting covers a lot of ground. Persistent pressure loss, failed seals, unusual vibration, and industrial-grade pump or gearbox problems still need specialized expertise. Facilities that depend on continuous water pressure—power plants, refineries, heavy manufacturing—can't afford extended downtime from trial-and-error repairs. Houston Pump & Gear provides 24/7 emergency industrial pump and gearbox repair, with mobile field response and dedicated transport for pickup across Texas and Louisiana. Their track record includes a documented case: a Lufkin S2212C gearbox failure at a power plant, resolved and returned to service within 72 hours. That speed matters when every hour of downtime costs production. Emergency services cover:
- Failed mechanical seals and gasket repair
- Complete pump overhauls with OEM or equivalent components
- Gearbox repair, reverse engineering, and exchange units
- Same-day pickup response for industrial operations A diagnosis and inspection is available before any repair commitment.
Preventive Measures to Avoid Future Issues
Prevention costs far less than emergency repair. Build these habits into your operating routine:
- Schedule regular inspections of seals, bearings, and pressure switches
- Follow manufacturer-recommended maintenance intervals (many industrial pumps need checks every 8 operating hours and full service around every 250 hours)
- Maintain proper ventilation and stable operating conditions around the pump
- Keep clear maintenance documentation for each unit
- Train staff to flag early warning signs such as unusual noise or rising temperature
Preventive maintenance is what separates a scheduled seal replacement from an emergency shutdown at 2 a.m.
Conclusion
Most booster pump issues are fixable when you diagnose them correctly and early. Root-cause diagnosis, not guesswork, is what prevents repeat failures and wasted repair costs.
For industrial and critical facilities, a trusted rapid-response partner on call limits downtime when a pump fails unexpectedly. Houston Pump & Gear provides 24/7 emergency industrial pump repair for operations across Texas and Louisiana.
Frequently Asked Questions
What is the typical lifespan of a water booster pump?
Lifespan varies widely by application and maintenance quality. Industrial pumping systems can run 15-20 years with proper care, though heavy use or neglect shortens that significantly.
How much does it cost to replace a water booster pump?
Costs depend on pump size, configuration, and whether repair or full replacement is required. For industrial units, request a quote based on inspection of your specific equipment.
Can a noisy booster pump still be repaired instead of replaced?
Often, yes. Noise from cavitation or loose parts is typically repairable. Persistent grinding after bearing replacement, though, may point to deeper motor damage.
Why does my booster pump keep tripping the circuit breaker?
This usually points to an electrical short or a worn capacitor. Both are fixable, but confirming the exact cause requires professional inspection.
How often should a booster pump be inspected?
Visual checks monthly are a solid baseline, with full professional servicing at least once a year. Industrial systems under heavy use often need more frequent attention.
When should I call a professional instead of troubleshooting myself?
Electrical faults, leaks that persist despite repairs, or failures in industrial-grade equipment all warrant expert diagnosis. Attempting these fixes alone risks safety hazards and prolonged downtime.
