Regular gearbox testing catches wear, misalignment, and lubrication breakdown long before they turn into a shutdown. This guide walks through the testing methods, the parameters technicians actually watch, and the standards that govern industrial gear units. We'll also cover when in-house checks aren't enough, and why calling a specialized partner like Houston Pump & Gear makes sense.
Key Takeaways
- Unplanned gearbox failure can trigger cascading damage across connected drivetrain equipment
- Vibration, oil analysis, thermal imaging, and load testing each catch different failure modes
- Lubrication problems, contamination, and misalignment cause most gearbox breakdowns
- Post-repair testing against ISO and AGMA benchmarks is non-negotiable before return to service
- 24/7 emergency response can mean the difference between hours and weeks of downtime
Why Gearbox Testing Matters
A gearbox sits at the center of a drivetrain, connecting motors, pumps, conveyors, and generators. When it fails, the damage rarely stays contained:
- Bearing failure can shock-load a connected motor shaft
- A cracked tooth can send metal debris downstream into a pump seal
- One failure point quickly becomes three repair jobs
A 2002 Power Engineering case on a coal-fired power plant illustrates the stakes: repairing a ball-mill reducer's gearing and bearings cost $100,000 and took up to 20 weeks. A full gas-turbine replacement would have cost twice as much and taken 30 weeks to deliver and install (Power Engineering).
After that refurbishment, gear temperature dropped from a 155-182°F range down to 144-155°F, and vibration fell by half.
Testing turns an invisible problem into a measurable one. Houston Pump & Gear has seen this play out repeatedly across power generation, mining, and chemical clients — catching wear and stress points early enough to avoid the catastrophic version of the repair bill.
Types of Gearbox Testing Methods

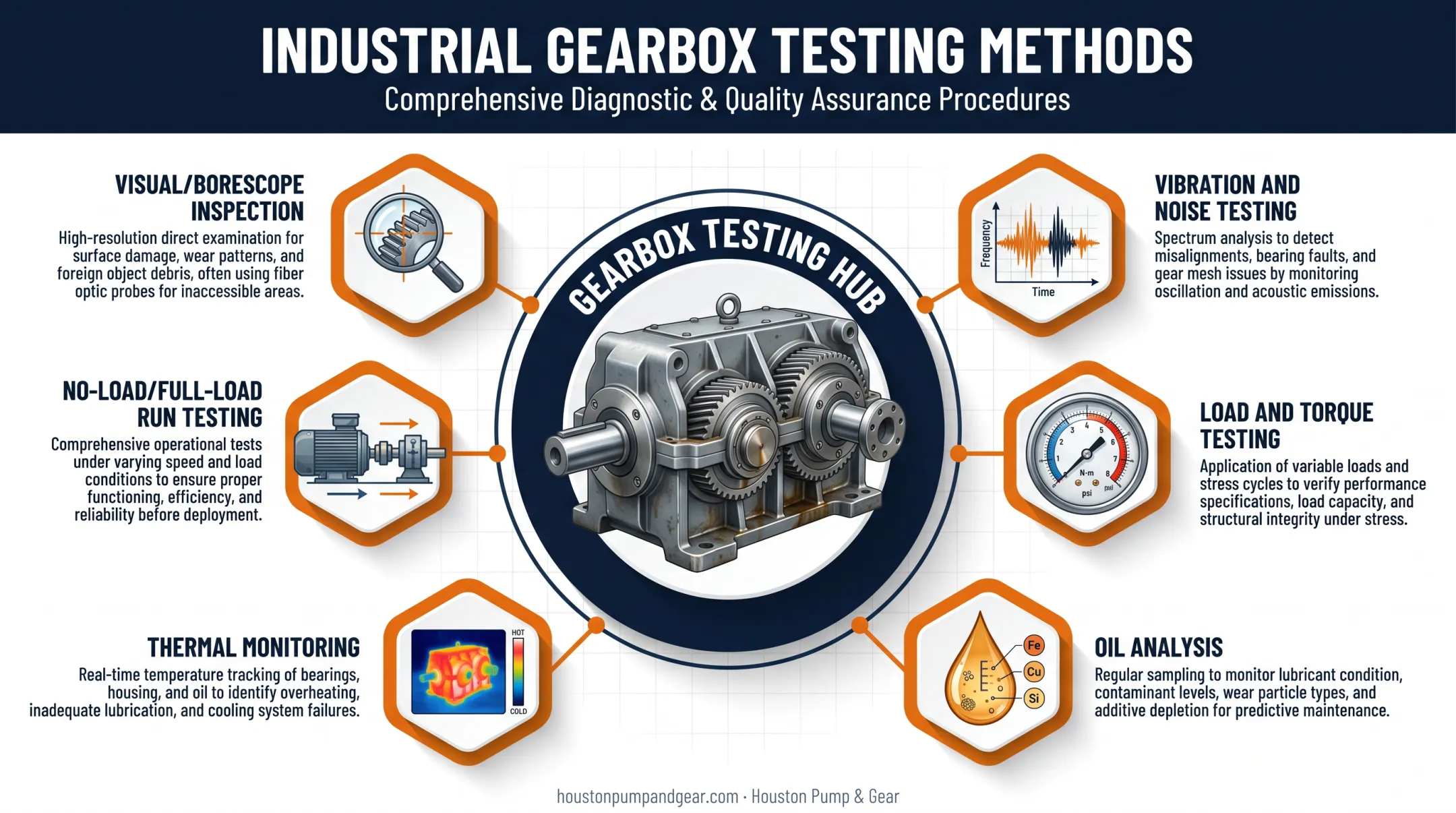

No single test tells the whole story. A solid testing program layers several methods together.
Visual and Borescope Inspection
Technicians start with a walkaround: checking for leaks, loose mounts, and discolored oil. Inspection ports allow a closer look without full teardown.
Borescopes go further. Flexible video endoscopes with tips as small as 5.8 mm can reach inside the housing to check gear teeth, bearing races, and pitting without a full teardown (SKF).
Vibration and Noise Testing
Vibration analysis picks up misalignment, bearing wear, and imbalance before they become audible or visible. ISO 20816-9 covers vibration measurement for enclosed gear units from 10 kW to 100 MW, at speeds from 30 to 12,000 RPM. Measurements are taken at bearing housings, shafts, and the gear casing itself.
Load and Torque Testing
- Static backlash testing measures tooth clearance at rest
- Dynamic backlash testing checks clearance under rotation
- Torque-to-turn testing confirms the assembly rotates smoothly against a set threshold before load is applied
Oil Analysis and Lubrication Testing
Oil tells you what's happening inside the gearbox long before a bearing seizes. Key methods include:
- Particle counting for cleanliness and abnormal wear
- Spectrometric analysis to identify contaminants such as silicon or aluminum
- Ferrography (direct-reading and analytical) to measure ferrous debris and identify wear modes under a microscope
Thermal and Temperature Monitoring
Infrared imaging spots abnormal heat patterns across the housing. RTD probes track bearing and oil temperature continuously. Thermography works best as a screening tool — comparing patterns against baseline readings rather than chasing one absolute number.
No-Load and Full-Load Run Testing
Before a repaired gearbox goes back into service, it runs on a test stand. API 613 requires a minimum four-hour, no-load, at-speed mechanical run for special-purpose gear units. Optional tests add full-load or full-torque conditions to simulate real operating stress. At Houston Pump & Gear, every gearbox that leaves the shop is run under full industrial load before it is cleared for return to service.
Key Parameters Monitored During Testing
Testing generates a lot of data. The parameters that matter most:

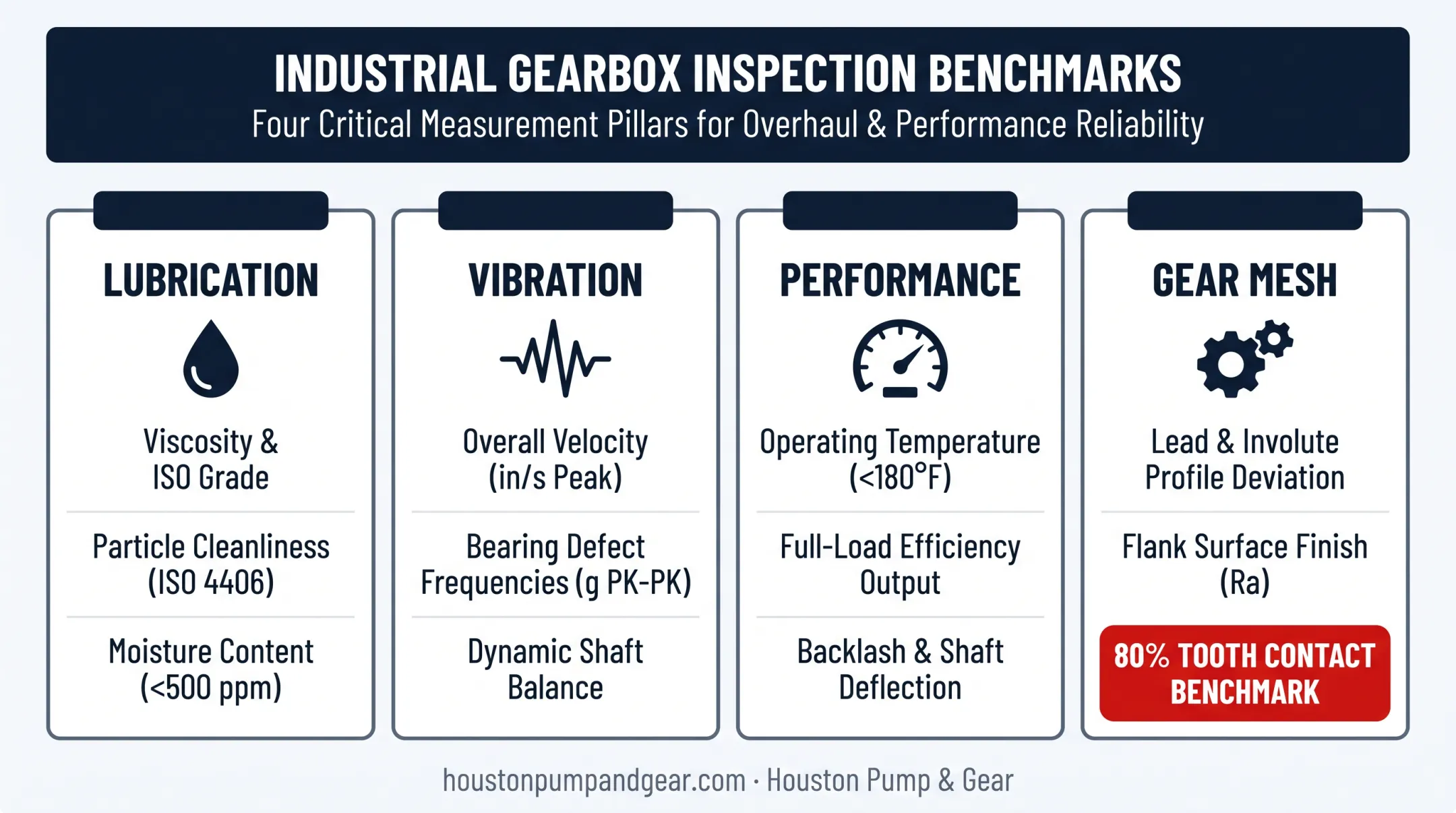

| Category | What's Measured |
|---|---|
| Lubrication | Oil inlet/outlet temperature, bearing temperature, oil flow and pressure |
| Vibration | Amplitude and frequency at bearing housings and gear casing; flange run-out |
| Performance | Input speed, power loss, run-down time |
| Gear mesh | Tooth contact pattern under loaded and no-load conditions |
Under API 613, unmodified gear teeth generally show a minimum 80% contact across tooth length during stand testing. Anything less flags a mesh alignment problem that won't show up until the gearbox is under real load.
Those mesh checks sit alongside the other pass/fail data. Houston Pump & Gear evaluates vibration and bearing temperature against ISO standards on every reassembled unit before it goes back to the customer.
Common Causes of Gearbox Failure and Warning Signs

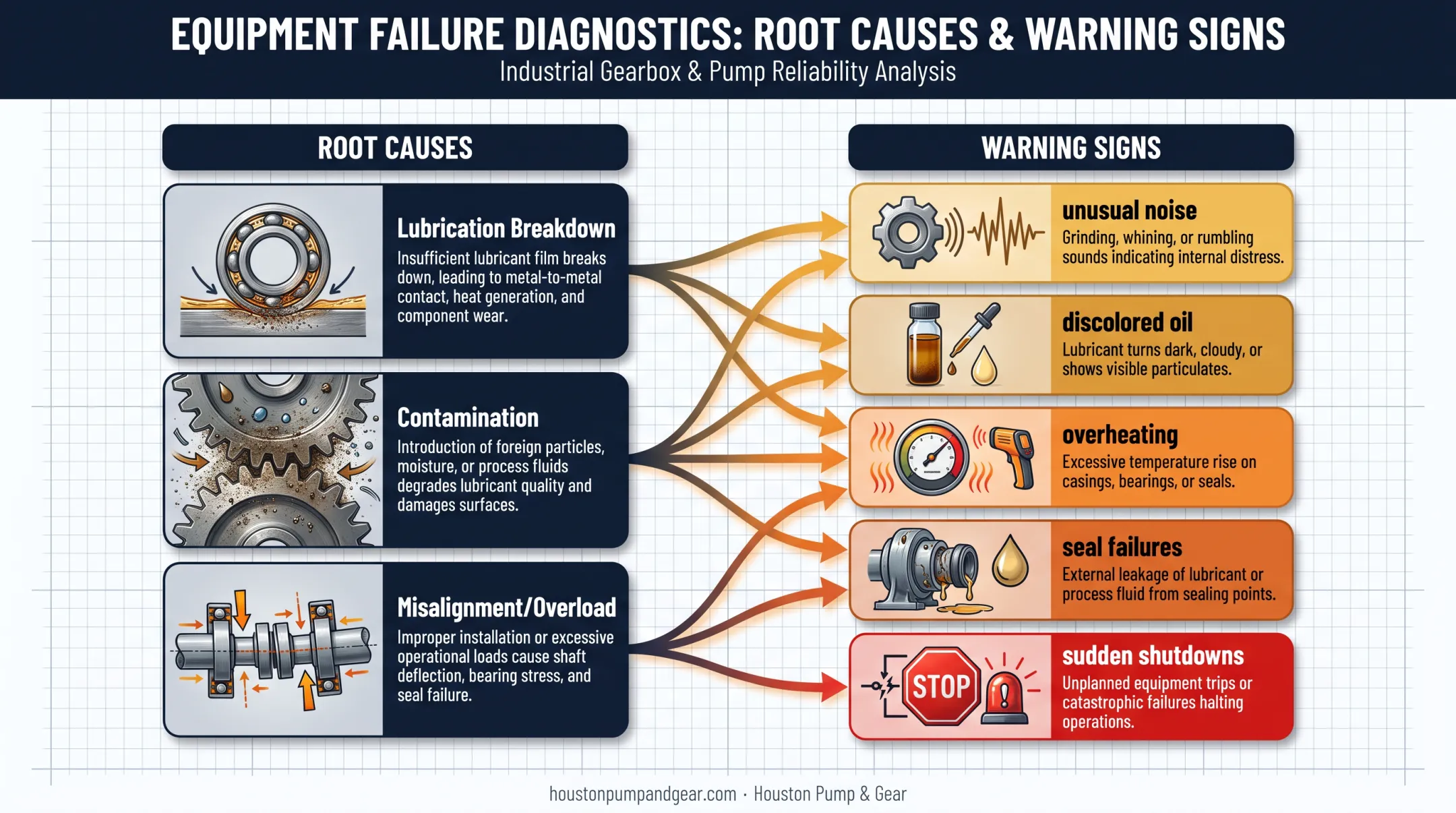

What actually kills a gearbox? The most common culprits fall into three buckets: lubrication failure, contamination, and misalignment or overload.
- Lubrication breakdown: wrong oil type, incorrect viscosity, low fluid level, or oxidized oil that's lost its film strength
- Contamination: dirt, water, or metal particles entering through damaged seals or poor breathers
- Misalignment and overload: soft foot, foundation movement, worn couplings, bent shafts, or process changes that push the unit past its rated capacity
Watch for these warning signs:
- Unusual noise or increased vibration
- Discolored or leaking oil
- Overheating at bearings or housing
- Repeated seal failures
- Sudden performance drop or unexpected shutdown
Houston Pump & Gear's technicians treat these signs as diagnostic starting points. Catching discolored oil early, for example, often points to seal failure or internal wear well before a bearing seizes. A routine testing and inspection schedule almost always prevents emergency shutdowns.
Gearbox Testing Standards and When to Test
Industrial gearbox testing follows established frameworks, not guesswork. Three standards show up most often in real shop and field work:
- AGMA standards cover vibration measurement, backlash, and lubrication classification
- ISO 20816-9 sets vibration acceptance grades for gear units
- ISO 9001 governs the quality management process behind repair and testing, without setting numeric mechanical limits
Test at these trigger points:
- After installation: Establish a baseline before the unit runs a single production cycle
- Following any repair or rebuild: Confirm the work actually fixed the problem
- During scheduled preventive maintenance: Catch wear trending in the wrong direction
- Immediately after abnormal symptoms: Investigate unusual noise, vibration spikes, or temperature swings
Post-repair testing is where corners get cut, and it's the one place they shouldn't be. A rebuilt gearbox that hasn't been run under load and checked against vibration and temperature benchmarks is a gamble. Houston Pump & Gear runs every repaired unit through vibration, bearing temperature, and load verification against ISO standards before it leaves the shop.
Why Partner With an Experienced Gearbox Repair Team

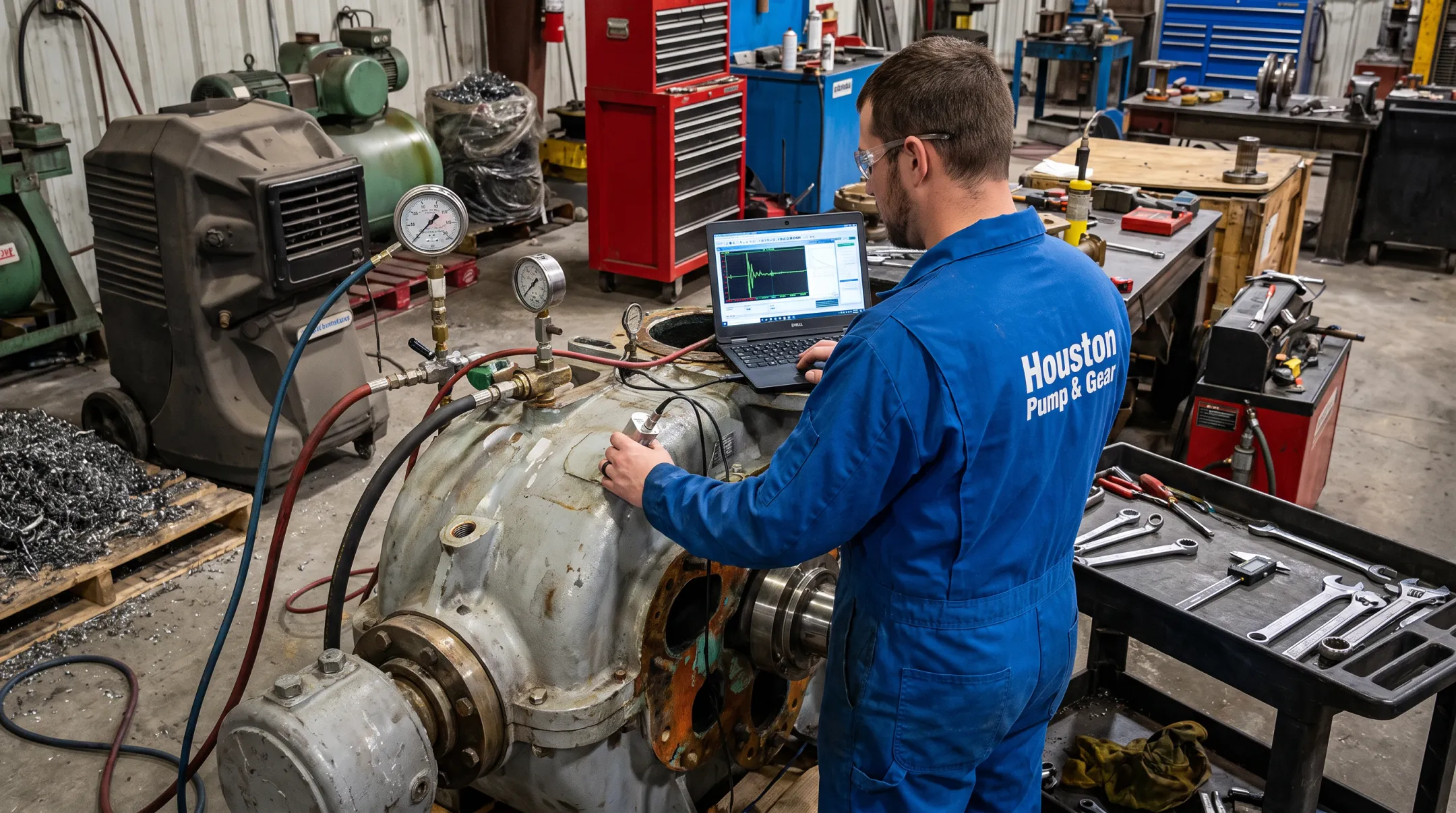

In-house testing has real limits. A maintenance team can run a vibration check or pull an oil sample. Diagnosing a large, complex industrial gearbox, such as a Lufkin S2212C, under full load takes specialized equipment and years of hands-on experience. That work includes X-ray and Magnaflux testing on gears and shafts to decide whether they can be reused. Houston Pump & Gear built its reputation on exactly that kind of work. When a power plant's Lufkin S2212C went down in an emergency shutdown, the company sent a truck for same-day pickup and had the unit back in service within 72 hours. That turnaround comes from 20+ years servicing gearboxes across power generation, mining, cement, paper, and chemical plants throughout Texas and Louisiana, with 24/7 emergency availability. An experienced partner brings more than fast logistics:
- Full-load testing beyond basic vibration checks and oil samples
- NDT methods (X-ray, Magnaflux) to confirm gear and shaft reusability
- Same-day pickup and 24/7 emergency response when a unit fails
- Proven turnaround on complex models like the Lufkin S2212C A gearbox returned without proper post-repair testing risks another failure. That second outage usually costs more in downtime than doing the job right the first time.
Frequently Asked Questions
What is the most common cause of gearbox failure?
Lubrication breakdown, contamination, and misalignment account for the majority of gearbox failures. Routine testing (oil analysis, vibration monitoring, and thermal checks) catches these issues while they're still cheap to fix.
How often should an industrial gearbox be tested?
Follow a scheduled preventive maintenance interval based on the OEM manual and operating conditions, plus mandatory testing after any repair, rebuild, or abnormal symptom. Don't wait for a scheduled check if something sounds or feels wrong.
What's the difference between no-load and load testing?
No-load testing runs the gearbox at speed without transmitted load, checking basic mechanical function. Load testing applies real operating stress to check tooth contact, temperature rise, and performance under actual working conditions.
Can a gearbox be tested without shutting down production?
Some monitoring, including vibration trending, thermal imaging, and oil sampling, can happen while the gearbox operates. Full internal inspections, backlash checks, and tooth-contact evaluation require a shutdown and physical access.
How long does emergency gearbox testing and repair typically take?
Turnaround depends on damage and unit size. Houston Pump & Gear restored a power plant's Lufkin S2212C gearbox to service within 72 hours of an emergency shutdown.
What equipment is used to test a gearbox?
Common tools include borescopes, dial indicators, vibration meters, infrared thermometers or imagers, and oil analysis kits for particle counting and spectrometric testing. Complex repairs may also use X-ray or Magnaflux testing on gears and shafts.
