But wear, cavitation, poor installation, and skipped maintenance eventually catch up with every unit. This guide walks through the most common failures, a step-by-step troubleshooting process, fix-vs-replace decisions, and when it's time to bring in a professional repair team.
TL;DR
- Common failures: priming issues, pressure loss, leaks, vibration, and diaphragm rupture
- Most problems are fixable with OEM parts once you confirm the root cause
- Process: diagnose the symptom, isolate the root cause, repair the right component, then test under load
- Call a professional when failures repeat, electrical or pneumatic faults are involved, or downtime is too costly to troubleshoot in-house
What Is a Diaphragm Pump?
A diaphragm pump is a positive-displacement pump that uses a flexible diaphragm to move fluid through check valves. Positive-displacement pumps trap a fixed volume of liquid and force it through the system cyclically. The diaphragm is one of the most common mechanical drivers for that displacement.

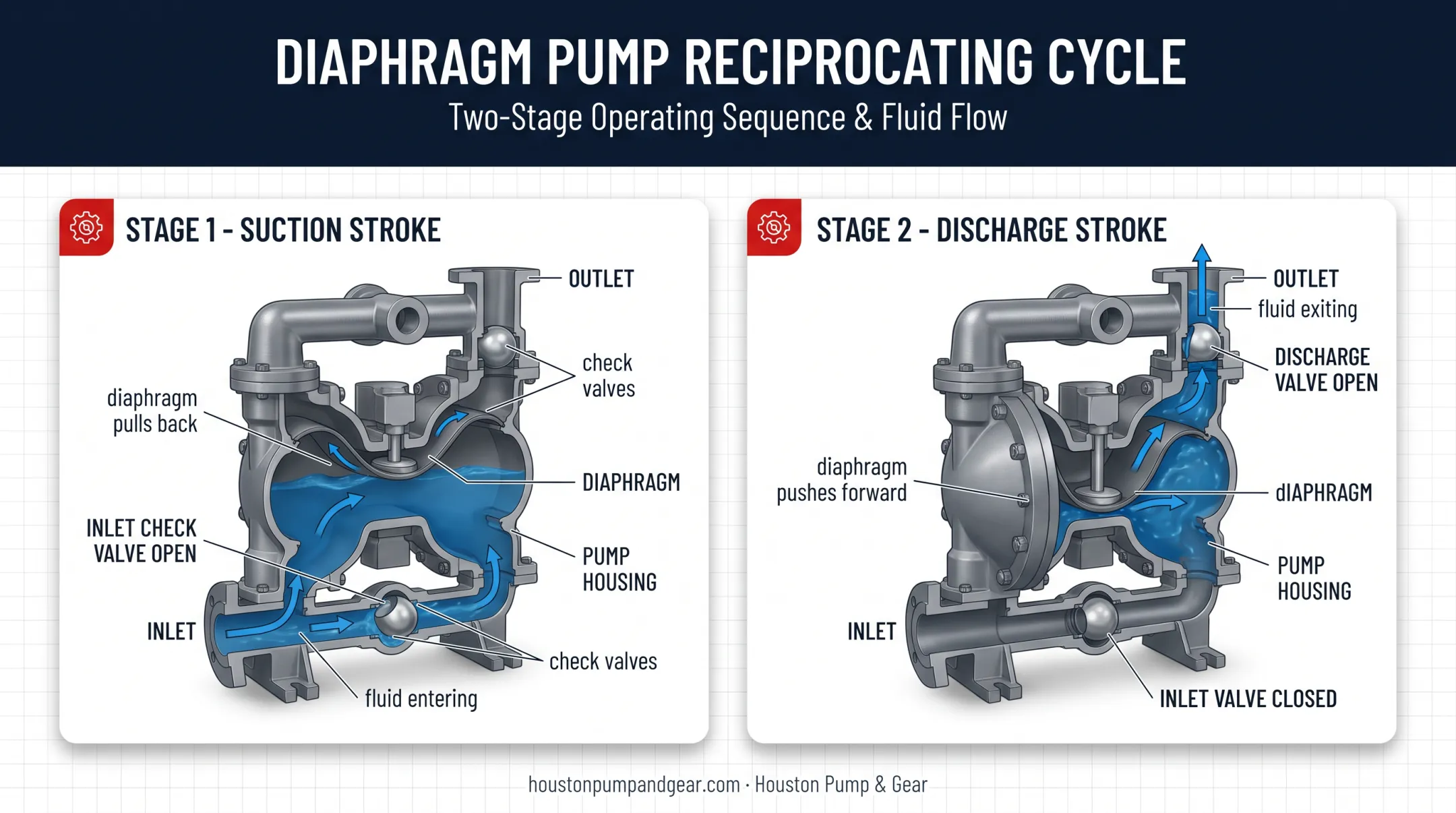

Here's the basic cycle:
- The diaphragm moves backward, creating suction that pulls fluid through the inlet check valve.
- The diaphragm moves forward, closing the inlet valve and forcing fluid out through the discharge valve.
- This reciprocating motion repeats continuously to generate flow.
Because the system is fully mechanical, every stroke adds wear. Diaphragms, valves, and seals degrade over time and need periodic inspection and replacement, not just reactive repair when something breaks.
Common Problems With Diaphragm Pumps
Most diaphragm pump failures fall into a handful of recognizable patterns. Catching the pattern early usually means a faster, lower-cost repair and less unplanned downtime.
Pump Won't Prime or Draw Fluid
Symptoms: No suction, dry running, delayed pumping start.
Likely causes:
- Air leaks in the suction line or fittings
- Clogged suction filter or strainer
- Regulator stuck in pressure mode instead of bypass
Low or No Discharge Pressure
Symptoms: Weak output, inconsistent dosing, reduced flow rate.
Likely causes:
- Incorrect RPM or stroke speed
- Worn nozzles
- Valve wear preventing proper seating
Excessive Vibration, Pulsation, or Noise
Symptoms: Shaking discharge lines, loud knocking, unstable output.
Likely causes:
- Misconfigured pulsation dampener
- Loose mounting or unsupported piping
- Cavitation, often from excessive suction lift that drops NPSHa below the pump's NPSHr requirement

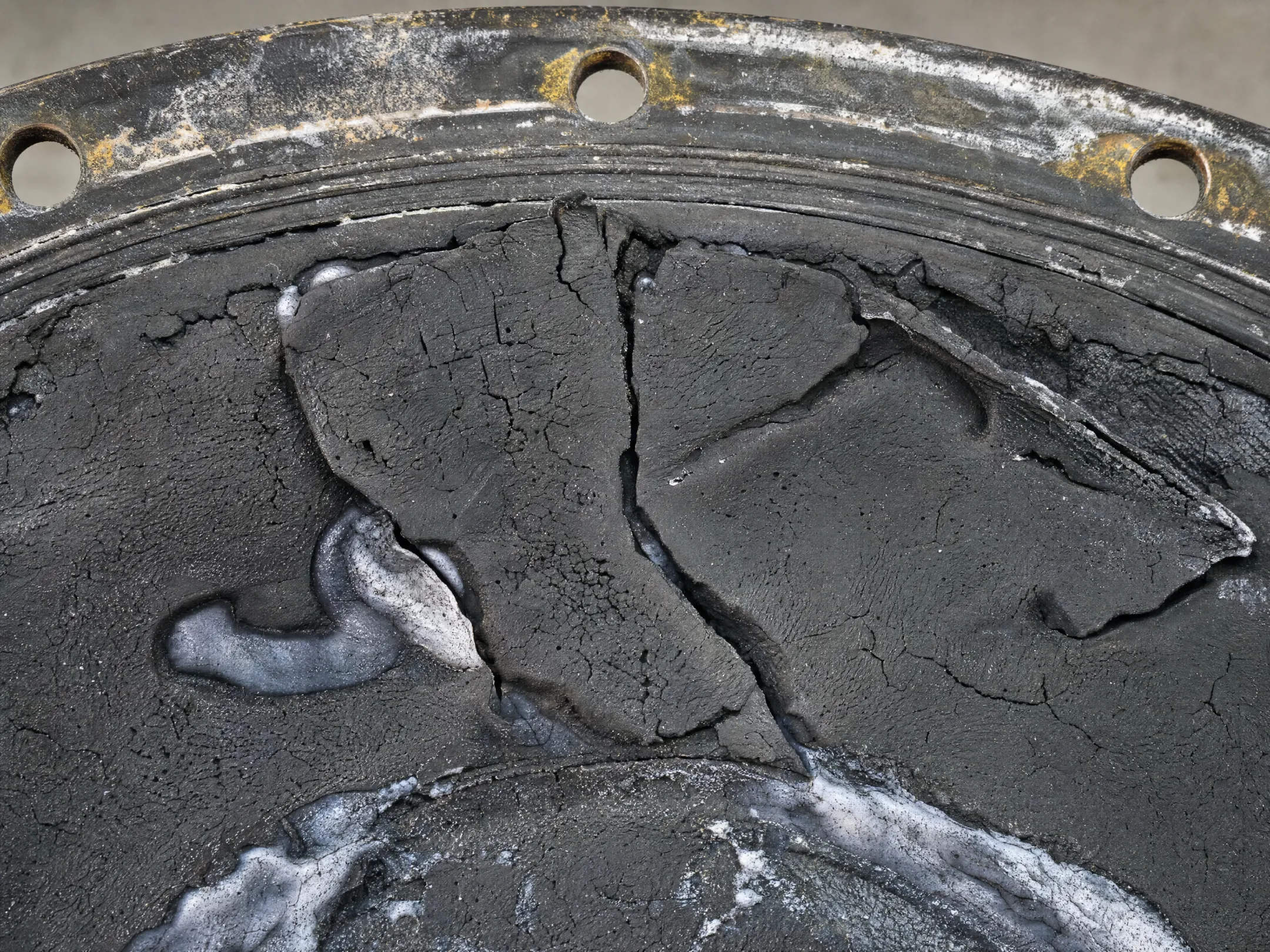

Leaking or Diaphragm Rupture
Symptoms: Visible fluid leakage, milky oil on mechanical models, reduced suction.
Likely causes:
- Worn or torn diaphragm
- Chemical incompatibility with the diaphragm material
- Improper torque on housing bolts
Why Diaphragm Pumps Fail (Root Causes)
Failures rarely come out of nowhere. They trace back to real operating conditions:
- Operational stress: cavitation, overspeed, or excessive suction lift that overloads the diaphragm and valves
- Environmental exposure: moisture, corrosive chemicals, or temperature extremes that degrade elastomers and housings
- Improper installation: wrong hose length or diameter, incompatible diaphragm material, or poorly supported lines that create chronic strain
- Skipped maintenance: no scheduled diaphragm replacement and missed inspections that let minor wear become sudden failure
Ignoring early warning signs raises the repair bill and drives larger operational problems:
- Reduced efficiency and dosing accuracy
- Product or process quality issues from inconsistent chemical feed
- Safety and compliance risks from chemical leaks
- Costly unplanned downtime and damage to downstream equipment
How to Fix a Diaphragm Pump (Step-by-Step)
Jumping straight to parts replacement without confirming the fault drives repeat failures and extra downtime. A structured process gets the repair right the first time.
Step 1: Identify the Exact Problem
- Observe visible symptoms: leaks, noise, vibration, output loss
- Compare current performance against the pump's rated flow and pressure specs
- Check for alarms, unusual sounds, or discoloration like milky oil
- Document when the issue occurs — at startup, under load, or during continuous run

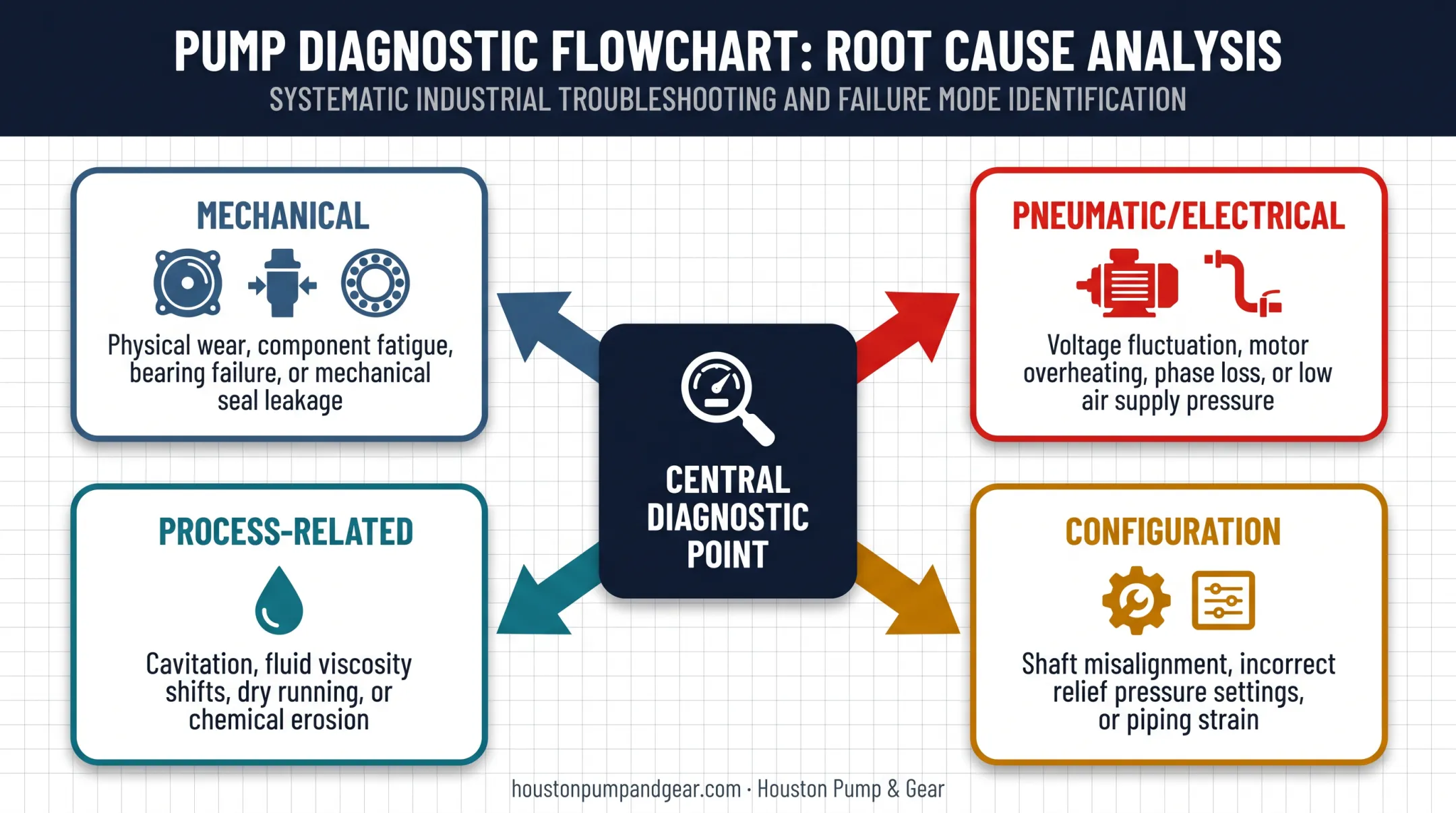

Step 2: Confirm the Root Cause Category
Determine whether the fault is:
- Mechanical — diaphragm, valves, bearings, seals
- Pneumatic/electrical — air supply, motor, controls, sensors
- Process-related — fluid compatibility, line restrictions, suction conditions
- Configuration — regulator mode, pulsation dampener, setpoint drift
Rule out external factors like suction-line air leaks or incorrect regulator settings before opening the pump housing.
Step 3: Fix the Pump Based on the Identified Problem
Once the category is confirmed, apply the matching fix path below.
Mechanical
- Replace the diaphragm and seals with an OEM kit
- Inspect check valve balls and seats for wear
- Re-torque the housing to spec
- Confirm diaphragm material compatibility with the chemical before reassembly (mismatched materials cause most repeat ruptures)
Pneumatic / electrical
- Verify air supply pressure and inspect the muffler for blockage
- Test electrical connections and sensors
- Recalibrate controls after replacing any component
Configuration
- Document original settings before changes
- Reset pulsation dampener pressure
- Correct regulator mode (pressure vs. bypass)
Process-related (environmental / operational)
- Reduce excessive suction lift
- Switch tubing or diaphragm materials for viscosity or chemical compatibility
- Adjust flow rate to match process conditions

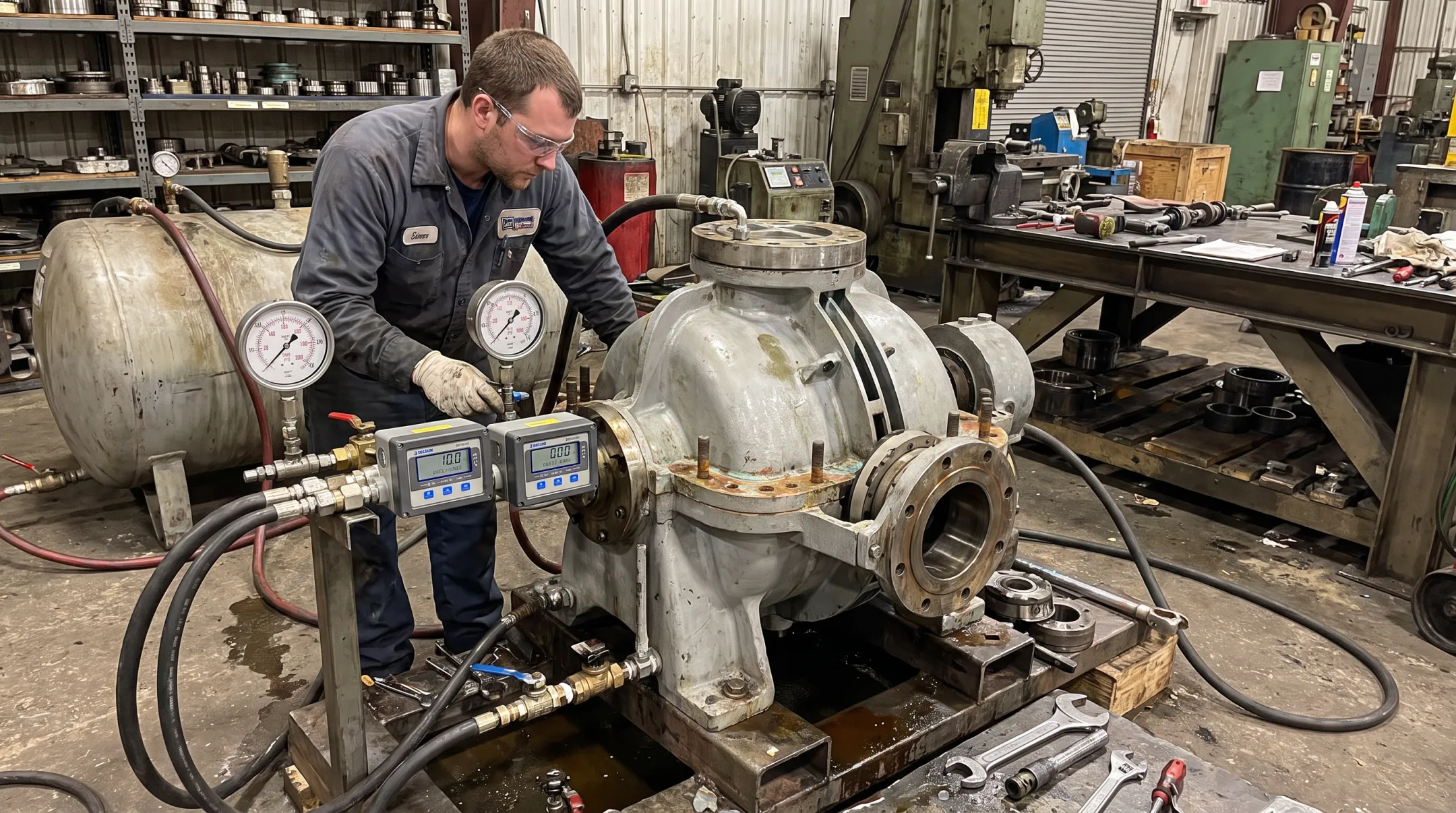

Step 4: Test and Validate the Repair
- Run the pump under normal and peak load conditions
- Monitor pressure, flow consistency, vibration, and temperature at multiple points against manual specs
- Confirm performance matches the pump's rated output
- Watch for recurrence over several operating cycles before calling the repair complete
If symptoms return, or the failure involves the housing, shaft, or repeated diaphragm rupture, stop field fixes and send the unit for a full industrial pump overhaul.
When Should You Fix vs Replace a Diaphragm Pump?
This comes down to weighing repair cost, downtime risk, and long-term reliability.
| Scenario | Fix | Replace |
|---|---|---|
| Pump under 5 years old, isolated diaphragm wear | Replace diaphragm/seals with OEM kit | Only if housing or drive components are also failing |
| Same component fails repeatedly | Address root cause (cavitation, chemical mismatch) plus part replacement | If root cause can't be resolved and failures keep recurring |
| Pump is critical to continuous operations | If rapid repair restores service within hours | If repair timeline risks extended downtime |
| Pump is old or parts are hard to source | Reverse-engineer hard-to-source parts, or repair only as a stopgap | With a newer, more efficient unit |
For hard-to-source or obsolete pumps, reverse engineering is worth considering before a full replacement. Recreating damaged or discontinued components from samples can add years of service life without the cost of a new unit. Houston Pump & Gear reverse-engineers obsolete and hard-to-source pump components, often a faster and more affordable route than waiting on OEM parts that may take weeks to arrive.
Common Mistakes to Avoid When Fixing a Diaphragm Pump
A few shortcuts during diaphragm pump repair create repeat failures and safety risks:
- Replacing parts based on symptoms alone, without confirming the true root cause
- Skipping post-repair testing under real operating load
- Using non-OEM or chemically incompatible diaphragm and seal materials
- Ignoring safety procedures, such as fully releasing residual pressure before disassembly
Pump failures always have a traceable root cause. Skipping the investigation step is how the same failure ends up back on the work order six months later.
Preventive Measures to Avoid Future Issues
Preventive maintenance is consistently cheaper than emergency repair. These habits prevent most repeat failures:
- Schedule regular visual inspections of diaphragms, seals, and suction lines
- Replace diaphragms based on run hours rather than waiting for failure
- Keep RPM, suction depth, and fluid compatibility within the pump's rated limits
- Shut down at early performance drop; fluid incompatibility can destroy a pump quickly
Unplanned downtime can cost facilities thousands of dollars per day. For plants running critical or complex diaphragm pump systems, partnering with an experienced industrial repair provider helps avoid that risk.
Houston Pump & Gear offers 24/7 emergency response and mobile field service across Texas and Louisiana. Technicians identify root causes of failure so the same issue does not recur.
Conclusion
Most diaphragm pump issues are fixable when caught early and diagnosed correctly. Accurate root-cause identification before you swap parts prevents wasted labor and repeat failures. Knowing when to fix versus replace, and recognizing when a problem is bigger than an in-house fix, protects uptime and keeps long-term repair costs down.
When the failure goes beyond routine diaphragm, valve, or seal work, Houston Pump & Gear provides industrial pump repair and overhaul with 24/7 emergency support to help facilities restore critical equipment quickly.
Frequently Asked Questions
How do I know if my diaphragm pump is bad?
Watch for loss of prime, inconsistent discharge pressure, visible leaks, unusual noise or vibration, and milky oil on mechanical models. Any of these signal it's time to inspect the pump.
What is the average lifespan of a diaphragm pump diaphragm?
There's no universal number: lifespan depends on run hours, chemical exposure, and operating conditions. Track hours and failure history for your specific pump rather than relying on a generic estimate.
Can a diaphragm pump be repaired without replacing the whole unit?
Yes. Most issues (worn diaphragms, damaged valves, and degraded seals) can be repaired with OEM kits without replacing the entire pump.
Why is my diaphragm pump losing pressure over time?
Common causes include worn check valves, incorrect RPM or stroke speed, and valve wear that prevents proper seating. Check these before assuming a bigger failure.
What causes a diaphragm to rupture prematurely?
Cavitation, chemical incompatibility with the diaphragm material, over-speed operation, and running past rated hours are the leading culprits.
When should I call a professional instead of repairing the pump myself?
Repeated failures, complex pneumatic or electrical faults, or pumps critical to continuous operations all warrant professional support. Houston Pump & Gear provides 24/7 emergency diaphragm pump repair for industrial facilities that can't risk extended downtime.
