Worm Gear Inspection Methods

Worm gear failure rarely happens without warning. It builds slowly, tooth by tooth, until a gearbox that powered a conveyor or mixer for years suddenly seizes mid-shift. In refineries, power plants, and heavy industry, that kind of downtime isn't just inconvenient — it can trigger safety concerns, missed production deadlines, and repair bills that dwarf the cost of routine inspection.

Worm gears wear faster than most other gear types because the worm and wheel slide against each other instead of rolling. That sliding contact generates more friction and heat, which accelerates surface degradation if lubrication or alignment isn't perfect.

This guide covers what you need to inspect worm gears, three proven inspection methods, how to read the results, and the mistakes that lead technicians astray.

TL;DR

• Worm gear inspection checks tooth wear, backlash, contact pattern, and lubrication condition
• Core methods: visual/contact pattern inspection, backlash measurement, and oil/wear debris analysis
• Results fall into three buckets: normal, minor wear, or out-of-spec
• Misalignment, contamination, and skipped thermal stabilization cause most bad readings
• Worn or damaged worm sets typically need professional repair or rebuild

What You Need to Check Worm Gears in Industrial Gearboxes

Your approach depends on one key question: is the gearbox staying in service, or coming apart for teardown?

Non-invasive checks (oil sampling, external vibration and temperature) work on a running unit. Contact pattern and precise backlash measurement usually require opening an inspection cover or pulling the unit for teardown.

Tools and Indicators Required

• Dial indicator with magnetic base
• Feeler gauges
• Flashlight or borescope
• Straightedge
• Marking or layout dye (Dykem or equivalent)
• Micrometer
• Oil sample kit with clean containers

Preconditions and Setup

Before touching anything:

1. Lock out and de-energize the gearbox drive completely
2. Drain oil if needed, then open the inspection cover for access
3. Level and stabilize the gearbox on a bench or mount if it's out for teardown
4. Clean the inspection area and ensure good lighting — debris or shadows lead to misread wear marks

Skipping cleanliness here is one of the fastest ways to misdiagnose a healthy gearbox as failing, or worse, miss a genuine problem.

Methods to Check Worm Gear Condition

Choose your method based on whether the unit is in service or torn down, and how much precision you need.

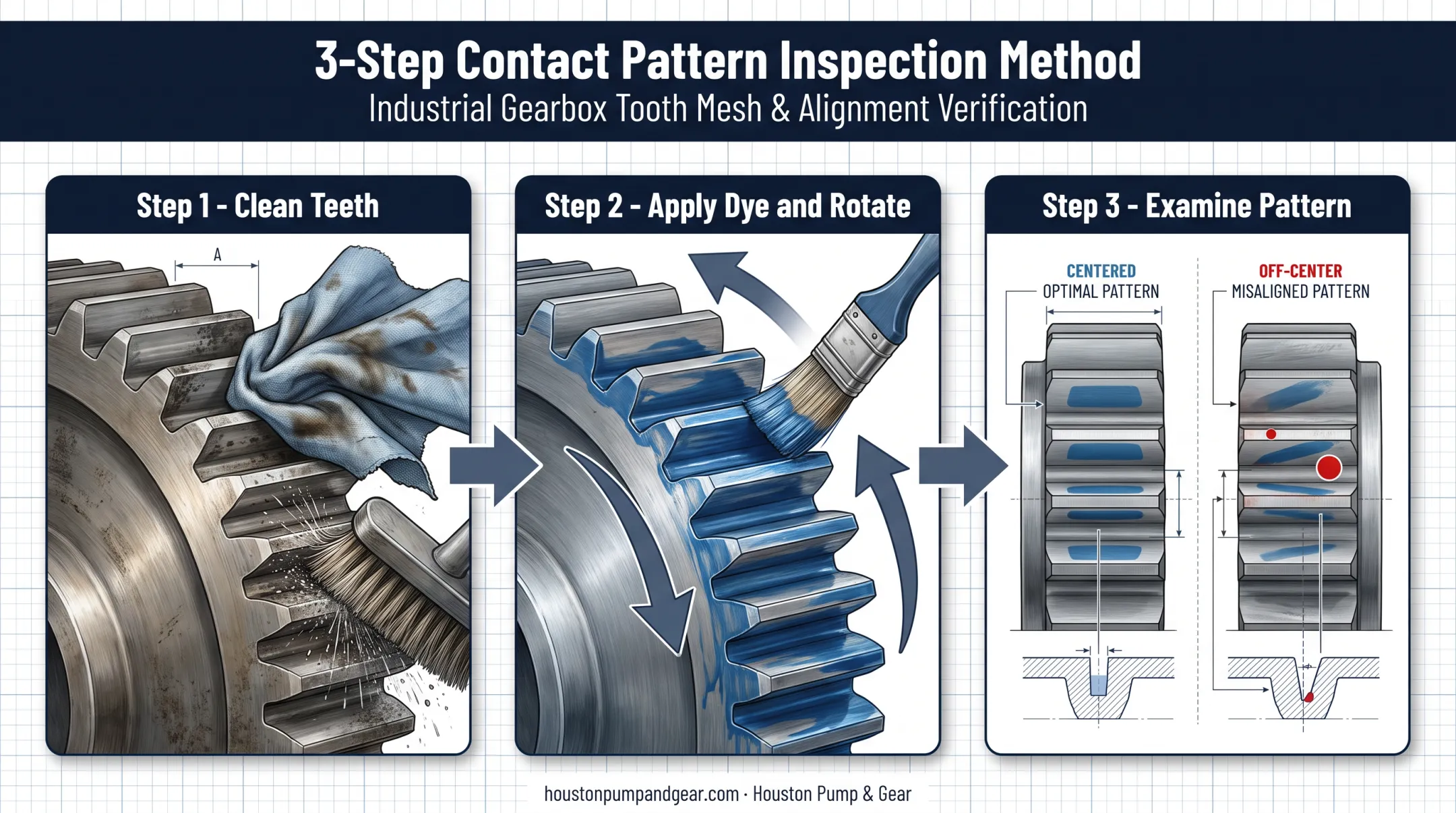

Method 1: Visual and Contact Pattern Inspection

This method reveals tooth surface condition and how the worm and wheel actually mesh under load.

Tools needed: Marking dye, flashlight or borescope, cleaning solvent.

Steps:

1. Clean worm and wheel teeth thoroughly to remove oil and debris
2. Apply dye to the worm threads and rotate the gear set through several revolutions under light load
3. Examine the resulting contact pattern on the wheel teeth against the theoretical center-of-tooth pattern

Pros and cons:

• Fast way to spot misalignment or improper meshing
• Won't catch internal fatigue or micro-pitting below the surface

Apply dye in a thin, even coat. Too thick, and the pattern reads wider than reality — a common source of false alarms.

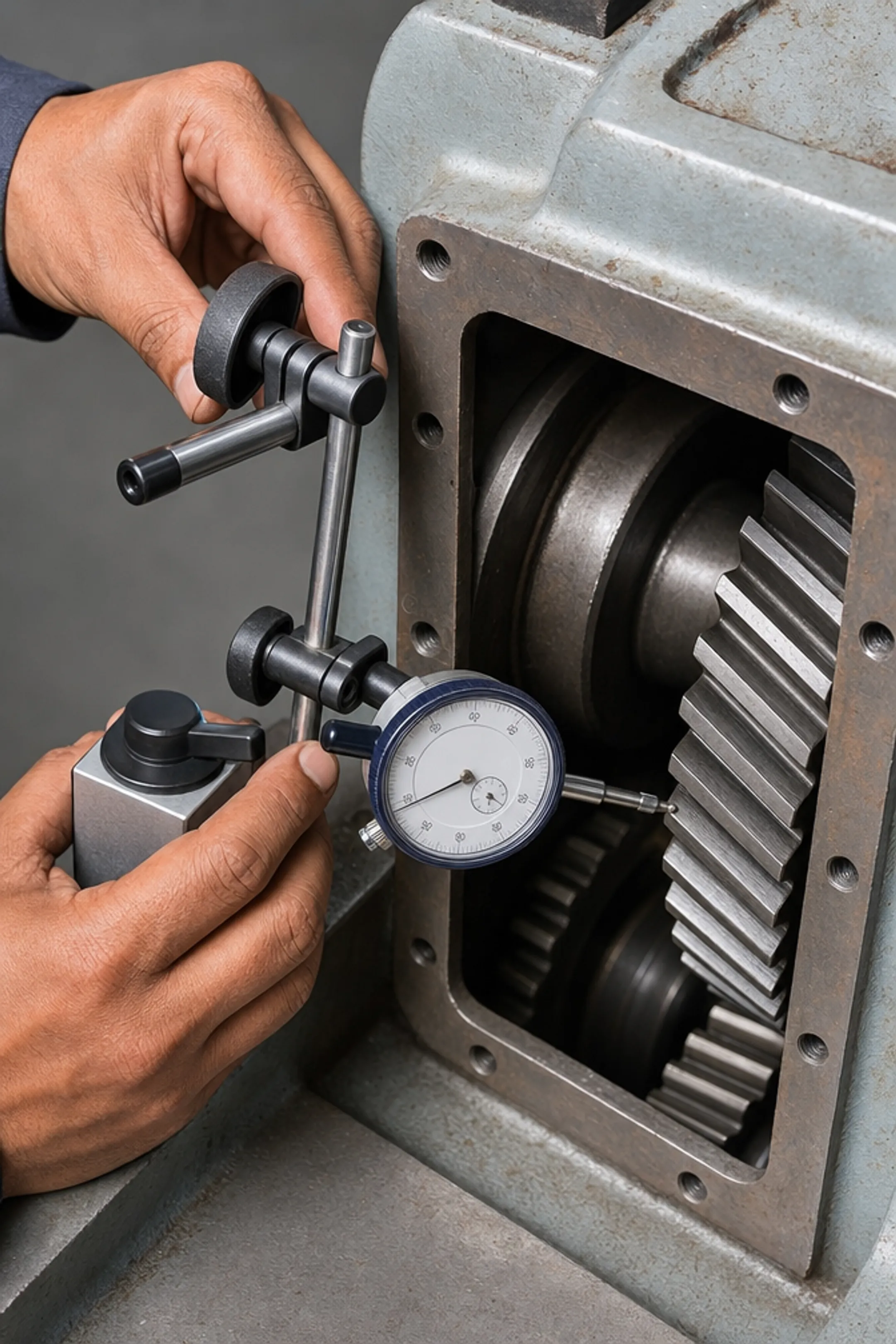

Method 2: Backlash and Runout Measurement

Backlash tells you how much rotational play exists between worm and wheel, and runout flags bearing or shaft wear.

Tools needed: Dial indicator with magnetic base, fixed reference point on the housing.

Steps:

1. Mount the dial indicator against a wheel tooth flank while holding the worm stationary
2. Rock the worm wheel gently and record total indicator movement as backlash
3. Rotate the worm shaft by hand while measuring radial runout at the shaft ends

Pros and cons:

• Quantifiable and repeatable — strong for tracking wear trends over time
• Requires opening side covers; loose bearings can inflate readings and mask true gear condition

Method 3: Lubricant and Wear Debris Analysis

This is the only method that catches internal wear before it shows on the outside.

Tools needed: Oil sample kit, magnetic drain plug, viscosity comparison chart or lab kit.

Steps:

1. Draw an oil sample from the mid-level drain point after the gearbox has run and settled
2. Inspect the sample and magnetic drain plug for metallic particles, sludge, or water contamination
3. Send the sample to a lab or compare visually and by smell against a baseline for oxidation and additive breakdown

Pros and cons:

• No disassembly needed; catches wear early
• Can't pinpoint exact tooth location or severity — pair it with a physical inspection

Used together, these methods give you surface condition, measurable play, and early internal wear signals before a failure takes the unit offline.

How to Interpret the Results

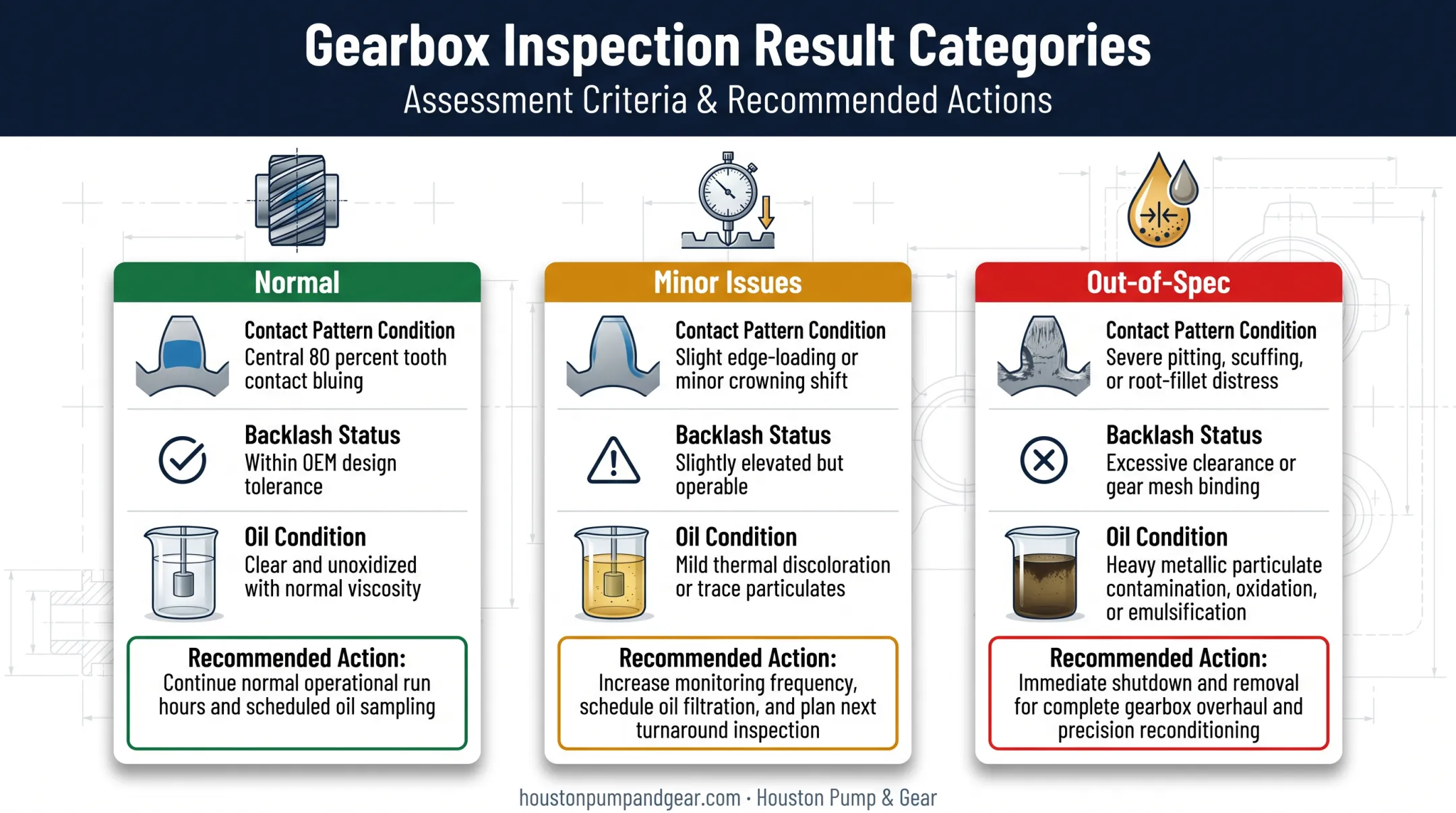

Misreading a contact pattern, backlash figure, or oil sample cuts both ways. You either miss an early failure sign or scrap a perfectly serviceable gear set. Here's how to sort results into three buckets:

Category	Signs	Action
Normal	Centered contact pattern, backlash within OEM spec, clean oil with no visible metal	Continue normal service interval
Minor Issues	Slightly off-center pattern, marginal backlash increase, light oil discoloration	Schedule closer monitoring; address alignment or lubrication before next major service
Out-of-Spec	Heavy pitting/scoring, one-sided pattern, backlash beyond tolerance, metal-loaded oil	Requires gearbox removal and professional repair

Note that no universal thousandths-of-an-inch backlash spec applies to every worm gearbox. OEM tolerances vary by manufacturer and model.

The most reliable field practice is trend-based: record backlash at installation, then track it over time. If it climbs significantly beyond that baseline, that's your trigger to act, not a generic number pulled from a chart.

Common Errors in Checking Worm Gears

Even experienced technicians fall into these traps:

• Applying dye unevenly or too thick — distorts the true contact pattern
• Measuring backlash without ruling out bearing play — inflates wear estimates
• Not rotating through enough revolutions — misses a representative pattern
• Sampling oil from the bottom of the sump — sediment settles there, skewing contamination readings
• Mistaking normal bronze discoloration for a defect — worm wheels are typically bronze, and some surface discoloration is expected wear, not failure

Safety and Best Practices

Worm gear inspection on industrial equipment carries real hazards. Don't skip these steps:

• Always lock out/tag out (LOTO) and de-energize the gearbox drive before opening covers or draining oil
• Use proper lifting equipment when accessing heavy industrial gearboxes, especially in power plant settings
• Wear PPE (gloves and eye protection) when handling dye, solvents, and hot oil samples
• Keep tools and inspection points clean to avoid false wear readings from contamination

Conclusion

Accurate worm gear inspection combines visual pattern checks, backlash measurement, and oil analysis to catch wear before it turns into unplanned downtime. Reliable results come from a clean setup, correct tool use, and consistent interpretation against OEM tolerances, not guesswork.

When inspection reveals out-of-spec wear, time matters. Houston Pump & Gear's 24/7 emergency response team has handled complex worm gear rebuilds under real-time pressure, including a Lufkin S2212C gearbox that was picked up, repaired, and returned to service within 72 hours after an emergency shutdown at a power plant. If your inspection turns up trouble, that kind of turnaround can be the difference between a bad day and a shutdown week.

Frequently Asked Questions

What is the lifespan of a worm gearbox?

With proper lubrication and regular inspection, worm gearboxes can run for many years. Actual service life varies widely based on load, duty cycle, and how consistently maintenance is performed.

Do worm gears need lubrication?

Yes. The sliding contact between worm and wheel generates more friction and heat than rolling gear types, making continuous, correct-grade lubrication essential.

What is the normal pressure angle of a worm gear?

Most worm gears use either a 14.5° or 20° pressure angle, depending on the lead angle and application. Check the specific OEM drawing for your unit.

How often should worm gearboxes be inspected?

For continuous-duty industrial applications, inspect every 3-6 months. Inspect immediately if you notice unusual noise or vibration, regardless of schedule.

What causes premature worm gear wear?

The leading causes are inadequate lubrication, misalignment, contamination, and overloading. Most failures trace back to one or more of these.

Can a worn worm gear be repaired instead of replaced?

Sometimes. Gear sets with mild wear can often be reconditioned. Heavily pitted or scored sets typically need full replacement or a professional rebuild from a shop equipped for worm gear overhaul and precision machining.
