Heavy loads, round-the-clock operation, lubrication gaps, and harsh environments wear these units down over time. This article covers the common problems, root causes, step-by-step fixes, fix-vs-replace guidance, and when it's time to call an emergency repair partner like Houston Pump & Gear.
What Is a Conveyor Gearbox?
A conveyor gearbox is a mechanical unit that reduces motor speed and increases torque to drive the conveyor's pulley or drive shaft. Without it, an electric motor would spin far too fast and with far too little force to move a loaded belt.
It sits between the motor and the driven pulley, converting the motor's speed and torque into the specific output the conveyor needs. This directly determines belt speed and how much load the system can handle.
Like any power transmission component, a conveyor gearbox degrades under load, heat, and contamination. It needs routine maintenance and, eventually, repair.
TL;DR
- Four failure patterns dominate: noise/vibration, oil leaks, overheating, and torque loss
- Most issues are repairable if caught early: severe or recurring damage often means replacement
- The fix process has 4 steps: diagnose, confirm root cause, repair, then test and validate
- Complex gearboxes and critical-uptime jobs need a pro team with teardown and machining capability

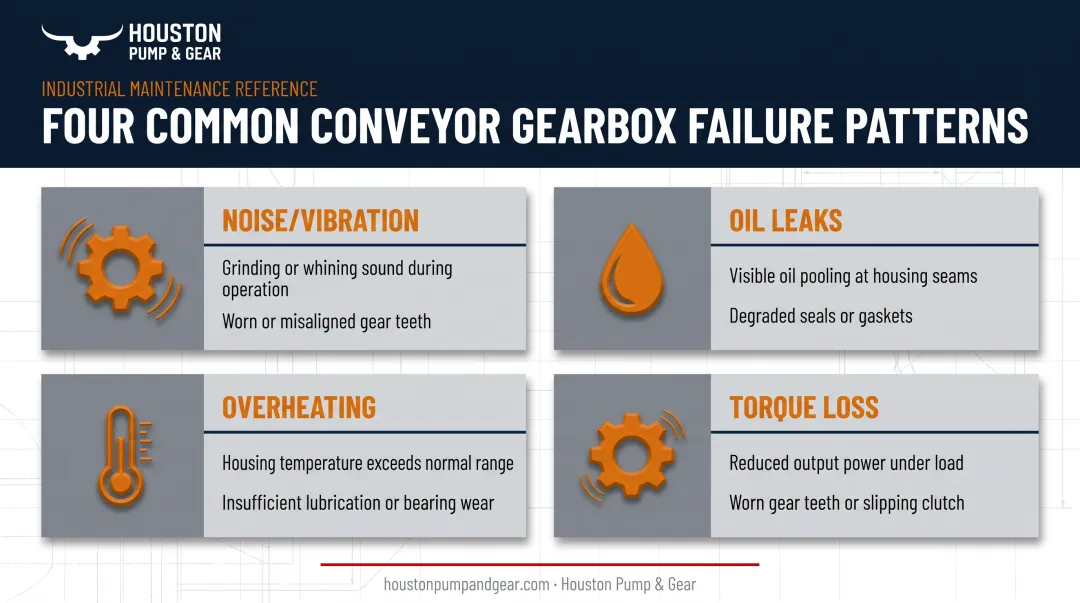

Common Problems With Conveyor Gearboxes
Most conveyor gearbox failures follow a handful of predictable patterns tied to load, lubrication, and environmental exposure. Catching these early is what separates a quick repair from a full teardown.
Unusual Noise or Vibration
Symptoms: Grinding, whining, rattling, or excessive shaking during operation.
Likely causes: Worn or misaligned gears, bearing failure, or loose mounting hardware. Dodge's technical guidance specifically flags excessive movement or abnormal vibration as a signal to inspect for bearing wear or misalignment, and warns that rigid mounting can put unnecessary strain on the reducer (Dodge Industrial).
Oil Leaks
Symptoms: Visible oil streaks near seals or housing joints, consistently low oil levels.
Likely causes: Worn or hardened shaft seals, overfilling, or bolts loosened by vibration over time. Even small leaks matter. A gearbox running low on oil is one step away from overheating.
Overheating
Symptoms: Temperatures exceeding manufacturer specs, a burnt-oil smell, discolored lubricant.
Likely causes: Degraded or insufficient lubrication, overloading beyond rated capacity, or poor ventilation. Flender's belt-conveyor gear unit documentation notes that excessive operating temperature impairs lubrication, damages seals, and accelerates wear across the whole unit (Flender, 2018).
Torque Loss or Output Slippage
Symptoms: The belt hesitates, lags, or stalls while the motor keeps running normally.
Likely causes: Worn gear teeth, damaged coupling keys, or a slipping clutch or torque limiter. This one's tricky because the motor looks fine on the surface. The failure is downstream, inside the gearbox or coupling.
Philadelphia Gear identifies improper lubrication, contamination, misalignment, overloading, and normal wear as the common causes behind most industrial gearbox failures. Conveyor units aren't an exception.

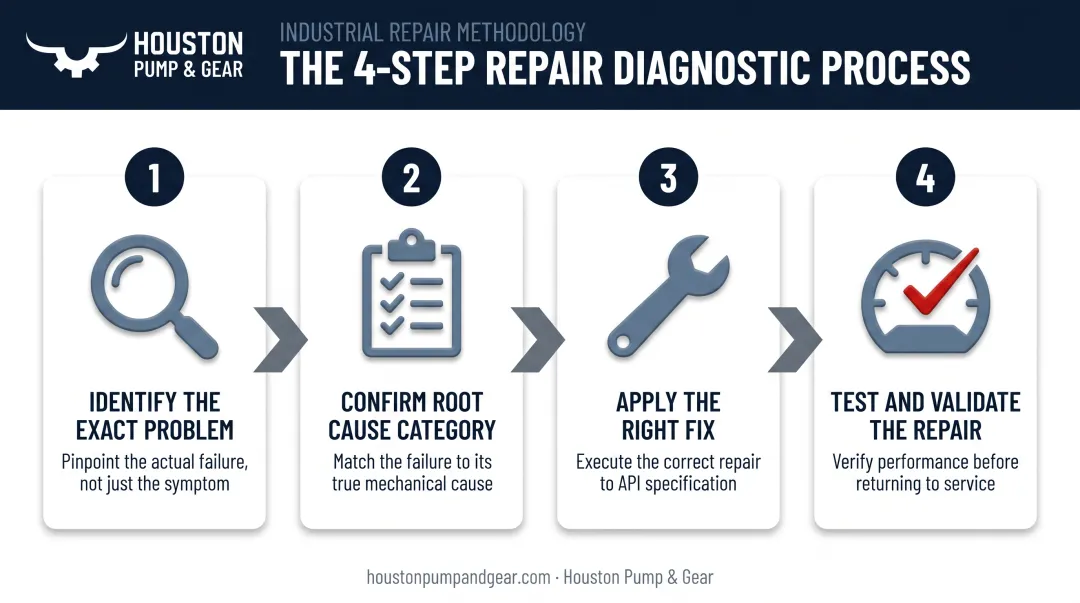

How to Fix a Conveyor Gearbox (Step-by-Step)
Attempting a repair before pinpointing the exact problem usually leads to wasted parts and repeat failures. This structured process isolates the true root cause before any wrench touches the gearbox.
Step 1: Identify the Exact Problem
Start by observing visible and audible symptoms:
- Listen and look for noise, leaks, heat, or vibration
- Note when the issue shows up: startup, under load, or continuous running
- Compare output and behavior against your normal baseline
- Review maintenance logs, oil analysis reports, and alarm history
Houston Pump & Gear's technicians typically layer visual inspection with vibration monitoring and thermal imaging at this stage, since abnormal sounds can be nearly impossible to isolate on a loud plant floor. Vibration sensors can pick up misalignment, worn bearings, and gear cracks well before they're audible or visible.
Step 2: Confirm the Root Cause Category
Determine whether the issue falls into one of these buckets:
- Mechanical wear: gears, bearings, seals
- Lubrication breakdown: contamination, viscosity loss, water ingress
- Misalignment or installation error
- Operational overload: exceeding rated capacity or duty cycle
Rule out external factors (load swings, ambient temperature, dust or debris ingress) before opening internal components. Confirm the cause first so you avoid unnecessary part swaps and repeat breakdowns.
Step 3: Apply the Right Fix Based on the Cause
The repair approach depends entirely on the confirmed cause category. Matching the fix to that category is what keeps time, cost, and rework under control.
If the issue is mechanical (worn gears, bearings, seals):
- Re-machine or replace gears with worn or damaged teeth
- Install new bearings and seals where play, scoring, or leakage shows up
- Realign shafts and couplings before button-up
Houston Pump & Gear handles this level of work in-house with five-axis CNC machining centers, CNC form grinders, gear hobbers up to 53 inches in diameter, and balance machines rated up to 17,000 pounds. Worn or corroded shafts can also be restored through metal spray rather than fully replaced.
If the issue is lubrication-related:
- Check oil viscosity, contamination, water content, and sludge buildup
- Flush and refill with the correct-grade lubricant per OEM spec
- Clear clogged breathers
- Correct fill levels
Flushing the gears removes metal shavings and debris, which reduces friction, slip, and heat going forward. Lubricant selection should always follow the gearbox manufacturer's specific requirements, referencing classification systems like ISO VG or AGMA rather than guessing at a grade.
If the issue is operational or environmental:
- Check current load versus rated capacity
- Verify ventilation pathways
- Assess dust and moisture exposure
- Adjust load or duty cycle where needed
- Improve cooling or ventilation
- Upgrade seals and breathers for harsh conditions
- Add desiccant breathers and magnetic plugs to control moisture and catch metallic particles
Step 4: Test and Validate the Repair
Run the gearbox under normal and peak-load conditions after reassembly. Monitor temperature, noise, vibration, and oil pressure against established baseline benchmarks.
A thorough validation process includes:
- No-load spin tests to verify expected output RPM
- Noise testing in decibels
- Vibration testing for abnormal operating behavior
- Temperature checks on bearings and housing
Document the results and monitor for recurrence over a defined trial period before returning the unit to full production. Skipping this step is one of the fastest ways to end up back at square one.
When Should You Fix vs. Replace a Conveyor Gearbox?
This decision comes down to cost, downtime risk, and long-term reliability. There's no universal formula, but a few scenarios make the answer fairly clear.
| Scenario | Fix | Replace |
|---|---|---|
| Isolated, minor damage | Seal, bearing, or gasket failure; sound housing; parts available | Repair preferred; usually the most cost-effective path |
| Failure history | First-time failure with a clear, correctable cause | Same failure keeps returning after repairs; damage likely beyond correction |
| Severe wear or obsolete units | Not viable: missing gear teeth, cracked housings, or compromised bearing seats | Extensive internal damage or discontinued OEM parts |
A common industry rule of thumb puts the tipping point around 75% of replacement cost. Once repair estimates cross that line, replacement usually makes more financial sense.
For legacy or obsolete units where OEM parts no longer exist, reverse engineering is a third path: measure the original components with precision metrology and CAD, then custom-manufacture gears, shafts, or housings to OEM spec.
When to Call In a Professional Repair Team
Large industrial or power-plant gearboxes often need specialized machining, teardown capability, and rapid-response logistics that go beyond what most in-house maintenance teams can handle.
Houston Pump & Gear completed an emergency 72-hour teardown and repair of a Lufkin S2212C gearbox after a power plant went into full emergency shutdown. A truck was dispatched the same day, the failed unit went back to the shop, and the plant was running again in three days.
That customer has since had more than 15 additional units serviced by the company.
For critical-uptime situations across Texas and Louisiana, engaging a 24/7 mobile field-response partner can be more cost-effective than extended in-house diagnostics or waiting on long OEM lead times.
Preventive Measures & Common Mistakes to Avoid
Correct diagnosis paired with preventive care lowers long-term repair costs and cuts unplanned downtime. Most gearbox failures are preventable — they just don't feel that way in the moment.

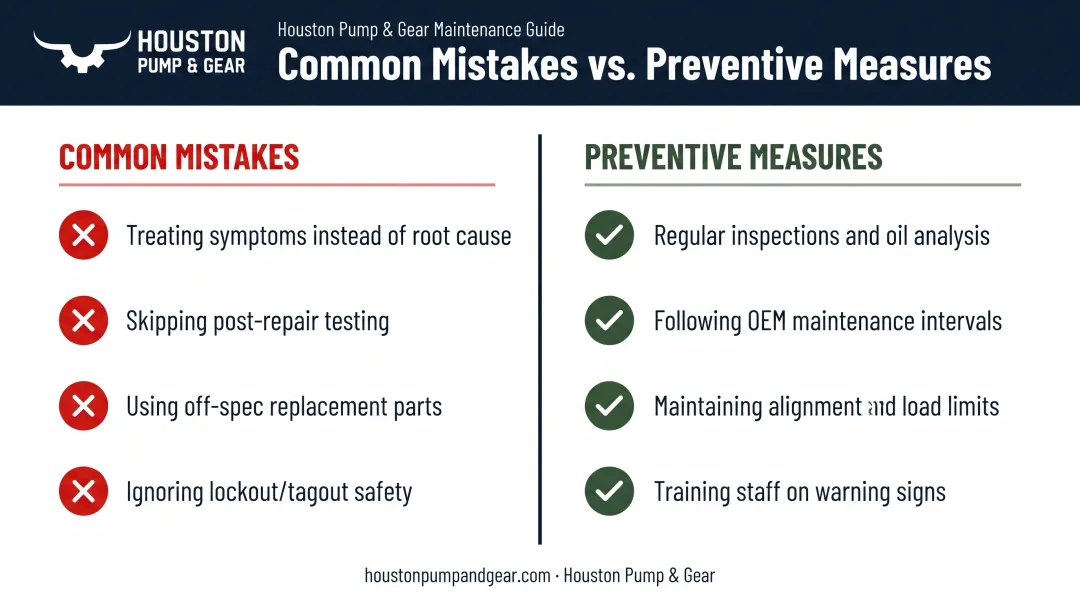

Common Mistakes to Avoid
- Treating surface symptoms instead of diagnosing the true root cause
- Skipping post-repair testing and validation before returning to full load
- Using incompatible or off-spec replacement parts
- Ignoring lockout/tagout and other safety procedures during teardown
Avoiding those pitfalls is only half the job. The rest is building inspection and lubrication habits that catch wear before it turns into a failure.
Preventive Measures
- Schedule regular visual inspections and periodic oil analysis
- Follow OEM-recommended maintenance intervals and lubrication schedules (Dodge Torque-Arm II: 2,500 hours or six months; sooner in hot, wet, or dusty conditions)
- Maintain proper shaft and coupling alignment and stay within rated load and duty cycle
- Train staff on early warning signs and keep documented maintenance and failure logs
Oil analysis works best when it's trended, not treated as a one-off. Establish a new-oil baseline, sample consistently from the same location, and compare each new result against both the baseline and prior samples. A single test in isolation tells you far less than a pattern over time.
Conclusion
Most conveyor gearbox issues are fixable when addressed early with the right diagnostic process. The fixes themselves — new bearings, seal replacement, lubrication flushes, realignment — aren't complicated in isolation.
What makes a repair last is identifying the root cause instead of patching the symptom. Knowing when to fix versus replace—and having a 24/7 partner like Houston Pump & Gear ready when downtime can't wait—saves cost and keeps critical operations running.
Frequently Asked Questions
Can a damaged gearbox be repaired?
Most damage to seals, bearings, gears, and lubrication systems is repairable if caught early. Severe internal damage or cracked housings, however, may require full replacement.
What is the role of a gearbox in a conveyor system?
It reduces motor speed and increases torque to drive the conveyor pulley. This controls both belt speed and how much load the system can handle.
Is it worth fixing a gearbox?
Repair is usually worth it for isolated damage where parts are available and costs stay well under replacement value. Recurring failures or obsolete units often favor replacement instead.
How long does conveyor gearbox repair take?
Turnaround varies by damage severity, ranging from about 24 hours for simple work to several weeks for complex overhauls. Emergency teams can complete critical rebuilds in as little as 72 hours, as seen with a Lufkin S2212C emergency repair.
How much does it cost to repair a conveyor gearbox?
Costs depend on parts, labor, and damage severity, but repair is often around 40% less than buying new. Replacement becomes more practical once repair costs exceed roughly 75% of a new unit's price.
What causes a conveyor gearbox to fail?
The leading causes are lubrication breakdown, overloading, misalignment, and prolonged exposure to heat or contaminants. Normal wear still adds up over time, even with good maintenance.
